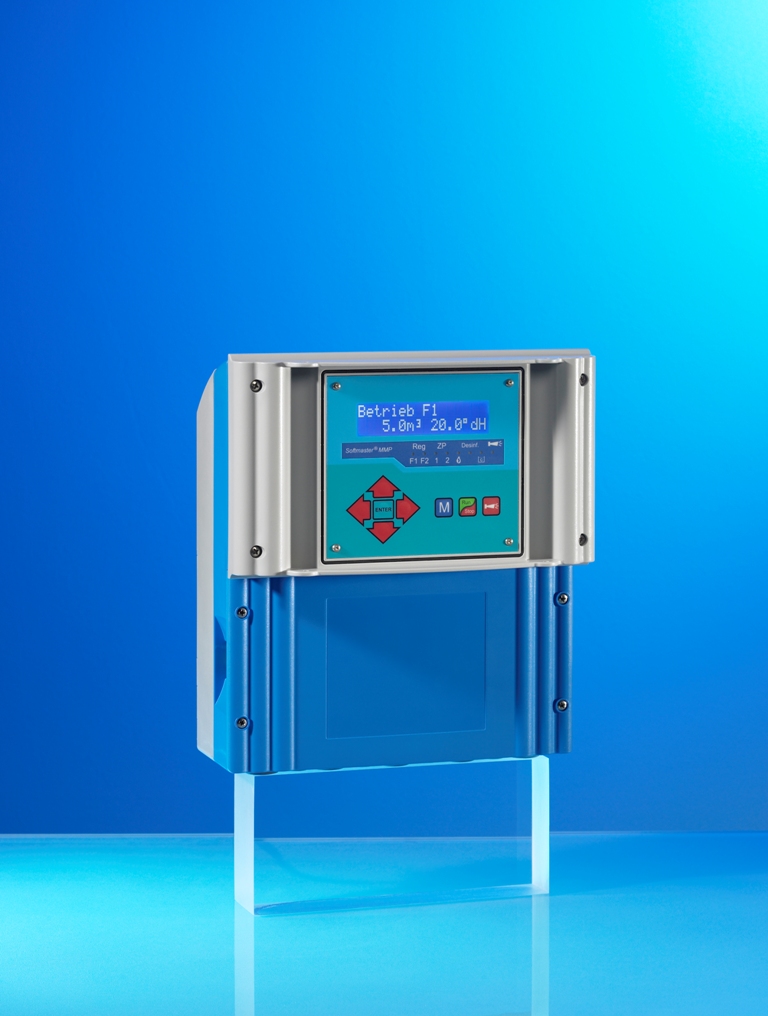

Softmaster® MMP 1
Product number: 610102
€739.10*
Please log in to receive your conditions.
Delivery time on request
Product number:
610102
Application:
Boiler houses, Cooling towers, Softening and reverse osmosis
Menu navigation:
German, English, French, Italian, Dutch, Polish
Our comment:
Available panel- or wall-mounted!
Product information "Softmaster® MMP 1"
Controlling device Softmaster® MMP 1 for fully automated regeneration of water softening plants; fitting for central control valves or pilot distributor, controlled via electrical toggle or pulse switch for 1-filter, 2-filter-alternate switching; quantity/time/quality controlled activation of regeneration.
Technical Data:
Mains connection: 230-240 VAC, 115 VAC, 24 VAC +/-10% all 50-60Hz
Power consumption: max. 9 VA
Protection type: I
Protection class: IP 65
Dimensions (W x H x D): 270 x 295 x 130 mm / 10.6" x 11.6" x 5.1"
Control panel cut-out: 262 x 146 mm, +1 mm / / 10.3" x 5.7"
Installation depth: ca. 90 mm / 3.5"
Front frame dimensions: 270 x 155 mm / 10.6" x 6.1"
Weight: approx. 1,3 kg / 2.9 lbs
Potential-free relay outputs for two filters, service valves and error message, synchronizing contact
12 V power supply for water turbine
Inputs for water flow meter, regeneration start/regeneration stop, salt and brine monitoring, and additional external program start
Technical Data:
Mains connection: 230-240 VAC, 115 VAC, 24 VAC +/-10% all 50-60Hz
Power consumption: max. 9 VA
Protection type: I
Protection class: IP 65
Dimensions (W x H x D): 270 x 295 x 130 mm / 10.6" x 11.6" x 5.1"
Control panel cut-out: 262 x 146 mm, +1 mm / / 10.3" x 5.7"
Installation depth: ca. 90 mm / 3.5"
Front frame dimensions: 270 x 155 mm / 10.6" x 6.1"
Weight: approx. 1,3 kg / 2.9 lbs
Potential-free relay outputs for two filters, service valves and error message, synchronizing contact
12 V power supply for water turbine
Inputs for water flow meter, regeneration start/regeneration stop, salt and brine monitoring, and additional external program start
