Preis auf Anfrage
Artikelnummer:
891166
EAN:
4260682387660
Angebot als PDF
Anmelden für adressiertes Angebot Die eingegebene Stückzahl wird bei der Erstellung des Angebots berücksichtigt.
Anmelden für adressiertes Angebot Die eingegebene Stückzahl wird bei der Erstellung des Angebots berücksichtigt.

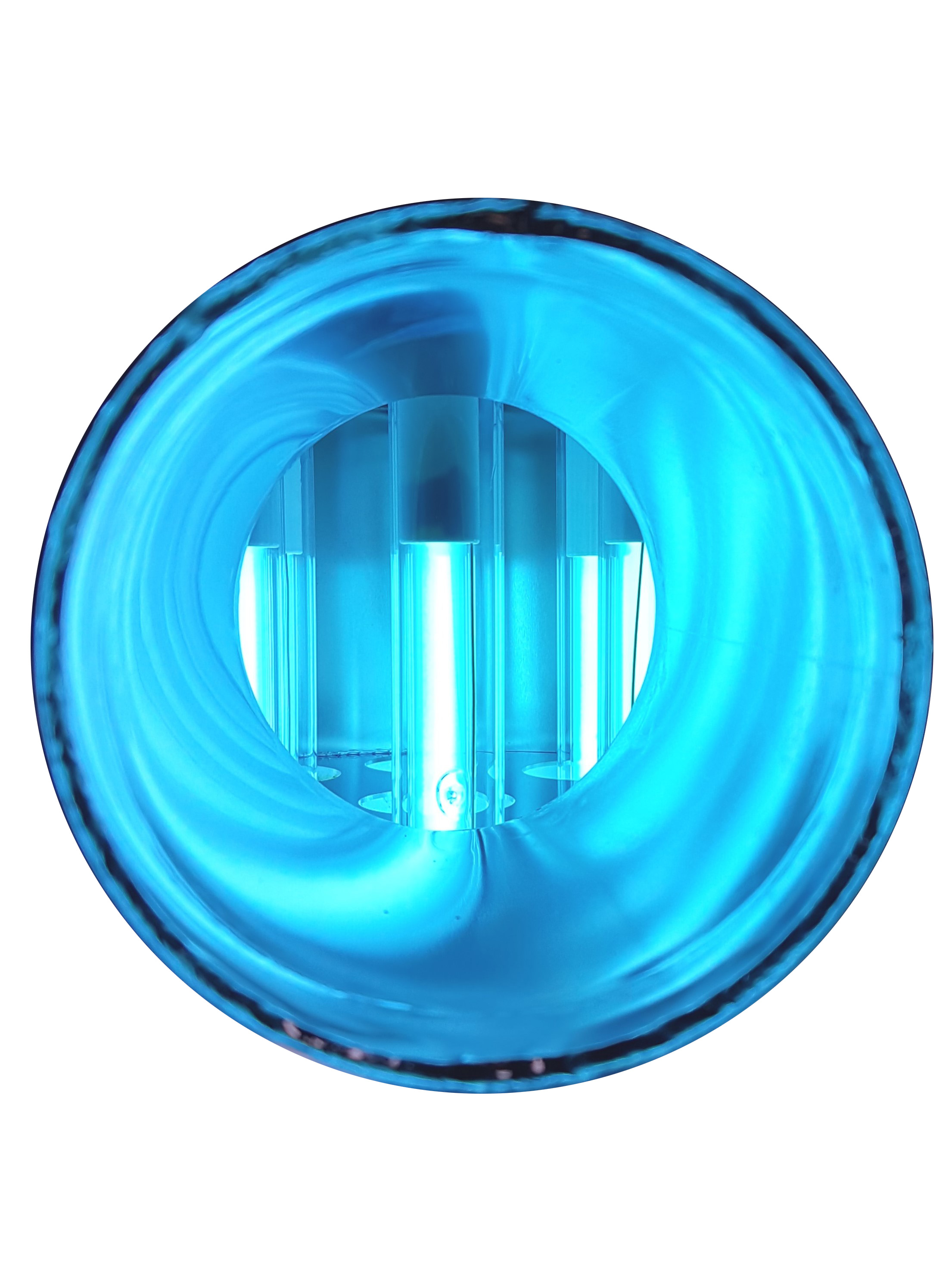

Produktinformationen "UVprofessional Pool Mitteldruckanlage 24 m³/h"
UV-Mitteldruckanlagen für die Wasserdesinfektion und den Abbau von organisch gebundenem Chlor (Chloramine) im Schwimmbadwasser.
Pool MS 14:
Durchfluss: 14 m³/h bei 600 J/m²
UV-Strahler: 1x 650 Watt
Anschluss: DN 65, PN10
Pool MS 24:
Durchfluss: 24 m³/h bei 600 J/m²
UV-Strahler: 1x 1000 Watt;
Anschluss: DN 65, PN10
Pool MS 42:
Durchfluss: 42 m³/h bei 600 J/m²
UV-Strahler: 1x 2000 Watt
Anschluss: DN 65, PN10
Pool MS 131:
Durchfluss: 131 m³/h bei 600 J/m²
UV-Strahler: 1x 3000 Watt
Anschluss: DN 150, PN10
Pool MS 247:
Durchfluss: 247 m³/h bei 600 J/m²
UV-Strahler: 1x 5000 Watt
Anschluss: DN 200, PN10
Maße
Gewicht
Weitere Eigenschaften
Anwendungen | Schwimmbad |
---|---|
Marke | Neomeris |
Ursprungsland | EU |
Zolltarifnummer | 84212100 |
Technische Daten
Pool MS 14 | Pool MS 24 | Pool MS 42 | Pool MS 131 | Pool MS 247 | |
Durchfluss m³/h bei 600 J/m²: (Qmax bei T1cm 98%) |
14 | 24 | 42 | 131 | 247 |
Anschluss: | DN 65, PN10 | DN 65, PN10 | DN 65, PN10 | DN 150, PN10 | DN 200, PN10 |
Reaktorabmessungen in mm LxB | 560 x 245 | 600 x 300 | 600 x 300 | 750 x 380 | 850 x 400 |
UV-Strahler: | 1x 650 Watt | 1x 1000 Watt | 1x 2000 Watt | 1x 3000 Watt | 1x 5000 Watt |
Nennleistung: | 650 Watt | 1100 Watt | 2000 Watt | 3000 Watt | 5000 Watt |
Schaltschrankmaterial: | Stahlblech | ||||
Abmessungen in mm: | 500 x 500 x 300 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 |
