Preis auf Anfrage
Artikelnummer:
891165
EAN:
4260682387653

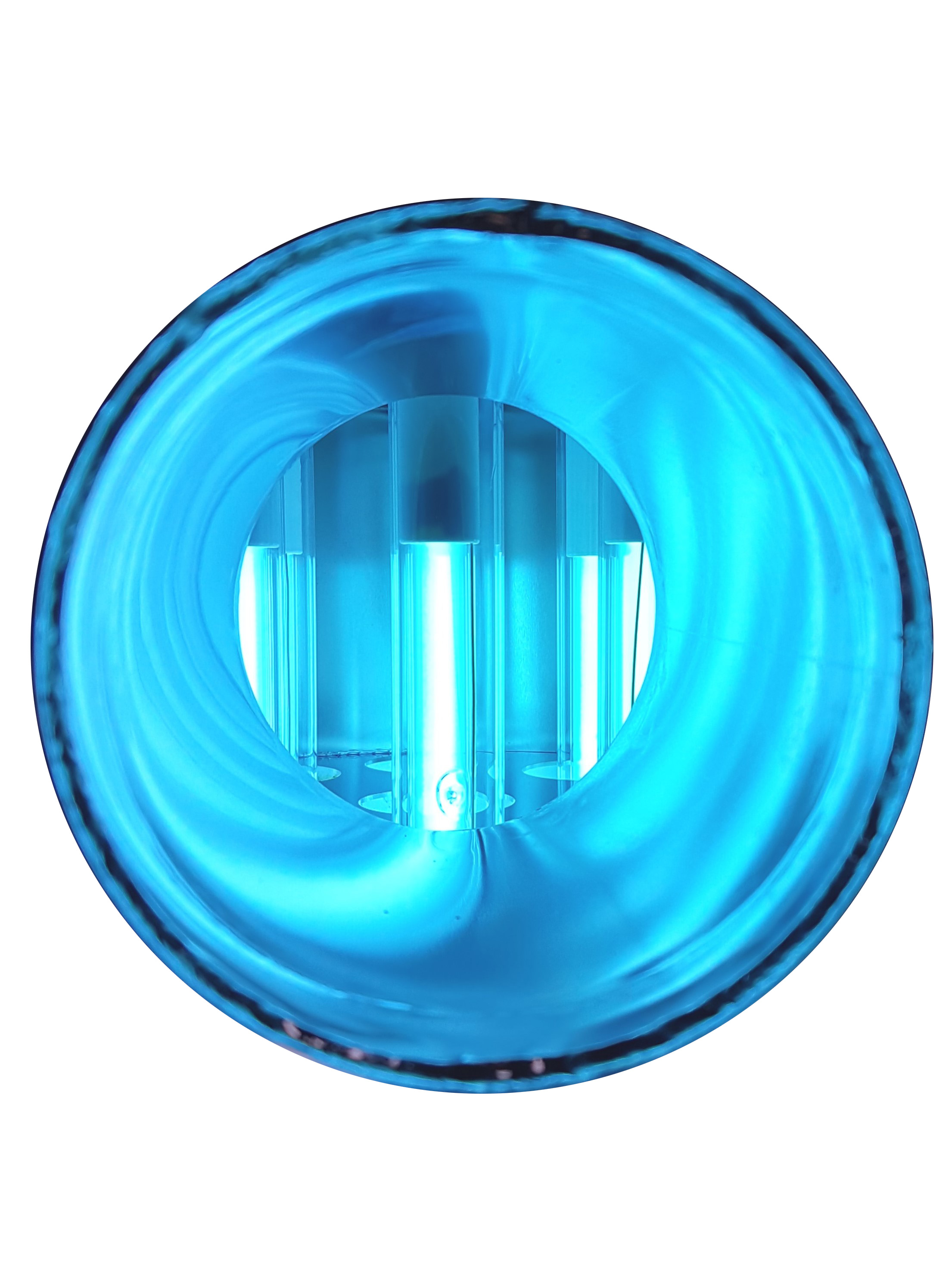

Produktinformationen "UVprofessional Pool Mitteldruckanlage 14 m³/h"
UV-Mitteldruckanlagen für die Wasserdesinfektion und den Abbau von organisch gebundenem Chlor (Chloramine) im Schwimmbadwasser.
Pool MS 14:
Durchfluss: 14 m³/h bei 600 J/m²
UV-Strahler: 1x 650 Watt
Anschluss: DN 65, PN10
Pool MS 24:
Durchfluss: 24 m³/h bei 600 J/m²
UV-Strahler: 1x 1000 Watt;
Anschluss: DN 65, PN10
Pool MS 42:
Durchfluss: 42 m³/h bei 600 J/m²
UV-Strahler: 1x 2000 Watt
Anschluss: DN 65, PN10
Pool MS 131:
Durchfluss: 131 m³/h bei 600 J/m²
UV-Strahler: 1x 3000 Watt
Anschluss: DN 150, PN10
Pool MS 247:
Durchfluss: 247 m³/h bei 600 J/m²
UV-Strahler: 1x 5000 Watt
Anschluss: DN 200, PN10
Anwendungen: | Schwimmbad |
---|---|
Marke: | Neomeris |
Ursprungsland: | EU |
Zolltarifnummer: | 84212100 |
Technische Daten
Pool MS 14 | Pool MS 24 | Pool MS 42 | Pool MS 131 | Pool MS 247 | |
Durchfluss m³/h bei 600 J/m²: (Qmax bei T1cm 98%) |
14 | 24 | 42 | 131 | 247 |
Anschluss: | DN 65, PN10 | DN 65, PN10 | DN 65, PN10 | DN 150, PN10 | DN 200, PN10 |
Reaktorabmessungen in mm LxB | 560 x 245 | 600 x 300 | 600 x 300 | 750 x 380 | 850 x 400 |
UV-Strahler: | 1x 650 Watt | 1x 1000 Watt | 1x 2000 Watt | 1x 3000 Watt | 1x 5000 Watt |
Nennleistung: | 650 Watt | 1100 Watt | 2000 Watt | 3000 Watt | 5000 Watt |
Schaltschrankmaterial: | Stahlblech | ||||
Abmessungen in mm: | 500 x 500 x 300 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 | 600 x 380 x 350 |
