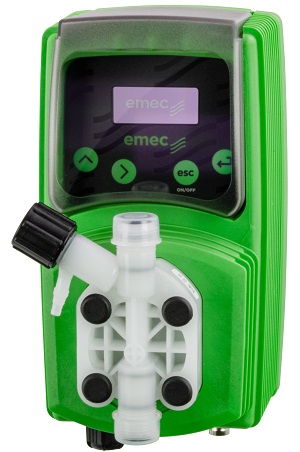

emec dosing pump VMS MF
Product number: 896360
€387.00*
Please log in to receive your conditions.
Available in 14 days, delivery time 1-2 days
Product number:
896360
GTIN:
4260682387592
Menu navigation:
German, English, Italian
Our comment:
A detailed explanation of the operating modes can be found in the operating instructions in the download area, where you will also find the product data sheet. You can easily access both documents via the link below the product text.
Offer as PDF
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Product information "emec dosing pump VMS MF"
The solenoid-operated metering pumps with vertical mounting are easy to install, cost-effective and reliable.
Features:
- Digital system
- Microprocessor technology
- Constant
- mA signal input
- Volt signal input
- Batch dosing
- Operation pause mode
- Water meter
- External contact
Multifunction:
- Constant
- Divide
- Multiply
Input:
Level control water meter
Output:
Alarm output
Accessories (selectable via the configurator):
Suction lances:
- emec Viton suction lance with 40cm immersion length (with BNC connection)
- emec Viton suction lance with 122cm immersion length (with BNC connection)
- emec EPDM suction lance with 40cm immersion length (with BNC connection)
- emec EPDM suction lance with 122cm immersion length (with BNC connection)
Scope of delivery:
- 1x dosing pump 230 VAC with mains cable
- 1x Injection valve 1/2" made of PVDF or PP, depending on the selected variant
- 1x axial foot valve with level switch/empty indicator made of PVDF or PP, depending on the selected variant and 2.5 metre connection cable including BNC plug
- 1x 2m pressure hose made of PVDF (for PVDF head) or PE (for PP head), 4x6mm, 4x8mm or 6x8mm* (depending on version, see technical data)
- 1x 2m suction hose PVC transparent, 4x6mm, 4x8mm, 6x8mm* (depending on version, see technical data)
- 1x 2m venting hose PVC transparent, 4x6mm 1x 2.5m "INPUT" connection cable with BNC plug and open cable ends
- 1x instruction manual
- 2x 3.5 x 40mm Phillips screws and 6mm dowels
- 1x fine-wire fuse 5 x 20mm, T 1A
Overview of operating modes
- CONSTANT - The dosing pump doses with an adjustable, constant dosing quantity. The quantity is set in l/h, strokes/minute, or strokes/h (for very small dosing quantities). The pump is controlled either via the digital input "INPUT" (which in this case has a start/pause or standby function), or via the power supply. switched on and off via the power supply.
- DIVISOR - A pulse generator connected to the universal input "INPUT" (e.g. contact water meter) gives pulses to the dosing pump in proportion to the water flow. These pulses are divided by the programmed (divided) by the programmed value and thus determine the stroke frequency or the delivery rate.
- MULTIPLICATOR - A pulse generator (e.g. contact water meter) connected to the universal input "INPUT" sends pulses to the dosing pump proportional to the water flow. pulses to the dosing pump in proportion to the water flow. These pulses are multiplied by the programmed value and thus determine the stroke frequency or the delivery rate.
- PPM [mg/l] - A pulse generator (e.g. contact water meter) connected to the universal input "INPUT" sends pulses to the dosing pump proportional to the water flow. pulses to the dosing pump in proportion to the water flow. With the pulses and the programmed "PPM" value, the electronics calculate the stroke frequency for dosing proportional to the water flow. For this the impulse rate of the contact water meter (in imp./ltr. or ltr./imp.), as well as the stroke volume (depending on the local system pressure) must be set.
- PERCENT [%] - A pulse generator (e.g. contact water meter) connected to the universal input "INPUT" gives pulses to the dosing pump proportional to the water flow. pulses to the dosing pump in proportion to the water flow. With the pulses and the programmed The electronic system uses the pulses and the programmed "PERCENT" value to calculate the stroke frequency for dosing in proportion to the water flow. For this, the pulse rate of the contact water meter (in imp./ltr. or ltr./imp.), as well as the stroke volume (depending on the local system pressure) must also be set.
- BATCH - The pump doses a programmed quantity. The quantity can be set in millilitres (ml) or as a number of dosing strokes. can be set. The pump can be started either manually via the front keys, by an external pulse generator via the universal input "INPUT", or via a programmable time interval (countdown).
- mA - The stroke frequency of the pump - and thus the dosing capacity - is controlled by an external current signal (0-20 mA). signal. The signal transmitter is connected to the universal input "INPUT".
- Volt - The stroke frequency of the pump - and thus the dosing capacity - is controlled by an external voltage signal (0-10
volts). The signal transmitter is connected to the universal input "INPUT".
Technical specifications
| DOSING RATE |
ml PRO HUB |
CP* | HOSE | VALVE | |
| 2001 | 1 l/h - 20 bar | 0.10 | J | 4 x 8 | 3/8" |
| 1802 | 2 l/h - 18 bar | 0.19 | K | 4 x 8 | 3/8" |
| 1804 | 4 l/h - 18 bar | 0.37 | K | 4 x 8 | 3/8" |
| 1502 | 2 l/h - 15 bar | 0.19 | K | 4 x 6 | 3/8" |
| 1504 | 4 l/h - 15 bar | 0.37 | K | 4 x 6 | 3/8" |
| 1505 | 5 l/h - 15 bar | 0.46 | K | 4 x 6 | 3/8" |
| 1001 | 1 l/h - 10 bar | 0.10 | J | 4 x 6 | 3/8" |
| 1004 | 4 l/h - 10 bar | 0.37 | K | 4 x 6 | 3/8" |
| 1005 | 5 l/h - 10 bar | 0.46 | K | 4 x 6 | 3/8" |
| 1010 | 10 l/h - 10 bar | 0.93 | K | 4 x 6 | 3/8" |
| 0706 | 6 l/h - 7 bar | 0.56 | K | 4 x 6 | 3/8" |
| 0510 | 10 l/h - 5 bar | 0.93 | K | 4 x 6 | 3/8" |
| 0512 | 12 l/h - 5 bar | 1.11 | K | 4 x 6 | 3/8" |
| 0501 | 1 l/h - 5 bar | 0.10 | J | 4 x 6 | 3/8" |
| 0408 | 8 l/h - 4 bar | 0.74 | K | 4 x 6 | 3/8" |
| 0310 | 10 l/h - 3 bar | 0.93 | K | 4 x 6 | 3/8" |
| 0215 | 15 l/h - 2 bar | 1.38 | K | 6 x 8 | 3/8" |
| 0116 | 16 l/h - 1 bar | 1.48 | K | 6 x 8 | 3/8" |
| * CP = Dosing head | |||||
| HYDRAULIC COMPONENTS | |||||||
| Dosing head | O-Rings | Bullets | Diaphragm | Hoses | Viscosity | ||
| pressure side | suction side | max. CPS | |||||
| 1 | PVDF | Viton | Ceramic | PTFE | PE | PVC | 100 |
| 3 | PVDF | EPDM | |||||
| 4 | PVDF | Viton | |||||
| 5 | PVDF | EPDM | |||||
| V | PP | Viton | |||||
| D | PP | EPDM | |||||
| W | PP | WAX (Nitril) | |||||
| POWER SUPPLY | |
| 00 | 230 VAC (190+265 VAC) with Schuko plug |
| 01 | 230 VAC (190+265 VAC) without plug |
| 03 | 115 VAC (90+135 VAC) with plug US |
| 05 | 12 VDC (10+16 VDC) (not for all models) |
| 07 | 24 VDC (20+32 VDC) |
Recommended accessories
emec EPDM suction lance with 40cm immersion length (LASP4) - BNC plug for connection to K and VMS pumps
Product number:
896356
Connection cable version (unit side):
BNC connector (for K- pumps and VMS pumps)
|
Sealing material:
EPDM
|
Version:
40 cm immersion length
Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic
€125.00*
emec Viton suction lance with 122cm immersion length (LASP4) - BNC plug for connection to K- and VMS pumps
Product number:
896359
Connection cable version (unit side):
BNC connector (for K- pumps and VMS pumps)
|
Sealing material:
Viton
|
Version:
122cm Immersion length
Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.Series: LASP4Material O-ring: EPDM (neutral) or FP (Viton)Immersion length: 40cm, 75cm or 122cmConnection on the unit side: M12 or BNCThread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)Number of suction connections: 1-suction connectionMounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)Length of connection cable: 3.5mIntake filter: LASP4Special feature: Valve ball ceramic
€155.00*
emec VMS pump service Set K - PP pump head, EPDM seal and PTFE diaphragm
Product number:
896354
Pump head and seal material:
D = PP pump head with EPDM seal
|
Selection service set (pump head model / size):
K
The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1.
On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps
€67.00*
emec VMS pump service Set K - PVDF pump head, Viton seal and PTFE diaphragm
Product number:
896353
Pump head and seal material:
K = PVDF pump head with Viton seal
|
Selection service set (pump head model / size):
K
The emec service set for the VMS MF pump consists of the pump head, including sealing ring and a diaphragm, which is the same for all versions of the pump and is made of PTFE.Our service sets are available in the versions J and K. The only difference is the size of the pump head, which varies depending on the pressure and flow rate. The second choice on your part determines the material of the pump head and the material of the sealing ring.The correct selection of the service set, i.e. the correct selection of the pump head size as well as the pump head and seal material, can easily be made via your VMS pump type plate as follows. 1.
On the type plate of your VMS pump you will find the pressure "bar xxx - PSI xxx" above the serial number and then the pump capacity "l/h xxx - gph xxx". With these two indications you can easily determine the correct pump head size (J, K).(see example picture of type plate in the article) Version J 5 bar / 1 litre per hour 10 bar / 1 litre per hour 20 bar / 1 litre per hour Version K 1 bar / 16 litres per hour 2 bar / 15 litres per hour 3 bar / 10 litres per hour 4 bar / 8 litres per hour 5 bar / 10 litres per hour 5 bar / 12 litres per hour 7 bar / 6 litres per hour 10 bar / 4 litres per hour 10 bar / 5 litres per hour 10 bar / 10 litres per hour 15 bar / 2 litres per hour 15 bar / 4 litres per hour 15 bar / 5 litres per hour 18 bar / 2 litres per hour 18 bar / 4 litres per hour 2. On the type plate you will find hidden in the "code" the reference to the pump head mounted at delivery and its sealing material. The ninth character indicates the sealing material. (see example picture of the type plate in the article) The most common types are listed below and these are shown via our selection matrix: K = PVDF pump head with Viton seal D = PP pump head with EPDM seal Service set contents: PVDF pump head with Viton seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps PP pump head with EPDM seal:1x pump head (dosing head) incl. seal 1x PTFE diaphragm - Stainless steel screws and caps
€67.00*
