Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

Our flow cell kit is a simple and economical means of mounting pH and ORP electrodes for inline applications. Compatible with all 12 mm electrodes.

It is particularly suitable wherever a fixed installation with Pg13.5 thread, a direct BNC connection, and a robust, service-life-optimized redox measurement are required. JUMO BlackLine Redox plastic shaft electrode with salt bridge, 2 meter fixed cable with BNC connector and fixed protective cage, Pg13.5 (Type code: 201010/65-22-65-2000-76-120/837; Part No.: 00424950) This JUMO BlackLine Redox electrode is the right choice when a robust, permanently installable, and ready-to-connect solution for redox measurements in aqueous media is required. The Pg13.5 screw head allows secure installation in suitable fittings or measurement points, while the pre-attached 2 meter fixed cable with BNC connector enables direct connection to compatible measuring instruments. This makes this version especially convenient for users who want a reliable redox electrode without additional wiring effort. Advantages For redox measurement, the electrode is equipped with a robust platinum tip, which provides reliable measurement values and is easy to clean. This is a clear advantage in applications where redox values must be monitored regularly. The fixed protective cage additionally protects the sensitive sensor area and improves suitability for everyday use, especially at measurement points where the sensor may be exposed to higher mechanical stress. Another advantage is the integrated salt bridge. It is particularly useful when measuring in low-ion media or at higher flow rates. In such cases, it can help extend the electrode’s service life. This makes it a strong choice for users who are looking for more than a standard redox electrode and need a version suitable for more demanding operating conditions. Technical data The reference system with polymerized KCl gel electrolyte is suitable for many general water applications. The proven cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. An integrated temperature sensor is not available in this series. The 120 mm insertion length makes the electrode suitable for many common installation situations. Typical applications Drinking water monitoring Water treatment, swimming pools, aquatics Greenhouse technology as well as lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

It is particularly useful wherever a robust, ready-to-connect, and service-life-optimized redox measurement is required, for example in drinking water monitoring or aquatics. JUMO BlackLine Redox plastic shaft electrode with salt bridge, 2 meter fixed cable without thread with BNC connector and fixed protective cage (Type code: 201010/65-22-45-2000-76-120/837; Part No.: 00417301) This version of the JUMO BlackLine Redox electrode is a good choice when a robust and ready-to-connect solution for redox measurement in aqueous media is required. Thanks to its permanently attached 2 meter cable with BNC connector, the sensor can be quickly integrated into suitable measurement systems without additional connection cables. This version offers clear advantages, especially in applications where simple installation, a protected sensor design, and easy day-to-day handling are important. Advantages of the JUMO BlackLine electrode For redox measurement, a robust platinum tip is used, which provides reliable measurement values and is easy to clean. This makes the electrode particularly interesting for users who require a sensor for regular measurement tasks while valuing a low-maintenance design. The integrated protective cage additionally protects the sensitive sensor area and is especially useful when the electrode is frequently used, moved, or exposed to more demanding environments. Another advantage of this version is the integrated salt bridge. It is particularly recommended for low-ion media or higher flow rates, as it can help extend the electrode’s service life. This makes it a strong choice for users who are not only looking for a standard redox electrode but for a version suitable for more challenging operating conditions. Technical data The reference system with polymerized KCl gel electrolyte is suitable for many general water applications and supports reliable measurement in aqueous media. An integrated temperature sensor is not available in this series. With a standard insertion length of 120 mm and a head design without thread, this version is particularly suitable for applications where direct cable connection via BNC connector is preferred. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

This electrode is particularly suitable wherever a fixed installation with Pg13.5 thread, a direct cable connection, and a protected sensor design are required. JUMO BlackLine pH plastic shaft electrode with salt bridge, 2 meter fixed cable with BNC connector and fixed protective cage, Pg13.5 (Type code: 201005/65-18-65-2000-76-120/837; Part No.: 00424828) This version of the JUMO BlackLine pH electrode is ideal when a robust, ready-to-connect, and permanently installable solution for pH measurement in aqueous media is required. The Pg13.5 screw head makes the sensor particularly suitable for installation situations where a secure and fixed mounting is needed. The pre-mounted 2 meter fixed cable with BNC connector enables direct connection to compatible measurement systems and eliminates the need for additional accessories. Advantages of the JUMO BlackLine electrode A major advantage of this version is the combination of a fixed protective cage, fixed cable, and salt bridge. The protective cage helps protect the sensitive sensor area from mechanical stress during daily operation. This is especially beneficial in applications where the electrode is permanently installed but may be exposed to more demanding conditions in use. The fixed cable with BNC connector also makes this version particularly convenient for users who prefer a ready-to-use solution. Technical data The integrated salt bridge is particularly useful when measuring in low-ion media or in applications with higher flow rates. In such cases, it can help extend the service life of the electrode. This makes this version especially suitable for users who are not only looking for a standard sensor, but for a pH electrode that performs reliably even under more demanding conditions. For pH measurement, the electrode is equipped with proven JUMO UW glass and is designed for a measuring range of pH 0 to 12, with short-term operation up to pH 14. The reference system with polymerized KCl gel electrolyte supports stable measurements in general aqueous media. An integrated temperature sensor is not available in this series. Typical applications Drinking water monitoring Water treatment Swimming pools, aquatics Greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes Why buy this electrode? If you are looking for a robust and ready-to-use pH electrode for aqueous media, this BlackLine version is a strong choice. The fixed cable with BNC connection reduces the need for additional accessories, the protective cage safeguards the sensor during operation, and the salt bridge provides a clear advantage in low-ion media or applications with higher flow rates.

The JUMO BlackLine is particularly well suited for applications where direct cable connection, a protected sensor design, and longer service life under more demanding measurement conditions are required. JUMO BlackLine pH plastic shaft electrode with salt bridge, 2 meter fixed cable, BNC connector and fixed protective cage (Type 201005/65-18-45-2000-76-120/837; Part No. 00417300) This version of the JUMO BlackLine pH electrode is especially suitable when a ready-to-connect and robust solution for pH measurement in aqueous media is required. Thanks to its permanently attached 2-meter cable with BNC connector, the sensor can be directly integrated into compatible measurement systems without the need for an additional separate connection cable. This reduces installation effort and is particularly convenient when a simple, ready-to-use connection is required. Advantages of the BlackLine electrode Another advantage is the permanently integrated protective cage. It protects the sensitive sensor area during daily operation and makes this electrode especially suitable for applications where the sensor is handled frequently or used in more demanding environments. This makes it a good choice for users who require not only accurate measurement but also a more robust design. For pH measurement, the electrode is equipped with proven JUMO UW glass and covers a range from pH 0 to 12, with short-term operation up to pH 14. The reference system with polymerized KCl gel electrolyte is suitable for many general water applications. In addition, this version includes a salt bridge. This is particularly advantageous in low-ion media or at higher flow rates, as it can extend the electrode’s service life. In such applications, this version offers clear benefits compared to standard models without a salt bridge. The fixed cable also provides clear advantages in daily use: it is integrated, includes kink protection, and is especially practical for use in humid environments. Anyone looking for a pH electrode that is quick to connect, robust in design, and reliable even under more demanding conditions will find this BlackLine version a strong choice. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes Why to buy The electrode is delivered ready to connect, including the 2 m fixed cable and BNC connector. The integrated protective cage improves sensor protection in everyday use. The salt bridge helps extend service life in low-ion media or at higher flow rates. This makes it a practical and immediately usable solution.

With an S8 Pg13.5 screw head and a 120 mm insertion length, the electrode can be integrated into many common measurement tasks. It is used across a wide range of applications such as drinking water monitoring or swimming pools. JUMO ecoLine Redox plastic shaft electrode with S8 Pg13.5 screw head and attachable protective cage (201010/53-22-22-0000-00-120/000; Part No. 00357020) The JUMO ecoLine Redox plastic shaft electrode is designed for reliable redox measurements in general aqueous media and offers a cost-effective solution for many standard applications. Thanks to its PEI plastic shaft and attachable protective cage, this version is particularly suitable for practical use with portable measuring devices or wherever additional sensor protection is required in everyday operation. For redox measurement, a robust platinum tip is used, which ensures stable measurement values and is easy to clean. The electrode is complemented by a proven reference system with a polymerized KCl gel electrolyte, which is well suited for general water applications. The JUMO cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Environmental applications Beverage and food industry Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

This electrode is particularly suitable for applications where a good price-performance ratio, easy handling, and stable measurement values are required. JUMO ecoLine glass shaft ORP electrode, platinum tip and S8 Pg13.5 screw head (201010/51-22-22-0000-00-120/000; Part No. 00413906) The JUMO ecoLine glass shaft ORP electrode with platinum tip and S8 Pg13.5 screw head is a cost-effective solution for reliable redox (ORP) measurements in general aqueous media. Design of the ORP electrode The robust platinum tip ensures reliable redox measurement and is also easy to clean. In combination with the ceramic diaphragm and the polymerized KCl gel electrolyte, the electrode is well suited for many typical water applications. The proven JUMO cartridge reference system keeps the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Typical applications With a measuring range of ±2000 mV, the S8 Pg13.5 screw head, and a standard insertion length of 120 mm, this version is suitable for many common installation situations. A temperature sensor is not available in the ecoLine series, making this electrode ideal for applications where integrated temperature measurement is not required. Drinking water monitoring and water treatment Swimming pools Aquatics Greenhouse technology as well as lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Suitable for use in portable measuring devices Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths as well as biotech and sterilization processes

The ceramic diaphragm and the polymerized KCl gel electrolyte make it a suitable solution for many standard applications in water analysis. JUMO ecoLine glass shaft pH electrode with S8 Pg13.5 screw head, 1 m fixed cable and BNC connector (201005/51-18-60-1000-76-120/000; Part No. 00459671) This version of the JUMO ecoLine pH electrode is designed for users who need a straightforward and ready-to-connect solution for pH measurement in general aqueous media. With its pre-mounted 1-meter fixed cable and BNC connector, the sensor can be quickly integrated into suitable measurement systems and is especially convenient when a direct connection without additional accessories is required. The electrode measures in the range of pH 0 to 12, and short-term up to pH 14, and operates with low-impedance JUMO UW glass. This ensures fast response and reliable pH measurement. In addition, the proven JUMO cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less sensitive to certain electrode poisons. Typical applications With the S8 Pg13.5 screw head, a standard insertion length of 120 mm, and the permanently attached cable, this ecoLine electrode is particularly suitable for measurement points where a compact, ready-to-connect design is required. An integrated temperature sensor is not available in this series, so the sensor is intended for applications where no built-in temperature measurement is needed. Drinking water monitoring Water treatment Swimming pools Aquatics Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

The electrode measures in the pH range from 0 to 12, and for short periods up to pH 14. It is equipped with the low-ohmic JUMO UW glass, which supports fast and stable measurement results. JUMO ecoLine glass shaft pH electrode with KCL container, S8 Pg13.5 screw head – type key: 201005/51-18-22-0000-00-120/052, part no.: 00402273 This version of the JUMO ecoLine pH electrode is designed for reliable pH measurements in general aqueous media and offers a convincing price-performance ratio. Thanks to the additional KCL container, it is particularly practical when the sensor is not in continuous use, needs occasional refreshing, or is stored for longer periods. The ceramic diaphragm and polymerized KCl solid electrolyte make this sensor a suitable solution for many standard applications in water analysis. The proven JUMO reference system also helps ensure that the electrolyte remains silver-ion-free over its service life and is less susceptible to certain electrode poisons. Typical applications With S8 Pg13.5 screw head and 120 mm immersion length, this ecoLine pH electrode is suitable for many common installation situations. An integrated temperature sensor is not available in this series. The included KCL container is a useful advantage when the electrode is only used occasionally or needs to be stored safely between uses. drinking water monitoring water treatment swimming pools, aquaristics slightly polluted service, process and wastewater rainwater, pond and surface water applications horticulture applications food and beverage industry Not recommended for electroplating water treatment industrial process and wastewater ultrapure water therapy baths biotechnology and sterile processes

This electrode provides a solution for pH measurements in areas such as swimming pools or water treatment. JUMO ecoLine glass shaft pH electrode with S8 Pg13.5 screw head (201005/51-18-22-0000-00-120/000, Part No. 00405532) The JUMO ecoLine glass shaft pH electrode with S8 Pg13.5 screw head is a cost-effective solution for reliable pH measurements in general aqueous media. It is particularly suitable for users looking for a solid, everyday electrode for standard applications while maintaining a good price-performance ratio. Electrode features The electrode is equipped with low-impedance JUMO UW glass, which supports fast signal response and stable measurement values. The ceramic diaphragm and polymerized KCl gel electrolyte make the sensor well suited for many typical water applications. Thanks to the proven JUMO cartridge reference system, the electrolyte remains free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Technical information The version with S8 Pg13.5 screw head and an insertion length of 120 mm is suitable for many common installation situations. A temperature sensor is not available in this series, so the electrode is intended for applications where integrated temperature measurement is not required. The measuring range is pH 0 to 12, with short-term operation up to pH 14 possible. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics Greenhouse technology as well as lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond and surface water, as well as for use in portable measuring devices Not recommended applications Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths

This electrode is particularly suitable wherever a cost-efficient, proven, and long-life-oriented electrode is required for general aqueous media. JUMO ecoLine glass shaft pH electrode with salt reservoir, S8 Pg13.5 screw head (type key: 201005/51-18-22-0000-00-120/837, part no.: 00447837) This JUMO ecoLine glass shaft pH electrode is a reliable choice for pH measurements in general aqueous media. It is designed for users who are looking for an economical, practical, and robust electrode suitable for many standard water applications. The version with salt reservoir is particularly advantageous when the electrode is used under conditions where extended service life is beneficial. Technical data Design: glass shaft pH electrode Measuring range: pH 0 to 12, short-term up to pH 14 Temperature sensor: none Active element: JUMO UW glass Diaphragm: ceramic Electrolyte: polymerized KCl solid electrolyte Reference system: JUMO cartridge reference system Electrical connection: S8 Pg13.5 screw head Immersion length: 120 mm (standard) Type extension: salt reservoir Advantages and special features The electrode measures in the pH range from 0 to 12, and for short periods up to pH 14. It is equipped with low-ohmic JUMO UW glass, enabling fast and stable measurement results. The ceramic diaphragm and polymerized KCl solid electrolyte make it suitable for many standard applications in water analysis. The proven JUMO cartridge reference system ensures that the electrolyte remains free of silver ions over its service life and is less susceptible to certain electrode poisons. Why choose this electrode? This version is particularly suitable when a pH electrode for general water applications is required that offers more than a basic standard model. The salt reservoir is especially beneficial in low-ion media or higher flow conditions, as it can extend the electrode’s service life. For this reason, it is ideal for users seeking a more durable solution for regular operation rather than a basic version without additional type extensions. With the S8 Pg13.5 screw head and 120 mm immersion length, the electrode fits many common installation situations. An integrated temperature sensor is not available in this series, keeping the focus entirely on reliable pH measurement. Typical applications drinking water monitoring and water treatment, swimming pools aquarium applications greenhouse and horticulture applications slightly polluted service, process, and wastewater rainwater, pond, and surface water use in portable measuring devices Not recommended for electroplating wastewater treatment industrial process and wastewater ultrapure water therapy pools biotechnology and sterile processes

With an S8 Pg13.5 screw head and a 120 mm insertion length, the electrode can be integrated into many common measurement tasks. It is used in a wide range of applications such as drinking water monitoring or swimming pools. JUMO ecoLine Redox plastic shaft electrode with S8 Pg13.5 screw head and attachable protective cage (201010/53-22-22-0000-00-120/000; Part No. 00357020) The JUMO ecoLine Redox plastic shaft electrode is designed for reliable redox measurements in general aqueous media and offers a cost-effective solution for many standard applications. Thanks to its PEI plastic shaft and attachable protective cage, this version is particularly suitable for practical use with portable measuring devices or wherever additional sensor protection is required in everyday operation. For redox measurement, a robust platinum tip is used, which ensures stable measurement values and is easy to clean. The electrode is complemented by a proven reference system with a polymerized KCl gel electrolyte, which is well suited for general water applications. The JUMO cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Environmental applications Beverage and food industry Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

This electrode is resistant thanks to its PEI plastic shaft and offers easy handling. For this reason, it is low-maintenance and protected against damage due to its design. JUMO ecoLine pH plastic shaft electrode with S8 Pg13.5 screw head and attachable protective cage (201005/53-18-22-0000-00-120/000; Part No. 00357022) The JUMO ecoLine pH plastic shaft electrode is a practical solution for reliable pH measurements in general aqueous media. It combines a good price-performance ratio with a robust design and is especially suitable for applications where the sensor needs additional protection during mobile use. The PEI plastic shaft provides a durable construction, while the attachable protective cage offers additional protection for the sensor. This is a particular advantage when used with portable measuring devices, making everyday handling easier and helping to prevent damage. Typical applications Equipped with an S8 Pg13.5 screw head and a standard insertion length of 120 mm, this electrode uses a polymerized KCl gel electrolyte reference system, which is well suited for measurements in general aqueous media. The proven JUMO cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. An integrated temperature sensor is not available in this series. Drinking water monitoring and water treatment Swimming pools, aquatics Greenhouse technology Lightly contaminated utility, process, and wastewater Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

Anyone looking for a tecLine pH electrode for industrial applications and placing particular value on quality, service life, and a process-suitable design will find a suitable solution here for demanding measurement tasks. JUMO tecLine pH glass shaft electrode with salt reservoir, 120 mm insertion length, 1x zirconium dioxide and UW glass The JUMO tecLine pH glass shaft electrode is designed for demanding pH measurements in process and industrial applications. It is intended for users who are not simply looking for any pH electrode, but for a high-quality version for reliable continuous operation in aqueous media. Especially in applications where measuring points must operate permanently stable and where downtime causes additional effort, a robust industrial electrode is essential. Advantages and special features A key advantage of this version lies in its industrially optimized design. The combination of UW glass, zirconium dioxide, and a salt reservoir makes the electrode particularly suitable for applications requiring long-lasting and stable pH measurement. The salt reservoir is especially beneficial in applications where the electrode is operated under conditions that require maximum service life. This makes the version attractive for users aiming to reduce maintenance effort and minimize replacement intervals. Why choose this electrode? This electrode is not designed for occasional spot measurements but for continuous use in process environments. It is built to operate reliably and deliver stable measurement values over extended periods. When pH measurement is an integral part of a plant or system, it makes sense to rely on a robust design. A high-quality electrode typically lasts longer and reduces the need for frequent replacements or troubleshooting due to failures. Technical information Basic type: glass shaft Active element: UW glass Measuring range: pH 0 to 12, short-term up to pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x zirconium dioxide Electrical connection: S8 Pg13.5 screw head Insertion length: 120 mm (standard) Type option: with salt reservoir The UW glass supports reliable pH measurement, while the overall design is optimized for stable measuring conditions in industrial environments. With a 120 mm insertion length, this electrode is suitable for many common installation situations in process and industrial systems. The tecLine series represents high-quality industrial electrodes designed for demanding measurement tasks. Depending on the configuration, variants with integrated temperature sensors are also available within the series, offering additional flexibility in selection. Applications This pH electrode is used wherever pH values in water and aqueous media must be reliably monitored. Process measurements in industrial plants Water treatment General industrial water analysis Process water and production processes with pH monitoring

This version is particularly suitable for users who are looking for a technically appropriate solution for high-alkalinity applications and want to rely on a robust industrial pH electrode. JUMO tecLine pH glass shaft electrode with salt reservoir, 120 mm immersion length, 1x zirconium dioxide and HA glass for high-alkali applications This JUMO tecLine pH electrode is designed for demanding pH measurements in process and industrial applications where standard versions may not be sufficient. Thanks to its HA glass for high-alkali applications, it is particularly suitable for measuring points where media with higher alkaline loads must be reliably monitored. Users looking for an electrode for more challenging operating conditions will find here an industrial-grade solution for stable and long-term measurement tasks. The key advantage of this version lies in the targeted combination of HA glass, zirconium dioxide diaphragm, and salt reservoir. The HA glass is designed for a measuring range from pH 0 to 14 and is specifically intended for applications where high pH values must also be measured reliably. This makes the version especially suitable for users working in alkaline environments who require a dedicated electrode design. The zirconium dioxide diaphragm supports stable reference behavior and ensures reliable measurement conditions during operation. Why choose this electrode? This version is not just a general-purpose pH electrode, but specifically designed for high-alkali applications. It is therefore particularly useful when measuring points operate in the upper pH range or when process media require an electrode optimized for alkaline conditions. The additional salt reservoir is another advantage when extended service life is required. This makes the electrode especially suitable for users who value a durable, robust, and process-ready solution. With its Pg13.5 screw head (S8) and 120 mm immersion length, the electrode can be integrated into many standard industrial measuring setups. The glass shaft represents a proven and widely used design in pH measurement technology. The operating temperature range of -5 to +80 °C further expands its usability in common water and process analytics applications. Typical applications This electrode is used wherever pH values in aqueous media must be measured reliably and where alkaline process conditions play an important role. Process and industrial applications Water treatment General water analysis Measurement points requiring electrodes for higher pH ranges Anyone requiring a pH electrode for demanding industrial measurements in alkaline environments will find this JUMO tecLine version a strong choice. It combines a purpose-oriented glass design with a robust technical foundation for reliable process measurements. Technical data Base type: glass shaft Active element: HA glass – special glass design for high pH values Measuring range: pH 0 to 14 Temperature range: -5 to +80 °C Application: high-alkali use – suitable for strongly alkaline media Diaphragm: 1 x zirconium dioxide – robust ceramic diaphragm for stable measuring conditions Electrical connection: Pg13.5 screw head (S8) Immersion length: 120 mm (standard) Additional feature: salt reservoir

Thanks to the compact Pg13.5 screw head and 120 mm immersion length, this version is particularly practical for applications where a classic design with a standardized length is required. JUMO tecLine pH glass shaft electrode without type extension, 120 mm immersion length, zirconium dioxide diaphragm and C-glass (subline) This JUMO tecLine pH electrode is designed for reliable pH measurements in process and industrial applications and is particularly suitable for users who are looking for a high-quality standard version without additional type extensions. It is an excellent choice for measuring points where a classic glass shaft electrode with clearly defined technical characteristics is required, intentionally omitting special features. Advantages and special features A key advantage of this version lies in its simple yet industrial-grade design. The C-glass serves as the active measuring element for pH detection, making the electrode suitable for general applications in water and aqueous media. The zirconium dioxide diaphragm ensures stable measuring conditions and represents a robust ceramic design well-suited for regular use in industrial environments. Technical data Basic type: glass shaft Active element: C-glass Diaphragm: zirconium dioxide Electrical connection to electrode: Pg13.5 screw head Immersion length: 120 mm Why choose this electrode? This version is particularly suitable when a reliable standard pH electrode is required for classic process or industrial applications. As it is supplied without type extensions, it focuses on the essentials and is ideal for users who prefer a technically clean basic design. This simplifies selection and is especially beneficial wherever no additional special features are required. With the Pg13.5 screw head, the electrode can be integrated into many common installation situations. The 120 mm immersion length corresponds to a typical standard design and therefore fits many standard measuring points. Typical applications This pH electrode is used wherever the pH value in water and general aqueous media needs to be reliably monitored. Process and industrial applications Water treatment general water analysis measuring points requiring a robust and uncomplicated glass shaft electrode without additional special features If you are looking for a high-quality standard version for pH measurement and prefer a clear, durable and industrial-grade solution, this JUMO tecLine version is an excellent choice.

This pH electrode is used wherever the pH value in water and general aqueous media must be reliably monitored. Thanks to its robust design, it can be used in a wide range of industrial installations. JUMO tecLine pH glass shaft electrode without additional options, 225 mm immersion length, zirconium dioxide diaphragm and UW glass This pH electrode is designed for reliable pH measurements in process and industrial applications and is particularly suitable for measuring points where a high-quality standard version without additional special features is required. With its 225 mm immersion length, it is especially suitable when a longer electrode is needed and a 120 mm version is not sufficient. Features and advantages A major advantage of this version is its clear and technically straightforward basic configuration. The UW glass is designed for pH measurements in general aqueous media and makes this electrode a suitable solution for many standard industrial and process applications. The zirconium dioxide diaphragm supports stable measurement conditions and is a robust ceramic design suitable for reliable operation in continuous use. Why choose this electrode? This version is especially suitable for users who specifically require a classic glass shaft electrode without additional options. It focuses on the essentials: a high-quality basic design, an extended immersion length, and stable pH measurement without additional special features. This is a clear advantage in many applications, as it simplifies selection and allows easy integration into existing standard measuring points. With its Pg13.5 screw head, the electrode is compatible with many common installation and connection setups. The 225 mm immersion length makes it particularly suitable for measuring points with greater insertion depth or applications requiring a longer design. Technical data Base type: glass shaft Active element: UW glass Diaphragm: zirconium dioxide Electrical connection: Pg13.5 screw head Immersion length: 225 mm Typical applications Process and industrial applications Water treatment General water analysis Measuring points requiring a longer glass shaft electrode without additional options Users looking for a high-quality extended standard pH electrode and a robust, industrial-grade tecLine solution will find this version a strong choice.

The JUMO tecLine pH electrode is a high-quality standard version for reliable pH measurements in water and general aqueous media. JUMO tecLine pH glass shaft electrode without additional options, 120 mm insertion length, 1x zirconium dioxide and UW glass The JUMO tecLine pH electrode is designed for reliable pH measurements in process and industrial applications. It is particularly suitable for users looking for a high-quality industrial electrode for water and general aqueous media, while valuing a solid, durable, and clearly defined standard version. Why choose this electrode? This version is ideal when a pH electrode without additional special options is required, focusing on the essentials: stable measurement values a robust basic design reliable integration into common industrial measuring points In process applications, this is often an advantage, as a clearly defined standard version simplifies selection and is fully sufficient for many routine measurement tasks. Typical applications Process measurements in industrial plants general water analysis water treatment As well as other applications where pH values in aqueous media must be reliably monitored. This electrode is especially suitable when a high-quality industrial electrode is required for regular use without the need for additional special features. Technical data Basic type: glass shaft Active element: UW glass Measuring range: pH 0 to 12, short-term up to pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x zirconium dioxide Electrical connection: S8 Pg13.5 screw head Insertion length: 120 mm (standard) Additional options: none The UW glass is designed for pH measurements in the range of pH 0 to 12, with short-term operation up to pH 14, and can be used in a temperature range of -5 to +80 °C. This makes the electrode suitable for many typical applications in water and process analytics. The zirconium dioxide diaphragm complements the design with a stable and process-suitable reference junction for general industrial measurement tasks. With the S8 Pg13.5 screw head and a 120 mm insertion length, the electrode can be integrated into many common installation situations. As this version is supplied without additional options, it is particularly suitable for users who deliberately choose a classic and straightforward standard design.

The JUMO tecLine pH electrode with VP connector head and integrated Pt100 is designed for reliable pH measurements in process and industrial applications. This version is particularly suitable for measuring points where pH value and temperature need to be recorded directly and compactly within a single sensor. JUMO tecLine pH electrode with glass shaft, zirconium dioxide diaphragm, VP connector head, 120 mm, salt reservoir and integrated Pt100 This JUMO tecLine pH electrode is designed for reliable pH measurements in process and industrial environments. It is especially suitable for measuring points where, in addition to stable pH detection, integrated temperature measurement is also required. With its combination of glass shaft, salt reservoir, and integrated Pt100, this version is a well-suited choice for users looking for a technically robust and practical solution for continuous use in aqueous media. A key advantage of this version lies in its configuration. The UW glass is designed for pH measurements from 0 to 12, and short-term up to pH 14, and can be used in a temperature range from -5 to +80 °C. This makes the electrode suitable for a wide range of typical applications in water and process analytics. The zirconium dioxide diaphragm adds a robust and process-compatible reference system for general industrial use. Why choose this specific electrode version? This version is particularly suitable when a pH electrode with an integrated temperature sensor is required. The built-in Pt100 enables simultaneous temperature measurement directly at the point of measurement and is therefore ideal for applications where temperature compensation or additional temperature monitoring is important. The electrode is equipped with a durable zirconium dioxide diaphragm, ensuring stable measuring conditions. Your advantages with this version The salt reservoir is another benefit when the electrode is used in environments where extended service life is required. This makes this version more than a standard electrode and particularly attractive for users who value durability and practical design. The VP connector head Pg13.5 also offers advantages in daily use. It is designed for compatible connection solutions and is suitable for applications requiring a secure and clean connection to measurement systems. With a 120 mm immersion length, the electrode fits many standard installations and integrates easily into existing measuring points. Applications of this pH electrode This pH electrode is used wherever pH values in water and general aqueous media need to be measured reliably. Process and industrial applications Water treatment General water analysis Measurement tasks where integrated temperature sensing is beneficial Anyone looking for a high-quality tecLine pH electrode that provides stable measurements and is also designed for more demanding applications thanks to its salt reservoir and integrated Pt100 will find this version a strong choice. Technical data Base type: glass shaft Measuring element: UW glass Measuring range: pH 0 to 12, short-term pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x zirconium dioxide Electrical connection: VP connector head Pg13.5 Immersion length: 120 mm Additional features: salt reservoir, integrated Pt100

Thanks to the PEI plastic shaft and the compact design, this electrode is versatile in use while remaining clearly focused on professional measurement tasks. JUMO tecLine pH electrode with PEI plastic shaft, protection cage, Pg13.5 screw head, salt reservoir and dual chamber, 120 mm This pH electrode is designed for demanding pH measurements in process and industrial applications. It is particularly suitable for measuring points where not only reliable pH detection is required, but also a more robust construction and a technically more advanced electrode design. With its PEI plastic shaft, protection cage, salt reservoir, and dual-chamber design, this version is intended for applications where a standard electrode is not sufficient. Advantages and special features A major advantage of this electrode is its industrial-grade construction. The UW glass is designed for pH measurements from pH 0 to 12, and short-term up to pH 14, and can be used in a temperature range from -5 to +80 °C. This makes the electrode suitable for many typical measurement tasks in water and general aqueous media. The protection cage helps shield the sensitive sensor area from mechanical impact during everyday use. This is especially beneficial when the electrode is handled frequently or used in environments where additional protection is advantageous. Technical data Base type: PEI plastic shaft with protection cage Active element: UW glass Measuring range: pH 0 to 12, short-term pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x glass fiber Electrical connection: Pg13.5 screw head (S8) Immersion length: 120 mm (standard) Additional features: salt reservoir + dual chamber KCl/KCl Why choose this electrode? This version is especially suitable when a robust and service-life-oriented pH electrode is required for demanding operating conditions. The salt reservoir is an advantage when extended electrode lifetime is desired. Even more important is the dual-chamber KCl/KCl design, which makes this version particularly attractive for applications requiring more stable reference behavior and a technically more advanced electrode solution. It is therefore aimed at users who deliberately choose a higher-performance industrial electrode rather than a basic standard solution. Typical applications Process and industrial applications Water treatment General water analysis Measuring points where pH in water and other aqueous media must be continuously and reliably monitored This version is particularly suitable wherever stable pH measurement is required alongside a robust design, a protected sensor construction, and a higher-grade dual-chamber reference system.

This version is particularly suitable wherever a robust design, a protected sensor configuration, and a longer immersion length are required. JUMO tecLine pH electrode with PSU plastic shaft, protection cage, glass fiber diaphragm, Pg13.5 screw head and 225 mm immersion length This pH electrode is designed for reliable pH measurements in process and industrial applications and is especially suitable for measuring points where a rugged construction is required. With its PSU plastic shaft and integrated protection cage, this version is particularly useful when the sensor needs additional protection against mechanical stress during operation. This makes it a good choice for users looking for a durable electrode for regular use in aqueous media. Advantages and special features A key advantage of this version is its practical design. The UW glass is suitable for measurements in the range of pH 0 to 12, and short-term up to pH 14, and can be used in a temperature range from -5 to +80 °C. This makes the electrode suitable for a wide range of typical applications in water and process analytics. The glass fiber diaphragm supports reliable reference conduction, while the cartridge-based reference system is designed for stable measurement performance during continuous operation. Why choose this electrode? This version is particularly interesting when a robust plastic-shaft electrode with a protection cage is required. The protection cage helps safeguard the sensitive sensor area in daily use, which is a clear advantage in demanding environments or frequent handling situations. In addition, the 225 mm immersion length makes this version especially suitable for measuring points where a longer electrode is required compared to standard designs. Typical applications Process and industrial applications Water treatment General water analysis Measuring points where pH in water or other aqueous media must be reliably monitored Users looking for a pH electrode designed for industrial environments and enhanced with a plastic shaft, protection cage, and 225 mm immersion length will find this JUMO tecLine version a well-suited solution. Technical data Base type: PSU plastic shaft with protection cage Active element: UW glass Measuring range: pH 0 to 12, short-term pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x glass fiber Reference system: cartridge reference system Electrical connection: Pg13.5 screw head (S8) Immersion length: 225 mm

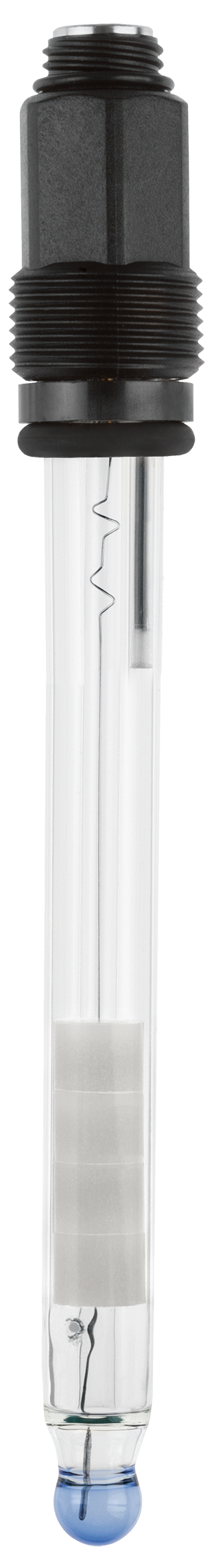

This version of the pH electrode is particularly suitable wherever an extended immersion length, a robust plastic shaft, and a clear standard design without a protection cage are required. JUMO tecLine pH electrode with PSU plastic shaft without protection cage, glass fiber diaphragm, Pg13.5 screw head and 225 mm immersion length The JUMO tecLine pH electrode is designed for reliable pH measurements in process and industrial applications and is especially suitable for measuring points where a robust plastic shaft design without an additional protection cage is required. It is a solid choice for users looking for a durable industrial electrode for water and general aqueous media while deliberately opting for a streamlined and direct design. The PSU plastic shaft makes the electrode suitable for everyday use in industrial environments. In combination with the UW glass, the electrode is designed for a measuring range from pH 0 to 12, short-term up to pH 14, and for temperatures from -5 to +80 °C. This makes the version suitable for many typical measurement tasks in water and process analytics. Technical data Base type: PSU plastic shaft without protection cage Active element: UW glass Measuring range: pH 0 to 12, short-term pH 14 Temperature range: -5 to +80 °C Diaphragm: 1 x glass fiber Reference system: cartridge reference system Electrical connection: Pg13.5 screw head (S8) Immersion length: 225 mm Typical applications Process and industrial applications Water treatment General water analysis Measuring points where pH in water or other aqueous media must be reliably monitored Advantages and special features A key advantage of this version lies in its clear and uncomplicated design. Since it is built without a protection cage, it is particularly suitable for applications where no additional mechanical protection is required and the electrode can be directly integrated into the measuring point. Users looking for a longer pH electrode for standard industrial applications with a clean and simple design will find this version well suited. The glass fiber diaphragm supports reliable reference conduction in general aqueous media. It is complemented by a cartridge-based reference system designed for stable measurement conditions during continuous operation. Especially in process applications where reliable pH measurement is required without unnecessary additional features, this combination proves highly practical. Why choose this electrode? This version is particularly useful when a 225 mm pH electrode is required for industrial measuring points and a standard length is not sufficient. It is also suitable for applications where a robust plastic-shaft electrode without a protection cage is preferred. This makes it especially practical for installation situations where a longer electrode is needed and a direct, reduced design is advantageous. Users looking for a durable and industry-suitable pH electrode with a 225 mm immersion length that focuses on essential functionality and integrates easily into standard measurement tasks will find this tecLine version a strong choice.

Thanks to its robust design, this version is particularly suitable for thermally demanding process conditions. JUMO tecLine PRO pH electrode as process electrode with HT glass, annular gap diaphragm, Pg13.5 screw head and salt reservoir This pH electrode is designed for demanding pH measurements in process applications. It is particularly suitable for areas where high mechanical and chemical resistance is required. With its design as a process electrode featuring HT glass, open annular gap diaphragm, Pg13.5 screw head, and salt reservoir, this version is optimized for robust operating conditions. Technical data Basic type: JUMO tecLine PRO pH combination electrode Basic type extension: process electrode Sensing element: HT glass Measuring range: pH 0 to 14 Temperature range: 0 to +110 °C Diaphragm: annular gap diaphragm, gel made of polymerized solid electrolyte (“diaphragm-free”) Electrical connection to electrode: Pg13.5 screw head Additional features: salt reservoir Advantages and special features A key advantage of this version lies in its robust construction. According to your description, the electrode has a stable PVDF body, which practically eliminates the risk of sensor breakage. This is particularly important in industrial applications where the measuring point must not only provide reliable pH values but also withstand everyday mechanical stress. At the same time, the electrolyte of this combination electrode ensures stable readings even in critical, sulfite-containing media. This makes the electrode especially interesting for applications requiring a durable and process-suitable solution. Why should you choose this electrode? This version is particularly suitable when a robust process electrode is required for demanding media and elevated temperatures. The HT glass is designed for a measuring range of pH 0 to 14 and temperatures from 0 to +110 °C. This makes it ideal for processes that require both high temperature resistance and reliable pH measurement. The open annular gap diaphragm with gel made of polymerized solid electrolyte is also advantageous for applications requiring a durable and low-maintenance design. The salt reservoir further enhances the overall configuration. The connection side is also designed for professional use. The Pg13.5 screw head allows proper integration into suitable measuring systems. Additionally, a Pt1000 temperature sensor is integrated according to your general description. This is especially useful when temperature needs to be measured directly at the process point, for example for temperature compensation or additional process monitoring. Combined with its robust construction, this results in a well-designed electrode for applications requiring reliable pH measurement, temperature resistance, and high durability. Typical applications chemical industry wastewater treatment sewage treatment plants as well as the paper industry Wherever a durable process electrode with stable measurement performance and robust construction is required, this version is particularly suitable. It can fully demonstrate its strengths, especially under thermally demanding process conditions.
