Pressure is a key physical measurement in many industrial applications. In fluid and gas analysis, pressure monitoring ensures proper operating conditions, protects system components, and enhances process safety. Pressure also affects various other parameters, such as dissolved oxygen, making it an important reference value in many measurements.
Depending on the application, gauge pressure, absolute pressure, or differential pressure is used. Modern sensors offer high precision and long-term stability—even under challenging conditions such as extreme temperatures, aggressive media, or high-pressure ranges.
JUMO pressure transmitters and sensors are used in a wide range of applications, including:
-
Water and wastewater management: Monitoring pumps, filters, and tank levels using hydrostatic pressure.
-
Process industry: Controlling pressure in pipelines, reactors, and tanks for process reliability and safety.
-
Pharmaceutical industry: Ensuring validated processes in cleanrooms and production through accurate pressure monitoring.
-
Food and beverage industry: Reliable pressure measurement during CIP and SIP processes for hygiene and safety.
-
HVAC and building technology: Monitoring heating, ventilation, air conditioning, and compressed air systems.

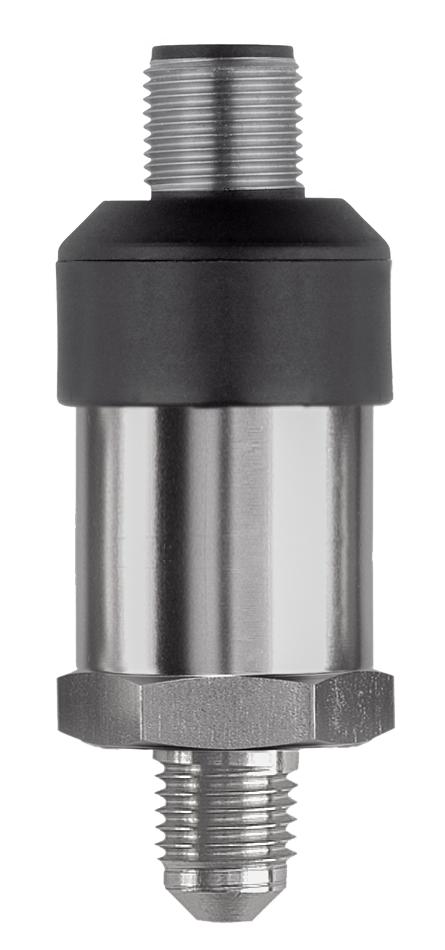

JUMO Midas C08 - OEM - Basic pressure transmitter Input: 0 to 10 bar relative pressure Output: 4 to 20 mA, two-wire Process connection: G 1/4 DIN EN 837 Process connection material: CrNi (stainless steel) Seal material: CrNi (stainless steel) Electrical connection: Quickon Extra code: none New quality level especially for the OEM sector Long-term stability below 0.2% Temperature compensation range extended by 50% to -20 to +100 °C Device installation 60% faster thanks to QUICKON quick-clamp technology Vibration resistance 2.5 times higher than the industry standard Manufactured in Germany For applications that require reliable and long-term realisation of measurement tasks, the pressure transmitter from the Midas family is used as a basic product. In addition to the basic product, the Midas family offers solutions for every specific task. The innovative and patented sensor design of the specially developed ceramic sensor results in excellent long-term stability < 0.2%. The transmitter detects relative pressures from 1.6 to 60 bar in gaseous or liquid media. Areas of application: Mechanical and plant engineering compressors Building services engineering Industrial pneumatics Commercial vehicles Added value for the customer: Process reliability: Thanks to design measures, the pressure transmitter has excellent vibration resistance and can be used under high vibration loads, such as those that occur in commercial vehicles. A fully automatic measuring and calibration system, diagnostic function of the circuit and 100% final inspection guarantee the highest quality. Cost-effectiveness: QUICKON quick-clamp technology enables time-saving and safe installation. The spring contacts ensure reliable contacting even in the event of temperature fluctuations. This electrical connection shortens assembly times and reduces costs by 60% compared to conventional connection variants. Versatility: The large selection of measuring ranges as well as process and electrical connections enables universal use of the pressure transmitter.
