Analysis Cases – Mobile Complete Solutions for Professional Water Analysis

The practical premium analysis case boiler house contains a complete hand-held laboratory for checking the feed water quality. The professional, combined multi parameter conductivity and pH measuring instrument has two replaceable probes.   Contents: Professional combined conductivity and pH value measuring instrument with exchangeable probes for determining the main parameter conductivity in the range of 0.00 to 200 mS/cm with a resolution of 0.01 - 0.1 - 1 µS / mS (automatic) and the pH value in the range of 0 to 14.00 (Plus Version -2.00 to 16.00) with a resolution / accuracy of 0.1 pH (Plus Version 0.01 / +0.02). In addition, the TDS value and temperature can be displayed and the instrument has an automatic temperature compensation 0-80°C (Plus Version 0 to 100°C). With an additional available ORP probe you can measure the oxidation reduction potential.Duroval A water hardness test set complete with measuring tube, indicator, dosing pipette calibrated 0-30 °dH and 50 ml titration solution for approx. 100 analyses with measuring time: approx. 2 minutesDuroval B water hardness test set complete with measuring tube, indicator, dispensing pipette calibrated 0-2 °dH and 50 ml titration solution for approx. 100 analyses with a measuring time of approx. 2 minutesDuroval CPM test set complete with measuring tube, indicator, dosing pipette calibrated 0-20 °dH carbonate hardness, p-value (acid capacity up to pH 8.2; KS 8.2) and m-value (acid capacity up to pH 4.3; KS 4.3) and 50 ml titration solution for approx. 200 analyses with measuring time: approx. 2 minutesConductivity Calibration Solution EC 12880 μS/cm, +-1% @25°C, 1 bottle a 70ml Buffer solution pH 4.01, +-1% @25°C, 1 bottle a 70mlBuffer solution pH 7.01, +-1% @25°C, 1 bottle a 70mlMeasuring cup 100 ml Black plastic case with red closure Our portable multi-parameter measuring device with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This allows the user to easily and intuitively use the instrument at any time. The meter has automatic pH calibration with USA and NIST buffers with up to three points for pH and one point for ORP. Up to five fixed points, as well as one individual calibration point, are available for calibrating the conductivity electrode. You are supported by an intuitive symbolism on the backlit screen, including the indication of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter meter is delivered in our professional measuring case, which contains the selected measuring electrodes, as well as our respective buffer solutions and the instructions. Complementary advantages of the Professional Plus version: GLP functions: Date and time, recall of calibration data and "Calibration due" function Integrated data logger for up to 1000 data, automatic and manual PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software Automatic brightness control of the display (prolongs battery life) Only 6 keys for easy control of all functions of the unit 230V power supply unit

The practical premium analysis case boiler house contains a complete hand-held laboratory for checking the feed water quality. The professional, combined multi parameter conductivity and pH measuring instrument has two replaceable probes.   Contents: Professional combined conductivity and pH value measuring instrument with exchangeable probes for determining the main parameter conductivity in the range of 0.00 to 200 mS/cm with a resolution of 0.01 - 0.1 - 1 µS / mS (automatic) and the pH value in the range of 0 to 14.00 (Plus Version -2.00 to 16.00) with a resolution / accuracy of 0.1 pH (Plus Version 0.01 / +0.02). In addition, the TDS value and temperature can be displayed and the instrument has an automatic temperature compensation 0-80°C (Plus Version 0 to 100°C). With an additional available ORP probe you can measure the oxidation reduction potential.Duroval A water hardness test set complete with measuring tube, indicator, dosing pipette calibrated 0-30 °dH and 50 ml titration solution for approx. 100 analyses with measuring time: approx. 2 minutesDuroval B water hardness test set complete with measuring tube, indicator, dispensing pipette calibrated 0-2 °dH and 50 ml titration solution for approx. 100 analyses with a measuring time of approx. 2 minutesDuroval CPM test set complete with measuring tube, indicator, dosing pipette calibrated 0-20 °dH carbonate hardness, p-value (acid capacity up to pH 8.2; KS 8.2) and m-value (acid capacity up to pH 4.3; KS 4.3) and 50 ml titration solution for approx. 200 analyses with measuring time: approx. 2 minutesConductivity Calibration Solution EC 12880 μS/cm, +-1% @25°C, 1 bottle a 70ml Buffer solution pH 4.01, +-1% @25°C, 1 bottle a 70mlBuffer solution pH 7.01, +-1% @25°C, 1 bottle a 70mlMeasuring cup 100 ml Black plastic case with red closure Our portable multi-parameter measuring device with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This allows the user to easily and intuitively use the instrument at any time. The meter has automatic pH calibration with USA and NIST buffers with up to three points for pH and one point for ORP. Up to five fixed points, as well as one individual calibration point, are available for calibrating the conductivity electrode. You are supported by an intuitive symbolism on the backlit screen, including the indication of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter meter is delivered in our professional measuring case, which contains the selected measuring electrodes, as well as our respective buffer solutions and the instructions. Complementary advantages of the Professional Plus version: GLP functions: Date and time, recall of calibration data and "Calibration due" function Integrated data logger for up to 1000 data, automatic and manual PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software Automatic brightness control of the display (prolongs battery life) Only 6 keys for easy control of all functions of the unit 230V power supply unit

Our portable multi-parameter measuring device with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This allows the user to easily and intuitively use the instrument at any time. The meter has automatic pH calibration with USA and NIST buffers with up to three points for pH and one point for ORP. Up to five fixed points, as well as one individual calibration point, are available for calibrating the conductivity electrode. You are supported by an intuitive symbolism on the backlit screen, including the indication of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter meter is delivered in our professional measuring case, which contains the selected measuring electrodes, as well as our respective buffer solutions and the instructions. Complementary advantages of the Professional Plus version: GLP functions: Date and time, recall of calibration data and "Calibration due" function Integrated data logger for up to 1000 data, automatic and manual PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software Automatic brightness control of the display (prolongs battery life) Only 6 keys for easy control of all functions of the unit 230V power supply unit

Our portable multi-parameter meter with innovative high-resolution colour display is suitable for working in all conditions and, like our other available Professional meters in the case, offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This means that the user can also use the device easily and intuitively at any time.The instrument has an automatic, up to two-point, oxygen calibration with an adjustable manual compensation factor of the salinity for the automatic temperature-compensated measurement of the temperature. You are assisted by intuitive symbols on the backlit screen, including display of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter measuring device is supplied in our professional measuring case, which contains the oxygen electrode, two replacement membranes, the instructions and, depending on the version, a 30 ml refill solution. Complementary advantages of the Professional Plus version:Optical oxygen sensor (higher accuracy in the lower measuring range)GLP functions: Date and time, recall of calibration data and "Calibration due" function Integrated data logger for up to 1000 data, automatic and manual PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software Automatic brightness control of the display (prolongs battery life) Only 6 keys for easy control of all functions of the unit 230V power supply unit

Find everything you need for the water analysis in the boiler house in this Heyl analysis set: We offer individual versions, if you want a different composition.   Content of Analysis Case Boiler House:Titration sets: 1 Duroval A, 1 Duroval B, 1 Duroval CPM Testoval colour comparison kits: 1 sulphite, 1 phosphate test 1 pH tester pHep+ 1x 20ml buffer solution pH 4.01 in a sachet 2x 20ml buffer solution pH 7.01 in a sachet 1x 20ml electrode cleaning solution in a sachet 1 conductivity tester DiST 34x 20ml conductivity solution 1413 μS/cm in a sachet

Find everything you need for the water analysis in the boiler house in this Heyl analysis set: We offer individual versions, if you want a different composition.   Content of Analysis Case Boiler House:Titration sets: 1 Duroval A, 1 Duroval B, 1 Duroval CPM Testoval colour comparison kits: 1 sulphite, 1 phosphate test 1 pH tester pHep+ 1x 20ml buffer solution pH 4.01 in a sachet 2x 20ml buffer solution pH 7.01 in a sachet 1x 20ml electrode cleaning solution in a sachet 1 conductivity tester DiST 44x 20ml conductivity solution 12.880 μS/cm in a sachet

Product information:Discover the Heyl “Wassermeister” analysis case - your mobile water analysis tool for precise and reliable results directly on site. With this comprehensive set, you have everything you need to check the water quality of your drinking water quickly and easily. Area of application:The complete, portable water laboratory for all important drinking and well water parameters. Thanks to the state-of-the-art pH and conductivity meter, analysis is effortless, efficient and reliable. In addition, quick tests enable the rapid determination of iron and chlorine levels - essential values for water quality. The sturdy plastic case contains a practical measuring cup for taking samples, while the secure foam insert provides optimum protection for all components. The buffer solutions already included for calibrating the measuring devices ensure permanently precise measurement results and make the set a fully-fledged, technically sophisticated mobile laboratory. With the Heyl analysis set, you get everything you need for professional water analysis - compact, reliable and ready for immediate use. We are also happy to offer individual adaptations to meet your exact requirements. Contents water master measuring case - 1x plastic case K2010 blue / white lock - 1x Milwaukee MW803 watertight pH, conductivity, TDS and temperature measuring device with automatic pH, conductivity, TDS and temperature measuring function - 1x NEOMERIS buffer solution pH 4.01, +-0.01 @25°C, 1 bottle of 70ml colored red - 1x NEOMERIS buffer solution pH 7.00, +-0.01 @25°C, 1 bottle of 70ml colored green - 1x NEOMERIS buffer solution pH 10.01, +-0.02 @25°C, 1 bottle of 70ml colored yellow - 1x NEOMERIS conductivity calibration solution EC 1413 μS/cm, +-1% @25°C, 1 bottle a 70ml - 1x NEOMERIS conductivity calibration solution EC 12880 μS/cm, +-1% @25°C, 1 bottle of 70ml - 1x measuring beaker 50 ml - 1x Duroval B, measuring range: 0-2 °dH - 1x Testoval Chlorine DPD color comparison set - 1x Testoval Iron (II) + (III) dissolved - color comparison kit - 1x Duroval A, measuring range: 0-30 °dH

Our portable multi-parameter meter with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode, whereby consultation is required for cooling water applications. The meter has automatic, up to five-point, conductance calibration for the most common conductivity calibration standards. You are supported by intuitive symbols on the backlit screen, including display of measurement stability (adjustable) and any errors. Another advantage is that you receive the multi-parameter measuring device in our professional measuring case, which contains the measuring electrode, our respective buffer solutions and the instructions.  Additional advantages of the Professional Plus version:GLP functions: Date and time, retrieval of calibration data and ‘Calibration due’ functionIntegrated data logger for up to 1000 data, automatic and manualPC connection via USB for analysing the measurement data (micro USB on the device side) via the Data Link+ softwareAutomatic brightness control of the display (extends battery life)Only 6 buttons for easy control of all device functions230V power supply unit

Our portable multi-parameter measuring device with innovative high-resolution colour display is suitable for working in all conditions and offers you an integrated user-friendly guide in the form of the set-up and calibration mode. This allows the user to easily and intuitively use the instrument at any time. The meter has automatic pH calibration with USA and NIST buffers with up to three points for pH and one point for ORP. You are supported by an intuitive symbolism on the backlit screen, including the indication of the measurement stability (adjustable) and any errors. Another advantage is that the multi-parameter meter is delivered in our professional measuring case, which contains the selected measuring electrodes, as well as our respective buffer solutions and the instructions. Complementary advantages of the Professional Plus version: GLP functions: Date and time, recall of calibration data and "Calibration due" function Integrated data logger for up to 1000 data, automatic and manual PC connection via USB for evaluation of measurement data (Micro-USB on the instrument side) via Data Link+ software Automatic brightness control of the display (prolongs battery life) Only 6 keys for easy control of all functions of the unit 230V power supply unit

Professional Water Testing Lab for Heating Systems This practical analysis kit contains a complete portable laboratory, specifically designed for checking the fill water of hot water heating systems according to the VDI Guideline 2035. The guideline describes how changes in pH or excessively high electrical conductivity can promote corrosion damage to heating systems and why regular monitoring of these parameters is important. The analysis kit from HeylNeomeris provides everything needed to check the most important chemical parameters of heating water. The supplied solutions and indicators allow on-site determination of pH fluctuations, conductivity deviations, and water quality. What Does the Analysis Kit Include? Electronic conductivity meter with interchangeable probe for measuring conductivity in the range of 0–3999 μS/cm with a resolution of 1 μS/cm and TDS value in the range of 0–2000 PPM with a resolution of 1 PPM. Automatic temperature compensation 0–60°C. IP65. Conductivity calibration solution EC 1413 μS/cm, ±1% @25°C, 5 bags × 20 ml Electronic pH meter with interchangeable probe for measuring pH in the range of 0.0–14.0 with a resolution of 0.1 pH Buffer solution pH 4.01, ±1% @25°C, 5 bags × 20 ml Buffer solution pH 7.01, ±1% @25°C, 5 bags × 20 ml Buffer solution pH 10.01, ±1% @25°C, 5 bags × 20 ml 1 measuring cup 50 ml Duroval A complete with measuring tube, indicator, calibrated dosing pipette 0–30 °dH, and 50 ml titration solution for approx. 100 analyses (measurement time: approx. 2 minutes) Duroval B complete with measuring tube, indicator, calibrated dosing pipette 0–2 °dH, and 50 ml titration solution for approx. 100 analyses (measurement time: approx. 2 minutes) Advantages of the Professional Water Testing Lab for Heating Systems The professional water testing lab for heating systems enables comprehensive and guideline-compliant checking of heating water on-site. By combining electronic measuring devices with proven chemical test methods, all relevant parameters according to VDI Guideline 2035 can be reliably captured. Regular monitoring of pH, electrical conductivity, and water hardness helps detect and prevent corrosion damage, deposits, and malfunctions at an early stage. The analysis kit is ideal for heating engineers, service technicians, and system operators who want to ensure proper commissioning, maintenance, or documentation of water quality. Frequently asked questions What is included in the scope of delivery? The individual components can be viewed in our shop using the images and description of the item. Can individual components of the case be reordered separately? Yes, this is possible. Please provide us with the item number or name of the desired item. This information can be found under the ‘Contents of the case’ tab. Please send your enquiry to vertrieb@heylneomeris.de. Is it possible to purchase the case with my own company logo? Yes, this is possible in principle. We would be happy to provide you with a customised quote. The minimum purchase quantity for labelled products is 50 pieces. Is the case also available in a different material? Not as standard. However, we would be happy to check whether the desired case can also be ordered in a different material.

The practical analysis case contains a complete hand-held laboratory for testing the filling water of heating systems according to VDI guideline 2035. The conductivity meter and pH meter are IP65 certified, which means "dust-tight and protected against water jets" and have replaceable probes.   Contents:   Electronic conductivity meter with exchangeable probe for determining the conductivity in the range 0-3999 μS/cm with a resolution of 1 μS/cm and the TDS value in the range 0-2000PPM with a resolution of 1 PPM. Automatic temperature compensation 0-60°C. IP65!  Conductivity Calibration Solution EC 1413 μS/cm, +-1% @25°C, 5 bags a 20ml Electronic pH meter with exchangeable probe for determining the pH value in the range of 0.0-14.0 with a resolution of 0.1 pH Buffer solution pH 4.01, +-1% @25°C, 5 bags of 20ml Buffer solution pH 7.01, +-1% @25°C, 5 bags of 20ml Buffer solution pH 10.01, +-1% @25°C, 5 bags of 20ml Duroval A complete with measuring tube, indicator, dosing pipette calibrated 0-30 °dH and 50 ml titration solution for approx. 100 analyses with measuring time: approx. 2 minutes. Duroval C complete with measuring tube, indicator, dosing pipette calibrated 0-20 °dH and 50 ml titration solution for approx. 100 analyses with a measuring time of approx. 2 minutes According to VDI Guideline 2035, Sheet 2, changes in the pH value or excessive electrical conductivity (LF) in hot water heating systems should be avoided to prevent corrosion damage to heating systems. With the help of our supplied solutions, indicators and testers, an optimal control and monitoring of the relevant values can take place. The appropriate values for your heating system can be found in the VDI guideline 2035. We regularly carry out team training courses for facility managers and heating installers in the correct application. Please contact us.

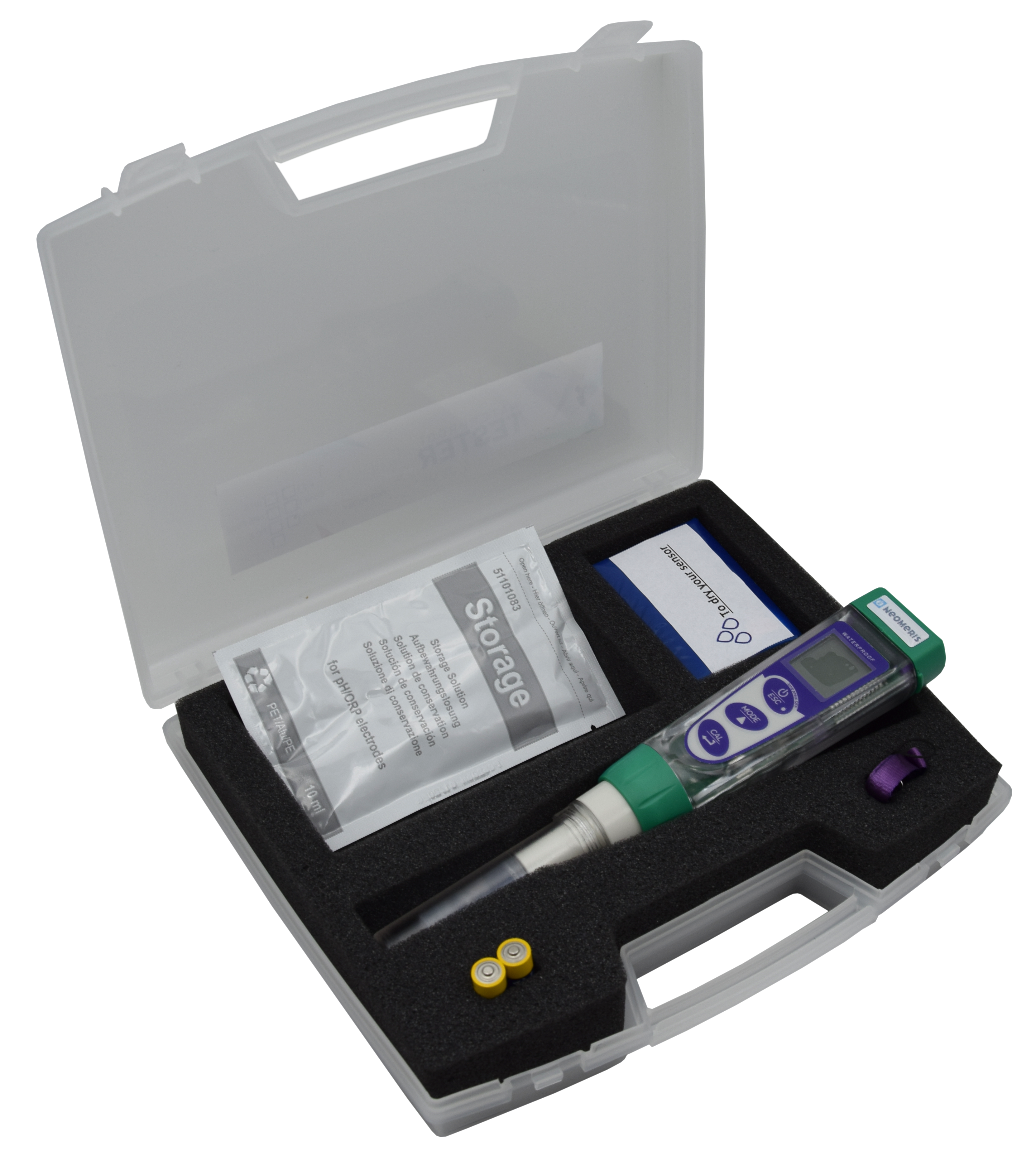

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml bag or 70ml bottle) 1x pH 7.00 buffer solution (25ml bag or 70ml bottle) 1x storage solution (25ml bag or 70ml bottle) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml sachet) 1x pH 7.00 buffer solution (25ml sachet or 70ml bottle) 1x conductivity calibration solution EC 1413 µS/CM (25ml sachet or 70ml bottle) 1x 475mV ORP solution (70ml bottle) 1x storage solution (25ml sachet) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml bag or 70ml bottle) 1x storage solution (25ml bag or 70ml bottle) 1x 475mV ORP solution in a 70ml bottle 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml bag or 70ml bottle) 1x pH 7.00 buffer solution (25ml bag or 70ml bottle) 1x conductivity calibration solution EC 1413 µS/CM (25ml bag or 70ml bottle) 1x storage solution (25ml bag) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The storage solution matching the tester in the 25 ml sachet and the 70ml 475mV redox solution finds place in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x storage solution (25ml sachet or 70ml bottle)  1x ORP 475mV solution in a 70ml bottle 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The solutions matching the tester in the form of the 25ml sachets or 70ml bottles find space in the matching foam blank.  Your analysis case consists of the following components: 1x pocket tester  1x conductivity calibration solution EC 12880 μS/cm (25ml bag or 70ml bottle) 1x conductivity calibration solution EC 1413 μS/cm (25ml bag or 70ml bottle) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml bag or 70ml bottle) 1x pH 7.00 buffer solution (25ml bag or 70ml bottle) 1x storage solution (25ml bag or 70ml bottle) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The solutions matching the tester in the form of the 25ml sachets or 70ml bottles find space in the matching foam blank. Your analysis case consists of the following components: 1x pocket tester  1x conductivity calibration solution EC 12880 μS/cm (25ml bag or 70ml bottle) 1x conductivity calibration solution EC 1413 μS/cm (25ml bag or 70ml bottle) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67

Dear customers, our handy pocket tester analysis case protects your handheld tester safely and also offers you space for the required calibration and buffer solutions. The 25ml sachet or 70ml bottle solutions matching the tester can be accommodated in the foam blank. Your analysis case consists of the following components: 1x pocket tester  1x pH 4.01 buffer solution (25ml bag or 70ml bottle) 1x pH 7.00 buffer solution (25ml bag or 70ml bottle) 1x storage solution (25ml bag or 70ml bottle) 2x batteries 1x lanyard for the pocket tester 1x pack of tissues  You can also purchase the case separately to safely store your existing testers and always have the appropriate calibration and buffer solutions on site in the case. IP protection class: IP67
