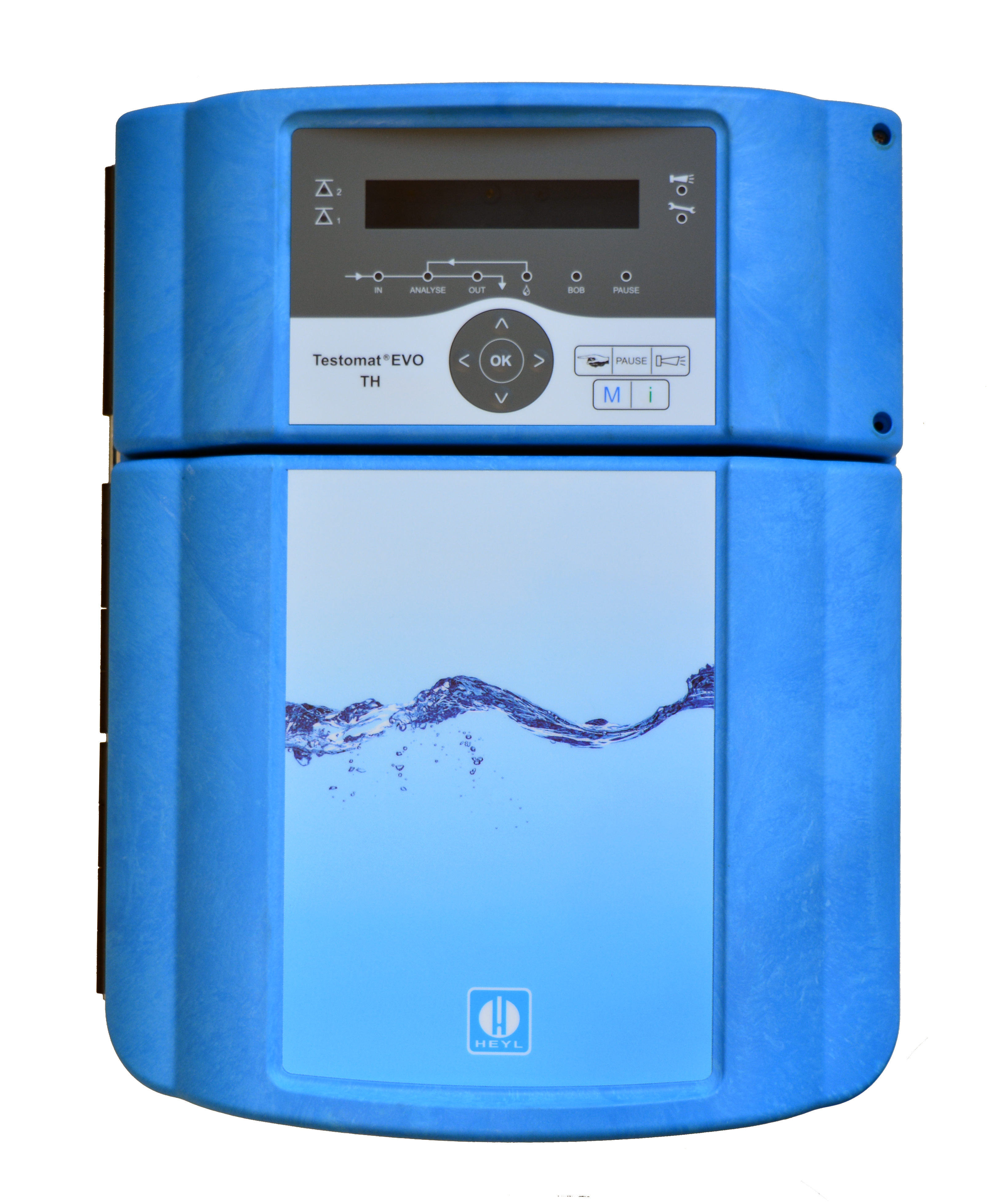

Testomat® EVO (Successor Testomat® ECO)
€5,319.60*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
| Testomat® indicator TH 2005 2x100ml | Order · Subscription |
| Testomat® indicator TH 2025 2x100ml | Order · Subscription |
| Testomat® indicator TH2050 2x100ml | Order · Subscription |
| Testomat® indicator TH 2100 2x100ml | Order · Subscription |
| Testomat® indicator TH 2250 2x100ml | Order · Subscription |
| Testomat® indicator TH 2005, 500ml | Order · Subscription |
| Testomat® indicator TH 2025 500ml | Order · Subscription |

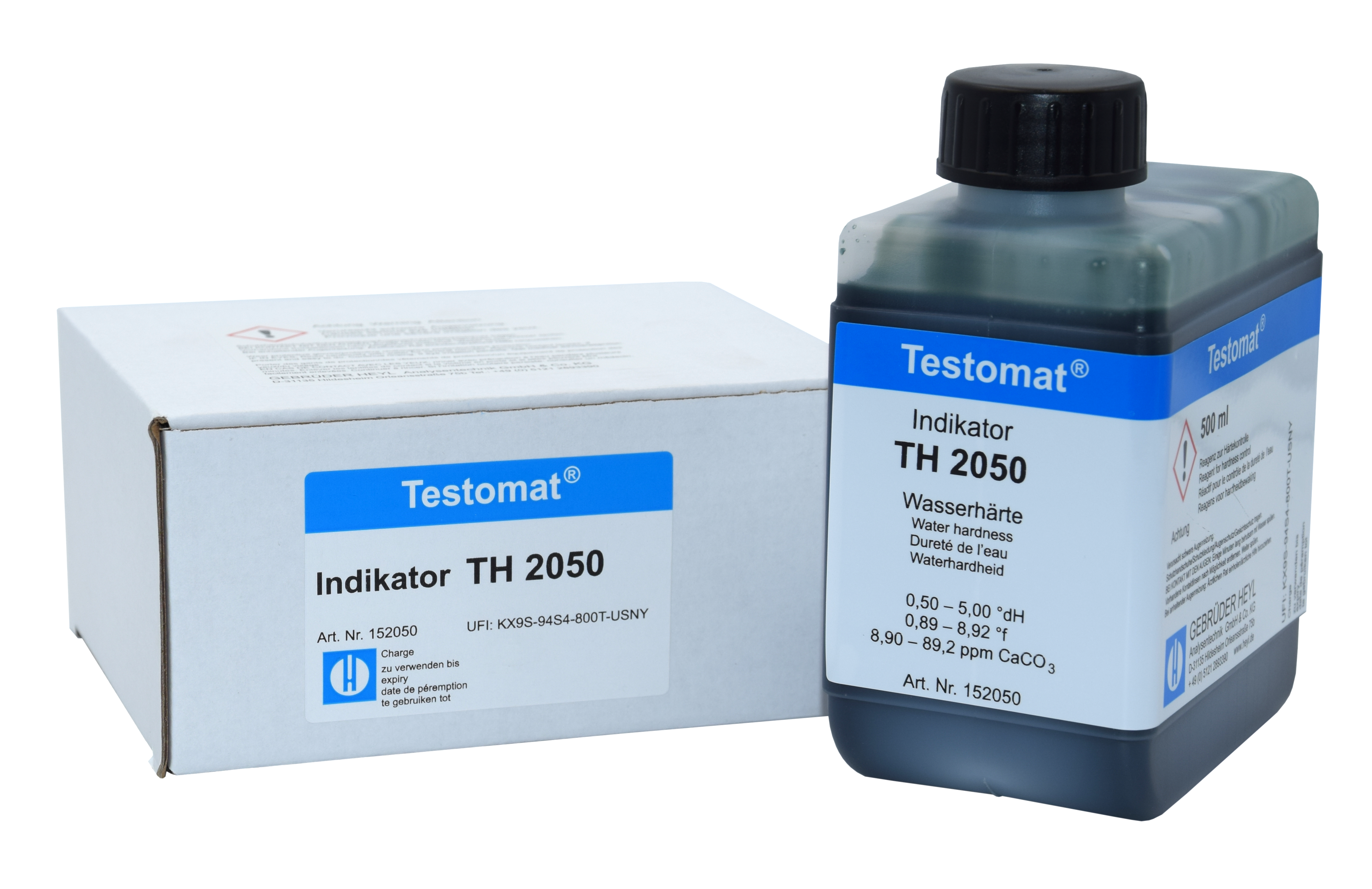

| Testomat® indicator TH2050 500ml | Order · Subscription |
| Testomat® indicator TH 2100 500ml. | Order · Subscription |
| Testomat® indicator TH 2250 500ml. | Order · Subscription |
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Leasing Example
111,13 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Product information "Testomat® EVO (Successor Testomat® ECO)"
- Optical water detection when filling the measuring chamber
- BOB operation (operation without constant supervision)
- Import and export of settings (basic programming) with selectable file name
- Logging of measurement data and messages / alarms using an integrated SD or optional SDHC card (2GByte)
- Firmware update via SD card
- LCD graphic display
- Multilingual menu with easy switching (internal programming is retained)
- Integrated self-test with continuous monitoring
- External clear / acknowledge input
- Free programmable password
- Automatic bleeding of the indicator line
- Doors can be changed individually
- Range monitoring (fall below limit value1 / exceed limit value 2)
- Permitted number of lack of water, freely programmable (for systems with temporarily low water pressure)
- High-precision titration using a piston dosing pump
- Analogue output 0/4 - 20 mA
- Serial RS232 interface for transfer of measurement data and messages/alarms
- Programmable hardness unit in ° dH, ° f, ppm CaCO3, mmol / l
- 2 independent limits with adjustable switching functions as well as switching option in accordance with an adjustable number of negative
- analyzes
- Analysis initiation:
- automatic interval operation (0-99 minutes)
- depending on quantity via contact water meter
- Indicator quantities: 100 und 500 ml bottles
Dimensions
| Height | 48 cm |
|---|---|
| Length | 28 cm |
| Width | 38 cm |
Weight
| Weight | 9,1 kg |
|---|
Other attributes
| Country of origin | EU |
|---|---|
| Customs tariff number | 90278990 |
| Supply voltage: | switching power supply 100-240 VAC, 100-353 VDC |
| Power consumption: | max. 30 VA |
| Protection class: | I |
| Protection: | IP 44 |
| Ambient temperature: | 10–40 °C |
| Water temperature: | 10–40 °C |
| Dimensions (W x H x D): | 380 x 480 x 280 mm |
| Operating pressure: | 1 bis 8 bar / 1x105 bis 8x105 Pa Oder 0,3* bis 1 bar / 0,3x105 bis 1x105 Pa (after removal of the valve body) |
| Weight: | approx. 9,0 kg |
| Menu Language: | German, English, French, Dutch, Spanish, Turkish, Chinese, Czech, Russian (others on request) |
| Measuring range: | Water hardness: 0.89 - 448 ppm |
Tender documents available for download as Word (*.docx) or PDF (*.pdf) files DE/EN
Tender text Testomat EVO TH
Performance description:
automatic water hardness analyzer for continuous online monitoring of residual total hardness in water treatment plants.
Type:
Microprocessor-controlled limit value measuring device that automatically checks water hardness using an indicator pump system
Manufacturer: Gebrüder Heyl Analysentechnik GmbH & Co. KG, Hildesheim
Product name: Testomat® EVO-TH
Article number:
|
Power consumption |
Article number: |
|
24V/50 – 60 Hz |
100706 |
|
100 – 240 VAC/ 100 – 353 VDC |
100704 |
Measuring principle & measuring range:
Titration method using color change with piston dosing pump for precise analysis of total hardness in the range of 0.05–25 °dH (or 0.89–448 ppm), depending on the indicator used.
Fields of Application:
- Monitoring of water softening systems
- Water treatment plants
- Drinking water treatment
- Industrial boilers
- General process water monitoring
Technical specifications:
- Automatic sampling and venting of the dosing pump
- Optical water detection for level monitoring and evaluation of sample water quality
- LCD graphic display with multilingual menu navigation
- Menu navigation with password protection
- Limit value monitoring with programmable switching logic (under/over)
- Freely selectable measurement interval times (cyclical or quantity-dependent)
- External analysis trigger
- Self-test and error diagnosis functions
- RS-232 interface and analog output 0/4–20 mA
- Storage of all system data and logs (measurement values and error messages) on SD card
- Display units: °dH, °f, ppm CaCO₃, mmol/l
- Internal memory with data export/import function (SD card)
- Robust housing: IP44 / protection class I
- Supply voltage: 100–240 VAC or 100–353 VDC
- Dimensions: approx. 380 × 480 × 280 mm, weight: approx. 9 kg
- Permissible ambient temperature: 10–40 °C
- Permissible water temperature: 10–40 °C
- Operating pressure: 1–8 bar (or 0.3–1 bar after removing the controller core)
Scope of delivery:
- 1× Testomat EVO TH with factory calibration
- 1× SD card (2 GB) for storing measured values, logs, and firmware updates
- 1× Complete operating and installation manual (English)
- 1× factory test report / calibration certificate
Optional accessories and operating materials
- Externally mountable power switch (IP65)
- Connection set for sample inlet/outlet consisting of PE hose 6/4x1 for water inlet, 2 m drain hose di = 12 mm, 1 ball valve, 1 reducer connector 10 to 6 mm, and reducer nipple 3/8"-1/2
- indicator for initial commissioning (TH2005, TH2025; TH2050; TH2100 or TH2250; in 500 ml or 100 ml)

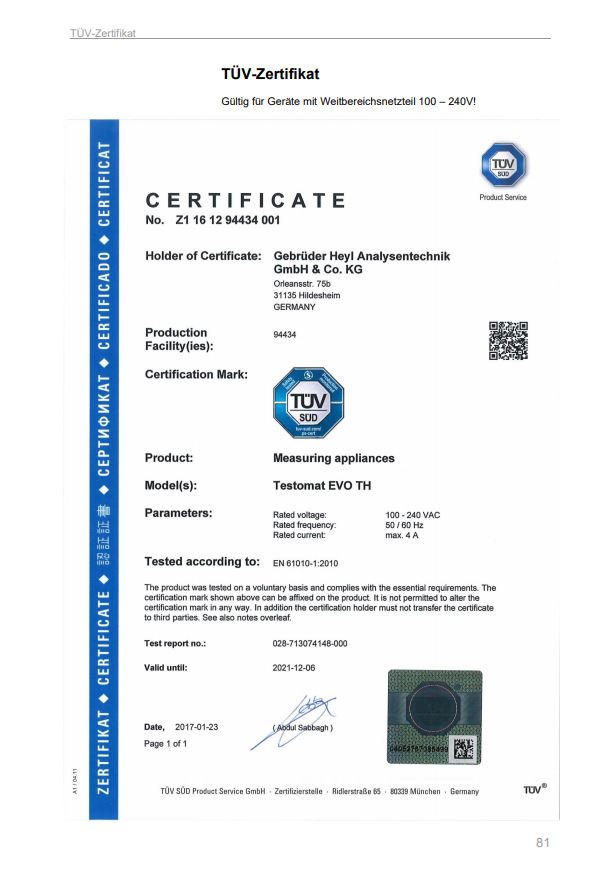

Certificates and approvals:

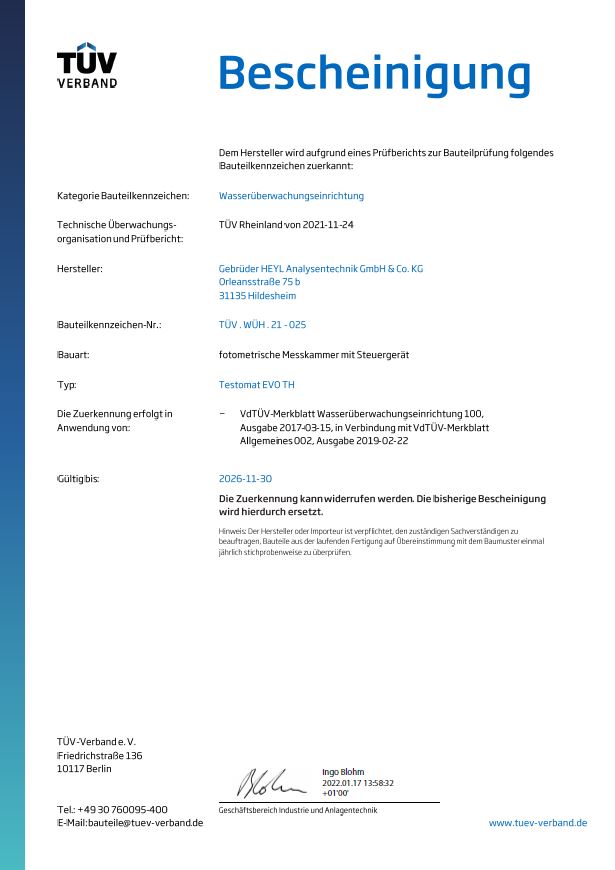

- Component designation WÜH 21-025

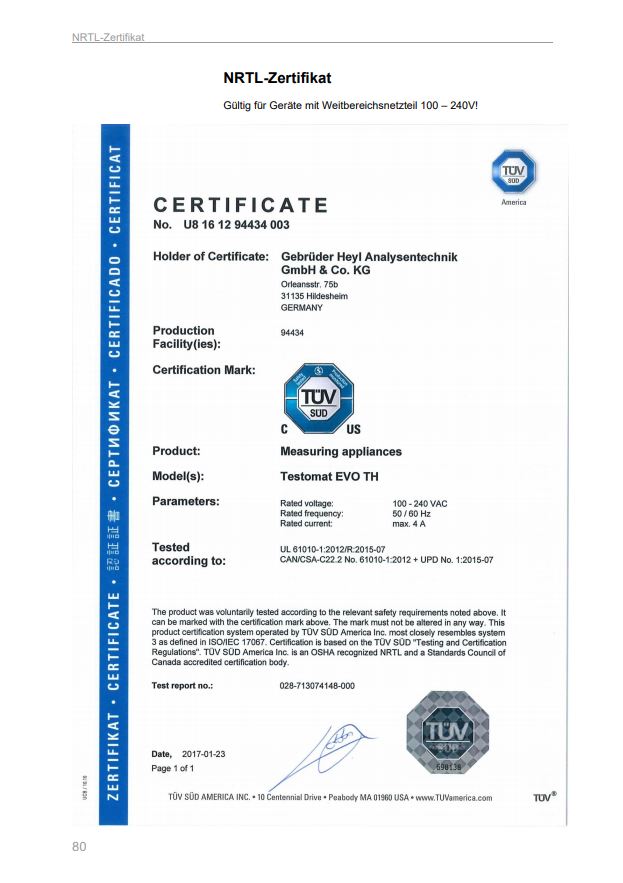

- UL certified
Special notes:
- Device is factory calibrated and ready for immediate use
- Connection via external power switch in accordance with DIN EN 61010-1
- Low consumption of water and indicator solution
- Suitable for continuous industrial use
- Calibratable version: Testomat EVO TH CAL available
