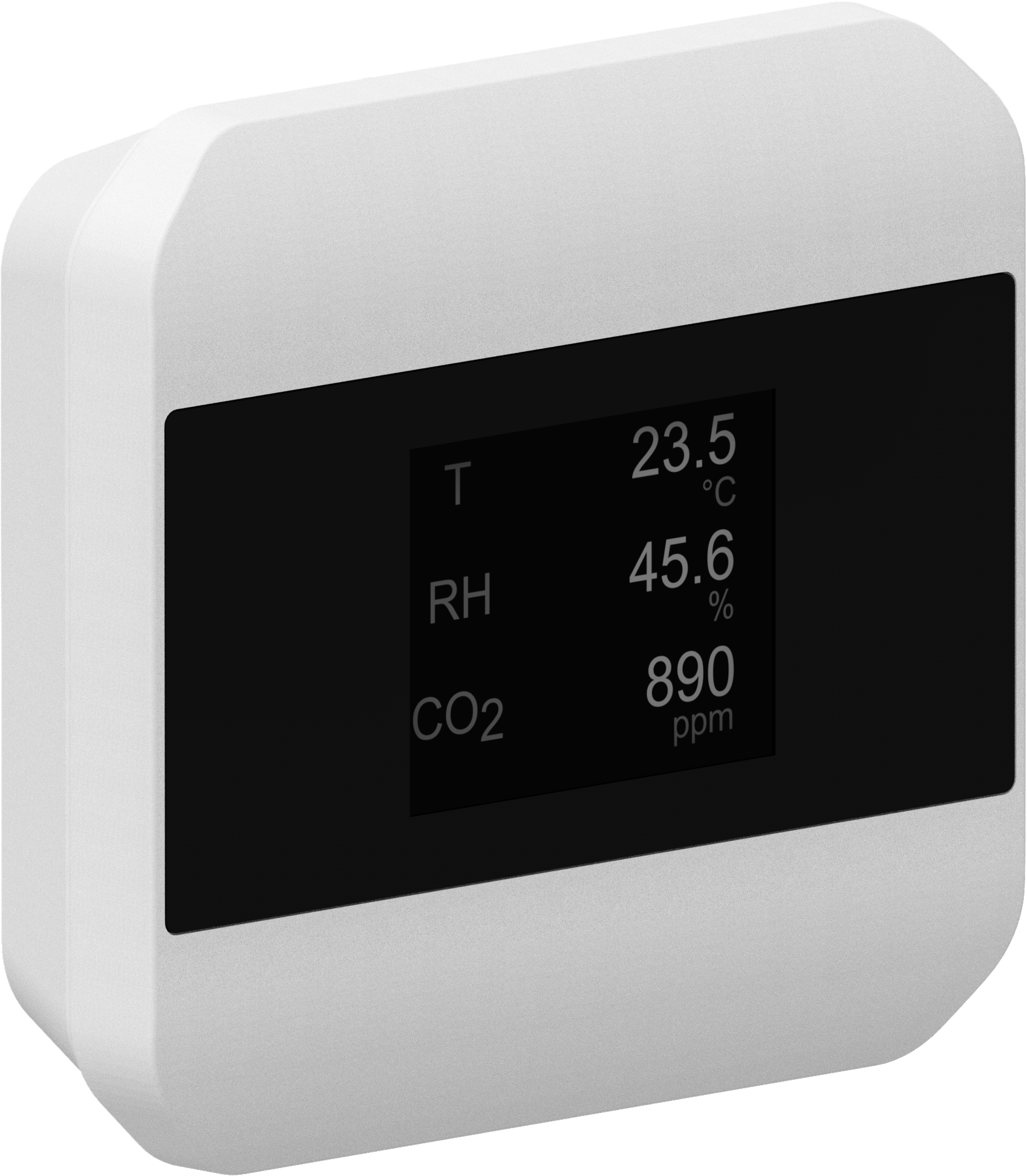

JUMO hydroTRANS S20

Product number: 802103

€246.80*

Please log in to receive your conditions.

Available, delivery time:

Version

Product number: 802103
GTIN: 4068823016673
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "JUMO hydroTRANS S20 "

JUMO hydro TRANS S20 - Humidity and temperature transmitter with optional wall-mounted CO2 module

Typ: 907042/11-0-15-009/994

  • Basic type extension: RH-T
  • Version: Standard
  • Measuring range: 0 ... 100 % rH / -40 ... +80°C
  • Output: 4 ... 20 mA / 0 ... 10 V combi output config.
  • Extra code: with integrated display

  • Robustness
  • Easy to install
  • Multi-sensor
  • Optional plastic sintered filter

The humidity and temperature transducer monitors the quality of the ambient air and can be wall-mounted both indoors and in protected outdoor areas.

Areas of application

  • Climate monitoring
  • Ventilation systems
  • Building management
  • Storage rooms

Dimensions

Weight

Other attributes

Ausgang 4...20 mA / 0...10 V (Kombiausgang konfiguriert)
Customs tariff number 90258040
Messbereich (Temperatur & relative Feuchte) 0...100% rF / -40°C...+80°C
Messparameter Relative Feuchte, Temperatur
Technical data:

Electrical safety



Requirements

DIN EN IEC 61010-1:2020

The device must be supplied with an electrical circuit that meets the requirements for "energy-limited circuits".



Electric Dating

Device with analogue output



Power supply

DC 24 V, -33 %/+33 %, SELV, PELV

Power consumption

2,4 W

Surge Category

II

Degree

2

Class

DIN EN 61140, Class III (Protective extra-low voltage)

Electrical connection

Connection Elements



Spring clamb

Connection cable cable cable cross-section

Without ferrule

With ferrule

Stripping length

Without ferrule

With ferrule

Temperature resistance



AWG 28 bis AWG 14

0,2 to 1,5 mm2

0,25 to 1,5 mm2

8 mm

10 mm

80 °C

Device with RS485



Power supply

DC 24 V, -58 %/+33 %, SELV, PELV

Power consumption

2,4 W

Surge Category

II

Degree

2

Class

DIN EN 61140, Class III (Protective extra-low voltage)

Electrical connection

Connection Elements



Spring clamb

Connection cable cable cable cross-section

Without ferrule

With ferrule

Stripping length

Without ferrule

With ferrule

Temperature resistance



AWG 28 to AWG 14

0,2 to 1,5 mm2

0,25 to 1,5 mm2

8 mm

10 mm

80 °C



Device with SPE



Power supply

DC 18 to 30 V, PELV

Power consumption

100 mA

Power consumption

1,8 W

     Surge Category

II

Degree

2

Class

DIN EN 61140, Class III (Protective extra-low voltage)

PoDL-Class

Class 11, IEEE 802.3cg

PoDL-Classification

SCCP- oder Forced-Mode

Electrical connection

Connector



M12-Plug connection

M12 Connectors

IEC 63171-5

Execution

2-polig, shielded

Protection

IP67

Trunk

IEC 61156-13, IEC 61156-14

Execution

2-adrig, Kupfer, shielded

Bandwidth

20 MHz

Length

500 m (AWG22 bei DC 24 V)

DC Loop Resistor

< 59

Temperature resistance

80 °C



Inputs

Measuring range

Relative residual moisture



Measuring range

With CO2 module

0 to 100 % RH

0 to 95 % RH

Accuracy



Typical

±2,0 % RH

Max.

±2,5 % RH

Measurement Rate

1 s

Temperature



Measuring range

With CO2 module

-40 to +80 °C

-10 to +60 °C

Genauigkeit



Typical

±0,2 °C

Max.

±0,4 °C

Measurement Rate

1 s



Carbon dioxide (CO2)

Optional on devices with analog output and RS485, factory on devices with SPE.



Measuring range

400 to 10000 ppm

Accuracy Reference Conditions

Ambient temperature Air Pressure Humidity

Measuring range

±(50 ppm + 5 % from the measured value)



25 °C

1013 hPa

50 % RH

400 to 1 000 ppm

Measurement Rate

30 s

Exits

Device with analogue output

Power Output



Signal Range

4 to 20 mA

Output Signal Limits

0 to 22 mA

Accuracy

±0,05 % related to end of signal range (20 mA)

Temperature

±50 ppm/K

Burden Influence

±0,02 % pro 100

Burde

500



Voltage output



Signal Range

0 to 10 V

Output Signal Limits

0 to 11 V

Accuracy

±0,05 % related to end of signal range (10 V)

Temperature

50 ppm/K

Load Influence

±15 mV

Last

10 kΩ



Interfaces

USB



Function

Übertragen von Konfigurationsdaten und Geräteinformationen

Communication

Via device and setup software

Transmission standard

USB 2.0

Plug Type

Micro-B

Power

500 mA

Cable length

≤ 5 m

RS485



Function

Übertragen von Prozessdaten, Konfigurationsdaten und Geräteinformationen

Communication

Über Modbus-Master

Galvanic isolation

Funktional

Data transmission

Seriell

Transport

Modbus RTU

Data format

8-1-nonea

8-1-odd

 8-1-straight

8-2-none

Data rate

9600 Baud

19200 Baud

38400 Bauda

57600 Baud

115200 Baud

Minimum response time

0 to 500 ms

Device Address

1 to 254

a  Default setting

SPE



Function

Transmission of process data, configuration data and device information, power supply via PoDL

Communication

Via end device and JUMO Cloud, Modbus-Master

SPE-Standard

10BASE-T1L

Transmission protocol

Modbus TCP, Integrated JUMO Cloud-Gateway

Data rate

10 Mbit/s



Display



Typ

TFT-Display

Size

Display

Screen diagonal



35,04 mm × 28,03 mm

1,77″

Resolution

128 × 160 px RGB

Brightness

11 Tiers (configurable))

Environmental impact



Permissible ambient temperature With CO2-Modul

With Display

-40 to +80 °C

-10 to +60 °C

-20 to +60 °C

Permissible storage teperature With CO2- Modul

With Display

-40 to +80 °C

-30 to +70 °C

-30 to +60 °C

Protection

DIN EN 60529

IP65

Installation height max.

5300 m above NN

Climatic conditions Climat class

Relative humidity

DIN EN IEC 60721-3-3 3K24

≤ 100 % (95 % with CO2-Modul), non-condensing

Electromagnetic compatibility (EMC)) Emission

Stability

DIN EN IEC 61326-2-3:2022

Klasse Ba Industrieanforderung

Vibration deflection

Acceleration

DIN EN 60068-2-6

0,15 mm from 10 to 58,1 Hz

20 m/s2 from 58,1 to 150 Hz

Shockb Peak Acceleration

Shock Duration

DIN EN 60068-2-27

150 m/s2

11 ms

a The product is suitable for industrial use as well as for household and small businesses.

b  The CO2 module is sensitive to vibrations. In the event of vibrations, the measurement result may change due to the design.



Mechanical Properties



Materials Case

Displaycover



PC PMMA

Weight

Ca. 200 g
