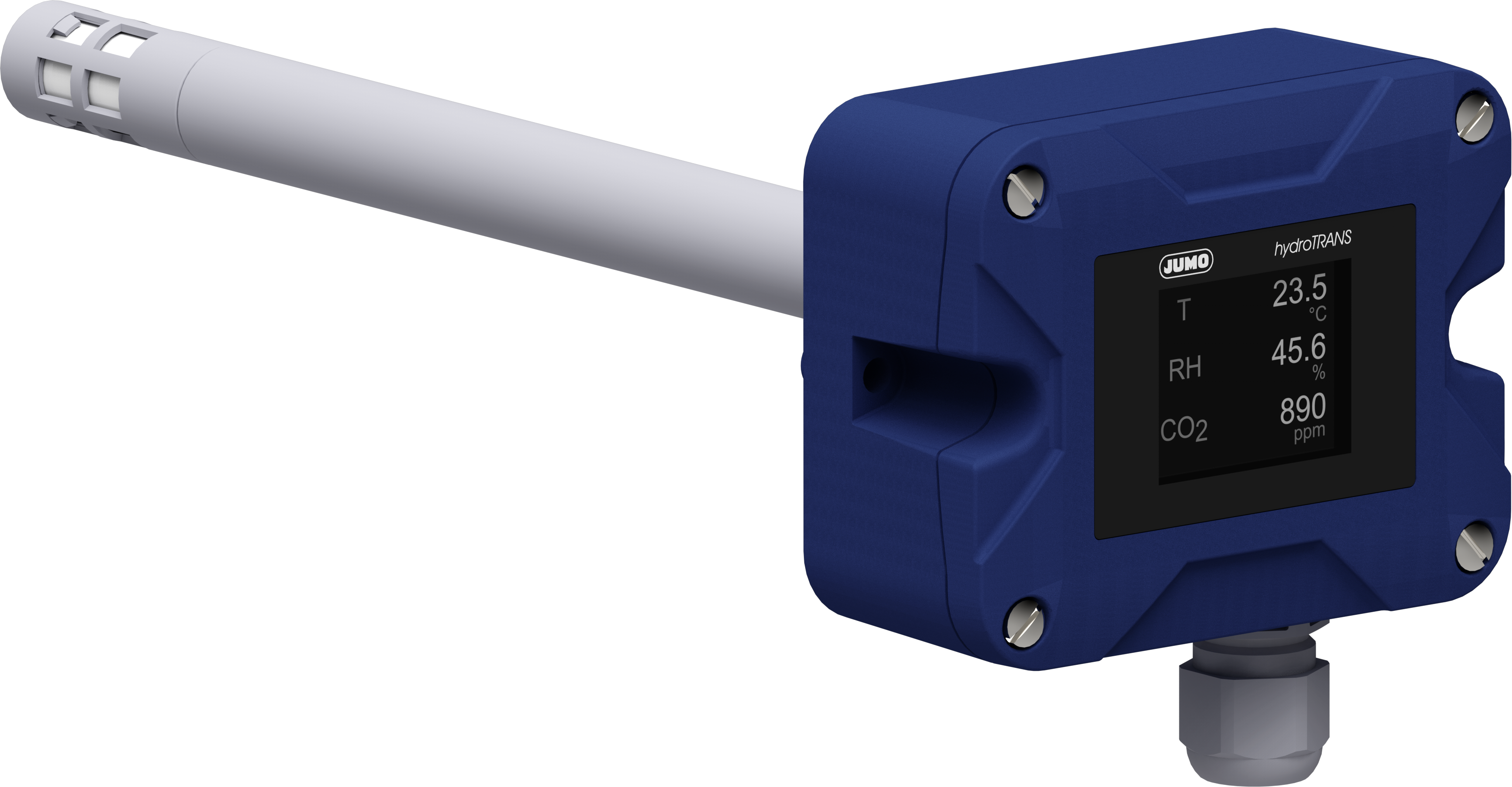

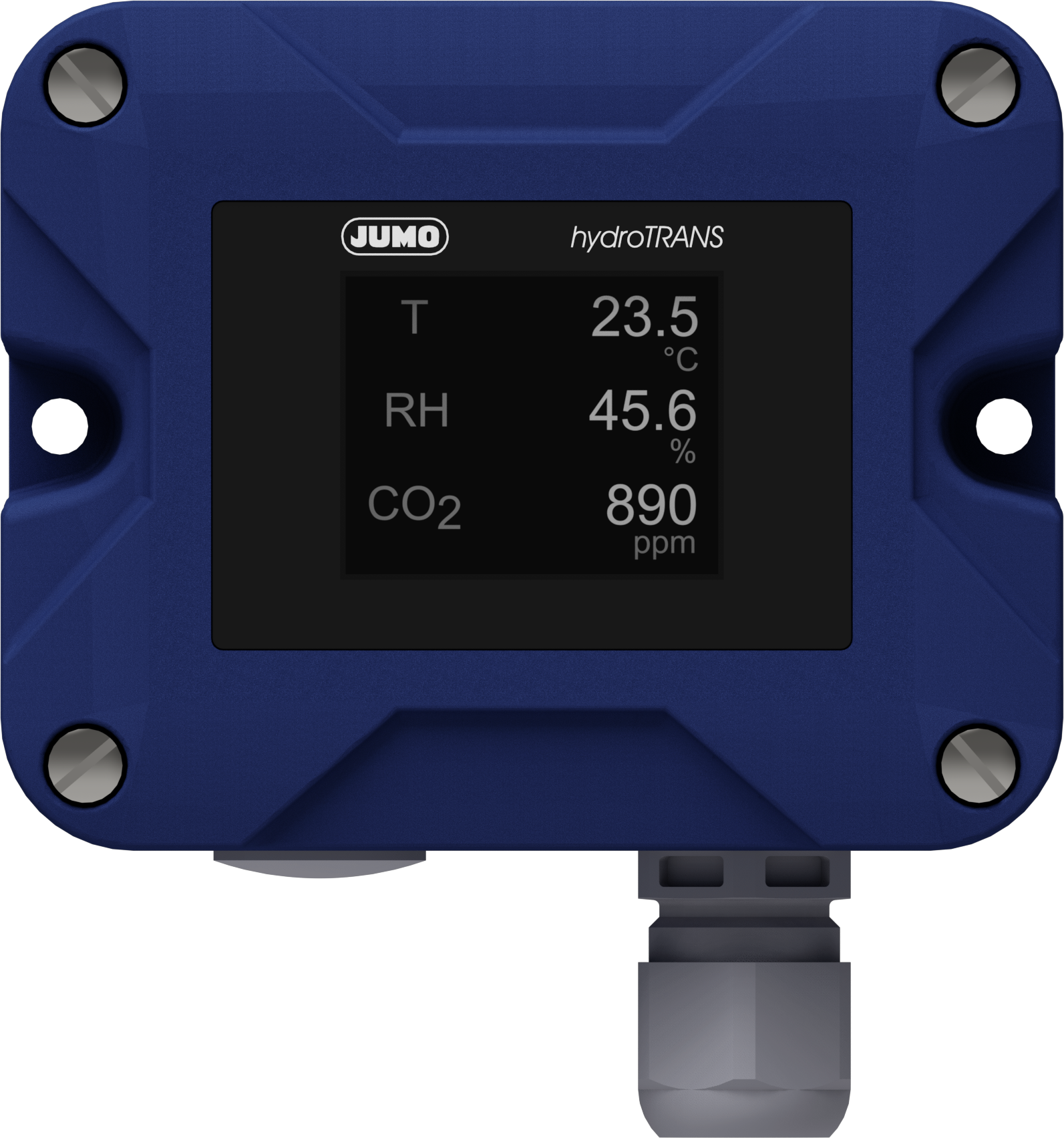

JUMO hydroTRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct design

Product number: 802114

€330.10*

Please log in to receive your conditions.

Available, delivery time:

Version

Product number: 802114
GTIN: 4068823016789
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "JUMO hydroTRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct design"

JUMO hydro TRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct version

Typ: 907043/12

  • Basic type extension: RH-T-CO2
  • Version: Standard
  • Measuring range: 0 to 95 % RH/-10 to +60 °C
  • Output: RS-485 Modbus
  • Extra code: Without

Measuring parameters

  • Temperature
  • Relative humidity
  • Carbon dioxide (CO2) optional

Interfaces

  • USB PORT
  • RS485

Areas of application

  • Climate monitoring
  • Ventilation systems
  • Building management
  • Storage rooms
  • Railroad applications according to DIN EN 50155

Special features

  • Robustness
  • Easy to install
  • Multisensor
  • Optional plastic sintered filter

The humidity and temperature transducer monitors the outside air flowing into buildings and production processes. It is suitable for installation in weather-protected ventilation ducts.

Dimensions

Weight

Other attributes

Ausgang RS485 Modbus
Customs tariff number 90258040
Messbereich (Temperatur & relative Feuchte) 0...95% rF / -10°C...+60°C
Messparameter Kohlenstoffdioxid (CO2)
