N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4" screw-in measuring cell

Product number: 880635M.2

€138.00*

Please log in to receive your conditions.

Available in 14 days, delivery time 1-2 days

measuring range
screw-in cel

Product number: 880635M.2
GTIN: 4068823008289
Measuring range: 0-10 μS/cm
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.

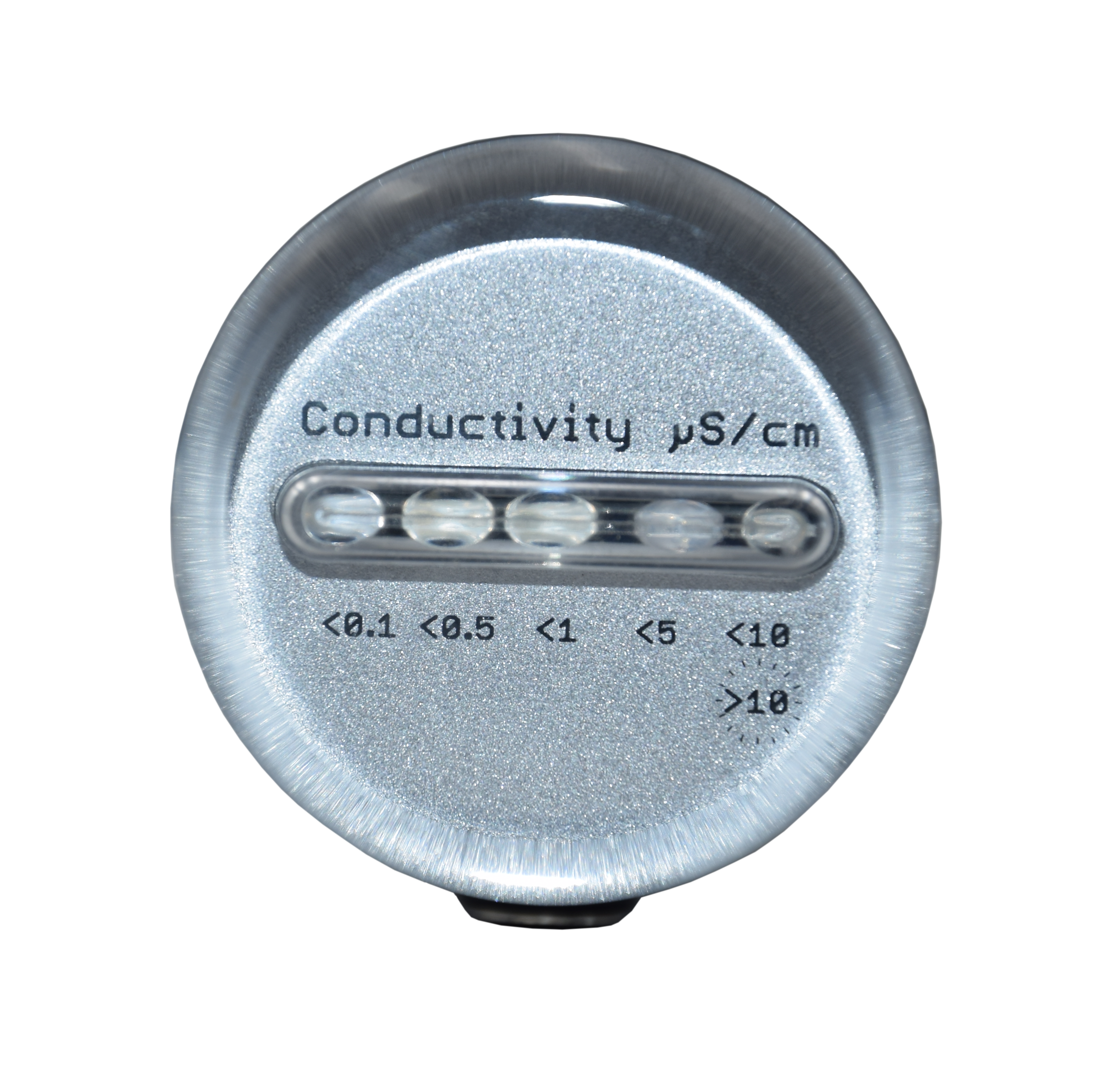

Product information "N-LED10, conductivity measuring instrument 0-10μS/cm with 5 LEDs and integrated 3/4" screw-in measuring cell"
Technical data:
Measuring range: 0 - 10 μS/cm (without temperature compensation)
<0.1 <0.5 < 1.0 < 5.0 < 10 μS/cm
LED display: 3x green; 1x yellow; 1x red
Power supply: 100-240 VAC plug-in power supply unit
Energy consumption: < 500 mW
Housing material: POM black (polyoxymethylene)
Viewing window material: PMMA (acrylic glass)
Electrodes: Stainless steel 1.4571
Dimensions: Diameter 40 mm x 68 mm (Top) / 110 mm (Total)
Gasket electrodes: EPDM
Gasket housing: EPDM
Application limits: Pressure max.: 6 bar; Temperature max.: 60 °C
Protection class: IP 65*
Display           Measuring range
3 LED green < 0.1 μS/cm
2 LED green < 0.5 μS/cm
1 LED green < 1.0 μS/cm
1 LED yellow < 5 μS/cm
1 LED red < 10 μS/cm
1 LED red flashing ≥ 10 μS/cm
