Testomat 2000® CLT

Product number: 100135

€7,446.30*

Please log in to receive your conditions.

Available in 140 days, delivery time 1-2 days

Language in the display
Performance/execution

Product number: 100135
GTIN: 4068823002737
Measurement parameters: Total chlorine | Free chlorine
Measuring range: Total chlorine: (Resolution) 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1) | Free chlorine: (Resolution): 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1)
Application: Monitoring of chlorination plants for drinking water | Monitoring of chlorination plants for swimming pools | Provision of protection for reverse osmosis membranes || Controlling of chlorine biocides and conditioning agents
Menu navigation: German, English, French,
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.

Leasing Example

155,55 € non-binding
Monthly Rate (60 Rates)
Prices excl. VAT

Further rate options by choosing the payment method Leasing

Product information "Testomat 2000® CLT"

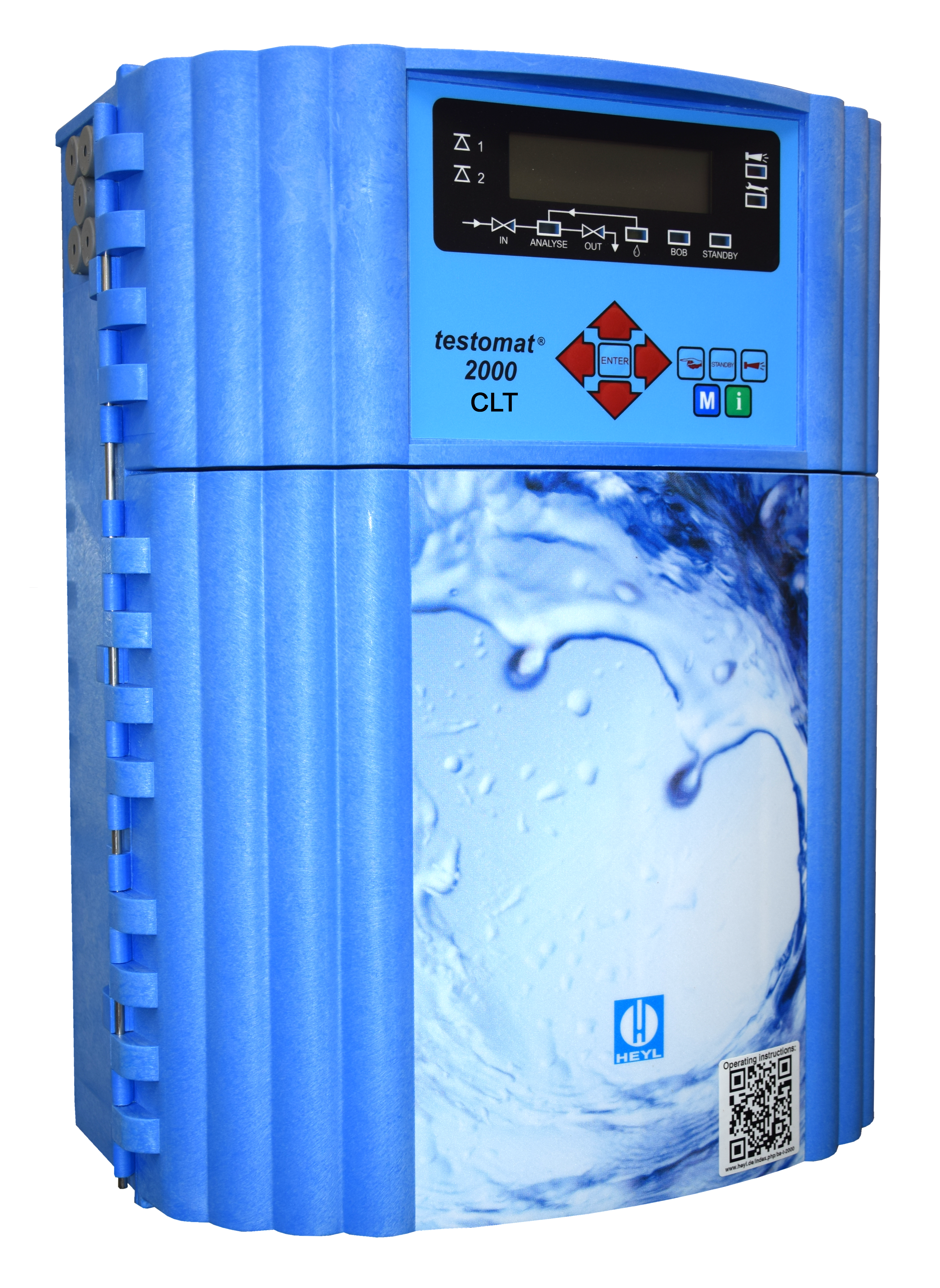

The Testomat 2000® CLT process photometer is an online analyzer for monitoring the content of total chlorine (CLT) in the range of 0-2.5 mg / L (ppm); switchable to free chlorine in the same range.

Performance profile:
  • Analysis via automatic dosing of three reagents
  • The analysis result is displayed after a reaction time of approx. 1 min. (Measuring time without rinsing time)
  • 2 independently programmable limit contacts for monitoring and control tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation
    • (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request

Dimensions

Weight

Weight 10 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 9,5 kg
Menu Language: German, English, French
Measuring range: Total chlorine: (Resolution) 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1) | Free chlorine: (Resolution): 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1)

We recommend the following reagents and accessories

Testomat 2000® chlorine reagent set T (total chlorine) 2 x 500 ml B & 1 x 200 ml C
Product number: 156235
The bottles of original Testomat 2000® Chlorine Reagent Set T can be used immediately in the Testomat 2000®® CLT, Testomat 2000® CLT Self Clean or Testomat 2000 THCL® without cumbersome filling and refilling. Content: 2 x 500 ml A, 1 x 400 ml B, 1 x 200 ml C Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€345.20*
Testomat 2000® Chlorine Reagent Set T 50 % (total chlorine) 1 x 500 ml A, 1 x 200 ml B, 1 x 100 ml C
Product number: 156237
The bottles of Testomat 2000® Chlorine Reagent Set T 50 % can be used immediately in the Testomat 2000®® CLT, Testomat 2000® CLT Self Clean or Testomat 2000 THCL® without cumbersome filling and refilling. Content:  1 x 500 ml CL2250A 1 x 200 ml CL2250B 1 x 100 ml CL2250C Measuring ranges: Total chlorine: 0.00 - 0.99 mg/l (Resolution: 0.01 mg/l) 1 - 2.5 mg/l (Resolution: 0.1 mg/l) Free chlorine: 0.00 - 0.99 mg/l (Resolution: 0.01 mg/l) 1 - 2.5 mg/l (Resolution: 0.1 mg/l)

€272.80*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
Testomat 2000® Reagent CL2250A 500 ml
Product number: 156230
500 ml-bottles of original Testomat 2000® reagent CL 2250 A can be used immediately in the Testomat 2000®® CLF or CLT.

€104.00*
Testomat 2000® Reagenz CL 2250 B 500 ml
Product number: 156231
500 ml-bottles of original Testomat 2000® reagent CL 2250 B can be used immediately in the Testomat 2000® CLF or CLT.

€202.40*
Testomat 2000® Reagent CL 2250 C 500 ml
Product number: 156232
The 500 ml-bottles of original Testomat 2000® Reagenz CL 2250 C can be used immediately in the instrument without cumbersome filling and refilling. Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€295.10*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Repair and maintenance case T2000/EVO TH/ECO
Product number: 270337
Repair and maintenance case T2000/EVO TH/ECO for professionals Content: 15 x plugs for measuring chamber5 x filter screens for feed 19.5dx252 x springs for feed5 x flow regulator cores, complete10 x O-rings 10.82x1.7810 x O-rings 20x25 x O-rings 4.47x1.785 x O-rings 18x2 EPDM20 x flat gaskets 24x2 EPDM 606 x fuses, G-, 5x20 mm, M4A6 x (solderable) fuses TR5, T 0.2A6 x (solderable) fuses TR5, T 0.315A6 x (solderable) fuses TR5, T 1.0A6 x (solderable) fuses TR5, T 0.1A6 x (solderable) fuses TR5, T 0.08A6 x (solderable) fuses TR5, T0.16 A1 x set of brushes15 x cylindrical protection plugs with shoulders 5.3dx5 natural PE5 x O-rings 4,47x1,785 x O-rings 18x2 EPDM20 x flat seals 24 x 21 x Assortment box Testomat® />10 x inspection glasses, 30x31 x suction hose complete1x pressure hose, complete2 x magnetic stirring cores3 x screw caps with insert1 x table of contents2 x PE D=6, d=4x105 pipes2 x PE D=6, d=4x115 pipes2 x PE D=10, d=8x98 pipes2 x p

€831.00*
maintenance case "professional" for Testomat 2000®/ Testomat ECO®
Product number: 270338
 content:6x #011210 Protection plug to measuring chamber T2000 / ECO4x #011216 O-Ring 20x2, for inlet connection2x #011217 filter strainer for inlet 19,5dx252x #011218 spring for inlet2x #011225 Flow regulator valve complete4x #011249 O-Ring 10,82 x 1,782x #031582 fuse GS-M 5X20 E 4A2x #031584 fuse T 0.2 A, TR 5  RM  5,082x #031585 fuse T 0.315 A, TR 5  RM  5,082x #031592 fuse T 1.0 A, TR 5  RM  5,082x #031595 fuse T 0.1 A, TR 5  RM  5,082x #031596 fuse T 0.08 A, TR 5  RM  5,082x #031622 fuse T 0.16 A, TR 5  RM  5,081x #032287 cleaning brush set2x #033253 screw M3x40, A2, DIN 9652x #033775 O-Ring 4,47 x 1,782x #033776 O-Ring 18x2 EPDM4x #033777 flat gasket 24x2 EPDM 602x #040011 suction hose, cpl.2x #040016 pressure hose, cpl.2x #040040 valve set for jet pump2x #040050 magnetic stirring core1x #040121 inlet connector2x #040131 screw cap with insert T20002x #040141 tube,PE,D=6 d=4x1052x #040142 tube, PE, D=6 d=4x1151x #040153 screw connector G1/4"-62x #040154 plug connector 6-61x #040157 Angled plug-in connector G1/8“-64x #040170 sight glass 30x32x #04022x #040240 pipe, PE, D=10 d=8x98

€802.80*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
