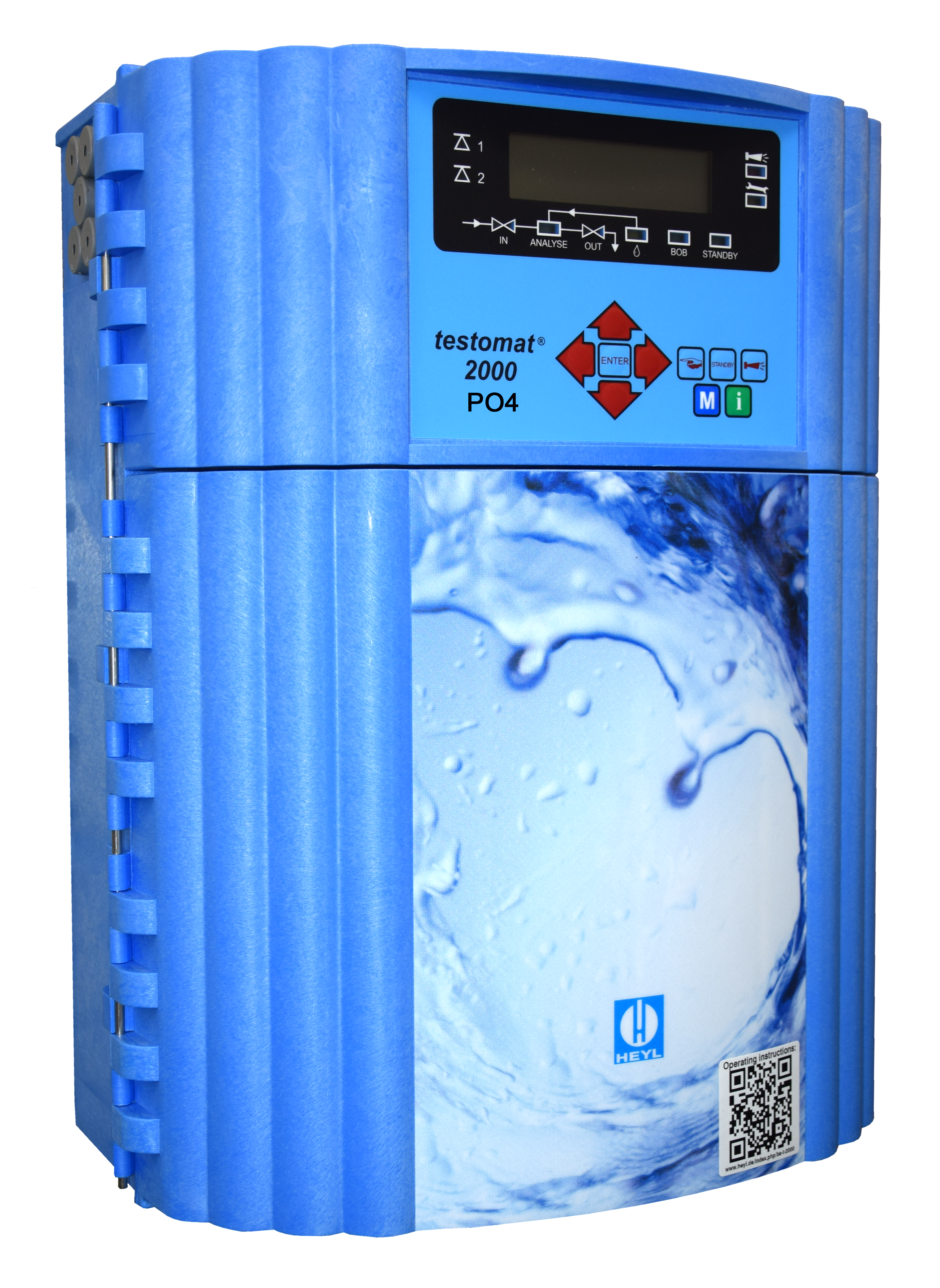

Testomat 2000® PO4

Product number: 100567
Product information "Testomat 2000® PO4"
The Testomat 2000® PO4 process photometer is an online analyzer for monitoring the content of ortho – phosphate in the range 0 to 10.0 mg/l (ppm) by using the photometric analysis principle.

Performance profile:
  • Analysis via automatic dosing of two reagents
  • The analysis result is displayed after a reaction time of approx. 10 min. (Measuring time without rinsing time)
  • Menu-driven operation and programming via plain text display
  • Selection of unit in ppm or mg/l
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–255 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • Programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request

Weight

Weight 9,7 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 5–30 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 9,5 kg
Menu Language: German, English, French, Dutch, Spanish
Measuring range: 0.0 – 10.0 mg/l Resolution: 0.1 mg/l in the range of 0.0 – 7 mg/l 0.25 mg/l in the range of 7 – 10 mg/l Limit of detection: 0,1 or 0,25 mg/l depending on range Accuracy: < 10% at end of measuring range
