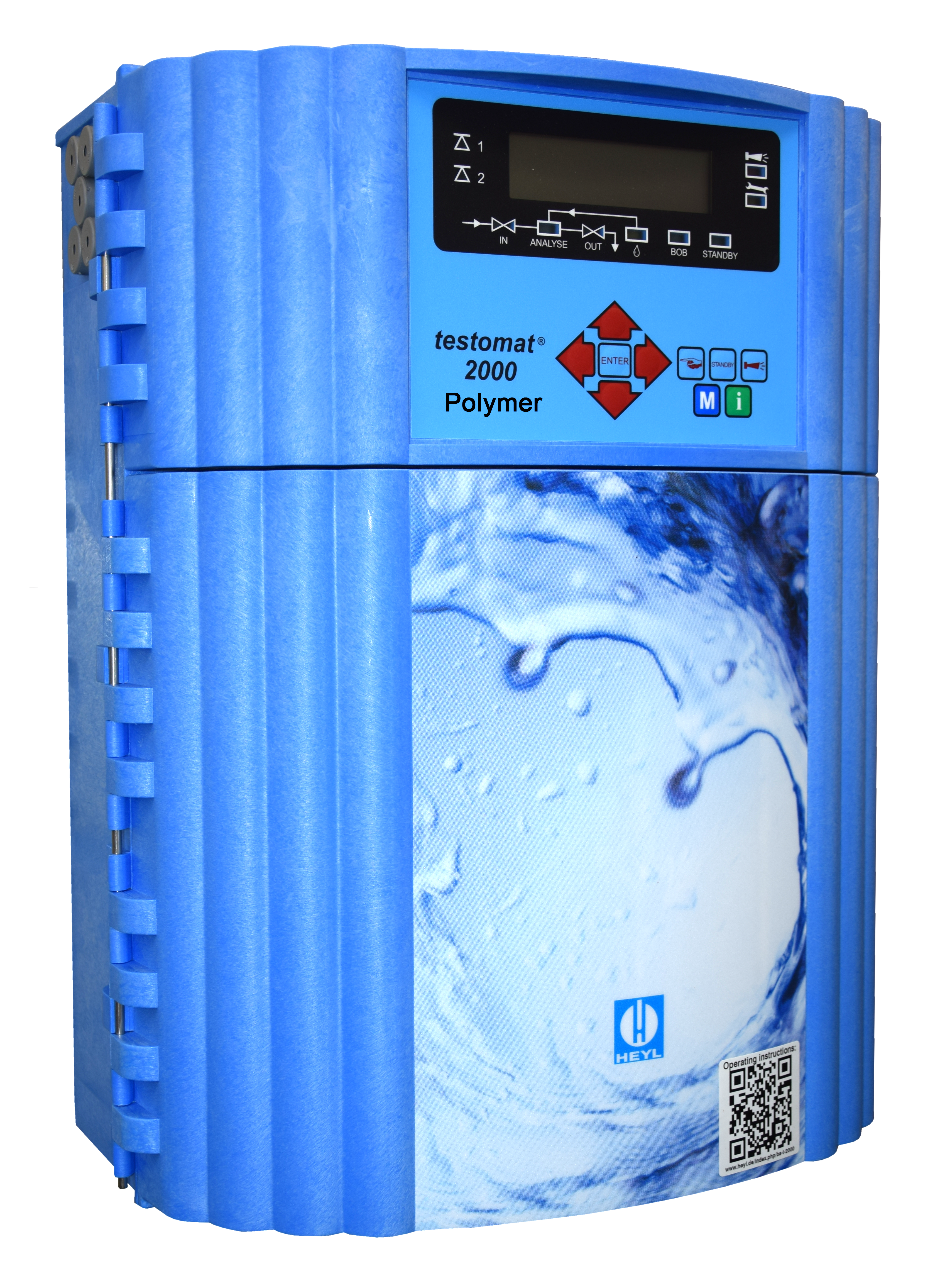

Testomat 2000® Polymer

Product number: 100472

€6,136.20*

Please log in to receive your conditions.

Available in 140 days, delivery time 1-2 days

Language in the display
Performance/execution

Product number: 100472
Measurement parameters: Polymers | Polyacrylates
Measuring range: By means of the adjustable factor ranging from 0.01 to 99.99, a measuring range from 0.5 to 4,999.5 mg/l (ppm) is achieved
Application: Monitoring of conditioning agents in cooling and heating circuits, Boiler water supply
Menu navigation: German, English, French
Our comment: Reagent type: It is neccessary to customize the Testomat 2000® Polymer because of the large amount of polyacrylats, which can be measured with this unit. Either use your existing reagents or use our new polymer reagents.
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Order the appropriate original reagent for your TESTOMAT® device:
Testomat 2000® Polymer reagent A Order · Subscription
Testomat 2000® Polymer Reagenz B Order · Subscription
Determine the appropriate reagent here: Reagent consumption calculator

Leasing Example

119,27 € non-binding
Monthly Rate (60 Rates)

Further rate options by choosing the payment method Leasing

Alternatives to this product

Tip
New
Testomat® LAB Monochloramine NH2CL with NeoTecMaster® - value-added package
Product number: 851068

The Testomat® LAB Monochloramine (NH2CL) is an online analyser that photometrically measures the content of monochloramine in process water and is used for continuous monitoring of process quality, for example in cooling circuits. Another area of application is the use in the environment of water treatment and drinking water plants, for process monitoring, as well as monitoring the decay behaviour in cooling towers after shock chlorination.

The measuring range for monochloramine (NH2CL, calculated as Cl2) is 0 to 5 ppm (resolution 0.1). The instrument works according to the DPD method based on EN ISO 7393-2 and the analysis is carried out by adding two reagents. After a reaction time of approx. 60 seconds (dosing and measuring time without rinsing time) the measuring result is available.

For the transmission of the measured values, in addition to the 4-20mA signal output, an RS232 interface is available for the transmission of the measured values as well as error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format and can be used for detailed observations at any time.

In view of the fact that the Testomat® LAB Monochloramine was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB Monochloramine in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price.

The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals in this version. One signal input on the NeoTecMaster®, in this case the RS232 interface, is used by Testomat® LAB Monochloramine to display the measured value, the trend and the status messages on the 5 inch screen.

In addition to the RS232 inte ...

€4,825.95*
Product information "Testomat 2000® Polymer"
The Testomat 2000® Polymer process photometer is an online analyzer for monitoring the content of polyacrylate in the range fo 0 to 50 mg/l (ppm) (with a set product specific factor of 1.00) using the photometric analysis principle.

Performance profile:
  • Analysis via automatic dosing of two reagents
  • The analysis result is displayed after a reaction time of approx. 7 min. (Measuring time without rinsing time)
  • Menu-driven operation and programming via plain text display
  • Selection of unit in ppm or mg/l
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–255 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • Programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10-40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 10,5 kg
Menu Language: German, English, French
Measuring range: The correction factor, which can be set from 0.01 to 99.99, results in a measuring range of 0.5 to 4999.5 mg / l (ppm) can be achieved

We recommend our reagents, as well as the following accessories

Testomat 2000® Polymer reagent A
Product number: 156271

€151.40*
Testomat 2000® Polymer Reagenz B
Product number: 156272

€124.90*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€103.30*
outlet hopper cpl. T2000/ECO
Product number: 40315

€68.20*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€199.00*
