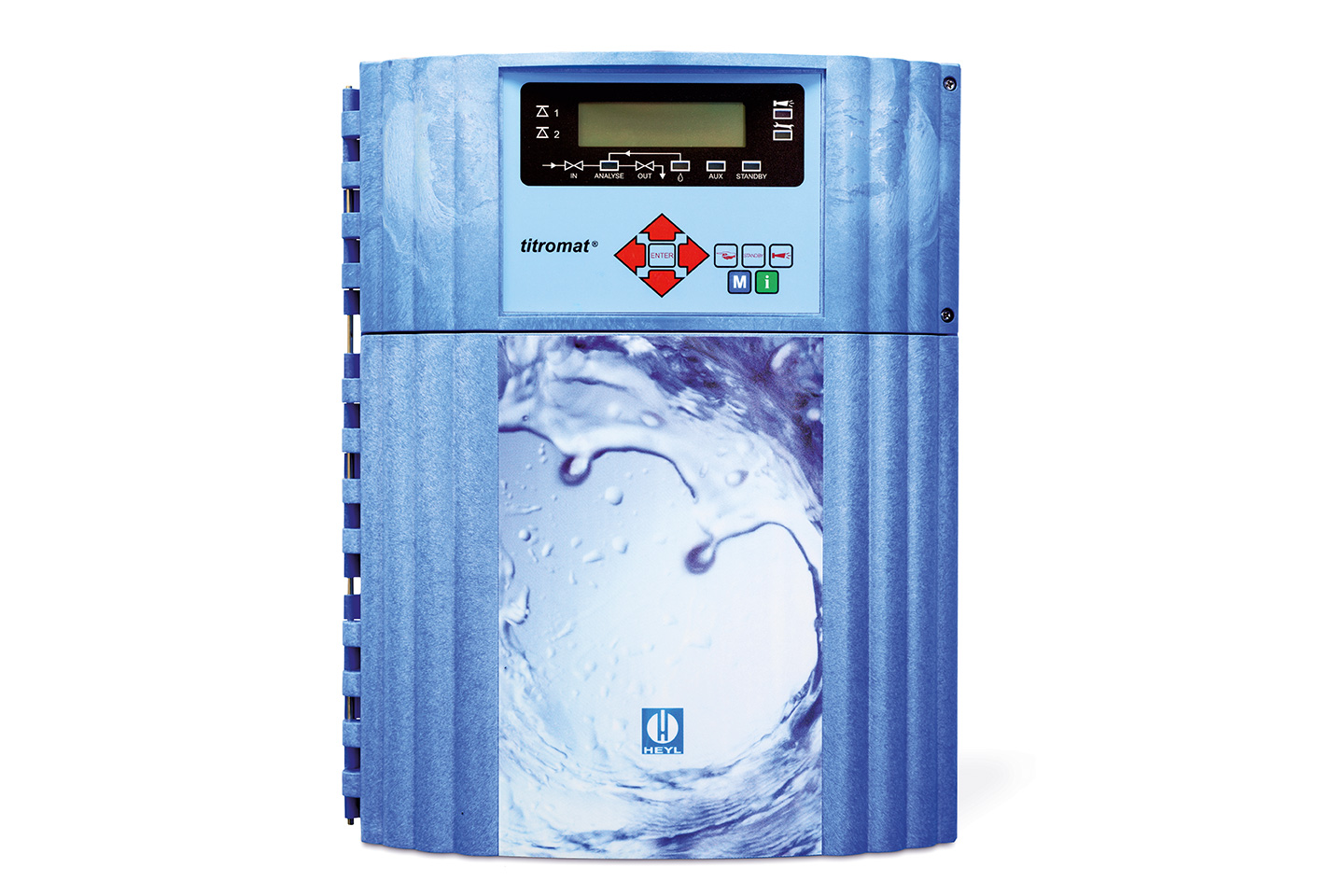

Titromat® M1

Product number: 110156
Product information "Titromat® M1"
The Titromat® M1 is used for the automatic determination and monitoring of carbonate hardness at low hardness measuring ranges.

Titromat® KH, M1, M2 and TH are based on the instrument technology,the performance features and the basic technical data of Testomat 2000®.
Applications:
  • Corrosion monitoring in boiler feed water
  • Residual alkalinity after decarbonization (e. g. in breweries)

Dimensions

Height 29 cm
Length 56 cm
Width 44 cm

Weight

Weight 9,6 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 1 bis 8 bar / 1x105 bis 8x105 Pa Oder 0,3* bis 1 bar / 0,3x105 bis 1x105 Pa
Weight: approx. 9,5 kg
Menu Language: German, English, French
Measuring range:0.89 – 17.9 ppm ; 0.09 - 1.8 °f (resolution: 2 °f)

We recommend our reagents, as well as the following accessories

Titromat® TC 2010 Reagent A 500 ml
Product number: 155172
The 500 ml-bottles of original Titromat® TC 2010 Reagent A can be used immediately in the Titromat M1 without cumbersome filling and refilling. Measuring range: Carbonate hardness: 0.89 - 17.9 ppm CaC03 0.09 - 1.8 °f (resolution: 2 °f)

€343.50*
Titromat® TC 2010 Reagent B 500 ml
Product number: 155173
The 500 ml-bottles of original Titromat® TC 2010 Reagent B can be used immediately in the Titromat M1 without cumbersome filling and refilling.   Measuring range: Carbonate hardness: 0.89 - 17.9 ppm CaC03 0.09 - 1.8 °f (resolution: 2 °f)

€365.40*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
