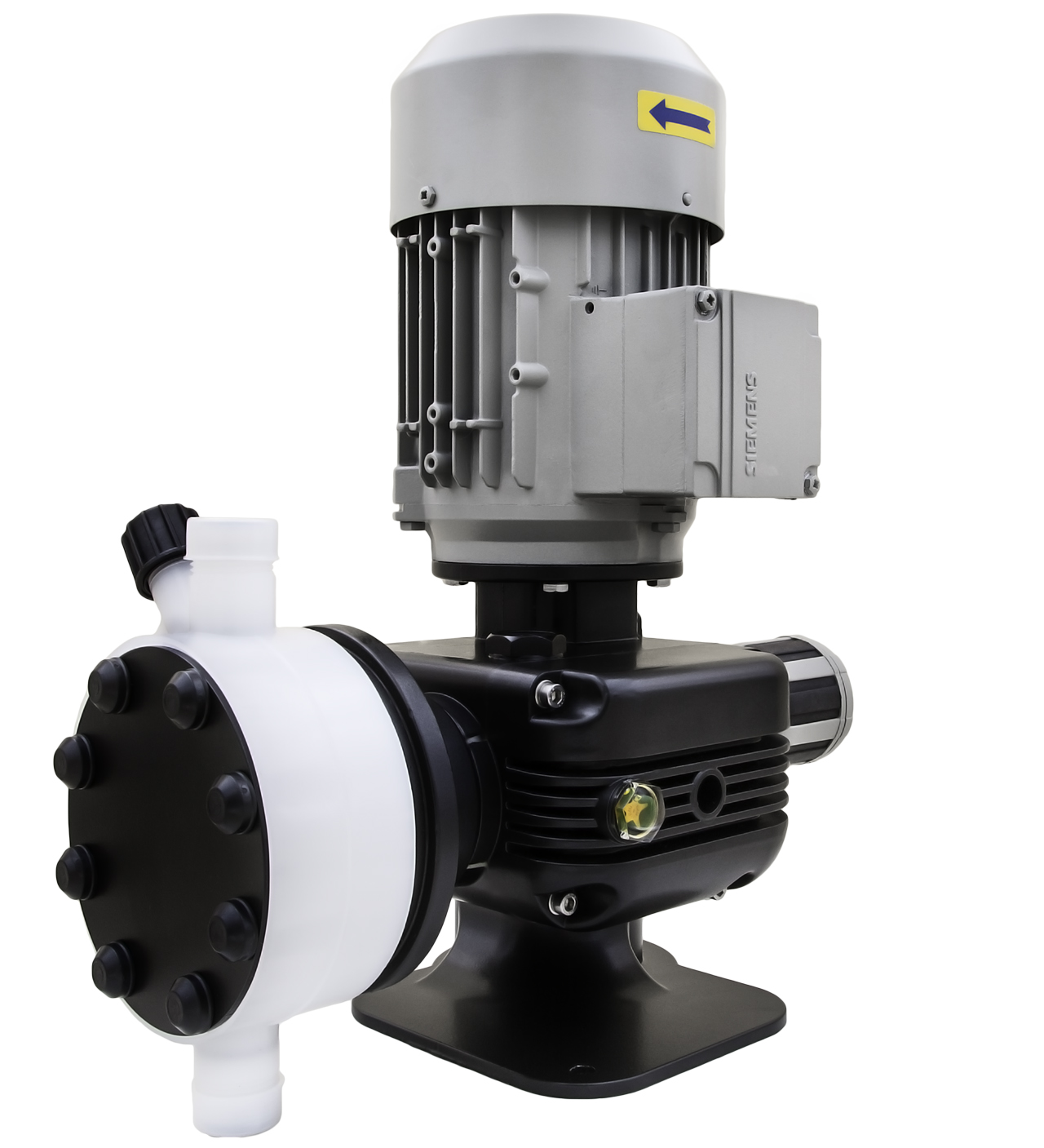

emec PRIUS D 50 Hz electric motor-driven dosing pump

Product number: 896669
Product information "emec PRIUS D 50 Hz electric motor-driven dosing pump"

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).

Outputs:

  • 1000 l/h
  • 100 bar

Power supply:

  • 380 VAC
  • 220 VAC
  • 115 VAC



Vent pipe:

  • Manual
  • Automatic

Features

  • Horizontal mounting
  • Aluminium housing
  • Spring return mechanism
  • Double ball valves (if available)
  • Mechanical stroke adjustment
  • Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
  • Hydraulic parts available in various sizes and materials
  • Tropicalised motor

Installation:

  • Installation kit A included
  • Installation kit B and C sold separately
  • The pump with AISI316L pump body does not include installation accessories

Dimensions

Height 50 cm
Width 40 cm

Weight

Weight 16 kg

Other attributes

Country of origin IT
Customs tariff number 84135040
Technical data

 Prius D 50 Hz

Gear housing made of cast aluminium, epoxy-coated,

Dosing diaphragm material

PTFE (Polytetrafluoroethylen)

Operating temperature range

0÷40°C (32÷104°F)

Dosing medium temperature

Dosing head  PVDF

0÷65°C (32÷149°F)

Dosing head  SS (Stainless steel)

0÷90°C (32÷194°F)

Dosing head  PVC

0÷40°C (32÷104°F)

Operating noise

78 dbA(± 5 dB)

Temperature during transport and storage

-10÷50°C (14÷122°F)

Max. permissible suction height

3m

Transmission oil filling quantity

0,3 ltr.

Electromotoren

Voltage

230/400 VAC, 3 Ph

230 VAC, 1Ph

Rated power

0,37 kW

0,37 kW

Speed

1,370 U/min

1390 U/min

Rated current

1,89 / 1,09 A

2,8 A

Protection

IP 55

Class

F – IEC 38/1

Motor Flange

71 814
