emec PRIUS P MF multifunctional piston pumps

Product number: 896724
Product information "emec PRIUS P MF multifunctional piston pumps"

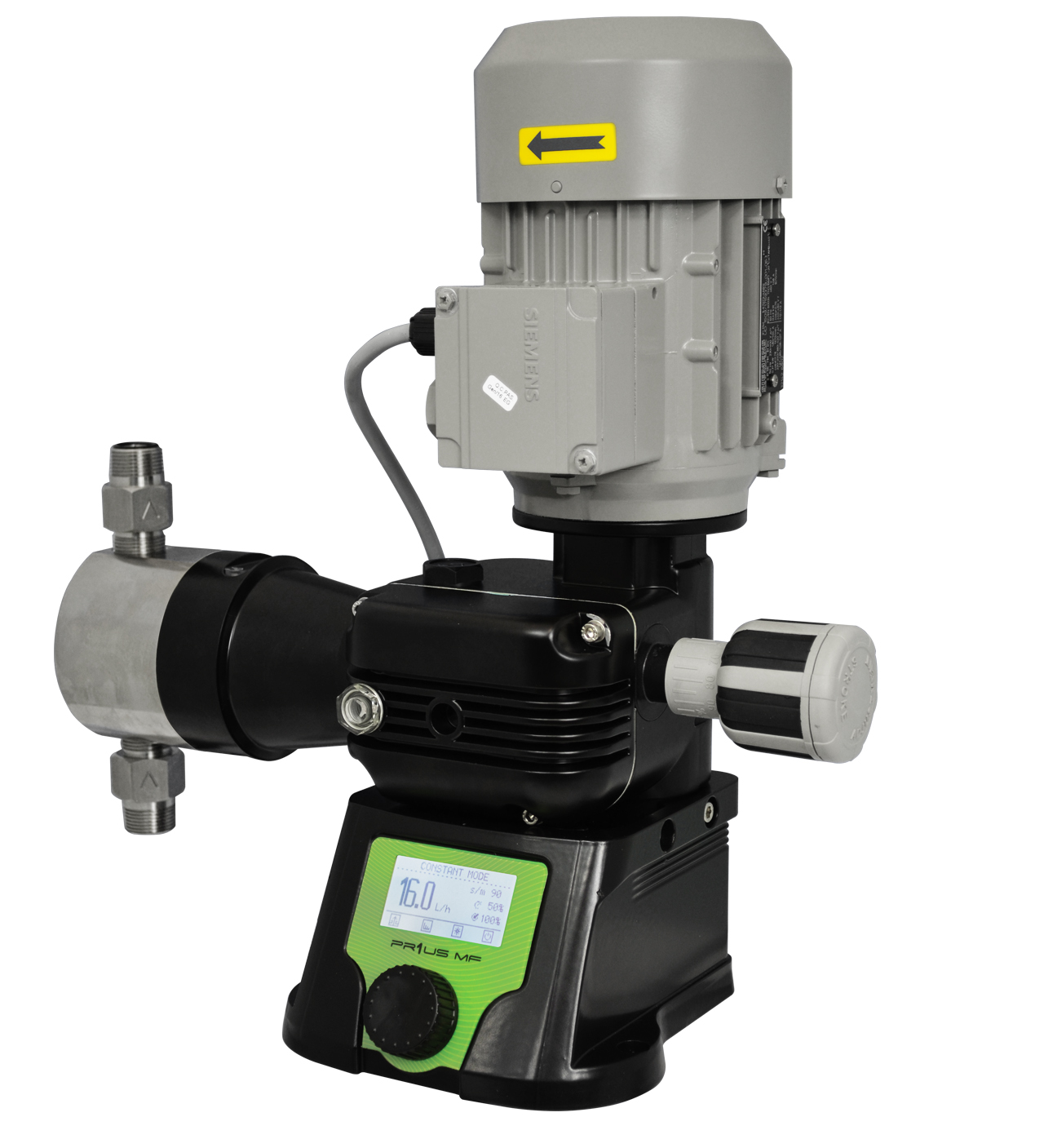

The PRIUS piston metering pumps feature a spring return and combine efficiency and chemical resistance with a wide range of flow rates. They also offer a choice of power supply options including 240 VAC (single-phase) and 115 VAC (single-phase). The pump head is made of PP (polypropylene).

Features

  • Multifunction pump with single-phase power supply
  • Operating mode: constant, ppm, %, mlq, pause-work, pulse, weekly, mA, volt and batch
  • Level control Alarms Standby
  • Double position of the electronic unit (standard or rotated position)
  • Aluminium housing
  • Mechanical stroke adjustment
  • Hydraulic parts available in different sizes and materials
  • Valves with double ball
  • Tropicalised motors
  • Insulation class F
  • Energy efficiency IE 1

Dimensions

Height 50 cm
Width 40 cm

Weight

Weight 16 kg

Other attributes

Country of origin IT
Customs tariff number 84135040
Technical data

Prius P MF

Electric

Power supply

200-260 V- 50/60 Hz

95-130 V – 50/60 Hz

Power max.

230 VAC 2,5A RMS; 575VA

115 VAC 5A RMS; 575VA

Fuse

6.3 A (slow blow)

8A (slow blow)

Alarm output

24 VAC – 1A

24 VAC – 1A

Installation class

II

Noise level

78 dBA (±5 dB)

Class

IP 55



Material

Case

Aluminium

Pump body

  PP

  Stainless steel (AISI 316L)

Piston

  Ceramics

  Stainless steel (AISI 316L)



Mechanical

Spring return mechanism

Double Ball Valves

Electronic adjustment of the flow rate



Ambient temperature

-10 – 40°C (14 – 104°F)

Dosing medium temperature with stainless steel pump body (SS)

-10 – 90°C (14 – 194°F)

Dosing medium temperature with PP pump body

-10 – 40°C (14-104°F)

Max. suction height

3 m

Quantity of transmission oil

0,3 L

Dosing accuracy

± 5% at nominal pressure
