Product information "Bypass for cabinet softening"

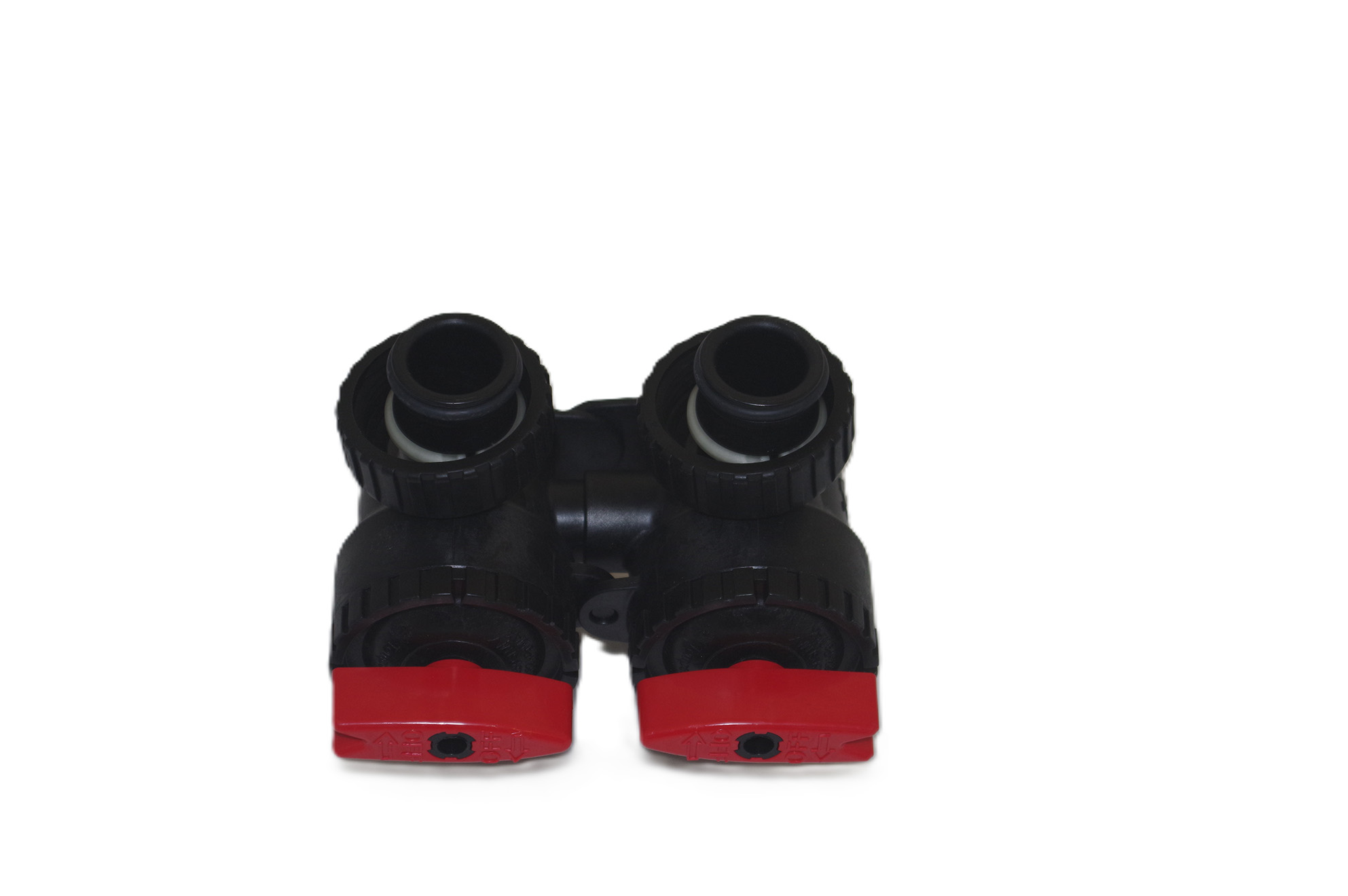

The original Clack bypass valve for WS1 and WS1.25 systems
The Clack Bypass Valve V3006 is an essential accessory for any professionally installed water softener or filter system. This sturdy assembly attaches directly to the inlet and outlet of your Clack WS1 or WS1.25 control valve. It allows you to disconnect the system from the water circuit in just two simple steps without having to interrupt the main water supply to the house.
Security and control for homeowners
The two red levers, which are easy to grip, allow you to switch easily between normal operation (‘Service’) and bypass (‘Bypass’). This proves extremely helpful for maintenance work such as refilling salt, changing resin or filter media, and disinfecting the system. If a fault or leak occurs in the system, you can isolate it immediately and still have water in your home.
Complete set for flexible installation
The set includes the one-piece bypass body made of high-strength, drinking water-approved Noryl and all necessary mounting materials. To ensure high compatibility with standard domestic installations, the commonly used 1 1/4-inch connection fittings (male thread) are typically included. The Clack system connection with union nuts and O-rings, which has proven to be reliable, enables quick, uncomplicated, and permanently tight installation on the control valve.
Overview:
- Areas of application:
- Enables maintenance of the system during ongoing water operation
- In the event of malfunctions, the system can be quickly shut down and isolated
- Significantly facilitates the replacement of resin or filter media
- Standard equipment for professional and service-friendly installation
- Characteristics:
- Manufacturer: Clack Corporation
- Valve type: Bypass valve with two built-in shut-off valves
- Handling: Easy lever movement (90°) for “service” or “bypass”
- Material: High-strength, glass fiber-reinforced Noryl plastic
- Compatibility: Suitable for Clack WS1 and WS1.25
Frequently Asked Questions
It allows the water softener or filter system to be disconnected from the water circuit without interrupting the domestic water supply.
Two easy-to-grip levers allow you to switch easily between normal operation (‘Service’) and bypass (‘Bypass’).
The bypass should be used when maintenance work is being carried out on the system. It allows the system to be serviced whilst the water is running, without interrupting the water supply. In the event of a fault, the system can be quickly shut down and disconnected from the mains. The bypass also makes it much easier to replace resin or filter media.
Yes, the system can be isolated immediately whilst water remains available in the house.
High-strength, drinking-water-approved, glass-fibre-reinforced Noryl plastic.
It is specifically designed for Clack WS1 and WS1.25 control valves.
Dimensions
| Height | 10,2 cm |
|---|---|
| Length | 25,4 cm |
| Width | 17,8 cm |
Weight
| Weight | 600 g |
|---|
Other attributes
| Country of origin | DE |
|---|
