Accessories for Precise and Reliable Automation
In the field of controls, the right accessories are essential to optimally complement and expand your automation solutions. At HeylNeomeris, you will find a comprehensive range of accessories for various control systems that ensure easy integration, secure installation, and flexible scalability.

Our accessories include:
• Connection cables and connectors for secure electrical connections
• Conductivity sensors
• pH sensors

KOAX 5 cable for EMK 20/RMK 20

KOAX 5 cable for EMK 20/RMK 20

Product number: 320320

• high impedance coaxial cable• with screw- and BNC connector• 5m long

Price on request

pH probe for measuring lance

pH probe for measuring lance

Product number: 310137

Is used for MultiControl, EcoControl pH.Technical data:• with PT 100• Temperature: -5 ... 135°C (23 ... 275°F)• Pressure: 10 bar

€1,065.60*

Probe cable with cable socket for STE5

Product number: 880433

• with connector STE5 for conductivity probes• 4-wire for probes with PT 100• 10m long

€802.10*

Screw-in fitting ESA

Screw-in fitting ESA

Product number: 320310

Is used for EMK 20 and EMK 50.Technical data: • Stainless steel• 130°C max. medientemperatur• Connection: external thread 3/4"

Price on request

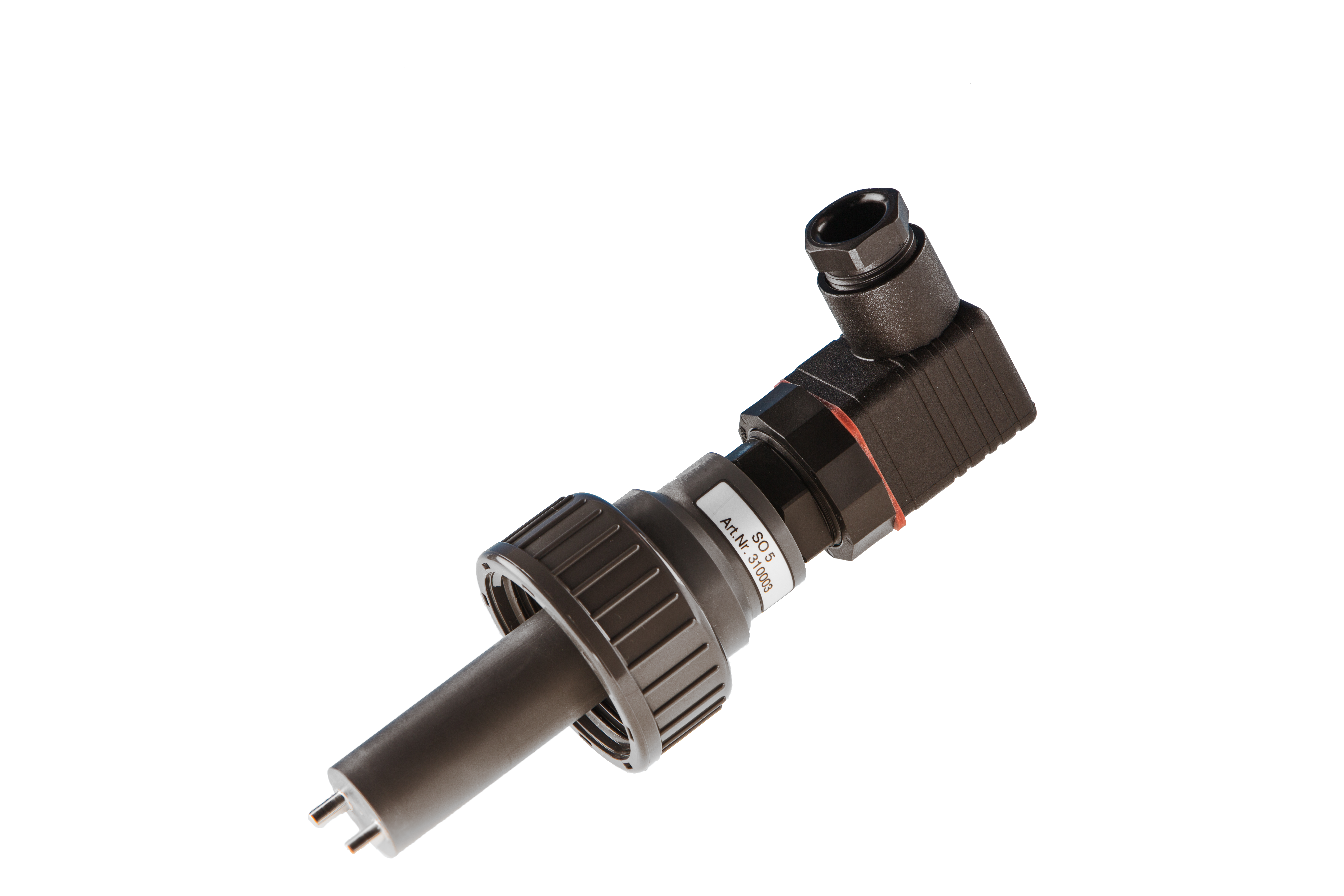

SO 1 Conductive conductivity probe without temperature sensor

SO 1 Conductive conductivity probe without temperature sensor

Product number: 310001

Cell constant: 0.1 | Maximum medium temperature: 40 °C | Measuring resistor (temperature sensor): without | Version: PVC union nut Rp 1 ¼"

Technical data:Measuring range: 1-2.000 µS/cmCell constant: 0,10 cmConnection: PVC union nut Rp 1 ¼''Max. temperature: 40°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€302.90*

SO 10 Conductive conductivity probe without temperature sensor

Product number: 310014

Cell constant: 1 | Maximum medium temperature: 40 °C | Measuring resistor (temperature sensor): without | Version: PVC union nut Rp 1 ¼"

Technical data:Measuring range: 10-20.000 µS/cmCell constant: 1 cmConnection: PVC union nut Rp 1 ¼''Max. temperature: 40°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€302.90*

SO 5 Konduktive Leitfähigkeitssonde Seitenansicht mit Edelstahlgehäuse, kompakter Messbereich 5-10.000 µS/cm

SO 5 Conductive conductivity probe without temperature sensor

Product number: 310003

Cell constant: 0.5 | Maximum medium temperature: 40 °C | Measuring resistor (temperature sensor): without | Version: PVC union nut Rp 1 ¼"

Technical data:Measuring range: 5-10.000 µS/cmCell constant: 0,5 cmConnection: PVC union nut Rp 1 ¼''Max. temperature: 40°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€357.90*

SOE 0 Conductive conductivity probe without temperature sensor

Product number: 310005

Cell constant: 0.01 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): without | Version: External thread R ¾"

Technical data:Measuring range: 0,1-200 µS/cmCell constant: 0,01 cmConnection: External thread R ¾''Max. temperature: 130°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

Price on request

SOE 1 Conductive conductivity probe without temperature sensor

Product number: 310002

Cell constant: 0.1 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): without | Version: External thread R ¾"

Technical data:Measuring range: 1-2.000 µS/cmCell constant: 0,1 cmConnection: External thread R ¾''Max. temperature: 130°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€752.76*

SOE 5 Conductive conductivity probe without temperature sensor

Product number: 310004

Cell constant: 0.5 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): without | Version: External thread R ¾"

Technical data:Measuring range: 5-10.000 µS/cmCell constant: 0,5 cmConnection: External thread R ¾'Max. temperature: 130°CMeasuring resistor: withoutMaterial: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

Price on request

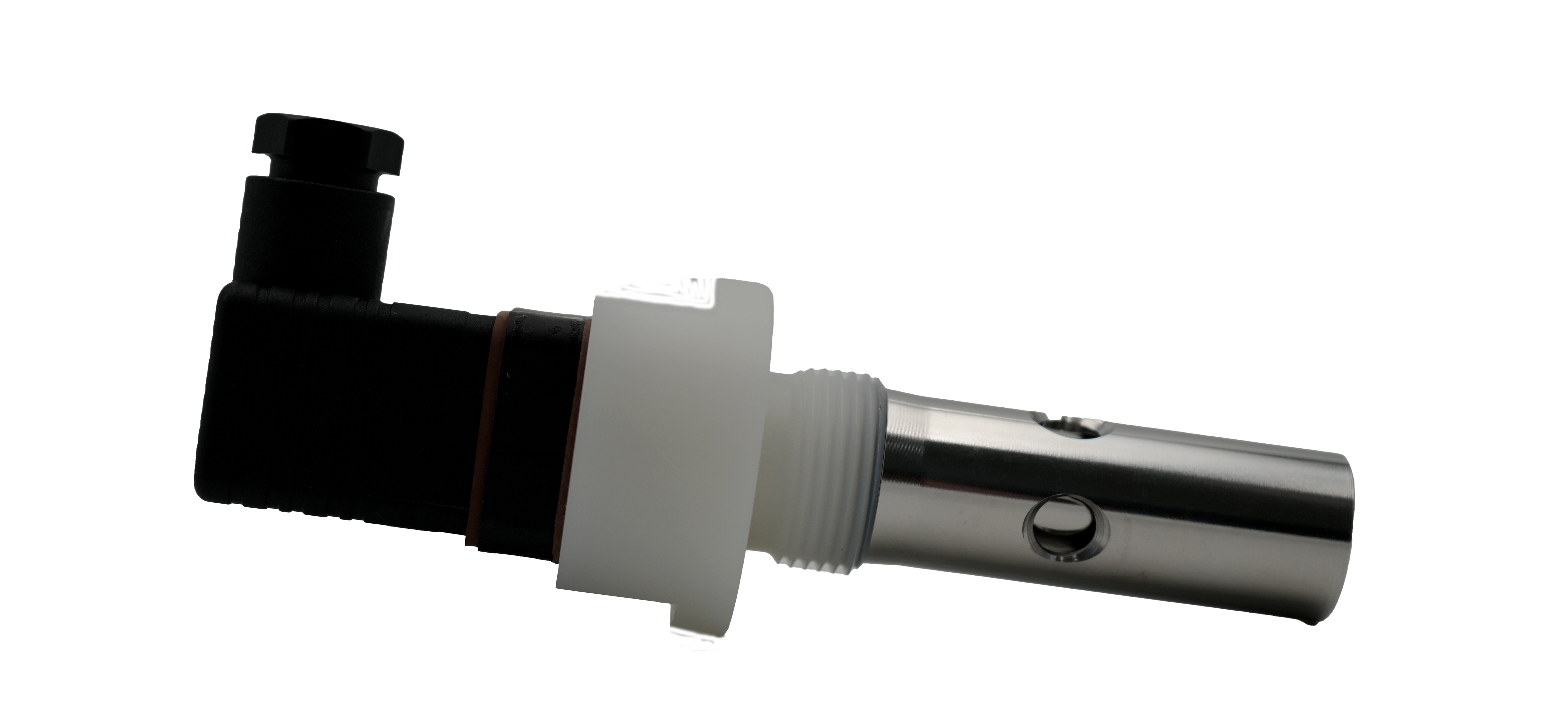

ST 1 Conductive conductivity probe with temperature sensor PT 100

Product number: 310120

Cell constant: 0.1 | Maximum medium temperature: 40 °C | Measuring resistor (temperature sensor): PT100 | Version: PVC union nut Rp 1 ¼"

Technical data:Measuring range: 1-2.000 µS/cmCell constant: 0,1 cmConnection: PVC union nut Rp 1 ¼''Max. temperature: 40°CMeasuring resistor: PT 100Material: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€597.80*

ST 5 Conductive conductivity probe with temperature sensor PT 100

Product number: 310121

Cell constant: 0.5 | Maximum medium temperature: 40 °C | Measuring resistor (temperature sensor): PT100 | Version: PVC union nut Rp 1 ¼"

Technical data:Measuring range: 5-10.000 µS/cmCell constant: 0,5 cmConnection: PVC union nut Rp 1 ¼''Max. temperature: 40°CMeasuring resistor: PT 100Material: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

Price on request

Auf dem Bild zu sehen ist die STE 0 Konduktive Leitfähigkeitssonde mit Temperaturfühler von der Seite.

STE 0 Conductive conductivity probe with temperature sensor PT 100

Product number: 310110

Cell constant: 0.01 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): PT100 | Version: External thread R ¾"

Technical data:Measuring range: 0,1-200 µS/cmCell constant: 0,01 cmConnection: External thread R ¾'Max. temperature: 130°CMeasuring resistor: PT 100Material: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€928.00*

STE 1 Konduktive Leitfähigkeitssonde, schräge Seitenansicht aus Edelstahl, sichtbare Elektroden und PT 100 Sensor

STE 1 Conductive conductivity probe with temperature sensor PT 100

Product number: 310125

Cell constant: 0.1 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): PT100 | Version: External thread R ¾"

Technical data:Measuring range: 1-2.000 µS/cmCell constant: 0,1 cmConnection: External thread R ¾''Max. temperature: 130°CMeasuring resistor: PT 100Material: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€654.80*

STE 5 Konduktive Leitfähigkeitssonde mit PT100 Frontansicht Edelstahlgehäuse

STE 5 Conductive conductivity probe with temperature sensor PT 100

Product number: 310126

Cell constant: 0.5 | Maximum medium temperature: 130 °C | Measuring resistor (temperature sensor): PT100 | Version: External thread R ¾"

Technical data:Measuring range: 5-10.000 µS/cmCell constant: 0,5 cmConnection: External thread R ¾''Max. temperature: 130°CMeasuring resistor: PT 100Material: Stainless steelMax. Pressure: up to 6x10⁵ PA (6 bar)

€654.80*
