Horiba LAQUAtwin 4EC-22 Conductivity Tester
€146.00*
Please log in to receive your conditions.
Available in 14 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "Horiba LAQUAtwin 4EC-22 Conductivity Tester"
Horiba LAQUAtwin 4EC-22 Conductivity Tester – Successor model to the EC-22
Horiba LAQUAtwin Conductivity Tester with 4 calibration points (4EC-22)
Find out more about the accuracy of the new successor models to the HORIBA pocket conductivity testers: Your ideal choice for precise conductivity measurements. Manufactured in Japan, the 4EC-11, 4EC-22 and 4EC-33 models represent the highest quality among pocket testers. They offer numerous benefits for users in laboratories, industry, aquaculture, water treatment, schools and universities, as well as for amateur gardeners.
An overview of the new HORIBA Pocket Conductivity Tester series:
Model 4EC-11:
Water resistance, the ability to analyse very small samples from 0.12 ml, 3 calibration points and a conductivity measurement range of up to 19.9 mS/cm are the key features of these instruments. They are easy to operate and maintain, ensuring long-term reliability.
Model 4EC-22:
In addition to the features of the Model 4EC-11, this model offers a temperature display, four calibration points and an extended conductivity measurement range of up to 199.9 mS/cm. This instrument is ideal for demanding applications where the medium temperature must be recorded for detailed analysis.
Model 4EC-33:
With the widest measurement range, the ability to measure TDS and additional functions, this model sets new standards. It is designed for professionals who need to carry out highly precise measurements under varying conditions.
Applications and benefits for the user:
‘Immersion’:
Direct measurement is possible in solutions. For example, you can immerse the tester in a beaker and determine the value.
‘Scoop’:
The hinged lid, which acts as a scoop here, allows you to easily take a sample from a hard-to-reach area.
‘Drops’:
Efficient analysis of the smallest volumes.
Thanks to their user-friendliness, durability and ‘Made in Japan’ quality, HORIBA pocket conductivity testers are a reliable solution for a wide range of measurement applications.

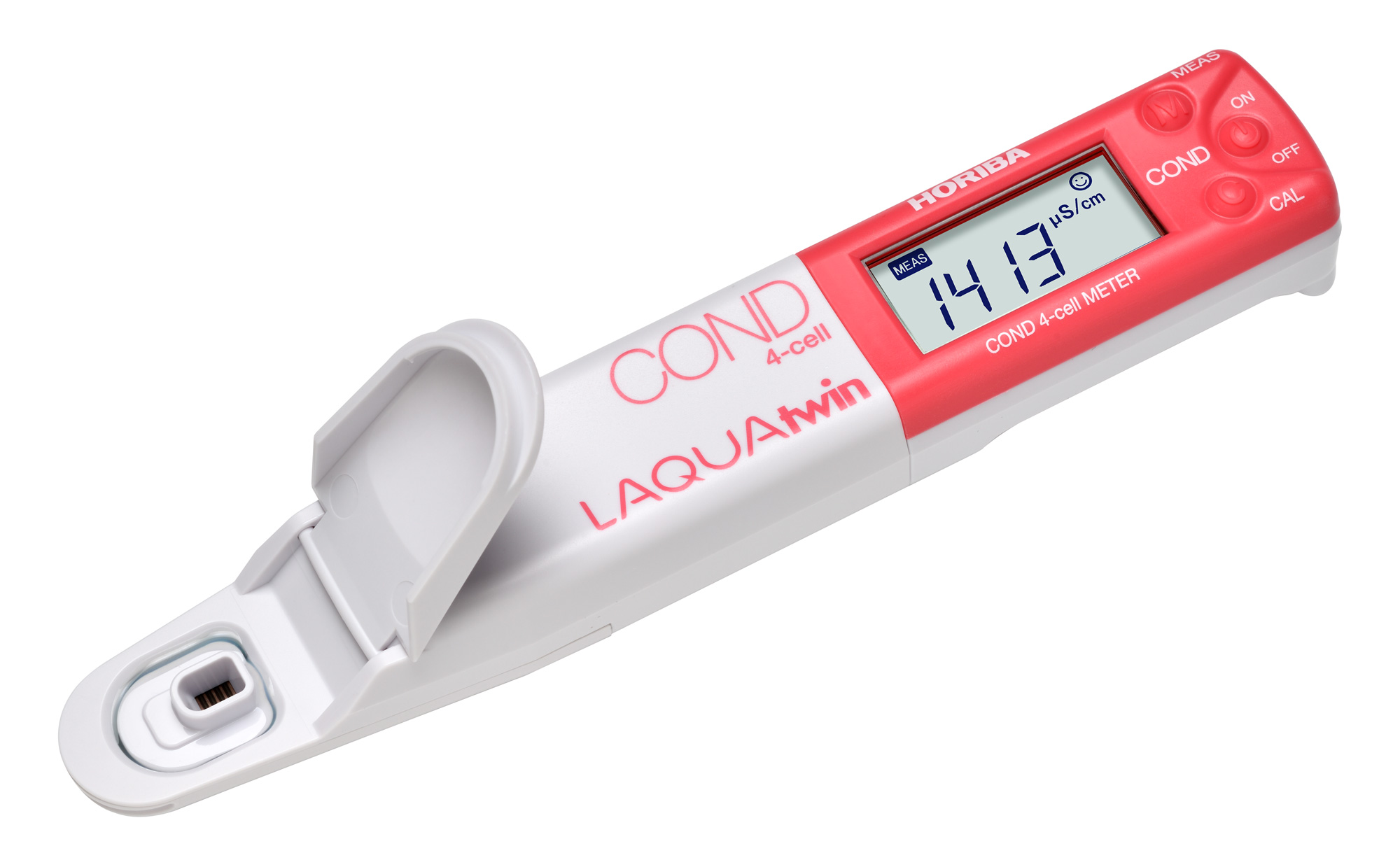

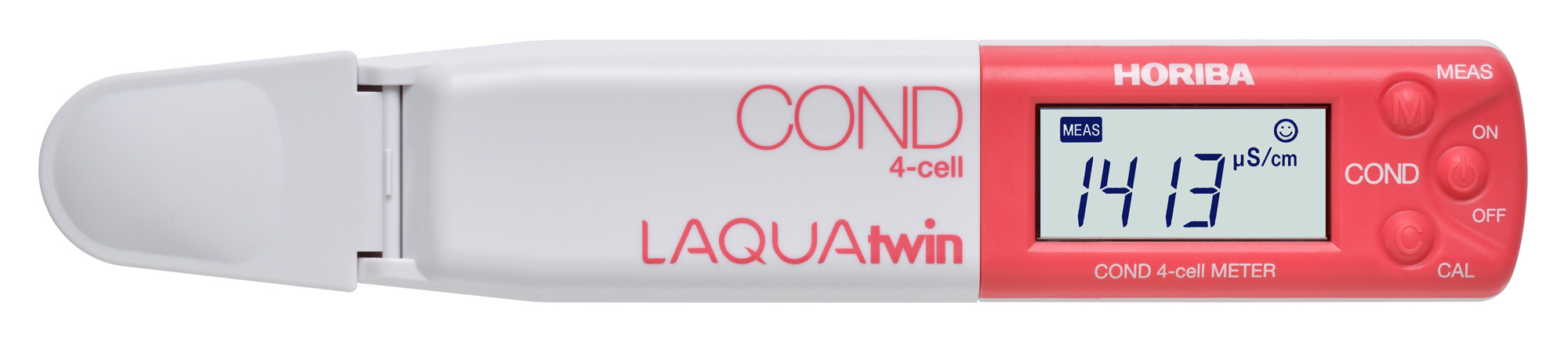

LAQUAtwin 4EC-22: The pocket-sized conductivity meter
This is the only pocket-sized meter that measures conductivity directly in a 0.12 ml sample. You do not need a beaker to calibrate the meter or measure a sample. Simply place a few drops of the standard solution or sample directly onto the sensor. This method saves time and prevents the wastage of your valuable sample.
Your pocket-sized laboratory – practical for on-site use: Ideal for water quality testing in aquariums, food, beekeeping (honey) and many other applications
HORIBA’s unique and compact meter combines an electrode, display and sample vessel. This enables simple and effective measurements to be taken directly on site, as the measurement is performed using just a single drop.
Product features:
- Minimum sample volume: 0.12 ml
- Up to 4 calibration points
- Display of conductivity and temperature (0 °C to 50.0 °C)
- Automatic range selection
- Automatic calibration
- Automatic standard recognition: 84 μS/cm, 1413 μS/cm, 12.88 mS/cm & 111.8 mS/cm
- Automatic temperature compensation: 2 %/°C fixed setting
- Temperature range: 5 to 40.0 °C
- Automatic stabilisation / automatic data storage
- Automatic switch-off (30 mins)
- Low battery indicator
- Protection class IP67, waterproof and dustproof
- Replaceable sensor
- 400 hours battery life: continuous operation without backlight
- Material: ABS-epoxy resin housing & carbon sensor
- Display: special (monochrome) LCD with backlight
- Operating conditions: 5 to 40 °C, 85% relative humidity or less
- Warranty: 2 years – meter, 6 months – sensor

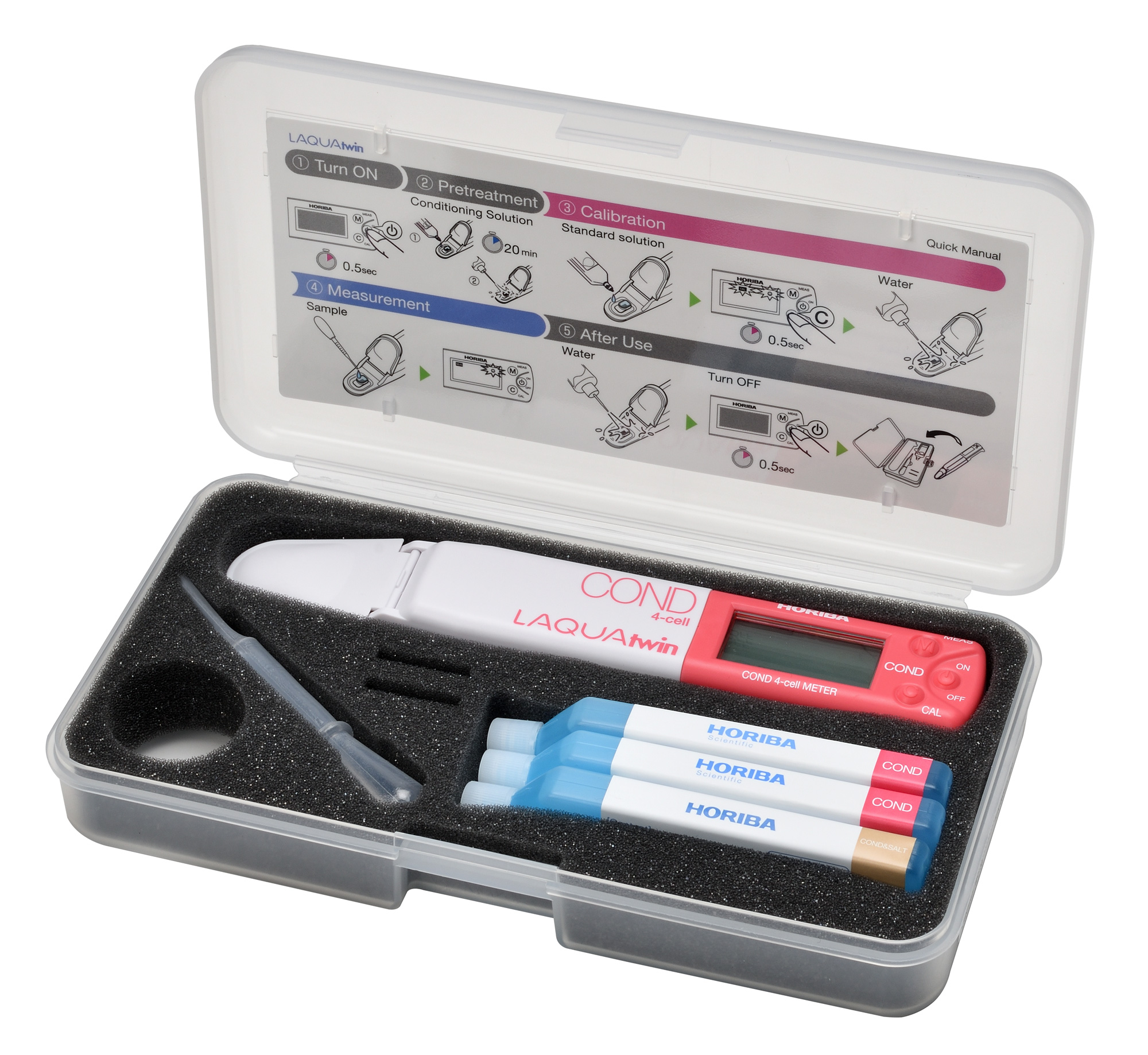

- Packaged in a practical plastic box
- Contents: Conductivity standards 1413 µS/cm and 12.88 mS/cm (14 ml each), conditioning solution (4 ml), dropper, user manual and quick start guide
- Manufacturer's item number: 3201077523
Note:
How can I tell if I have an old or new device?
If your Pocket Tester is marked ‘4-cell’, you have the latest version of this device. In this case, you will need the replacement sensors listed in the cross-selling section, as well as the standard and conditioning solutions. These have been specially optimised for the new Pocket Testers and are not suitable for older models.
Dimensions
| Height | 3 cm |
|---|---|
| Length | 18,5 cm |
| Width | 10 cm |
Weight
| Weight | 180 g |
|---|
Other attributes
| Country of origin | JP |
|---|---|
| Customs tariff number | 90278930 |
| Model | 4EC-11 | 4EC-22 | 4EC-33 |
|---|---|---|---|
| Measuring principle | 4-AC bipolar method | ||
| Minimum sample volume | 0.12 ml | ||
| Conductivity range & resolution |
0–199 µS/cm: 1 µS/cm 200–1999 µS/cm: 1 µS/cm 2.00–19.99 mS/cm: 0.01 mS/cm |
0–199 µS/cm: 1 µS/cm 200–1999 µS/cm: 1 µS/cm 2.00–19.99 mS/cm: 0.01 mS/cm 20.0–199.9 mS/cm: 0.1 mS/cm |
0–199 µS/cm: 1 µS/cm 200–1999 µS/cm: 1 µS/cm 2.00–19.99 mS/cm: 0.01 mS/cm |
| TDS measurement range & resolution | – | – |
0.0–99.9 ppm: 0.1 ppm 100–999 ppm: 1 ppm 1000–9990 ppm: 10 ppm |
| TDS curves | – | – |
TDS factor (0.4–1.0) EN 27888 442 NaCl |
| Calibration points (conductivity) | up to 3 | up to 4 | up to 4 |
| Accuracy | ±2 % of the full-scale value (per measurement range) |
±2 % of the final value (0–19.99 mS/cm) ±5 % of the final value (20.0–199.9 mS/cm) |
±2 % of the final value (0–19.99 mS/cm) ±5 % of the final value (20.0–199.9 mS/cm) |
| Temperature display | – | 0–50.0 °C | 0–50.0 °C |
| Temperature compensation / setting | – | 5–40.0 °C | 5–40.0 °C |
| Display | Monochrome LCD display with backlight | ||
| Operating temperature | 5–40 °C | ||
| Operating humidity | max. 85% relative humidity (non-condensing) | ||
| Power supply | 2 × CR2032 battery | ||
| Battery life | approx. 400 hours of continuous operation (without backlight) | ||
| Dimensions | 164 × 29 × 20 mm (without protrusions) | ||
| Weight | approx. 45 g (unit only, excluding batteries) | ||
Buffer and calibration solutions
514-4EC-CON Conditioning Solution – For LAQUAtwin 4EC-11, 4EC-22, 4EC-33 and 4ECSalt-11 To ensure the precise calibration and maintenance of HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special range of buffer, calibration and standard solutions. The 514-4EC-CON conditioning solution ensures that your 4EC Pocket Tester is optimally prepared by activating the sensor surface and creating stable measurement conditions. Furthermore, regular use of the solution helps to extend the electrode’s service life and prevent measurement deviations. This ensures that the measured conductivity values are always reliable and meaningful. A practical pack size of 6 x 14 ml of these solutions meets the requirements of the Pocket Tester, as only a few drops are needed for calibration. This pack size helps to reduce waste and increase efficiency during regular calibrations. With these specialised solutions, the HORIBA LAQUAtwin Pocket Testers always deliver accurate and reliable measurement results. The integrity of your measurement data and the service life of your equipment can be ensured through regular calibration using these specially formulated solutions. It is particularly important to select the correct calibration and standard solution in order to maintain measurement accuracy and ensure the reliability of water quality checks in various applications. Note: Conditioning solution 514-4EC-CON is only suitable for the LAQUAtwin 4EC-11, 4EC-22, 4EC-33 and 4ECSalt-11 testers. Manufacturer’s item number: 3201081522
To accurately calibrate and maintain the HORIBA LAQUAtwin Pocket Testers, HORIBA provides a special selection of buffer, calibration and standard solutions. A convenient pack size of 6 x 14 ml of these solutions meets the requirements of the pocket testers as only a few drops are needed for calibration. This specific pack size helps to reduce waste and optimize efficiency during regular calibrations. The solutions available cover a variety of measurement ranges, allowing users to select the appropriate solution to suit their individual analysis or measurement needs: - pH buffer solutions: Solutions with pH values of 4.01 or 7.00 are available to calibrate the pH measurement. With these buffers it is possible to precisely regulate and control the pH measurement function of the LAQUAtwin Pocket Tester.- Conductivity standard solutions: 1413 μS/cm standard solutions ensure that the conductivity measurement of your devices is carried out precisely.- NaCl standard solutions: 0.5% or 5.0% NaCl solutions are available for the calibration of salinity measurement.- Ion standard solutions: HORIBA provides standard solutions to calibrate ion selective measurements. HORIBA provides standard solutions for sodium, potassium, nitrate and calcium, available in different concentrations: from low (e.g. 150 ppm) to high concentrations (e.g. 5000 ppm).- Fluoride ion standard solutions: For the calibration of fluoride measurements, HORIBA offers standard solutions with concentrations of 1 ppm and 10 ppm.- TISAB solution: A special solution for use with fluoride ion standard solutions to adjust the ionic strength of the sample for precise fluoride measurements.- ORP standard solution: For the calibration of redox measurements (ORP), HORIBA offers a solution with a redox potential of 225 mV. With these special solutions, the HORIBA LAQUAtwin pocket testers always provide accurate and reliable measurement results. The integrity of their measurement data and the lifetime of their devices can be ensured by regular calibration with these specifically formulated solutions. It is of great importance to select the appropriate calibration solution and standard solution to maintain the accuracy of measurements and ensure the reliability of water quality measurements in various applications. Manufacturer Part No. 3999960110
The HORIBA 12.9 mS/cm conductivity standard solution is a reliable calibration solution for high-quality LAQUAtwin EC conductivity meters. This standard solution is precisely preset to a conductivity of 12.9 mS/cm, ensuring fast and reliable calibration of your measuring instruments. Areas of application Ideal for regular calibration and quality control in laboratories, environmental analysis and industrial processes, especially in combination with HORIBA LAQUAtwin EC series instruments. Product advantages at a glance Precise and reproducible conductivity of 12.9 mS/cmSuitable for HORIBA LAQUAtwin EC measuring devicesEasy to use: ready to use, preconfiguredBottle size 14 ml: practical and handy Manufacturer item number: 3999960111
Replacement sensor
Horiba S073-4EC Conductivity Replacement Sensor for 4EC-11, 4EC-22, 4EC-33 Pocket Testers The HORIBA LAQUAtwin Pocket Tester series allows water quality parameters to be measured quickly and accurately directly on site. To ensure that these measurements are reliable and accurate, it is essential to check the sensors regularly and replace them with replacement sensors where necessary. These replacement sensors have been specifically developed for the HORIBA LAQUAtwin series and offer a wide range of variants for various measurements: pH, conductivity, salinity, redox (ORP), as well as ion-selective sensors for sodium, potassium, nitrate, calcium and fluoride. Each of these sensors has been developed with the aim of maximising the user-friendliness and accuracy for which HORIBA is renowned worldwide in the field of water quality testing. The advantages of HORIBA replacement sensors are: Easy replacement: The sensors are easy to replace, allowing measurements to resume quickly. Highest accuracy: The replacement sensors ensure that measurement results are precise and reliable. Wide range of measurements: Various types of sensors are available for different water quality parameters. Durability: The sensors are designed to have a long service life, even under challenging conditions. Instructions for sensor replacement: To ensure that your HORIBA LAQUAtwin Pocket Tester remains durable and accurate, please follow these steps when replacing the sensor: Removing the sensor Switch off the meter. Lift the tip of the sensor. Then slide the sensor slightly away from the meter. Remove the sensor completely from the meter (by pulling it out). Attaching the sensor Switch off the meter. Ensure that the water-resistant seal is clean and undamaged. Press the sensor onto the meter so that the hook ‘A’ on the back of the meter fits into the hole ‘a’ on the sensor tab. Ensure that the waterproof seal is not twisted. Important: To put the meter back into service for correct measurement, follow the steps in the user manual for the relevant tester after replacement. (Our products include such manuals. In most cases, calibration and, if necessary, conditioning are required.) Question: How can I check if my sensor is worn out? Answer: By checking the condition of the sensor as follows: To check the sensor’s condition, perform a 2-point calibration. If a calibration error occurs, this suggests that the sensor is deteriorating. The sensor should therefore be replaced. By carrying out regular checks and replacing sensors in good time, you can ensure the high quality and reliability of your water quality measurements using the HORIBA LAQUAtwin Pocket Testers. Note: How can I tell if I have an old or new device? If your Pocket Tester is marked ‘4-cell’, you have the latest version of this device. In this case, you will need the replacement sensors listed in the cross-selling section, as well as the standard and conditioning solutions. These have been specially optimised for the new Pocket Testers and are not suitable for older models. Manufacturer’s item number: 3201079162
