Product information "Horiba LAQUAtwin pH Tester with 3 calibration points (pH-22) "

Mobile pH Tester with 3-Point Calibration for On-the-Go Use

Horiba LAQUAtwin pH Tester – ideal for water and environmental analysis

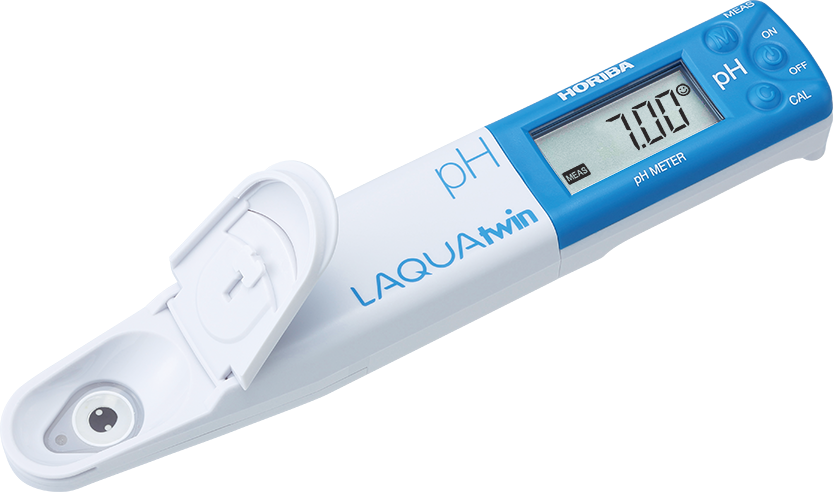

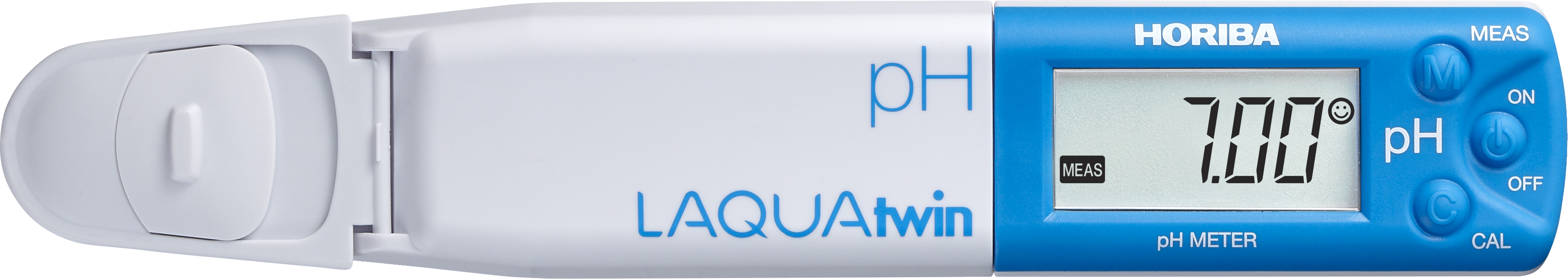

The Horiba LAQUAtwin pH Tester pH-22 is compact, robust, and designed for mobile use. With up to three calibration points and a measurement range of 0.00 to 14.00 pH, this device delivers high precision and reliability. Direct measurement with just a single drop of sample provides fast results. Features such as automatic buffer recognition, temperature compensation, and Stabil/Hold functionality make daily operation simple and convenient.

Mobile precision pH tester for reliable on-site measurements

The tester combines electrode, display, and sample container in a dust- and waterproof IP67 housing, making it ideal for field and laboratory applications. The digital backlit display shows pH and mV values clearly and accurately.

Automatic shut-off and battery status indicators ensure convenient operation. The package includes calibration buffer solutions (pH 4.01 and 7.00), batteries, a pipette, and a quick-start guide.

Why accurate pH measurement is critical – and why a handheld tester is ideal

pH is a key parameter in water, environmental, and process analysis because it significantly influences chemical reactions, biological processes, and material stability. Even small deviations can substantially impact water quality, product quality, or process safety.

A mobile handheld pH tester allows fast, reliable measurements directly on site. Changes can be detected immediately, and corrective actions implemented without delay. The Horiba LAQUAtwin pH-22 combines this flexibility with high measurement precision, making it ideal for field, laboratory, and routine applications.

Typical applications for the Horiba LAQUAtwin pH handheld tester

  • Aquaculture and coral monitoring
  • Beer, beverage, and food production
  • Heating systems
  • Laboratories and schools
  • Environmental analysis
  • Water treatment
  • Horticulture

Dimensions

Height 3,2 cm
Length 18,5 cm
Width 11 cm

Weight

Weight 200 g

Other attributes

Applications Aquaculture and Coral, Aquariums, Beer, Beverages, Environmental, Food, Heating, Horticulture, Hydroponics, Laboratory, Pools, Schools, Water Conditioning, Water Treatment, Wine
Brand Horiba
Country of origin JP
Customs tariff number 90278930
Parameter pH
Quality Advanced
Technical data

Measurement Principle: Glass Electrode

Minimum Sample Volume: 0.1 ml (0.05 ml with Sampling Sheet B)
pH Range / Resolution: 0.0 to 14.0 pH / 0.1
Accuracy: ± 0.1 pH
Maximum pH Calibration Points: 2
pH Calibration Curves:
USA: 1.68, 4.01, 7.00, 10.01 & 12.46
NIST: 1.68, 4.01, 6.86, 9.18 & 12.46
mV Range / Resolution: ± 650 mV / 1 mV
Temperature Display / Resolution: -

Functions
  • Automatic Buffer Recognition
  • Temperature Compensation
  • Auto Hold / Auto Stable
  • Automatic Power Off (30 mins.)
  • Low Battery Indicator
  • IP67 Water / Dust Proof
  • Replaceable Sensor
Display: Custom (Monochrome) Digital LCD with Backlight
Operating Temperature / Humidity:
5 to 40 ºC / 85% or less in relative humidity (no condensation)
Battery Life: Approx. 400 hrs. continuous use without backlight
Material: ABS epoxy body / flat glass sensor
Dimensions: 164 x 29 x 20 mm(excluding projections)
Mass: Approx. 55g (including sensor and batteries)

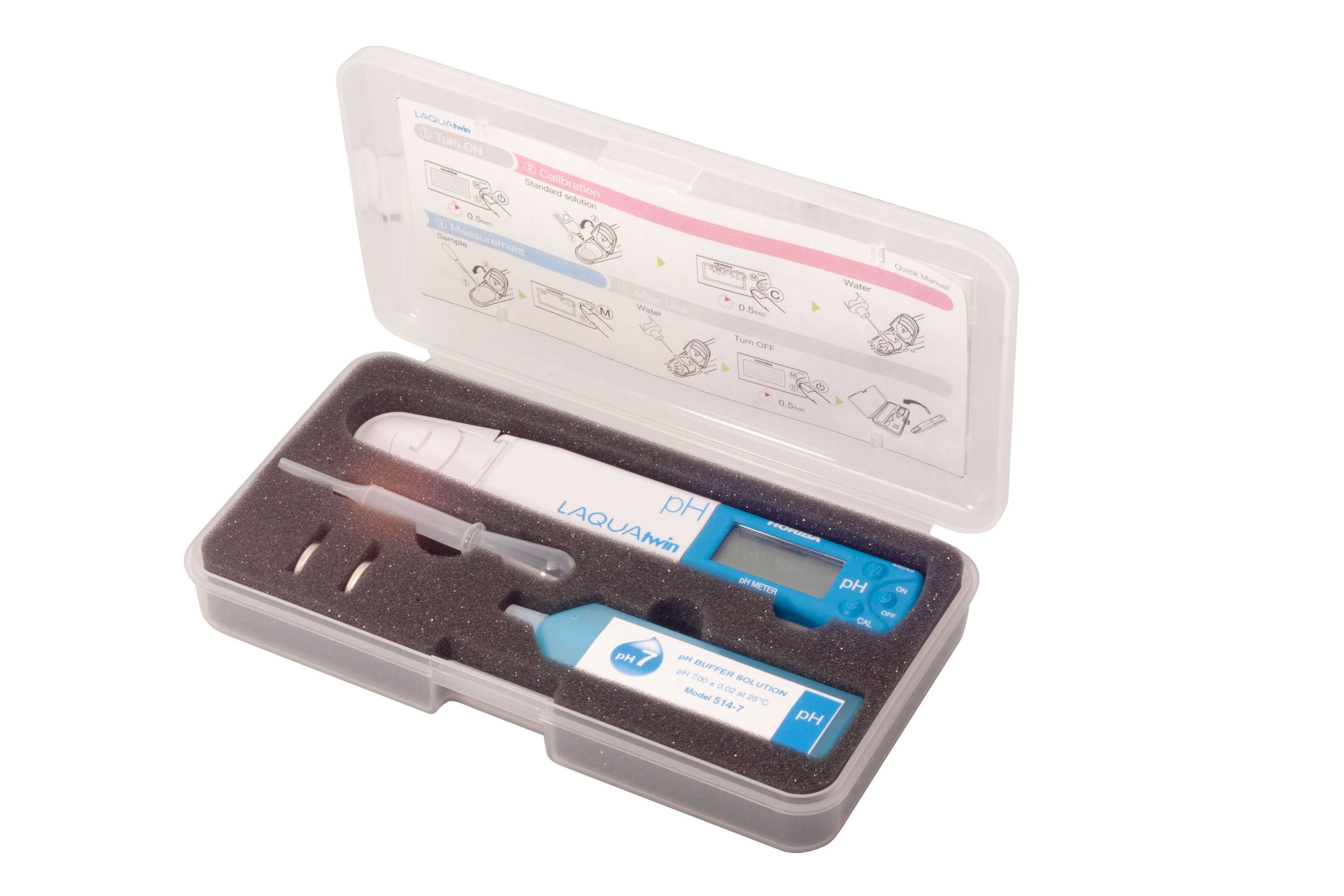

Accessories included
  • pH 7.00 & 4.01 pH Buffers (14 ml each)
  • CR2032 Batteries (2)
  • Dropper
  • Instruction & Quick Manuals
  • Small storage Case
