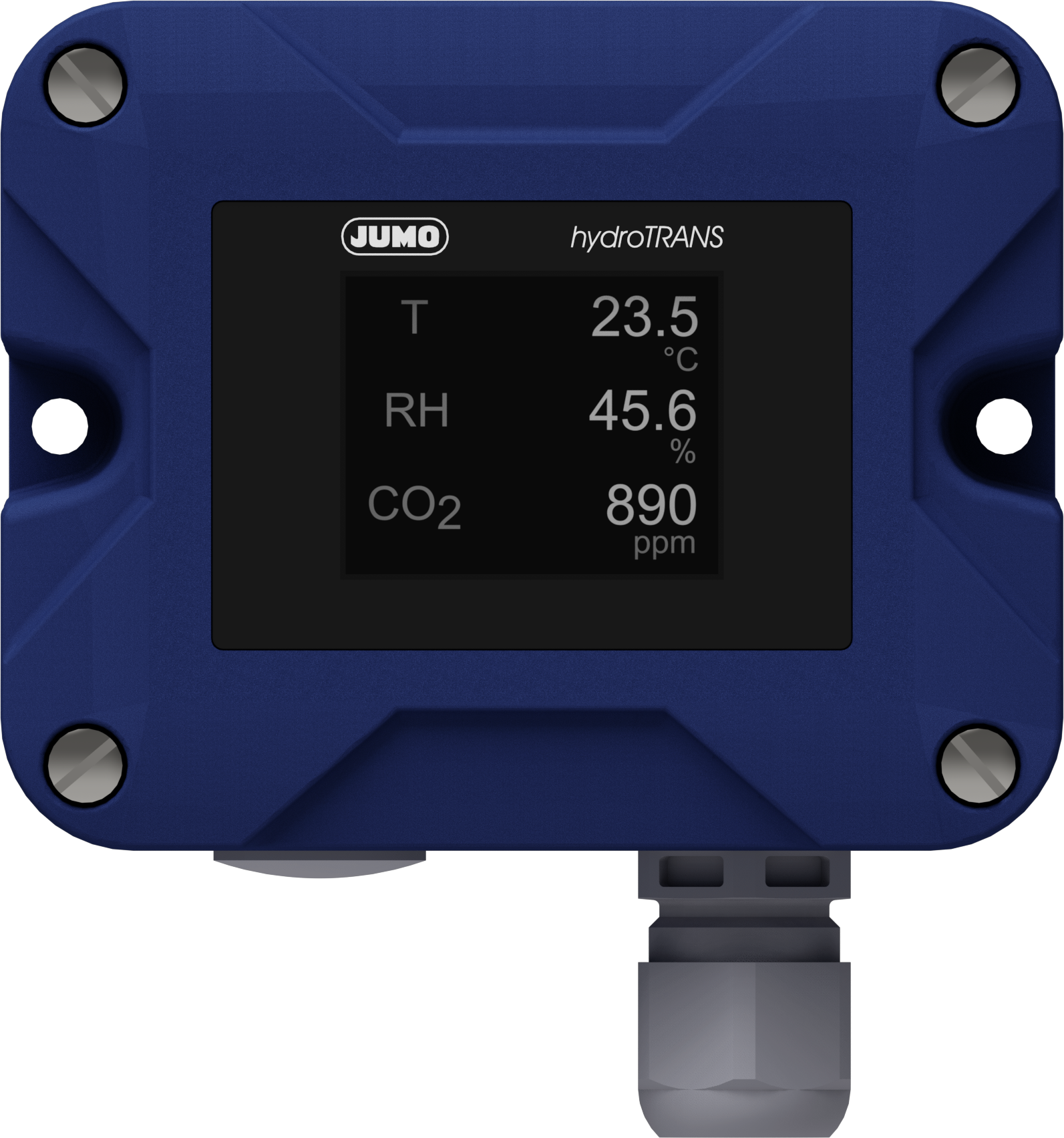

JUMO hydroTRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct design
€209.90*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "JUMO hydroTRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct design"
JUMO hydro TRANS S30 - Humidity and temperature transmitter with optional CO2 module in duct version
Typ: 907043/11
- Basic type extension: RH-T
- Version: Standard
- Measuring range: 0 to 100 % RH/-40 to +80 °C
- Output: 4 to 20 mA/0 to 10 V combined output configured
- Extra code: Without
Measuring parameters
- Temperature
- Relative humidity
- Carbon dioxide (CO2) optional
Interfaces
- USB PORT
- RS485
Areas of application
- Climate monitoring
- Ventilation systems
- Building management
- Storage rooms
- Railroad applications according to DIN EN 50155
Special features
- Robustness
- Easy to install
- Multisensor
- Optional plastic sintered filter
The humidity and temperature transducer monitors the outside air flowing into buildings and production processes. It is suitable for installation in weather-protected ventilation ducts.
| Pos. | Feature | Code | Description |
|---|---|---|---|
| (1) | Basic type | 907043 | JUMO hydroTRANS S30 – Humidity and Temperature Transmitter with optional CO2 module for duct mounting |
| (2) | Basic type extension | 11 | RH – T |
| 12 | RH – T – CO2 | ||
| (3) | Version | 0 | Standard |
| (4) | Measuring range(s) | 15 | 0 to 100 % RH / -40 to +80 °C |
| 17 | 0 to 95 % RH / -10 to +60 °C / 10,000 ppm CO2 | ||
| (5) | Output | 009 | 4 to 20 mA (factory setting) / 0 to 10 V combined output, configurable |
| 530 | RS485 Modbus | ||
| (6) | Extra code | 775 | DAkkS (DKD) calibration (service), specify calibration points in plain text |
| 950 | Railway application | ||
| 951 | DAkkS (DKD) calibration, 3 calibration points: 20 % RH / 50 % RH / 80 % RH @ 23 °C | ||
| 952 | DAkkS (DKD) calibration, 2 calibration points: 33 % RH / 73 % RH @ 23 °C | ||
| 994 | Integrated display |
| Designation | (1) | (2) | (3) | (4) | (5) | (6) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ordering key | / | - | - | - | / | , …a | |||||
| Ordering example | 907043 | / | 12 | - | 0 | - | 17 | - | 009 | / | 994 |
| Note a: Multiple extra codes are listed consecutively and separated by commas. | |||||||||||
Frequently Asked Questions
Yes, the device reliably measures both directly within the airflow.
Yes, it is designed for continuous monitoring in buildings and systems.
Yes, it is specifically designed for installation in ventilation ducts.
It provides a standard 4–20 mA or 0–10 V signal.
Yes, it is well-suited for warehouses, buildings, and technical rooms.
Yes, an optional CO₂ module is available.
It is built for demanding environments and is highly durable.
Other attributes
| Ausgang | 4...20 mA / 0...10 V (Kombiausgang konfiguriert) |
|---|---|
| Customs tariff number | 90258040 |
| Messbereich (Temperatur & relative Feuchte) | 0...100% rF / -40°C...+80°C |
| Messparameter | Relative Feuchte, Temperatur |
