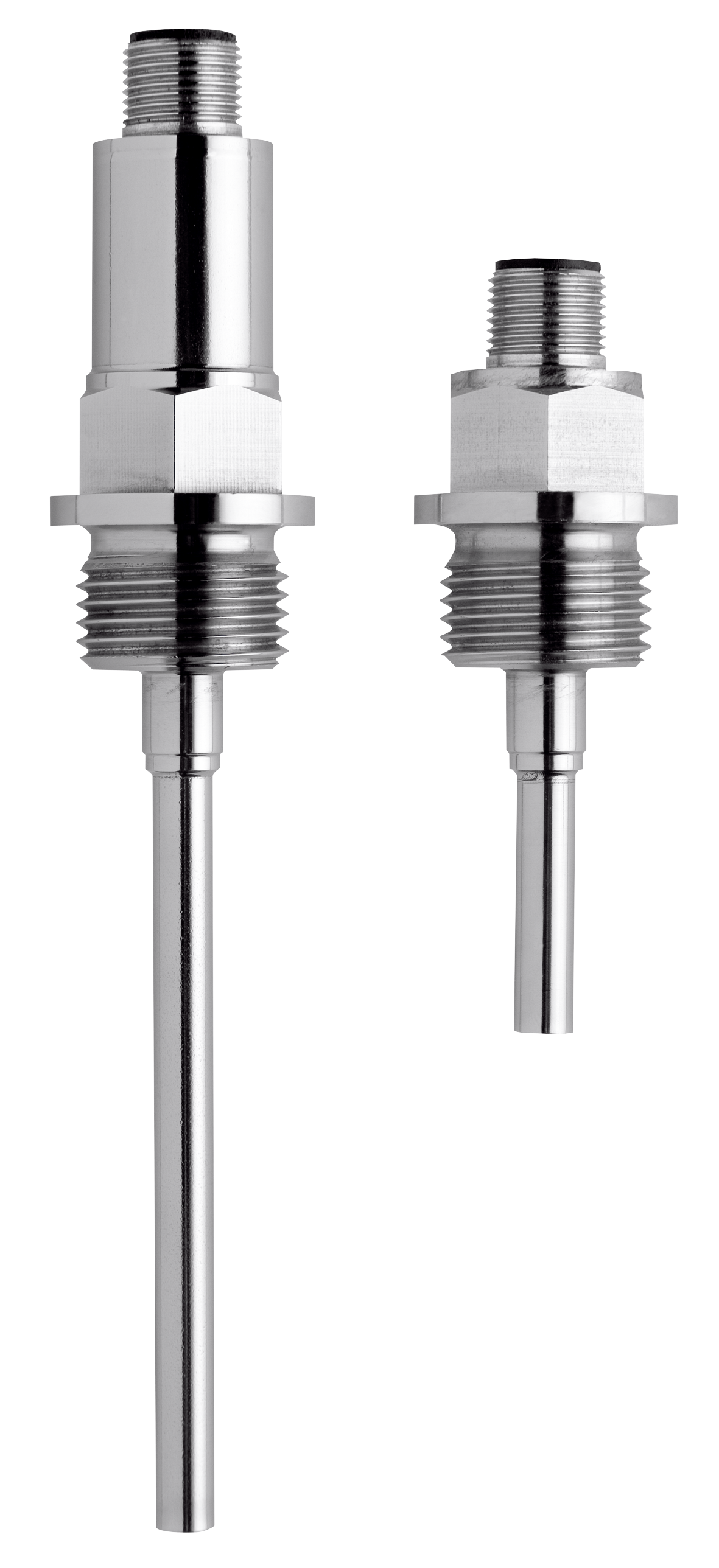

JUMO screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connection
€211.30*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "JUMO screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connection"
JUMO resistance thermometer with screw-in mounting, Pt1000 in four-wire circuit with 100 mm insertion length and measuring range -50 to +150 °C
JUMO Dtrans T100 screw-in resistance thermometer with programmable transmitter and M12 x 1 machine connector
This version is suitable for applications where temperature not only needs to be measured precisely, but where the signal must also be processed directly. For this purpose, the JUMO Dtrans T100 thermometer combines a Pt1000 temperature sensor with a programmable transmitter in a compact design. With an insertion length of 100 mm, this version is particularly useful where the measuring point is located further inside the medium.
The mechanical design is tailored for industrial use. The protection tube is made of stainless steel 316 L and therefore provides a robust and durable solution for many applications.
A Pt1000 in a four-wire circuit is used for temperature measurement. In combination with tolerance class A, this version is designed for accurate and stable temperature measurement. The measuring range from -50 to +150 °C is suitable for many typical applications in liquid and gaseous media.
Technical data
- Design: Screw-in resistance thermometer with programmable transmitter
- Measuring insert: 1x Pt1000
- Circuit type: Four-wire circuit
- Tolerance class: Class A
- Measuring range: -50 to +150 °C
- Protection tube diameter: 6 mm
- Insertion length: 100 mm
- Process connection: G 1/2
- Protection tube material: Stainless steel 316 L (1.4404/1.4435)
- Connection: M12 x 1 machine connector
- Protection class: IP67 with connected machine connector
- Type addition: none
- Configuration: USB interface with setup software
- Conformity: EU and China RoHS compliant
Advantages and technical features of the JUMO thermometer
- Compact solution for measuring points with limited space
- Flexible adjustment via USB and setup software
- Well suited when measurement signals need to be transmitted directly to the control system
- Robust design for long-term industrial use
- Suitable for applications where easy handling and reliable signal transmission are important
A practical advantage is the integrated transmitter. It provides a temperature-linear output signal of 4 to 20 mA or 20 to 4 mA and can be configured via the USB interface using setup software. This allows measuring range, fine adjustment, or measuring circuit monitoring to be adapted specifically to the respective application. This is particularly interesting when the measuring point should not only capture values but also remain flexibly configurable.
The electrical connection is made via an M12 x 1 machine connector. This supports a clean, plug-in connection and is especially practical in technical systems where sensors need to be integrated or replaced quickly. With the machine connector attached, this version achieves IP67 protection.
Typical application areas
- Automated systems and machinery
- Process monitoring in production environments
- Temperature control in media lines and containers
- Applications with direct transmission of the measuring signal to the control system
- Industrial temperature measurement in liquid and gaseous media
Dimensions
| Height | 5 cm |
|---|---|
| Length | 27 cm |
| Width | 3 cm |
Weight
| Weight | 140 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90251900 |
| Einbaulänge in mm | 100 mm |
| Messeinsatz | 1x Pt 1000 Vierleiterschaltung |
| Prozessanschluss Verschraubung | G 1/2 |
| Temperaturbereich | -50°C ... +150°C |
|
Electrical connection: |
Machine connector M12 × 1, 4-pin according to IEC 60947-5-2 |
|
Process connections: |
G 3/8" threaded connection G 1/2" screw connection G 1/2" screw connection with CIP-compliant sealing cone G 1/2" screw connection with CIP-compliant PEEK sealing cone Conical connection with union nut (milk pipe screw connection) Clamp DIN 32676 Ball weld-in socket with compression fitting Weld-in socket with CIP-compliant sealing cone VARIVENT®a connections* JUMO PEKA ball welding socket - Hygienic process connection |
|
Thermowells: |
Stainless steel 316 L, material no. 1.4404/1.4435 Stainless steel 316 Ti, material no. 1.4571 (on request) |
|
Protection class: |
IP67 to DIN EN 60529 with plug-in machine connector |
|
Response times: |
Protection tube standard t0.5 = 5 s; t0.9 = 12 s; in water 0.4 m/s Protection tube remote t0.5 = 2 s; t0.9 = 5 s; in water 0.4 m/s Protection tube standard t0.5 = 40 s; t0.9 = 110 s; in air 3.0 m/s Protection tube lowered t0.5 = 21 s; t0.9 = 70 s; in air 3.0 m/s Flush-mounted sensor PA 387 t0.5 = 140 s; t0.9 = 380 s; in air 3.0 m/s Flush-mounted sensor PA 388 t0.5 = 0.7 s; t0.9 = 6 s; in water 0.4 m/s |
