Version:
Operating temperature / connection cable: -50 ... +200 °C / silicone, measuring insert: 1 x temperature sensor Pt 100 in three-wire circuit, installation length: 100 mm
Screw-in resistance thermometer with connecting cable with fixed screw connectionType: 902050/10-380-1001-1-6-100-104-11-2500/316Silicone connecting cables
Temperature range from -50 to +200 °C
With fixed screw connection
Single resistance thermometer
1x Pt 100 in three-wire circuit
Tolerance class according to DIN EN 60 751: Class B (standard)
Thermowell diameter: 6 mm
Installation length 100 mm
Process connection: G1/2 screw connection
Connection cable end: Wire end ferrules to DIN 46 228 Part 4 (standard)
Connection cable length: 2500 mm
The screw-in resistance thermometer with connection cable is specially designed for use in various industries such as air conditioning and refrigeration technology, heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media.
The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure. The possible applications range from dry to humid environments and, depending on the version, enable precise temperature measurement in the range from -50 to +400 °C.
The connection cable of this screw-in resistance thermometer is available in various materials, including PVC, silicone, PTFE and metal braiding. This variety makes it possible to select the right variant for your application. The transition of the connecting cable is strain-relieved and an optional bend protection can be fitted to ensure the longevity of the connection.
The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class B in a two-wire circuit. Optionally, the measuring insert can also be selected with Pt 500 or Pt 1000.
In addition, the connection can be made in either three- or four-wire circuits to meet individual requirements.
Version:
Operating temperature / connection cable: -50 ... +260 °C / PTFE, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Contact resistance thermometer with mounting hole Protective fitting aluminium
Typ: 902550/10-386-1003-1-11-2500/000
Temperature range from -50 to +260°C (PTFE) 1× Pt100 in two-wire circuit Tolerance class according to DIN EN 60751: Class B (standard) Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard) Connection length in mm: 2500 mm Extra code: without Suitable for round and flat surfaces Quick and uncomplicated installation with protective fittings made of various materials Low thermal mass Optimum heat transfer from the measuring point to the sensor
Contact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with tensioning straps or hose clamps eliminates the need for mechanical processing of the measuring point. Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is available as an option to optimise heat transfer. Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here. A Pt100 temperature sensor in accordance with DIN EN 60751 Class B is installed as standard in a two-wire circuit, but variants with Pt500, Pt1000 are also possible.
Version:
Operating temperature / connection cable: -50 ... +260 °C / PTFE, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Contact resistance thermometer with mounting hole Stainless steel protective fittingTyp: 902550/11-386-1003-1-11-2500/000
Temperature range from -50 to +260°C (PTFE) 1× Pt100 in two-wire circuit Tolerance class according to DIN EN 60751: Class B (standard) Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard) Connection length in mm: 2500 mm Extra code: without
Suitable for round and flat surfaces Quick and uncomplicated installation with protective fittings made of various materials Low thermal mass Optimum heat transfer from the measuring point to the sensor
Contact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with tensioning straps or hose clamps eliminates the need for mechanical processing of the measuring point. Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is available as an option to optimise heat transfer. Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here. A Pt100 temperature sensor in accordance with DIN EN 60751 Class B is installed as standard in a two-wire circuit, but variants with Pt500, Pt1000 are also possible.
Version:
Operating temperature / connection cable: -50 ... +180 °C / silicone, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Contact resistance thermometer with mounting hole Stainless steel protective fittingTyp: 902550/30-378-1003-1-11-2500/315, Temperature range from -50 to +260°C (PTFE) 1× Pt100 in two-wire circuit Tolerance class according to DIN EN 60751: Class B (standard) Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard) Connection length in mm: 2500 mm- Extra code: Spring bend protection Suitable for round and flat surfaces Quick and uncomplicated installation with protective fittings made of various materials Low thermal mass Optimum heat transfer from the measuring point to the sensorContact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with clamping straps or hose clamps eliminates the need for mechanical processing of the measuring point.Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is optionally available to optimise heat transfer.Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here.A Pt100 temperature sensor in accordance with DIN EN 6
Version:
Operating temperature / connection cable: -5 ... +105 °C / PVC, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Contact resistance thermometer with mounting hole Protective fitting aluminium
Typ: 902550/31-730-1003-1-11-2500/000
Temperature range from -5 to +105°C (PVC) 1× Pt100 in two-wire circuit Tolerance class according to DIN EN 60751: Class B (standard) Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard) Connection length in mm: 2500 mm Extra code: without Suitable for round and flat surfaces Quick and uncomplicated installation with protective fittings made of various materials Low thermal mass Optimum heat transfer from the measuring point to the sensorContact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with clamping straps or hose clamps eliminates the need for mechanical processing of the measuring point.Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is optionally available to optimise heat transfer.Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here.A Pt100 temperature sensor in accordance with DIN EN 60751 Class B in a two-wire circuit is fitted as standard, but variants with Pt500, Pt1000 are also possible.
Version:
Operating temperature / connection cable: -50 ... +260 °C / PTFE, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Contact resistance thermometer with mounting hole Protective fitting stainless stell
Typ: 902550/20-386-1003-1-11-2500/000
Temperature range from -50 to +260°C (PTFE) 1× Pt100 in two-wire circuit Tolerance class according to DIN EN 60751: Class B (standard) Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard) Connection length in mm: 2500 mm Extra code: without Suitable for round and flat surfaces Quick and uncomplicated installation with protective fittings made of various materials Low thermal mass Optimum heat transfer from the measuring point to the sensor
Translated with DeepL.com (free version)
Contact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated installation with tensioning straps or hose clamps eliminates the need for mechanical processing of the measuring point.Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is optionally available to optimise heat transfer.Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here.A Pt100 temperature sensor in accordance with DIN EN 60751 Class B in a two-wire circuit is fitted as standard, but variants with Pt500, Pt1000 are also possible.
Version:
Operating temperature / connection cable: -50 ... +150 °C / PTFE connection cable, measuring insert: 1 x Pt 100 temperature sensor in four-wire circuit, installation length: 100 mm

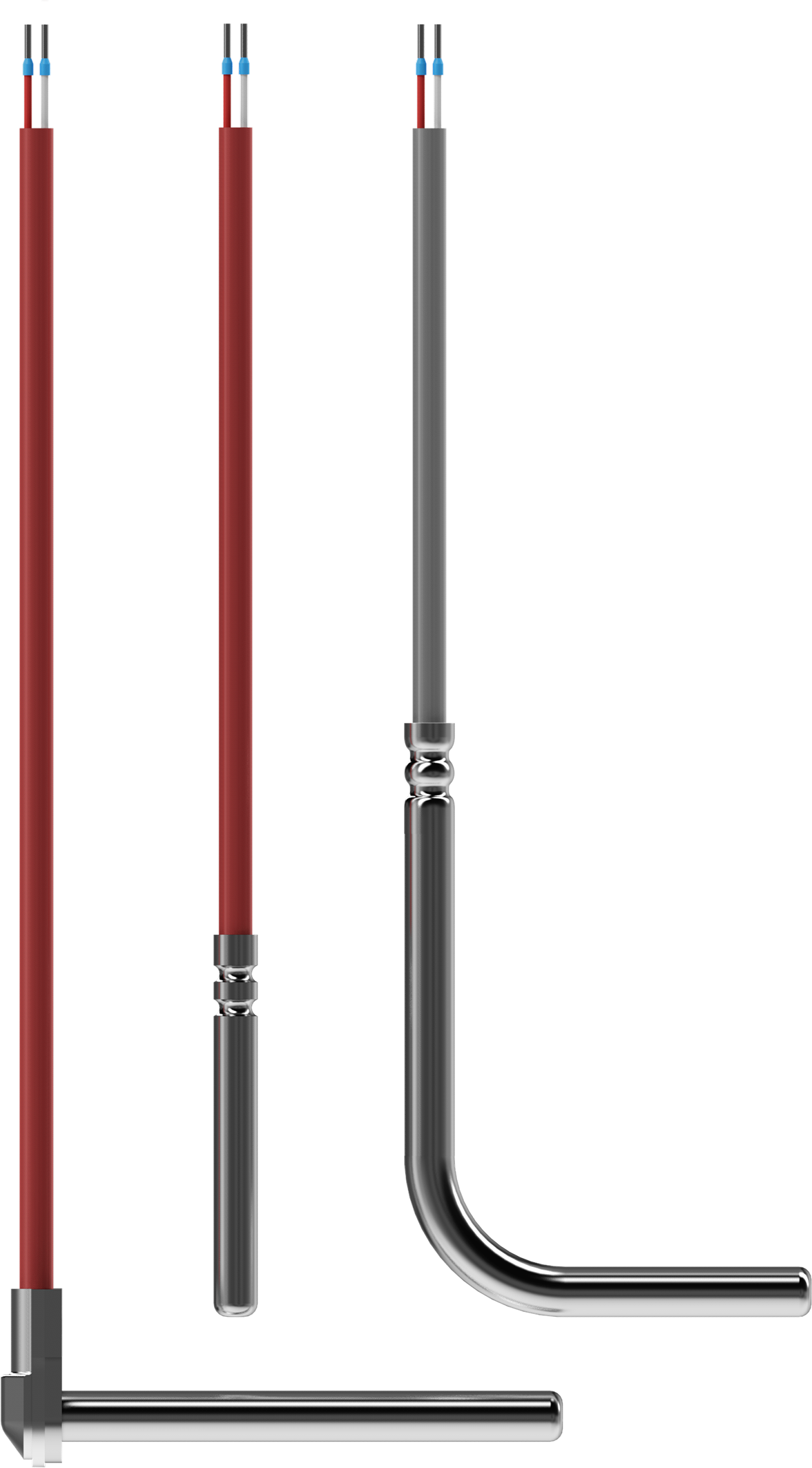

Push-in resistance thermometer in water vapour-tight designType: 902830/10-370-1011-2-6-100-11-2500/317 Measuring range -50 to +150°C Connection cable: PTFE 1x Pt 100 in four-wire circuit Single resistance thermometer Tolerance class A according to DIN EN 60 751 Thermowell diameter: 6 mm Insertion length: 100 mm Connection cable end: Wire end ferrules to DIN 46 228 Connection cable length: 2500 mm (standard) Extra codes: Shielded connecting cableThe plug-in resistance thermometer in water vapour-tight design is preferably used for temperature measurements in sterilisers. Their specific design allows them to be used in atmospheres containing water vapour and under pressure. Another area of application is in apparatus engineering and laboratory technology. The thermometer can be supplied with a PTFE connection cable, which enables operation in humid rooms in the temperature range from -50 to +150 °C, or alternatively an FEP connection cable is available, which covers temperatures from -70 to +200 °C.The transition of the connection cable is strain-relieved to ensure the longevity of the connection. The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class A in a two-wire circuit. In addition, the connection can optionally be made in three- and four-wire circuits to meet individual requirements.
Version:
Operating temperature / connection cable: -70 ... +200 °C / FEP connection cable, measuring insert: 1 x Pt 100 temperature sensor in four-wire circuit, installation length: 50 mm
Push-in resistance thermometer in water vapour-tight design, pressure-tight up to 5.0 barType: 902830/30-302-1011-2-4-50-11-2500/000
Measuring range -70 to +200°C Connection cable: FEP 1 x Pt 100 in four-wire circuit Single resistance thermometer Tolerance class A according to DIN EN 60 751 Thermowell diameter: 4 mm Insertion length: 50 mm Connection cable end: Wire end ferrules to DIN 46 228 Connection cable length: 2500 mm (standard) Extra codes: without extra codeThe insertion resistance thermometer in water vapour-tight design is preferably used for temperature measurements in sterilisers. Their specific design allows them to be used in atmospheres containing water vapour and under pressure. Another area of application is in apparatus engineering and laboratory technology. The thermometer can be supplied with a PTFE connection cable, which enables operation in humid rooms in the temperature range from -50 to +150 °C, or alternatively an FEP connection cable is available, which covers temperatures from -70 to +200 °C.The transition of the connection cable is strain-relieved to ensure the longevity of the connection. The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class A in a two-wire circuit. In addition, the connection can optionally be made in three- and four-wire circuits to meet individual requirements.
Version:
Operating temperature / connecting cable: -50 ... +350 °C / metal braiding, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit, installation length: 60 mm (not for Ø < 6 mm), cable length: 2500 mm
Type: 902150/40-397-1003-1-6-60-11-2500/317 Temperature measuring range: -50 ... +350 °C / Metal mesh Measuring insert: 1x Pt 100 in two-wire circuit Installation length: 60 mm Cable length: 2500 mm Tolerance class: Class B (standard) Thermowell diameter: 6 mm Wire end ferrules Extra code: Shielded connecting cable Available as single and dual resistance thermometers Available in straight and angled versions to meet different installation requirements. Flexible connection cables Strain relief to protect against mechanical stress Meets SIL and PL qualification standards for maximum safety Optional kink protection
Areas of application: Laboratory technology Climate cabinets Solar systems Heating, air conditioning, ventilation Apparatus engineering
The insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments. This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise temperature monitoring.
Version:
Operating temperature / connection cable: -50 ... +260 °C / metal braiding, measuring insert: 1 x temperature sensor Pt 100 in two-wire circuit, installation length: 100 mm, cable length: 2500 mm
Push-in resistance thermometer with spiralised connection cable, one-piece stainless steel protection tubeType: 902150/30-388-1003-1-6-100-11-2500/315,317
Temperature measuring range: -50 ... +260 °C / metal braidingMeasuring insert: 1x Pt 100 in two-wire circuitInstallation length: 100 mmCable length: 2500 mmTolerance class: Class B (standard)Thermowell diameter: 6 mmWire end ferrulesExtra code: with bend protection, cable shieldedAvailable as single and double resistance thermometersAvailable in straight and angled versions to meet different installation requirements.Flexible connection cablesStrain relief to protect against mechanical stressMeets SIL and PL qualification standards for maximum safetyOptional kink protectionAreas of application:
Laboratory technologyClimate cabinetsSolar systemsHeating, air conditioning, ventilationApparatus engineeringThe insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments.
This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise temperature monitoring.
Version:
Operating temperature / connection cable: -5 ... +105 °C / PVC or PUR, measuring insert: 1 x temperature sensor Pt 100 in two-wire circuit, installation length: 50 mm (not for Ø < 6 mm), cable length: 1100 mm (stretched)
Push-in resistance thermometer with spiralised connection cable, one-piece stainless steel protection tubeType: 902150/20-730-1003-1-6-50-11-1100/000
Temperature measuring range: -5 ... +105 °CMeasuring insert: 1x Pt 100 in two-wire circuitInstallation length: 50 mmCable length: 1100 mm (stretched)Tolerance class: Class B (standard)Thermowell diameter: 6 mmWire end ferrulesExtra code: withoutAvailable as single and dual resistance thermometersAvailable in straight and angled versions to meet different mounting requirements.Flexible connection cablesStrain relief to protect against mechanical stressMeets SIL and PL qualification standards for maximum safetyOptional kink protectionAreas of application:
Laboratory technologyClimate cabinetsSolar systemsHeating, air conditioning, ventilationApparatus engineeringThe insertion resistance thermometer offers precise temperature measurement in both liquid and gaseous media. The wide range of variants makes it ideal for various applications in industrial environments.
This thermometer ensures reliable performance in dry and damp rooms and enables accurate temperature measurements. The robust design and flexible configuration options ensure precise tempera
Version:
Operating temperature / connection cable: -50 ... +90 °C, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Room, outdoor and duct resistance thermometersTyp: 902520/15-361-1003-1/000
Measuring range from -50 to +90°C Measuring insert 1x temperature sensor Pt100 in two-wire circuitTransmitter: withoutProtection class IP65Suitable for use in air conditioning technology
Room, outdoor and duct resistance thermometers are designed for air conditioning technology and are mainly used for temperature measurement in rooms, air ducts and outdoors.
Various plastic device versions with different degrees of protection are available for the respective measuring task.
A Pt100 temperature sensor in accordance with DIN EN 60751 class B in a two-wire circuit is installed as standard, but variants with Pt500, Pt1000, Ni1000 and various NTC sensors are also possible. The connection terminals allow optional continuation in three- and four-wire circuits. An integrated measuring transducer can also be selected as an option.
Version:
1 x Pt 1000 temperature sensor in two-wire circuit, for pipe diameter 28 mm
JUMO plastoSens T04 Contact-optimised plastic temperature sensorType: 904004/10485-1005-1-012-112500/000
Measuring range from -40 to + 180 °CMeasuring insert: 1x Pt1000 two-wire circuit (standard)Tolerance class: B (standard)Surface shape: for pipe diameter 28 mmWire end ferrulesConnection length: 2500 mmExtra code: withoutMaterial: thermally conductive plasticProtection class IP65Simple installation without toolsThe contact resistance thermometer enables the measurement of surface temperatures on pipes made of copper or stainless steel, for example, in order to draw conclusions about the temperature of the medium inside the pipe.
The JUMO plastoSens T04 are designed to fit the respective pipe diameter and to make full-surface contact with the pipe, thereby realising optimum heat transfer.
The accessories supplied, such as the pipe clip and insulating cap, offer you good protection against environmental influences such as draughts, as well as the option of tool-free installation. The insulating cap is made of a material with poor thermal conductivity in order to shield the temperature sensor as well as possible.
The pipe clip allows the temperature sensor to be attached to the pipe together with the insulating cap without tools, ensuring a firm and secure connection, which can also be removed if necessary.
A Pt1000 temperature sensor in accordance with DIN EN 60751:2009 / IEC 60751:2008 with a tolerance class B (F0.3) in a two-wire circuit is used as standard.
Version:
Operating temperature / connection cable: -20 ... +80 °C, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Room, outdoor and duct resistance thermometers
Typ: 902520/11-635-1003-1/000
Measuring range from -20 to +80°C Measuring insert 1x temperature sensor Pt100 in two-wire circuitTransmitter: withoutProtection class IP54Suitable for use in air conditioning technology
Room, outdoor and duct resistance thermometers are designed for air conditioning technology and are mainly used for temperature measurement in rooms, air ducts and outdoors.
Various plastic device versions with different degrees of protection are available for the respective measuring task.
A Pt100 temperature sensor in accordance with DIN EN 60751 class B in a two-wire circuit is installed as standard, but variants with Pt500, Pt1000, Ni1000 and various NTC sensors are also possible. The connection terminals allow optional continuation in three- and four-wire circuits. An integrated measuring transducer can also be selected as an option.
Version:
Operating temperature / connection cable: -30 ... +80 °C, measuring insert: 1 x temperature sensor Pt 100 in three-wire circuit
Room, outdoor and duct resistance thermometers
Typ: 902520/10-572-1001-1/00
Measuring range from -30 to +80°C Measuring insert 1x temperature sensor Pt100 in three-wire circuit Transmitter: without Protection class IP20 Suitabel for use in air conditioning technology
Room, outdoor and duct resistance thermometers are designed for air conditioning technology and are mainly used for temperature measurement in rooms, air ducts and outdoors. Various plastic device versions with different degrees of protection are available for the respective measuring task. A Pt100 temperature sensor in accordance with DIN EN 60751 Class B in a two-wire circuit is installed as standard, but variants with Pt500, Pt1000, Ni1000 and various NTC sensors are also possible. The connection terminals allow optional continuation in three- and four-wire circuits. An integrated measuring transducer can also be selected as an option.
Version:
Operating temperature / connection cable: -50 ... +400 °C / metal braiding, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit, installation length: 37 mm
Screw-in resistance thermometer with connecting cable and loose screw connectionType: 902050/20-402-1003-1-6-37-114-11-2500/315,317Metal braided connection cablesTemperature range from -50 to +400 °CWith loose screw connectionSingle resistance thermometer1x Pt 100 in two-wire circuitTolerance class according to DIN EN 60 751: Class B (standard)Thermowell diameter: 6 mmInstallation length 37 mmProcess connection: M 10x1 screw connectionConnection cable end: Wire end ferrules to DIN 46 228 Part 4 (standard)Connection cable length: 2500 mmExtracode: Spring bend protection, connection cable shielded
The screw-in resistance thermometer with connection cable is specially designed for use in various industries such as air conditioning and refrigeration technology, heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media. The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure.
The possible applications range from dry to humid environments and, depending on the version, enable precise temperature measurement in the range from -50 to +400 °C. The connection cable of this screw-in resistance thermometer is available in various materials, including PVC, silicone, PTFE and metal braiding. This variety makes it possible to select the right variant for your application. The transition of the connecting cable is strain-relieved and an optional bend protection can be fitted to ensure the longevity of the connection. The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class B in a two-wire circuit. Optionally, the measuring insert can also be selected with Pt 500 or Pt 1000. In addition, the connection can be made in either three- or four-wire circuits to meet individual requirements.
Version:
Operating temperature / connection cable: -50 ... +300 °C / metal braiding, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit, installation length: 25 mm
Screw-in resistance thermometer with connection cable and threaded protection tubeType: 902050/40-390-1003-1-8-25-111-11-2500/315,317- Metal braided connection cables- Temperature range from -50 to +300 °C- Single resistance thermometer- 1x Pt 100 in two-wire circuit- Tolerance class according to DIN EN 60 751: Class B (standard)- Thermowell diameter: M 8- Insertion length 25 mm- Process connection: M 8 screw connection- Connection cable end: Wire end ferrules to DIN 46 228 Part 4 (standard)- Connection cable length: 2500 mm- Extra code: Spring bend protection, connection cable shielded
The screw-in resistance thermometer with connection cable is specially designed for use in various industries such as air conditioning and refrigeration technology, heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media.The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure. The possible applications range from dry to humid environments and, depending on the version, enable precise temperature measurement in the range from -50 to +400 °C.The connection cable of this screw-in resistance thermometer is available in various materials, including PVC, silicone, PTFE and metal braiding. This variety makes it possible to select the right variant for your application. The transition of the connecting cable is strain-relieved and an optional bend protection can be fitted to ensure the longevity of the connection.The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class B in a two-wire circuit. Optionally, the measuring insert can also be selected with Pt 500 or Pt 1000.In addition, the connection can be made in either three- or four-wire circuits to meet individual requirements.
Version:
Operating temperature / connection cable: -50 ... +200 °C, measuring insert: 1 x temperature sensor Pt 100 in two-wire circuit, installation length: 75 mm
Screw-in resistance thermometer with connection head form JType: 902030/31-380-1003-1-6-75-104/000
with stepped protection tube for air measurementMeasuring range from -50 to +200 °CSingle resistance thermometer1x Pt 100 in two-wire circuitTolerance class: Class B (standard)Thermowell diameter: 6 mmInstallation length: 75 mmProcess connection: G1/2 threaded connectionExtra codes: noneThe screw-in RTD temperature probe with connection head is specially designed for use in various industries such as air conditioning and refrigeration technology and heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media, with a temperature range of -50 to +400 °C.
The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure.
The measuring insert is fitted as standard with a Pt100 temperature sensor in accordance with the DIN EN 60751:2009 / IEC 60751:2008 standards. This sensor has a temperature coefficient α of 3.850 × 10-3 °C-1 and is installed in a two-wire circuit. Versions with Pt500 or Pt1000 are also available as an option. For more precise measurement results, the connection can be made either in a three-wire or four-wire circuit, and it is also possible to integrate a transmitter into the connection head.
Version:
Operating temperature / connecting cable: -50 ... +200 °C, measuring insert: 1 x Pt 100 temperature sensor in four-wire circuit, installation length: 100 mm
JUMO Dtrans T100 screw-in RTD temperature probe without transmitter, M12 x 1 machine plug connectionType: 902815/10-380-1011-1-6-100-104-24/000
Measuring range from -50 to + 200 °C1x Pt100 in four-wire circuitTolerance class: Class B (standard)Thermowell diameter: 6 mmInstallation length: 100 mmProcess connection: G1/2 screw connectionThermowell material: Stainless steel 316 L (material no. 1.4404/1.4435)EU and China RoHS compliantExtra code: withoutM12 x 1 push-on connector; protection class IP67 to DIN EN 60529 with attached machine plugUSB interface for configuration with setup programme
The screw-in resistance thermometer in a compact design consists of a thermowell with built-in temperature sensor, a process connection and a housing for the transmitter electronics. The programmable two-wire transmitter offers a robust solution for the precise recording of temperatures in a temperature measuring range of -50 to + 150°C, with a neck tube up to 260°C and is therefore versatile in use. The device has a USB interface that enables simple configuration via a setup programme. With the help of this programme, parameters such as measuring range, fine adjustment and measuring circuit monitoring can be adjusted to meet the requirements of different applications.
The output signal 4 to 20 mA or reversed 20 to 4 mA is available linearised (temperature linear). The device is intended for industrial use and complies with European standards to ensure electromagnetic compatibility (EMC).
Version:
Operating temperature / connection cable: -50 ... +200 °C / silicone, measuring insert: 1 x Pt 100 temperature sensor in three-wire circuit, installation length: 27.5 mm
Screw-in resistance thermometer with connection cable, loose screw connection and stepped protection tubeType: 902050/30-380-1001-1-5,4-27,5-114-11-2500/316 Silicone connecting cables Temperature range from -50 to +200 °C With loose screw connection Single resistance thermometer 1x Pt 100 in three-wire circuit Tolerance class according to DIN EN 60 751: Class B (standard) Thermowell diameter: 5.4 mm stepped down to 3.3 mm Installation length 27.5 mm Process connection: M 10 x 1 screw connection Connection cable end: Wire end ferrules to DIN 46 228 Part 4 (standard) Connection cable length: 2500 mm Extra code: Bend protection hose
The screw-in resistance thermometer with connection cable is specially designed for use in various industries such as air conditioning and refrigeration technology, heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media.The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure. The possible applications range from dry to humid environments and, depending on the version, enable precise temperature measurement in the range from -50 to +400 °C.
The connection cable of this screw-in resistance thermometer is available in various materials, including PVC, silicone, PTFE and metal braiding. This variety makes it possible to select the right variant for your application. The transition of the connecting cable is strain-relieved and an optional bend protection can be fitted to ensure the longevity of the connection.The measuring insert is equipped as standard with a Pt 100 temperature insert in accordance with DIN EN 60 751, class B in a two-wire circuit. Optionally, the measuring insert can also be selected with Pt 500 or Pt 1000.In addition, the connection can be made in either three- or four-wire circuits to meet individual requirements.
Version:
Operating temperature / connection cable: -50 ... +150 °C (max. transducer temperature 85 °C), measuring insert: 1 x temperature sensor Pt 1000 in four-wire circuit, installation length: 50 mm
UMO Dtrans T100 screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connectionType: 902815/20-370-1013-2-6-50-104-24/000
Measuring range from -50 to + 150 °C1x Pt1000 in four-wire circuitTolerance class: Class AThermowell diameter: 6 mmInstallation length: 50 mmProcess connection: withoutThermowell material: Stainless steel 316 L (material no. 1.4404/1.4435)EU and China RoHS compliantExtra code: withoutM12 x 1 push-on connector; protection class IP67 to DIN EN 60529 with attached machine plugUSB interface for configuration with setup programme
The screw-in resistance thermometer in a compact design consists of a thermowell with built-in temperature sensor, a process connection and a housing for the transmitter electronics. The programmable two-wire transmitter offers a robust solution for the precise recording of temperatures in a temperature measuring range of -50 to + 150°C, with a neck tube up to 260°C and is therefore versatile in use. The device has a USB interface that enables simple configuration via a setup programme. With the help of this programme, parameters such as measuring range, fine adjustment and measuring circuit monitoring can be adjusted to meet the requirements of different applications.
The output signal 4 to 20 mA or reversed 20 to 4 mA is available linearised (temperature linear). The device is intended for industrial use and complies with European standards to ensure electromagnetic compatibility (EMC).
Version:
Operating temperature / connecting cable: -50 ... +200 °C, measuring insert: 2 x temperature sensor Pt 100 in two-wire circuit, installation length: 50 mm
Screw-in resistance thermometer with form J connection headType: 902030/10-380-2003-1-6-50-104/000
With continuous protection tube Measuring range from -50 to +200 °C Single resistance thermometer 2x Pt 100 in two-wire circuit Tolerance class: Class B (standard) Thermowell diameter: 6 mm Installation length: 50 mm Process connection: screw connection G ½ Extra codes: none
The screw-in RTD temperature probe with connection head is specially designed for use in various industries such as air conditioning and refrigeration technology and heating, furnace and apparatus engineering. It offers precise temperature measurement in both liquid and gaseous media, with a temperature range of -50 to +400 °C. The installation design of this thermometer ensures reliable tightness, even under extreme conditions of negative and positive pressure.The measuring insert is fitted as standard with a Pt100 temperature sensor in accordance with the DIN EN 60751:2009 / IEC 60751:2008 standards. This sensor has a temperature coefficient α of 3.850 × 10-3 °C-1 and is installed in a two-wire circuit. Versions with Pt500 or Pt1000 are also available as an option. For more precise measurement results, the connection can be made either in a three-wire or four-wire circuit, and it is also possible to integrate a transmitter into the connection head. Depending on the measurement requirements, a single or dual resistance thermometer can also be selected.
Version:
Operating temperature / connecting cable: -30 ... +90 °C, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Room, outdoor and duct resistance thermometersTyp: 902520/21-573-1003-1/000
Measuring range from -30 to +90°CMeasuring insert 1x temperature sensor Pt100 in two-wire circuitTransmitter: withoutProtection class IP65Suitable for use in air conditioning technology
Room, outdoor and duct resistance thermometers are designed for air conditioning technology and are mainly used for temperature measurement in rooms, air ducts and outdoors.
Various plastic device versions with different degrees of protection are available for the respective measuring task.
A Pt100 temperature sensor in accordance with DIN EN 60751 class B in a two-wire circuit is installed as standard, but variants with Pt500, Pt1000, Ni1000 and various NTC sensors are also possible. The connection terminals allow optional continuation in three- and four-wire circuits. An integrated measuring transducer can also be selected as an option.
Version:
Operating temperature / connecting cable: -30 ... +90 °C, measuring insert: 1 x Pt 100 temperature sensor in two-wire circuit
Room, outdoor and duct resistance thermometersTyp: 902520/22-573-1003-1/000
Measuring range from -30 to +90°CMeasuring insert 1x temperature sensor Pt100 in two-wire circuitTransmitter: withoutProtection class IP65Suitable for use in air conditioning technology
Room, outdoor and duct resistance thermometers are designed for air conditioning technology and are mainly used for temperature measurement in rooms, air ducts and outdoors.
Various plastic device versions with different degrees of protection are available for the respective measuring task.
A Pt100 temperature sensor in accordance with DIN EN 60751 class B in a two-wire circuit is installed as standard, but variants with Pt500, Pt1000, Ni1000 and various NTC sensors are also possible. The connection terminals allow optional continuation in three- and four-wire circuits. An integrated measuring transducer can also be selected as an option.
