Product information "JUMO tecLine - pH glass shaft electrode with salt reserve, 120mm installation length, 1x zirconium dioxide and UW glass"
Anyone looking for a tecLine pH electrode for industrial applications and placing particular value on quality, service life, and a process-suitable design will find a suitable solution here for demanding measurement tasks.

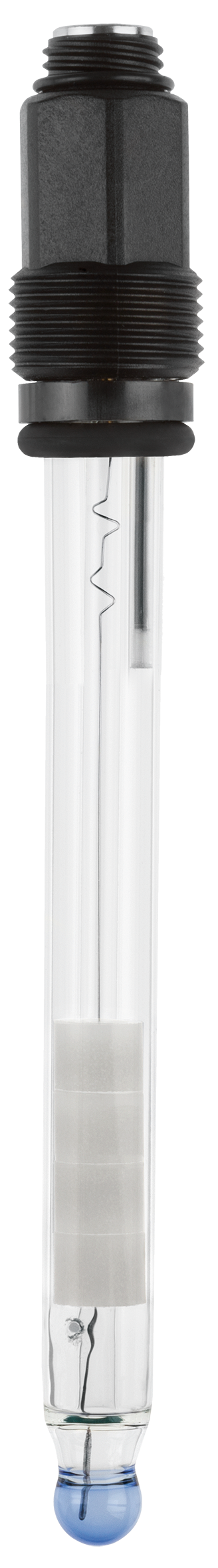

JUMO tecLine pH glass shaft electrode with salt reservoir, 120 mm insertion length, 1x zirconium dioxide and UW glass
The JUMO tecLine pH glass shaft electrode is designed for demanding pH measurements in process and industrial applications. It is intended for users who are not simply looking for any pH electrode, but for a high-quality version for reliable continuous operation in aqueous media. Especially in applications where measuring points must operate permanently stable and where downtime causes additional effort, a robust industrial electrode is essential.
Advantages and special features
A key advantage of this version lies in its industrially optimized design. The combination of UW glass, zirconium dioxide, and a salt reservoir makes the electrode particularly suitable for applications requiring long-lasting and stable pH measurement. The salt reservoir is especially beneficial in applications where the electrode is operated under conditions that require maximum service life. This makes the version attractive for users aiming to reduce maintenance effort and minimize replacement intervals.
Why choose this electrode?
This electrode is not designed for occasional spot measurements but for continuous use in process environments. It is built to operate reliably and deliver stable measurement values over extended periods.
When pH measurement is an integral part of a plant or system, it makes sense to rely on a robust design. A high-quality electrode typically lasts longer and reduces the need for frequent replacements or troubleshooting due to failures.
Technical information
- Basic type: glass shaft
- Active element: UW glass
- Measuring range: pH 0 to 12, short-term up to pH 14
- Temperature range: -5 to +80 °C
- Diaphragm: 1 x zirconium dioxide
- Electrical connection: S8 Pg13.5 screw head
- Insertion length: 120 mm (standard)
- Type option: with salt reservoir
The UW glass supports reliable pH measurement, while the overall design is optimized for stable measuring conditions in industrial environments. With a 120 mm insertion length, this electrode is suitable for many common installation situations in process and industrial systems. The tecLine series represents high-quality industrial electrodes designed for demanding measurement tasks. Depending on the configuration, variants with integrated temperature sensors are also available within the series, offering additional flexibility in selection.
Applications
This pH electrode is used wherever pH values in water and aqueous media must be reliably monitored.
- Process measurements in industrial plants
- Water treatment
- General industrial water analysis
- Process water and production processes with pH monitoring
Dimensions
| Height | 4,5 cm |
|---|---|
| Length | 20,5 cm |
| Width | 5,5 cm |
Weight
| Weight | 90 g |
|---|
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 90278930 |
