| Width | 2,3 cm |
| Height | 10 cm |
| Length | 11,5 cm |
| Weight | 0,2 kg |
| Country of origin | DE |
| Customs tariff number | 85423119 |
NeoTec Slave 2/3/4G (Europa) inkl. Pilzantenne und USB-Kabel
€684.00
Please log in to receive your conditions.
Payment methods
Request individual offer (from 5 pcs.)
For larger order quantities, we will be happy to prepare an individual offer for you.
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Delivery & Shipping
- Standard shipping: 3–5 business days within Germany
- Express shipping available on request
- International delivery to EU and Switzerland
- No shipment of Heyl products to Spain, France and Portugal
- Dangerous goods shipping according to ADR regulations
- 3% online discount on HEYL, HORIBA, JUMO and MILWAUKEE products
Personal consultation
Our experts will be happy to advise you on water treatment, measurement technology and sterile processing.
Technical consulting for industry, laboratory and building technology — your specialist for water analysis and process water treatment.
Contact formQuick info
| Width | 2,3 cm |
| Height | 10 cm |
| Length | 11,5 cm |
| Weight | 0,2 kg |
| Country of origin | DE |
| Customs tariff number | 85423119 |

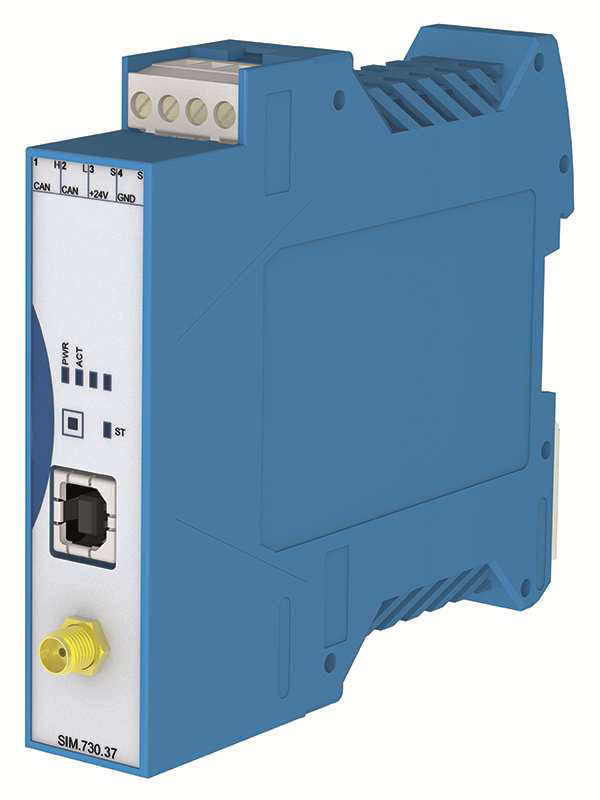

Product information "NeoTec Slave 2/3/4G (Europa) inkl. Pilzantenne und USB-Kabel"
The NeoTec Slave 2/3/4G is designed for use in control and regulation systems with decentralised I/O nodes. It consists of CAN field bus components, all of which are designed for top-hat rail mounting and are graduated in snap-in widths of 22.5 mm. It is also possible to route both the CAN bus and the power supply through a bus strip integrated into the top-hat rail. The extensive product portfolio of over 100 different fieldbus components enables solutions with conventional I/Os through to communication with standardised industry-typical fieldbus protocols. Thanks to the modular design, the components can be easily retrofitted. The I/O modules are mainly available in units of 2, 4 and 8 I/Os. The integration of the busbar into the top-hat rail ensures user-friendly, time-saving and safe wiring.
Interfaces:
- 1x mobile phone interface 2G/3G/4G
- 1x USB-B
- 1x CAN(CANopen, Slave)
Display elements:
- 1 LED display for power
- 1 LED display for mobile radio status
- 1 LED display for CAN
Supply voltage:
- 24 VDC ±10 %
- Residual ripple 150mV
Current consumption:
- Typical 125 mA
- Maximum 250mA
Earth connection:
- 6.3mm spade connector on top
SIM card format:
- Micro SIM
DIN rail bus connector:
- Contact load max. 1 A, 24W
- 30 mating cycles
Antenna:
- Included in the scope of delivery
Dimensions:
- 22.5 x 100 x 115 mm (WxHxD)
Weight:
- Approx. 150g
Housing:
- Plastic housing, ventilated, for mounting on top-hat or C-rail
Connections:
- Screw terminals
Protection class:
- IP20
Climatic conditions:
- Storage temperature -10 °C - +70 °C
- Ambient temperature -5 °C - +50 °C
- Humidity up to 85%
- without condensation
