Neomeris PPM150 Portable Photometer with USB interface

Product number: 880850

€1,169.00*

Please log in to receive your conditions.

Available, delivery time 1-2 days

Product number: 880850
Application: for the determination of chemical water parameters; equipped with 9 LED in the wave-length range from 380 to 810 nm.

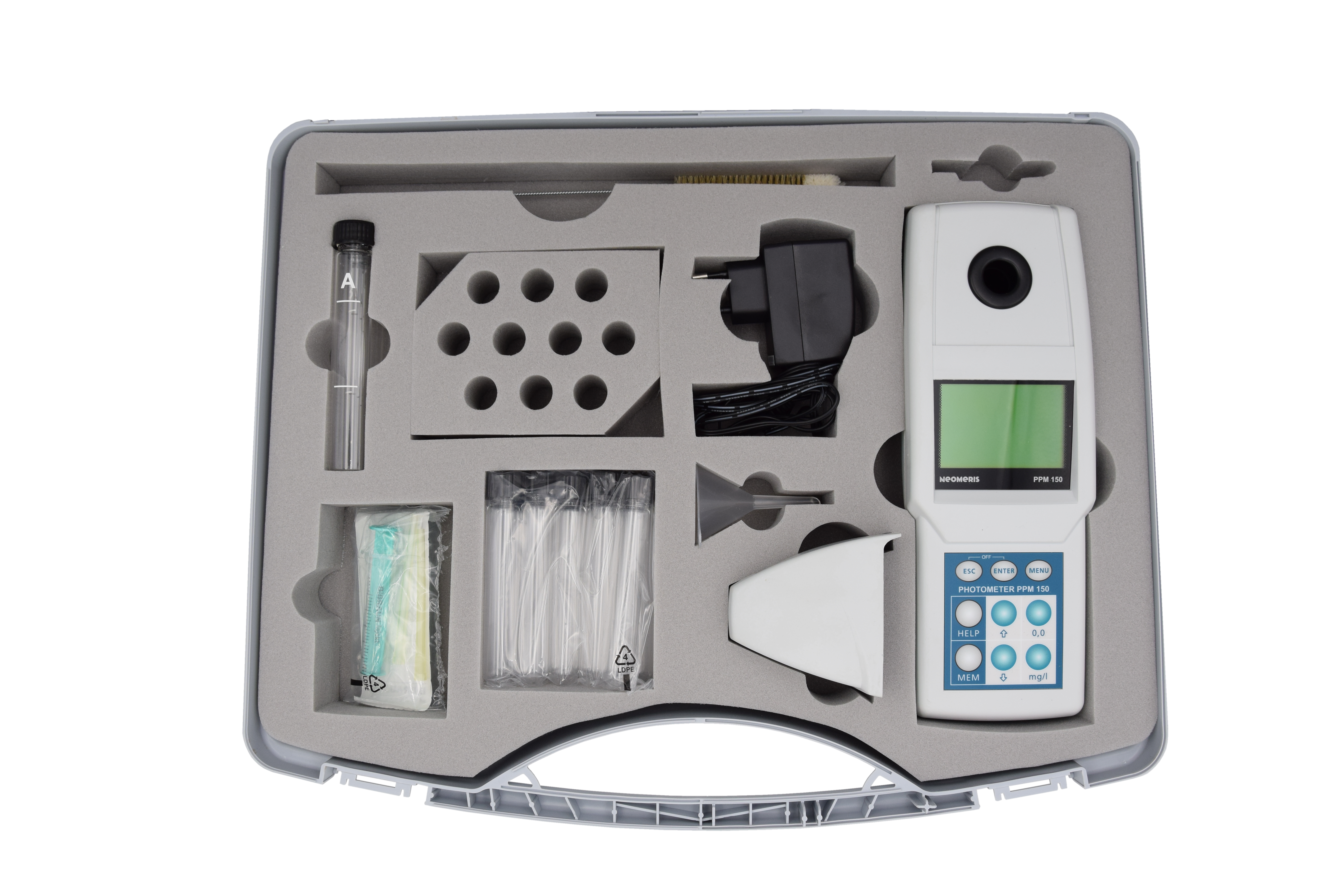

Our comment: The standard version consists of multiparameter-handheld photometer PPM 150, light protection cover to avoid incidence of external light, 5 cuvettes, USB-cable, IRDA-adapter and software; delivered in a plastic case.
Product information "Neomeris PPM150 Portable Photometer with USB interface"
The multiparameter handheld photometer PPM 150 for the determination of chemical water constituents is equipped with 9 LEDs in the wavelength range from 380 to 810 nm.
Basic version as a set in a plastic case:
Multiparameter Handheld Photometer PPM 150
Light shaft to prevent the ingress of extraneous light
5 cuvettes
Plastic case with foam insert
Mini USB to USB cable
Mini USB interface
Software
Performance profile:
- Flexible for many reagents from different manufacturers.
- Software for documentation and creation of calibration curves
- Internal method memory for a maximum of 150 calibration curves
- Storage of up to 1,000 data sets in the internal data memory; per data set documented: date; time; wavelength; reagent used; measurement result; measurement number
- Wired data transfer via integrated USB interface between photometer and PC / laptop
- Pre-parameterized with the measurement curves of all parameters named in table below
Technical data:
Optics: 9 LED`s and filter
Wavelengths: 380 / 430 / 470 /500 / 520 / 560 / 610 / 700 / 810 nm
Absorbance range: -0,5 - 4,0
Electro-optical accuracy: 1.5% of reading (in the range of -0.100 to 2.000)
Photometric accuracy: ±3% (at filter)
Language selection: English and German
Memory: for 150 reagent curves and working instructions
Interface: Mini USB
Memory: up to 1,000 data sets
Graphic display: 128 x 64 pixels, 60 x 40 mm reading field, backlit
Power supply: 4 rechargeable AA batteries or 4 x AA Alkaline
In addition to the parameters named for the respective industry solution, the reagents listed below are available for photometric determination using the PPM 150.
For a multitude of further reagents of different manufacturers the corresponding data are available and can be compiled individually for the photometer on request. If you require further parameters or an individually configured photometer, please contact us:

Parameter         Measuring range (mg/l)         Order number
Ammonium         0.01- 2.0                                        410681
Chlorine (Free)       0- 1,5                                            410521
Chlorine (total) 0- 1.5 410521
Chlorine (combined) 0- 1.5 410521
Chlorine dioxide 0- 2.8 410525
Chloride 0- 70 410527
Chromate 0- 2.5 410533
Cyanuric acid 0- 100 410537
Iron Low 0- 1.5 410548
Iron High 0- 10.0 410545
Hydrazine 0- 1.0 410557
Copper 0- 4.0 410563
Nitrite 0- 1.0 410691
Ozone 0- 1.0 410517
pH-(phenol red) 6.0- 8.2 410614
Phosphate 0- 20.0 410593
Silicate 0- 10.0 410623
Sulfite 0- 20.0 410635
Hydrogen peroxide 0- 20.0 410643
