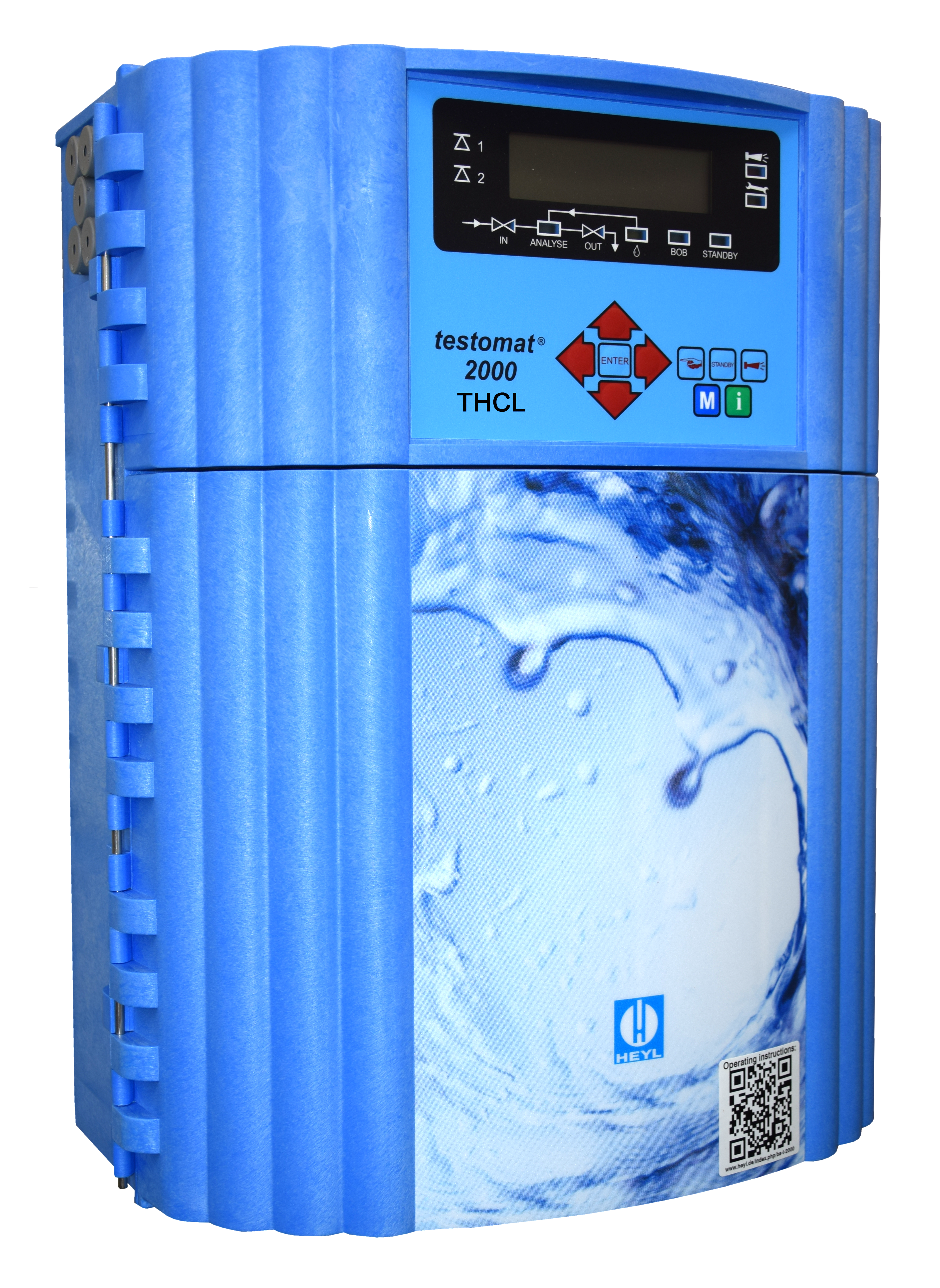

Testomat 2000 THCL®

Product number: 100277

€8,932.40*

Please log in to receive your conditions.

Available in 140 days, delivery time 1-2 days

Language in the display
Performance/execution

Product number: 100277
Measurement parameters: Total chlorine | Water hardness
Measuring range: Total chlorine: 0.00 – 0.99 ppm (resolution: 0.01 ppm) and 1.0 – 2.5 ppm (resolution: 0.1 ppm) | Water hardness: 4.47 – 44.7 ppm (resolution: 0.05 ppm)
Application: Multi-function instrument for determining water hardness and chlorine (DPD) in reverse-osmosis plants
Menu navigation: German, English, French
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Order the appropriate original reagent for your TESTOMAT® device:
Testomat® indicator TH 2025 2x100ml Order · Subscription
Testomat® indicator TH 2025 500ml Order · Subscription
Testomat 2000® Reagent CL2250A 500 ml Order · Subscription
Testomat 2000® Reagenz CL 2250 B 500 ml Order · Subscription
Testomat 2000® Reagent CL 2250 C 500 ml Order · Subscription
Determine the appropriate reagent here: Reagent consumption calculator

Leasing Example

173,61 € non-binding
Monthly Rate (60 Rates)

Further rate options by choosing the payment method Leasing

Alternatives to this product

Tip
New
Testomat® LAB TH + LAB CL with NeoTecMaster® - value-added package
Product number: 851064

The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).

In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price.

The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface

€6,654.35*
Combination of the Testomat® LAB CL and LAB TH devices
Product number: 900520
Pro's
  • Zusätzlicher Indikatortyp TH2050 verfügbar
  • CL-Messbereich 0 â 5 mg/l (T2000 CLT hat nur 0 â 2,5 mg/l)
  • SD-Card zur Daten& Messwertaufzeichnung ist bauseitiger Standard
  • Kleinste und preiswerteste Bauform der IST-Wert-Analysengeräte zur Einbindung in Multiparameter-Messsysteme
Was kann es nicht?
  • Grenzwertrelais
  • Überwachung von 2 Messtellen
  • Keine Zertifizierung für 72h BOB (WHÜ)
Erforderlicher Leistungsumfang
  • IST-Wert Bestimmung
  • Grenzwertrelais
    (nur umsetzbar mittels NeoTecMaster®)
  • Analyse für Gesamtchlor
Erg&aumnl;nzende Funktionen
  • Displayanzeige für Messwerte
  • Schutzhaube für IP 65
  • 4-20mA Messwertübertragung
  • Externe Analysenauslösung (START/STOP-Relais)

€7,307.10*
Kombination der Geräte Testomat® EVO TH und LAB CL
Product number: 900521
Pro's
  • Zusätzlicher Indikatortyp TH2050 verfügbar
  • SD-Card zur Daten& Messwertaufzeichnung ist bauseitiger Standard
  • zertifiziertes IST-Wert-Analysengerät nach WHÜ sowie UL günstigstes Stand-Alone*1 Ist-Wert Analysengerät
  • Messbereich 0 â 5 mg/l (T2000 hat nur 0 â 2,5 mg/l)
  • Integrierte Datenaufzeichnung (Messwerte sowie Fehlermeldungen) auf SD-Karte
  • Messfunktion als dauerhaft in festen Zeitintervallen oder Messphase*2 programmierbar
Was kann es nicht?
  • Überwachung von 2 Messstellen
  • -m-Wert, p-Wert & Carbonathärte (Alkalität)
  • Grenzwertrelais
  • Keine Displayanzeige
  • Kein AUX Relais
Erforderlicher Leistungsumfang
  • Displayanzeige
  • IST-Wert Bestimmung
  • Grenzwertrelais nur umsetzbar mittels NeoTecMaster®)
  • IST-Wert Bestimmung
  • 4-20mA Messwertübertragung
Ergänzende Funktionen
  • Zertifiziert für 72h BOB (WHÜ)
  • Ansteuerung von z.B. Kühlern mittels AUX-Relais
  • Erweiterte Sprachauswahl für Menüführung
  • 4-20mA Messwertübertragung
  • Externe Analysenauslösung (START/STOP-Relais)
  • Displayanzeige für Messwerte
  • Schutzhaube für IP 65
  • Parametrierung mittels PC-Software

€8,522.40*
Product information "Testomat 2000 THCL®"
The Testomat 2000 THCL® process photometer determines the total chlorine content according to the colorimetric analysis principle in the range from 0 to 2.5 mg / l (ppm) and the water hardness by titration.

Performance profile:
  • Two independently programmable limit value contacts for monitoring and con trolling tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis
  • (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points
  • (Switching by external solenoid valves)
  • Internal error documentation
  • programmable service address
  • Indicator quantities: 100 and 500 ml bottles
  • Programmable maintenance interval for maintenance request
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 10,5 kg
Menu Language: German, English, French
Measuring range: Total chlorine: 0.00 – 0.99 ppm (resolution: 0.01 ppm) and 1.0 – 2.5 ppm (resolution: 0.1 ppm) | Water hardness: 4.47 – 44.7 ppm (resolution: 0.05 ppm)

We recommend our indicators and reagents, as well as the following accessories

Testomat® indicator TH 2025 500ml
Product number: 152025
500 ml bottle original Testomat® indicator TH for limit value: 0,25- 2,50°dH for measuring residual hardness.  °dH (resolution): 0,25- 2,50 (0,05) °f (resolution): 0,45-4,48 (0,10) ppm CaCO3 (resolution): 4,48-44,8 (0,9) mmol/l (resolution): 0,04-0,45 (0,01)

€88.90*
Testomat® indicator TH 2025 2x100ml
Product number: 151025
2x100 ml bottles original Testomat® indicator TH 2025 for limit value: 0,25- 2,50°dH for measuring residual hardness.  °dH (resolution): 0,25- 2,50 (0,05) °f (resolution): 0,45-4,48 (0,10) ppm CaCO3 (resolution): 4,48-44,8 (0,9) mmol/l (resolution): 0,04-0,45 (0,01)

€65.30*
Testomat 2000® Reagent CL2250A 500 ml
Product number: 156230
500 ml-bottles of original Testomat 2000® reagent CL 2250 A can be used immediately in the Testomat 2000®® CLF or CLT.

€85.40*
Testomat 2000® Reagenz CL 2250 B 500 ml
Product number: 156231
500 ml-bottles of original Testomat 2000® reagent CL 2250 B can be used immediately in the Testomat 2000® CLF or CLT.

€168.70*
Testomat 2000® Reagent CL 2250 C 500 ml
Product number: 156232
The 500 ml-bottles of original Testomat 2000® Reagenz CL 2250 C can be used immediately in the instrument without cumbersome filling and refilling. Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€247.40*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€103.30*
outlet hopper cpl. T2000/ECO
Product number: 40315

€68.20*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€124.00*
