Testomat® EVO (Successor Testomat® ECO)
€5,319.60*
Please log in to receive your conditions.
Available, delivery time: 1-2 days
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
| Testomat® indicator TH 2005 2x100ml | Order · Subscription |
| Testomat® indicator TH 2025 2x100ml | Order · Subscription |
| Testomat® indicator TH2050 2x100ml | Order · Subscription |
| Testomat® indicator TH 2100 2x100ml | Order · Subscription |
| Testomat® indicator TH 2250 2x100ml | Order · Subscription |
| Testomat® indicator TH 2005, 500ml | Order · Subscription |
| Testomat® indicator TH 2025 500ml | Order · Subscription |

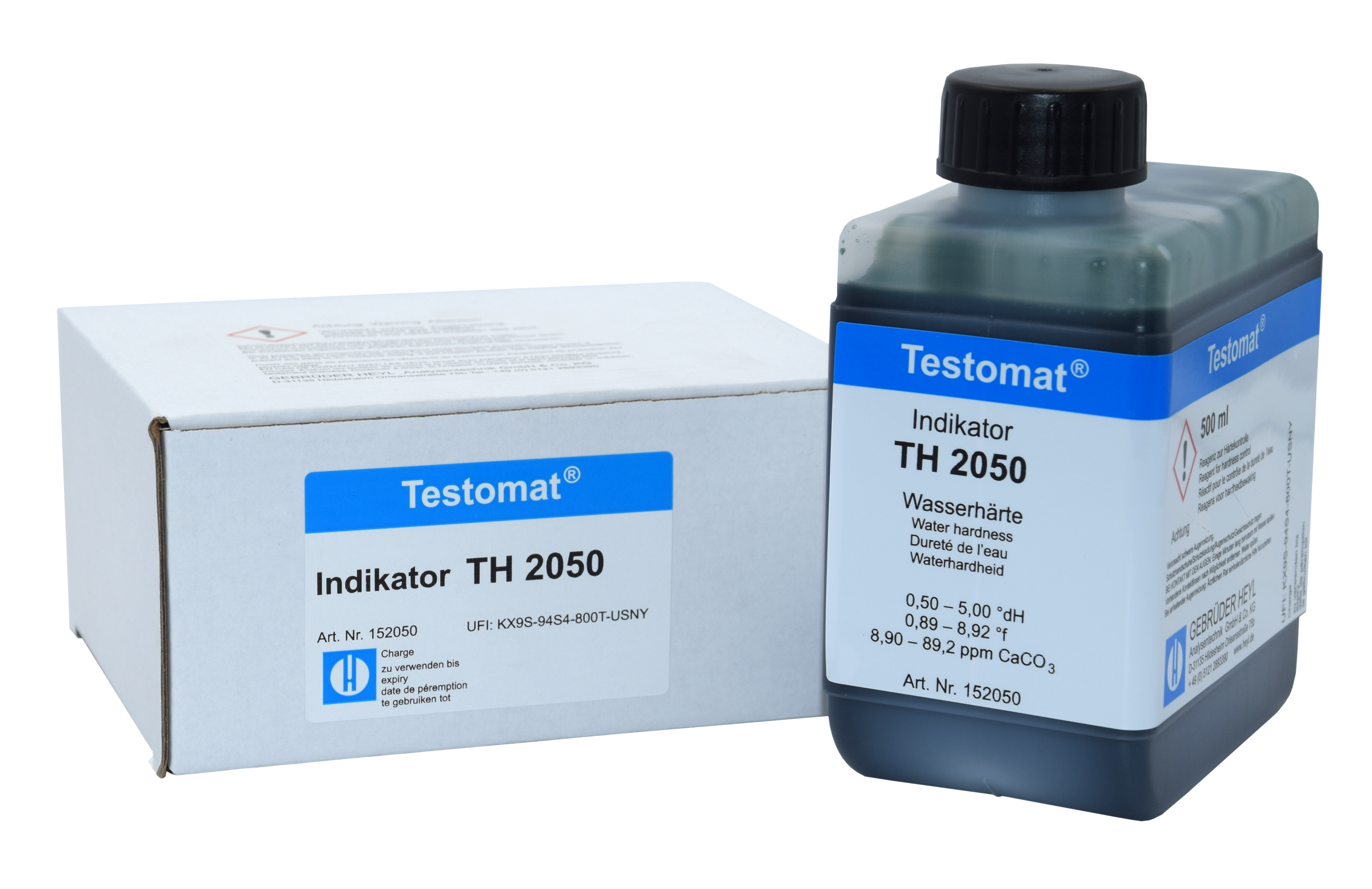

| Testomat® indicator TH2050 500ml | Order · Subscription |
| Testomat® indicator TH 2100 500ml | Order · Subscription |
| Testomat® indicator TH 2250 500ml | Order · Subscription |
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Leasing Example
111,13 €
non-binding
Monthly Rate (60 Rates)
Prices excl. VAT
Further rate options by choosing the payment method Leasing
Product information "Testomat® EVO (Successor Testomat® ECO)"
Precise Water Hardness Analysis for Automated Process and System Monitoring with the Testomat EVO TH
Fully automatic water hardness determination via titration
The Testomat EVO automatically detects the water level when filling the measuring chamber and can also operate for extended periods in BOB mode without constant supervision. With an integrated SD card or optionally an SDHC card (2 GB), measurement data and messages/alarms can be recorded. The menu is available in multiple languages, and firmware updates can be conveniently applied via the SD card. Analog outputs and serial interfaces allow external processing of measurement data.
Certified and Cost-Effective Standalone Water Hardness Meter
With the Testomat EVO, you benefit from stable, low-maintenance continuous operation, minimal consumption of indicator solution and water, as well as versatile data communication via RS232 or 0/4–20 mA signals. Certification according to relevant safety and TÜV standards (WÜH certification for boiler houses) and the compact design make the EVO a robust and efficient solution for demanding measurement tasks.
Applications for the Testomat EVO
- Water treatment
- Drinking water systems
- Industrial boilers
- Process water monitoring
When purchasing the Testomat EVO online, you receive, in addition to a 3 % online discount on Heyl devices, a free indicator of your choice.
Dimensions
| Height | 48 cm |
|---|---|
| Length | 28 cm |
| Width | 38 cm |
Weight
| Weight | 9,1 kg |
|---|
Other attributes
| Country of origin | EU |
|---|---|
| Customs tariff number | 90278990 |
| Supply voltage: | switching power supply 100-240 VAC, 100-353 VDC |
| Power consumption: | max. 30 VA |
| Protection class: | I |
| Protection: | IP 44 |
| Ambient temperature: | 10–40 °C |
| Water temperature: | 10–40 °C |
| Dimensions (W x H x D): | 380 x 480 x 280 mm |
| Operating pressure: | 1 bis 8 bar / 1x105 bis 8x105 Pa Oder 0,3* bis 1 bar / 0,3x105 bis 1x105 Pa (after removal of the valve body) |
| Weight: | approx. 9,0 kg |
| Menu Language: | German, English, French, Dutch, Spanish, Turkish, Chinese, Czech, Russian (others on request) |
| Measuring range: | Water hardness: 0.89 - 448 ppm |
Tender documents available for download as Word (*.docx) or PDF (*.pdf) files DE/EN
Tender text Testomat EVO TH
Performance description:
automatic water hardness analyzer for continuous online monitoring of residual total hardness in water treatment plants.
Type:
Microprocessor-controlled limit value measuring device that automatically checks water hardness using an indicator pump system
Manufacturer: Gebrüder Heyl Analysentechnik GmbH & Co. KG, Hildesheim
Product name: Testomat® EVO-TH
Article number:
|
Power consumption |
Article number: |
|
24V/50 – 60 Hz |
100706 |
|
100 – 240 VAC/ 100 – 353 VDC |
100704 |
Measuring principle & measuring range:
Titration method using color change with piston dosing pump for precise analysis of total hardness in the range of 0.05–25 °dH (or 0.89–448 ppm), depending on the indicator used.
Fields of Application:
- Monitoring of water softening systems
- Water treatment plants
- Drinking water treatment
- Industrial boilers
- General process water monitoring
Technical specifications:
- Automatic sampling and venting of the dosing pump
- Optical water detection for level monitoring and evaluation of sample water quality
- LCD graphic display with multilingual menu navigation
- Menu navigation with password protection
- Limit value monitoring with programmable switching logic (under/over)
- Freely selectable measurement interval times (cyclical or quantity-dependent)
- External analysis trigger
- Self-test and error diagnosis functions
- RS-232 interface and analog output 0/4–20 mA
- Storage of all system data and logs (measurement values and error messages) on SD card
- Display units: °dH, °f, ppm CaCO₃, mmol/l
- Internal memory with data export/import function (SD card)
- Robust housing: IP44 / protection class I
- Supply voltage: 100–240 VAC or 100–353 VDC
- Dimensions: approx. 380 × 480 × 280 mm, weight: approx. 9 kg
- Permissible ambient temperature: 10–40 °C
- Permissible water temperature: 10–40 °C
- Operating pressure: 1–8 bar (or 0.3–1 bar after removing the controller core)
Scope of delivery:
- 1× Testomat EVO TH with factory calibration
- 1× SD card (2 GB) for storing measured values, logs, and firmware updates
- 1× Complete operating and installation manual (English)
- 1× factory test report / calibration certificate
Optional accessories and operating materials
- Externally mountable power switch (IP65)
- Connection set for sample inlet/outlet consisting of PE hose 6/4x1 for water inlet, 2 m drain hose di = 12 mm, 1 ball valve, 1 reducer connector 10 to 6 mm, and reducer nipple 3/8"-1/2
- indicator for initial commissioning (TH2005, TH2025; TH2050; TH2100 or TH2250; in 500 ml or 100 ml)

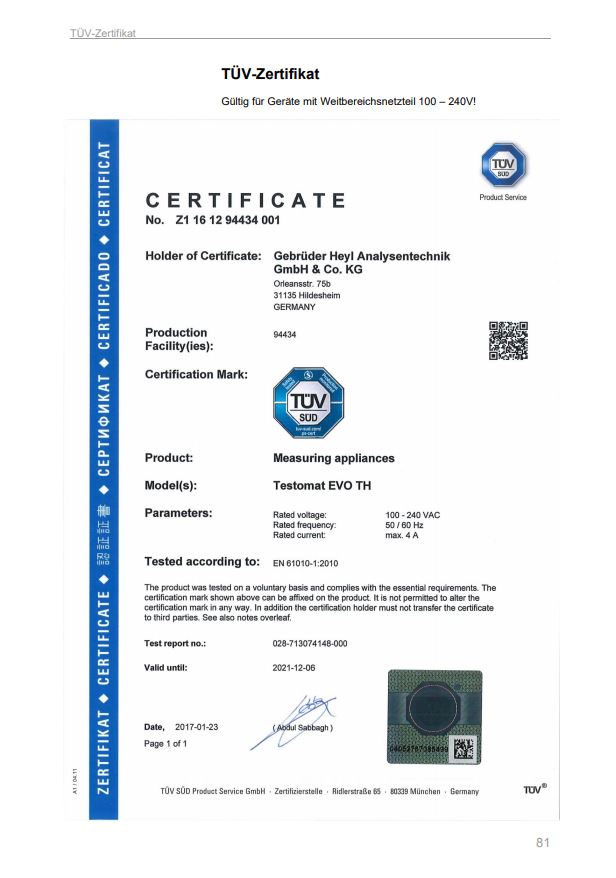

Certificates and approvals:
- Component designation WÜH 21-025
- UL certified
Special notes:
- Device is factory calibrated and ready for immediate use
- Connection via external power switch in accordance with DIN EN 61010-1
- Low consumption of water and indicator solution
- Suitable for continuous industrial use
- Calibratable version: Testomat EVO TH CAL available
