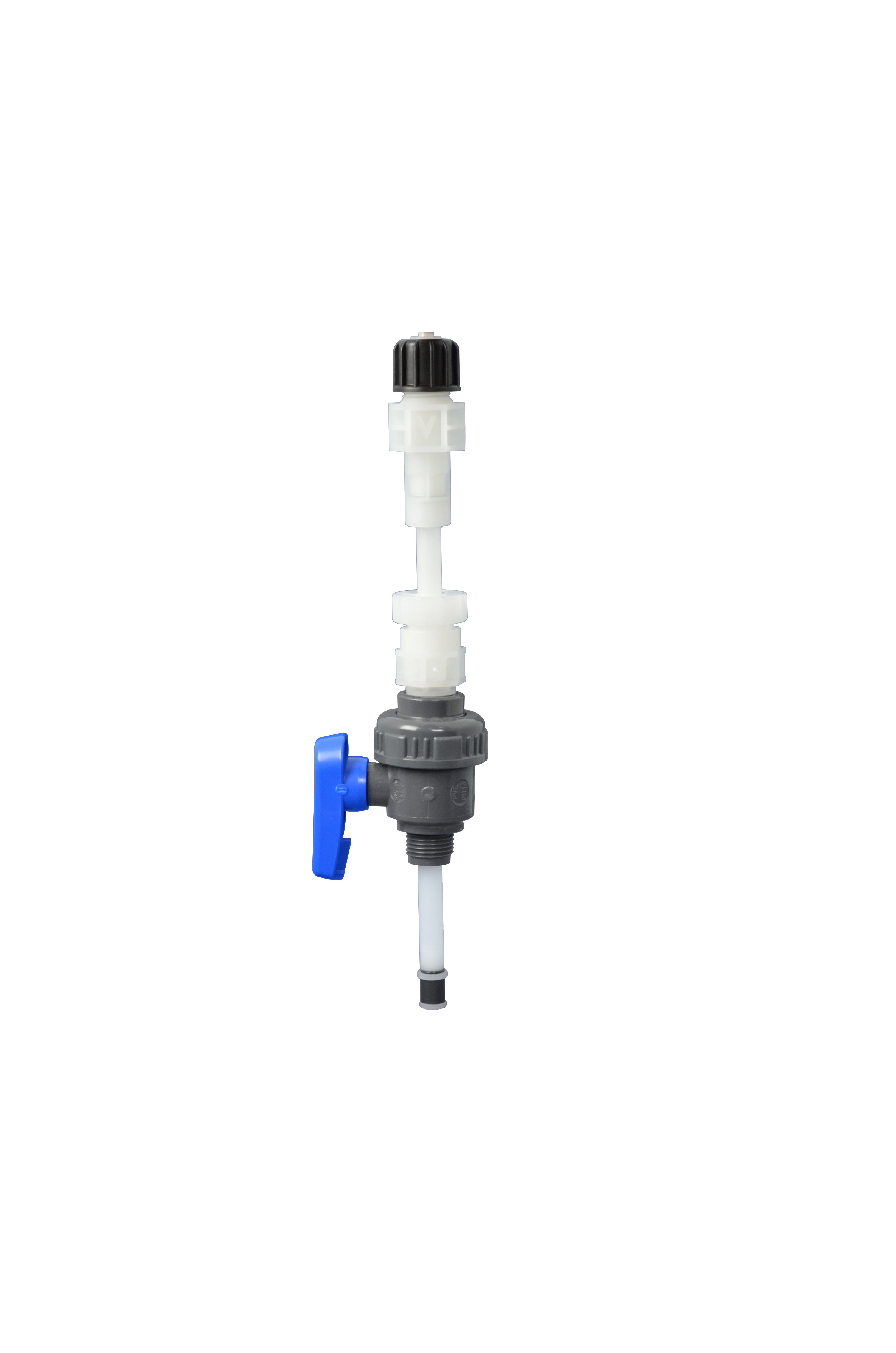

emec LOTUS MINI LINIR-V 1/2"
€133.00*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "emec LOTUS MINI LINIR-V 1/2""
The ½" injection nozzle is specially designed for the precise dosing of sodium hypochlorite in drinking water. With its automatic cleaning system, it ensures reliable and efficient performance.
Area of application:
The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications where precise dosing is required, such as water treatment.
Materials:
- Body: - The dosing lance is made of PVDF (polyvinylidene fluoride), a high-quality plastic with high resistance to chemicals
- Ball valve: PVC
- O-rings and lip seal: These are made of FKM B (Viton)
Maximum flow rate: The dosing lance can achieve a flow rate of up to 10 litres per hour.
Immersion depth: The immersion depth of the lance is max. 55 mm
Operating range: The dosing lance can be used at a maximum pressure of 16 bar and a temperature of 25°C (or 3 bar at 50°C).
Process connection: The dosing lance has a ½" process connection
Hose connection: the hose connection is 8x10 mm
Dimensions:
- Width: 12 cm
- Length: 78 cm
- Weight: 800g
Frequently Asked Questions
Yes, it is specifically designed for the safe dosing of sodium hypochlorite in drinking water.
It prevents deposits and ensures consistently reliable and uniform dosing.
Yes, the lance enables very precise and stable liquid injection.
The EMEC LOTUS MINI LINIR-V ½" is particularly suitable for applications requiring precise dosing, such as water treatment.
Yes, it offers excellent compatibility thanks to its ½" connection and 8x10 mm tubing.
PVDF, PVC, and Viton ensure high resistance to a wide range of media and chemicals.
The immersion depth is up to 55 mm.
Dimensions
| Height | 12 cm |
|---|---|
| Length | 78 cm |
| Width | 12 cm |
Weight
| Weight | 800 g |
|---|
Other attributes
| Country of origin | IT |
|---|---|
| Customs tariff number | 84139100 |
|
LINII-V |
LINI-D |
LINI-V |
LINI-D |
|
|
Connections |
½“ |
½“ |
¾“ |
¾“ |
|
Max. pressure |
16 bar (2bar) |
16 bar (2bar) |
10 bar (2bar) |
10 bar (2bar) |
|
Max. Temperatur |
25°C (110°C) |
25°C (130°C) |
25°C (110°C) |
25°C (110°C) |
|
Max. flow |
10 l/h |
10 l/h |
120 l/h |
120 l/h |
|
Immersion Depth |
20-160 mm variable |
20-160 mm variable |
20-160 mm variable |
20-160 mm variable |
|
Case |
PVDF |
PP |
PVDF |
PVDF |
|
O-ringe |
FKM / B |
Ethylen Propylen |
FKM / B |
FKM / B |
|
LIINIR-V |
LINIR-D |
LINIR-V |
LINIR-D |
|
|
Connections |
½“ |
½“ |
¾“ |
¾“ |
|
Max. pressure |
16 bar (3bar) |
16 bar (3bar) |
10 bar (3bar) |
10 bar (3bar) |
|
Max. Temperatur |
25°C (50°C) |
25°C (50°C) |
25°C (50°C) |
25°C (50°C) |
|
Max. flow |
10 l/h |
10 l/h |
120 l/h |
120 l/h |
|
Immersion Depth |
Max. 55 mm |
Max. 55 mm |
Max. 55 mm |
Max. 55 mm |
|
Case |
PVDF |
PP |
PVDF |
PVDF |
|
Ball valve |
PVC |
PVC |
PVC |
PVC |
|
O-ringe |
FKM / B |
Ethylen Propylen |
FKM / B |
EP |
