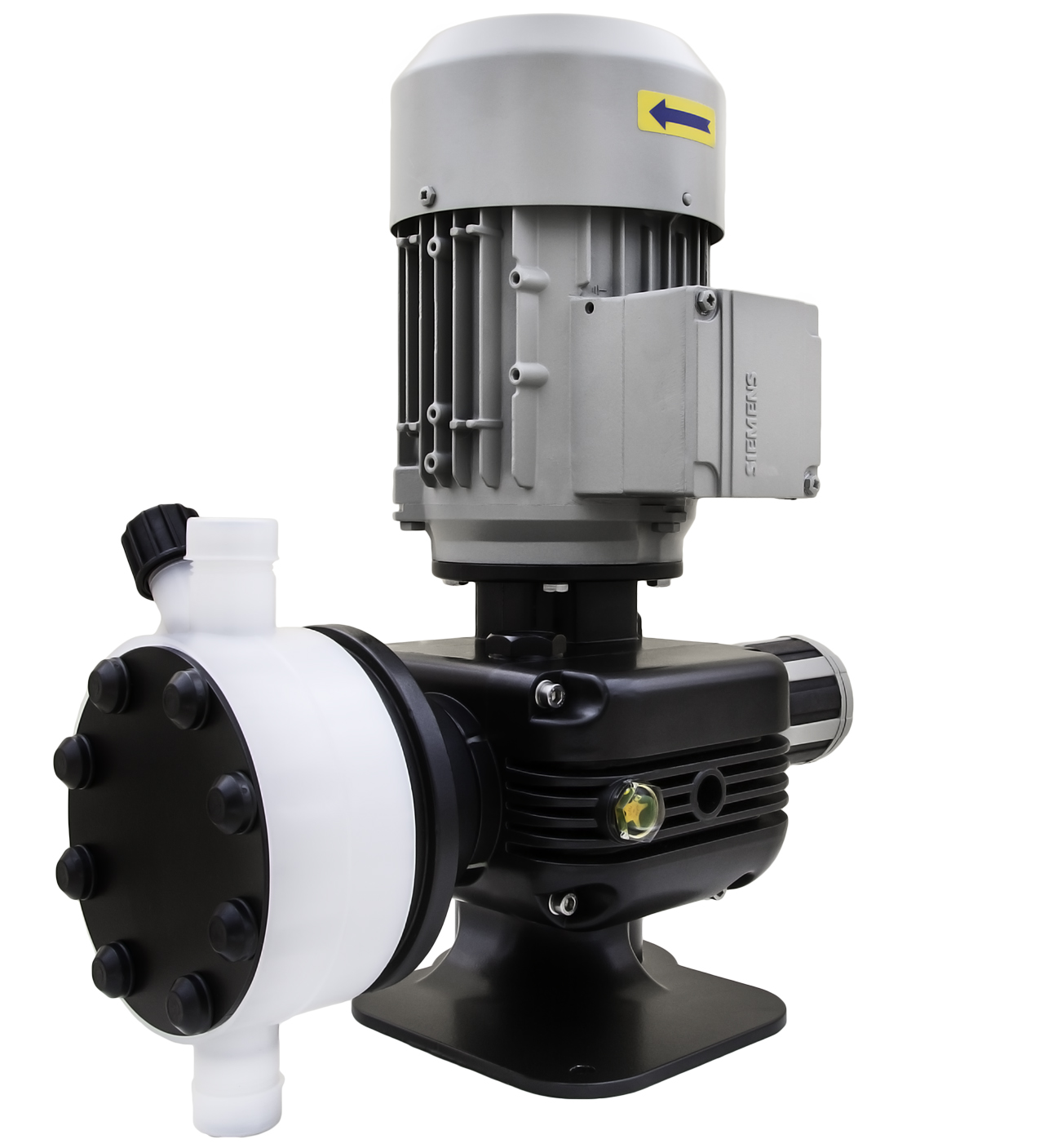

emec PRIUS D 50 Hz electric motor-driven dosing pump

Product number: 896770

Product information "emec PRIUS D 50 Hz electric motor-driven dosing pump"

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).

Outputs:

  • 1000 l/h
  • 100 bar

Power supply:

  • 380 VAC
  • 220 VAC
  • 115 VAC

Vent pipe:

  • Manual
  • Automatic

Features

  • Horizontal mounting
  • Aluminium housing
  • Spring return mechanism
  • Double ball valves (if available)
  • Mechanical stroke adjustment
  • Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
  • Hydraulic parts available in various sizes and materials
  • Tropicalised motor

Installation:

  • Installation kit A included
  • Installation kit B and C sold separately
  • The pump with AISI316L pump body does not include installation accessories
#BBD0E0 »

Dimensions

Height 40 cm
Length 50 cm
Width 50 cm

Weight

Weight 16 kg

Other attributes

Country of origin IT
Customs tariff number 84135040
Technical data

 Prius D 50 Hz

Gear housing made of cast aluminium, epoxy-coated,

Dosing diaphragm material

PTFE (Polytetrafluoroethylen)

Operating temperature range

0÷40°C (32÷104°F)

Dosing medium temperature

Dosing head PVDF

0÷65°C (32÷149°F)

Dosing head SS (Stainless steel)

0÷90°C (32÷194°F)

Dosing head PVC

0÷40°C (32÷104°F)

Operating noise

78 dbA(± 5 dB)

Temperature during transport and storage

-10÷50°C (14÷122°F)

Max. permissible suction height

3m

Transmission oil filling quantity

0,3 ltr.

Electromotoren

Voltage

230/400 VAC, 3 Ph

230 VAC, 1Ph

Rated power

0,37 kW

0,37 kW

Speed

1,370 U/min

1390 U/min

Rated current

1,89 / 1,09 A

2,8 A

Protection

IP 55

Class

F – IEC 38/1

Motor Flange

71 814
