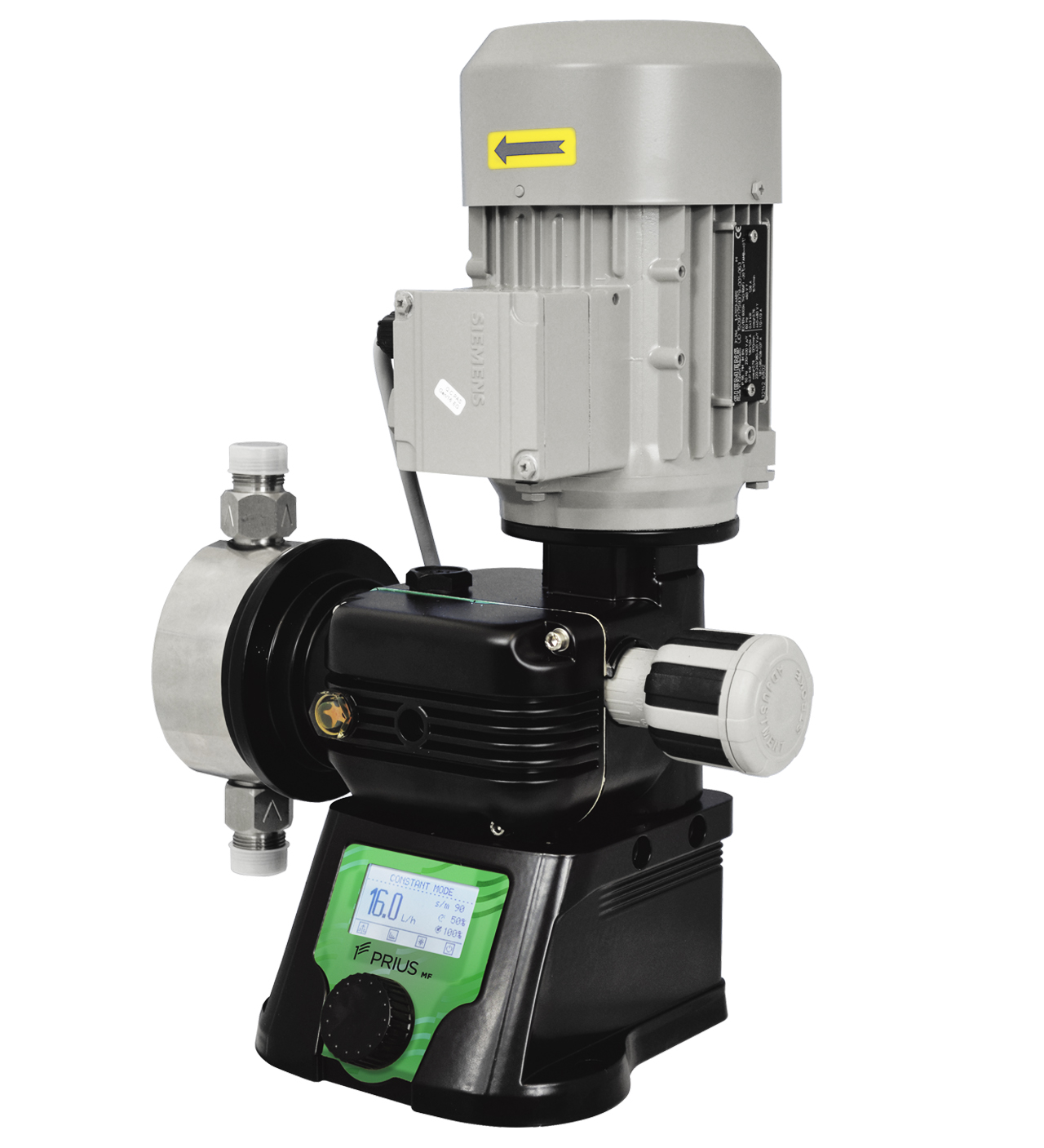

emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm

Product number: 896710

Product information "emec PRIUS D MF multifunctional motor-driven dosing pumps with diaphragm"

The dosing pumps with motor in the PRIUS series were developed by EMEC to meet the highest requirements. The PRIUS D 50 Hz models ensure constant dosing and are equipped with a PTFE diaphragm. They also offer a choice of different power supply options including 380 VAC (three-phase), 220 VAC (single-phase) and 115 VAC (single-phase). In addition, the dosing pumps are available in two different pump head types: PVDF (polyvinylidene fluoride) and PP (polypropylene).

Outputs:

  • 1000 l/h
  • 100 bar

Power supply:

  • 380 VAC
  • 220 VAC
  • 115 VAC

Vent pipe:

  • Manual
  • Automatic

Features

  • Horizontal mounting
  • Aluminium housing
  • Spring return mechanism
  • Double ball valves (if available)
  • Mechanical stroke adjustment
  • Infinitely variable flow control from 0 to 100% with MANUAL adjustment on the rotary knob
  • Hydraulic parts available in various sizes and materials
  • Tropicalised motor

Installation:

  • Installation kit A included
  • Installation kit B and C sold separately
  • The pump with AISI316L pump body does not include installation accessories

Dimensions

Height 40 cm
Length 50 cm
Width 50 cm

Weight

Weight 16 kg

Other attributes

Country of origin IT
Customs tariff number 84135040
Technical data

 Prius D MF

Electric

Power supply

220-240 VAC – 50 Hz

Power

0,18/0,37/0,55 KW (depending on the performance of the pump)

Fuse

6,3 A

Alarm output, potential-free

230 VAC – 1A max. Switching capacity

Installation class

II

Noise level

78 dbA (+5dB)

Class

IP 55 (Option IP65)

Materials

Membrane

PTFE

Case

Aluminium, epoxy-coated

Dosierkopf

PVDF, PP, PVC or Edelstahl (AISI 316L)

Mechanical

Mechanism with return spring

Ventilation

Manual for PVDF and PP dosing heads

Check valve with two balls

Flow Control

Ambient temperature

-10 – 40 °C

Dosing medium temperature with PVDF pump head

-10 – 40°C

Dosing medium temperature with SS pump head

-10 – 90 °C

Dosing medium temperature with PP pump head

-10 – 40°C

Maximum suction height

3 m

Quantity of transmission oil

0,3 l
