| Width | 50 cm |
| Height | 40 cm |
| Length | 50 cm |
| Weight | 16 kg |
| Country of origin | IT |
| Customs tariff number | 84135040 |
emec PRIUS P MF multifunctional piston pumps
€2,449.00
Please log in to receive your conditions.
Payment methods
Request individual offer (from 5 pcs.)
For larger order quantities, we will be happy to prepare an individual offer for you.
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Delivery & Shipping
- Standard shipping: 3–5 business days within Germany
- Express shipping available on request
- International delivery to EU and Switzerland
- No shipment of Heyl products to Spain, France and Portugal
- Dangerous goods shipping according to ADR regulations
- 3% online discount on HEYL, HORIBA, JUMO and MILWAUKEE products
Personal consultation
Our experts will be happy to advise you on water treatment, measurement technology and sterile processing.
Technical consulting for industry, laboratory and building technology — your specialist for water analysis and process water treatment.
Contact formQuick info
| Width | 50 cm |
| Height | 40 cm |
| Length | 50 cm |
| Weight | 16 kg |
| Country of origin | IT |
| Customs tariff number | 84135040 |

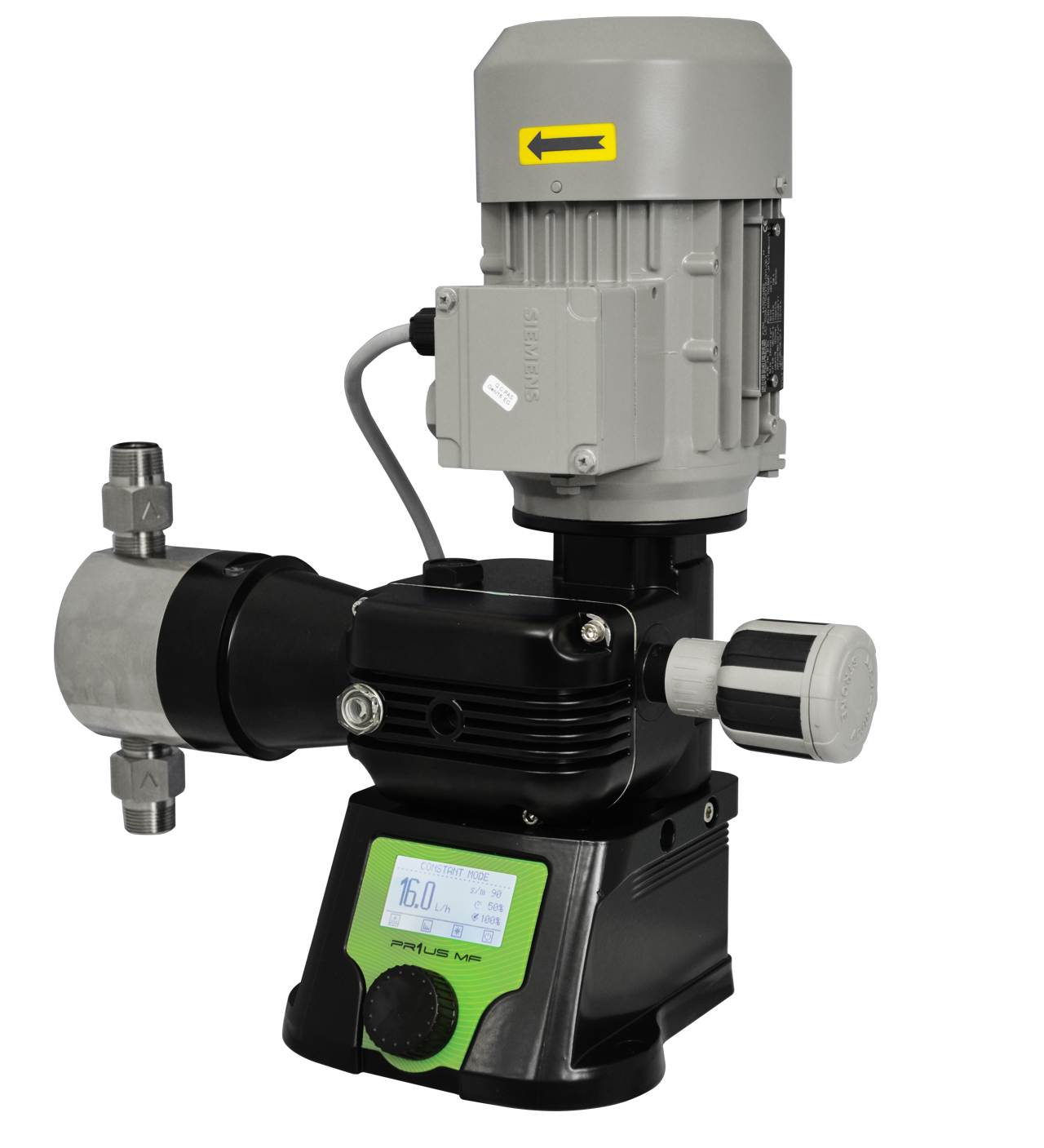

Product information "emec PRIUS P MF multifunctional piston pumps"
The PRIUS piston metering pumps feature a spring return and combine efficiency and chemical resistance with a wide range of flow rates. They also offer a choice of power supply options including 240 VAC (single-phase) and 115 VAC (single-phase). The pump head is made of PP (polypropylene).
Features
- Multifunction pump with single-phase power supply
- Operating mode: constant, ppm, %, mlq, pause-work, pulse, weekly, mA, volt and batch
- Level control Alarms Standby
- Double position of the electronic unit (standard or rotated position)
- Aluminium housing
- Mechanical stroke adjustment
- Hydraulic parts available in different sizes and materials
- Valves with double ball
- Tropicalised motors
- Insulation class F
- Energy efficiency IE 1
Frequently Asked Questions
It is suitable for the precise dosing of liquids in industry, water treatment, cleaning or chemical processes.
The dosing rate can be flexibly adjusted via the mechanical stroke adjustment.
Depending on the model, from 80 litres/h up to 210 litres/h at 10 bar. Wide range of flow rates (dosing capacity up to 210 litres/h, operating pressure 10 bar).
Maintenance is minimal: regular checks and the occasional replacement of wear parts are usually sufficient.
It offers precise dosing, flexible control, high durability and integration into complex systems. The motors are suitable for use in tropical climates.
|
Prius P MF |
||
|
Electric |
||
|
Power supply |
200-260 V- 50/60 Hz |
95-130 V – 50/60 Hz |
|
Power max. |
230 VAC 2,5A RMS; 575VA |
115 VAC 5A RMS; 575VA |
|
Fuse |
6.3 A (slow blow) |
8A (slow blow) |
|
Alarm output |
24 VAC – 1A |
24 VAC – 1A |
|
Installation class |
II |
|
|
Noise level |
78 dBA (±5 dB) |
|
|
Class |
IP 55 |
|
|
Material |
||
|
Case |
Aluminium |
|
|
Pump body |
PP Stainless steel (AISI 316L) |
|
|
Piston |
Ceramics Stainless steel (AISI 316L) |
|
|
Mechanical |
||
|
Spring return mechanism |
||
|
Double Ball Valves |
||
|
Electronic adjustment of the flow rate |
||
|
Ambient temperature |
-10 – 40°C (14 – 104°F) |
|
|
Dosing medium temperature with stainless steel pump body (SS) |
-10 – 90°C (14 – 194°F) |
|
|
Dosing medium temperature with PP pump body |
-10 – 40°C (14-104°F) |
|
|
Max. suction height |
3 m |
|
|
Quantity of transmission oil |
0,3 L |
|
|
Dosing accuracy |
± 5% at nominal pressure |
|
