1.5m connection cable for pH/redox, cable end 1 (sensor side) = rotatable cable socket, connection end 2 = shield connector
€99.30*
Please log in to receive your conditions.
Available in 10 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the offer.
Product information "1.5m connection cable for pH/redox, cable end 1 (sensor side) = rotatable cable socket, connection end 2 = shield connector"

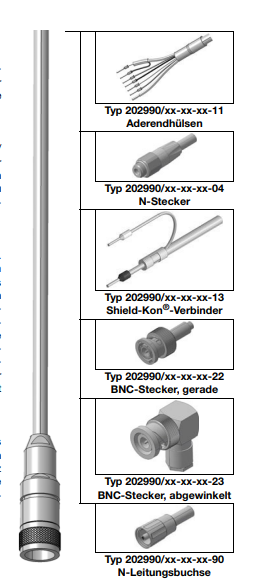

Connection cable for pH/redox
- Length: 1,5 metres
- Cable type: pH and redox connection cable Ø 5 mm, 75 °C
- Connection end 1 (sensor side): rotatable cable socket
- Connection end 2 (device side): Shield-Kons® connector
Electronic sensors for analysing liquids require special connection cables and plug connectors.
The following applies in principle:
The connection between an electrochemical sensor and the transmitter/indicator/controller should be as short as possible. Normally, the cable length is 5 to 10 metres to ensure a high level of functional reliability. If longer cable lengths are required in exceptional cases, the technical documentation for the sensors and measuring devices should be consulted. The cable between the sensor and the analyser must be laid directly, without interruptions such as terminal strips or cable extensions.
pH and redox measurement
Special coaxial cables with a special design are used for pH and redox measurement. During these measurements, the sensor generates low-intensity DC voltages which are transmitted to the analyser. Due to the sometimes very high internal resistance (potentiostatic measuring principle with internal resistances of up to several gigaohms), these measurements are extremely sensitive to electrical interference and the effects of radiation. Under unfavourable conditions, even minimal movements of the cable can lead to measurement value distortions. An additional insulation layer of the JUMO coaxial cable increases the insulation resistance, which enables a secure connection of the sensor to the transmitter. Conventional coaxial cables from the antenna and computer sector are not suitable for this application and can damage the sensors. This can lead to immediate failure of the sensor as well as a shortened service life. For multiple sensors, for example with integrated temperature sensors, coaxial cables with single wires are available, such as the Variopin (VP).
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 85442000 |
800072 0-130 °C - S8 screw head pH electrode without temperature probe - combination electrode JUMO tecLine HD (201021/10-12-04-82-120/000)
800075 JUMO tecLine HD redox electrode (platinum dome, PTFE diaphragm, N-screw head, 120mm)
800090 JUMO tecLine - pH glass shaft electrode with salt reserve, 120mm installation length, 1x zirconium dioxide and UW glass
800091 JUMO tecLine - pH glass shaft electrode without extra codes, 120mm insertion length, 1x zirconium dioxide and UW glass
800093 JUMO tecLine - pH glass shaft electrode with salt reservoir, 120mm installation length, 1x zirconium dioxide and HA glass (for high alkali applications)
800094 JUMO tecLine pH electrode (plastic shaft PSU with protective basket, UW glass, glass-silk diaphragm, screw head, 225mm)
800095 JUMO tecLine pH electrode (plastic shaft PSU without protection basket, UW glass, glass-silk diaphragm, screw head, 225mm)
800096 JUMO tecLine pH electrode (PEI plastic shaft with protective basket, glass-silk diaphragm, screw head, 120mm, salt reserve, double chamber)
800097 JUMO tecLine - pH glass shaft electrode without extra code, 225mm insertion length, zirconium dioxide diaphragm and UW glass
800098 JUMO tecLine - pH glass shaft electrode without extra code, 120mm insertion length, zirconium dioxide diaphragm and C-glass
800196 JUMO tecLine - pH glass shaft electrode with salt reserve, 120mm insertion length, PTFE ring and HA glass (for high alkali applications)
800197 JUMO tecLine - pH glass shaft electrode without extra code, 120mm insertion length, PTFE ring and UW glass
800199 JUMO tecLine - pH glass shaft electrode with salt reserve, 120mm installation length, annular gap diaphragm and UW glass
800222 JUMO tecLine pH electrode (glass shaft, perforated diaphragm, screw head Pg13.5, 120mm, salt reserve)
800223 JUMO tecLine pH electrode (glass shaft, PTFE ring, screw head Pg13.5, 225mm, salt reserve)
800224 JUMO tecLine pH electrode (glass shaft + high-temperature gel, 1x zirconium dioxide, screw head Pg13.5, 120mm, without extra code)
800249 JUMO tecLine pH electrode (glass shaft + high-temperature gel, perforated diaphragm, screw head Pg13.5, 120mm, salt reserve)
800337 JUMO tecLine pH electrode (glass shaft, PTFE ring, screw head Pg13.5, 225mm)
800340 JUMO tecLine PRO pH electrode (process electrode, UW glass, annular gap diaphragm, screw head Pg13.5, salt reserve)
800341 JUMO tecLine PRO pH electrode (process electrode, HT glass, annular gap diaphragm, screw head Pg13.5, salt reserve)
