It is particularly suitable wherever a fixed installation with Pg13.5 thread, a direct BNC connection, and a robust, service-life-optimized redox measurement are required. JUMO BlackLine Redox plastic shaft electrode with salt bridge, 2 meter fixed cable with BNC connector and fixed protective cage, Pg13.5 (Type code: 201010/65-22-65-2000-76-120/837; Part No.: 00424950) This JUMO BlackLine Redox electrode is the right choice when a robust, permanently installable, and ready-to-connect solution for redox measurements in aqueous media is required. The Pg13.5 screw head allows secure installation in suitable fittings or measurement points, while the pre-attached 2 meter fixed cable with BNC connector enables direct connection to compatible measuring instruments. This makes this version especially convenient for users who want a reliable redox electrode without additional wiring effort. Advantages For redox measurement, the electrode is equipped with a robust platinum tip, which provides reliable measurement values and is easy to clean. This is a clear advantage in applications where redox values must be monitored regularly. The fixed protective cage additionally protects the sensitive sensor area and improves suitability for everyday use, especially at measurement points where the sensor may be exposed to higher mechanical stress. Another advantage is the integrated salt bridge. It is particularly useful when measuring in low-ion media or at higher flow rates. In such cases, it can help extend the electrode’s service life. This makes it a strong choice for users who are looking for more than a standard redox electrode and need a version suitable for more demanding operating conditions. Technical data The reference system with polymerized KCl gel electrolyte is suitable for many general water applications. The proven cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. An integrated temperature sensor is not available in this series. The 120 mm insertion length makes the electrode suitable for many common installation situations. Typical applications Drinking water monitoring Water treatment, swimming pools, aquatics Greenhouse technology as well as lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

It is particularly useful wherever a robust, ready-to-connect, and service-life-optimized redox measurement is required, for example in drinking water monitoring or aquatics. JUMO BlackLine Redox plastic shaft electrode with salt bridge, 2 meter fixed cable without thread with BNC connector and fixed protective cage (Type code: 201010/65-22-45-2000-76-120/837; Part No.: 00417301) This version of the JUMO BlackLine Redox electrode is a good choice when a robust and ready-to-connect solution for redox measurement in aqueous media is required. Thanks to its permanently attached 2 meter cable with BNC connector, the sensor can be quickly integrated into suitable measurement systems without additional connection cables. This version offers clear advantages, especially in applications where simple installation, a protected sensor design, and easy day-to-day handling are important. Advantages of the JUMO BlackLine electrode For redox measurement, a robust platinum tip is used, which provides reliable measurement values and is easy to clean. This makes the electrode particularly interesting for users who require a sensor for regular measurement tasks while valuing a low-maintenance design. The integrated protective cage additionally protects the sensitive sensor area and is especially useful when the electrode is frequently used, moved, or exposed to more demanding environments. Another advantage of this version is the integrated salt bridge. It is particularly recommended for low-ion media or higher flow rates, as it can help extend the electrode’s service life. This makes it a strong choice for users who are not only looking for a standard redox electrode but for a version suitable for more challenging operating conditions. Technical data The reference system with polymerized KCl gel electrolyte is suitable for many general water applications and supports reliable measurement in aqueous media. An integrated temperature sensor is not available in this series. With a standard insertion length of 120 mm and a head design without thread, this version is particularly suitable for applications where direct cable connection via BNC connector is preferred. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

This electrode is particularly suitable for applications where a good price-performance ratio, easy handling, and stable measurement values are required. JUMO ecoLine glass shaft ORP electrode, platinum tip and S8 Pg13.5 screw head (201010/51-22-22-0000-00-120/000; Part No. 00413906) The JUMO ecoLine glass shaft ORP electrode with platinum tip and S8 Pg13.5 screw head is a cost-effective solution for reliable redox (ORP) measurements in general aqueous media. Design of the ORP electrode The robust platinum tip ensures reliable redox measurement and is also easy to clean. In combination with the ceramic diaphragm and the polymerized KCl gel electrolyte, the electrode is well suited for many typical water applications. The proven JUMO cartridge reference system keeps the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Typical applications With a measuring range of ±2000 mV, the S8 Pg13.5 screw head, and a standard insertion length of 120 mm, this version is suitable for many common installation situations. A temperature sensor is not available in the ecoLine series, making this electrode ideal for applications where integrated temperature measurement is not required. Drinking water monitoring and water treatment Swimming pools Aquatics Greenhouse technology as well as lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Suitable for use in portable measuring devices Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths as well as biotech and sterilization processes

With an S8 Pg13.5 screw head and a 120 mm insertion length, the electrode can be integrated into many common measurement tasks. It is used in a wide range of applications such as drinking water monitoring or swimming pools. JUMO ecoLine Redox plastic shaft electrode with S8 Pg13.5 screw head and attachable protective cage (201010/53-22-22-0000-00-120/000; Part No. 00357020) The JUMO ecoLine Redox plastic shaft electrode is designed for reliable redox measurements in general aqueous media and offers a cost-effective solution for many standard applications. Thanks to its PEI plastic shaft and attachable protective cage, this version is particularly suitable for practical use with portable measuring devices or wherever additional sensor protection is required in everyday operation. For redox measurement, a robust platinum tip is used, which ensures stable measurement values and is easy to clean. The electrode is complemented by a proven reference system with a polymerized KCl gel electrolyte, which is well suited for general water applications. The JUMO cartridge reference system helps keep the electrolyte free of silver ions throughout its service life, making it less susceptible to certain electrode poisons. Typical applications Drinking water monitoring and water treatment Swimming pools, aquatics, greenhouse technology Lightly contaminated utility, process, and wastewater Also suitable for rainwater, pond, and surface water Environmental applications Beverage and food industry Not recommended for: Electroplating water treatment Industrial process and wastewater Ultrapure water Therapeutic baths Biotech and sterilization processes

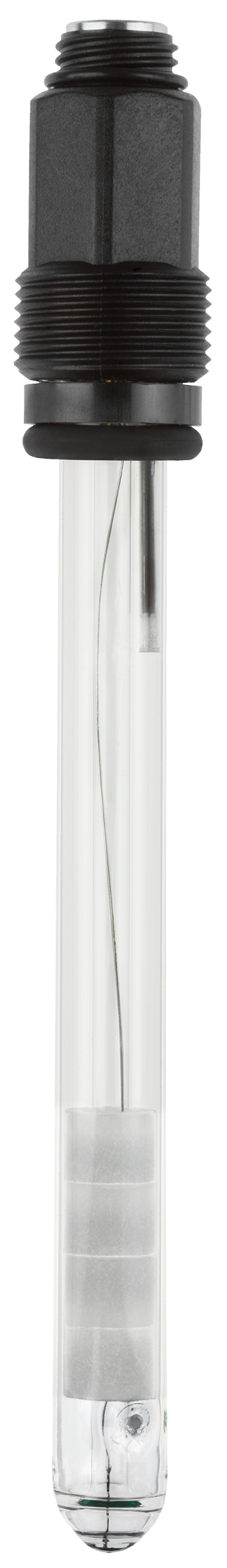

High-quality industrial electrodesProcess/industrial applicationswith gold tipdifferent insertion lengthsspecial types on requestSelected version:Basic type: JUMO tecLine redox combination electrode, glass shaftActive part: platinum capDiaphragm: 1x zirconium dioxideElectrical connection to electrode: screw head Pg13.5 (S8)Insertion length: 120mm (standard)Extra codes: Salt reserveOrder code: 201025/51-22-07-22-120/837

High-quality industrial electrodesProcess/industrial applicationswith gold tipdifferent insertion lengthsspecial types on requestSelected version:Basic type: JUMO tecLine redox combination electrode, glass shaftActive part: gold capDiaphragm: 1x zirconium dioxideElectrical connection to electrode: screw head Pg13.5 (S8)Insertion length: 120mm (standard)Extra codes: Salt reserveOrder code: 201025/51-32-07-22-120/837

If you are looking for a redox electrode designed for challenging media, robust process conditions, and a durable long-life configuration, this JUMO tecLine version is an excellent choice. JUMO tecLine redox electrode with glass shaft, platinum tip, PTFE ring, Pg13.5 screw head (S8), 120 mm and salt reservoir This redox electrode is designed for demanding redox measurements in water and aqueous media. It is particularly suitable for applications where the sensor must operate reliably under more difficult process conditions. The combination of glass shaft, platinum tip, PTFE ring diaphragm, Pg13.5 screw head (S8), 120 mm immersion length, and salt reservoir makes this version suitable for professional use in contaminated media and significantly more robust than basic standard solutions. Technical data Basic type: glass shaft Active element: platinum tip Redox measuring range: ±2000 mV Temperature range: -5 to +90 °C Diaphragm: PTFE ring Electrical connection: Pg13.5 screw head (S8) Reference system: cartridge reference system Immersion length: 120 mm Type extension: salt reservoir Advantages and special features A key advantage of this version is its suitability for media containing dirt, solid particles, or oil-based components that can interfere with measurement. The PTFE ring diaphragm is specifically designed for such demanding conditions and offers advantages over more sensitive standard diaphragm designs. This makes the electrode particularly attractive for users who require a reliable and durable redox measurement solution in industrial environments. Why choose this electrode? This version is especially suitable when the measuring point must remain reliable even in difficult media conditions. The platinum tip is designed for redox measurements up to ±2000 mV and is suitable for a wide range of industrial applications. The glass shaft provides a proven and process-suitable design, while the salt reservoir can help extend service life in low-conductivity media. This is particularly beneficial in applications where frequent maintenance or replacement is not desirable. The Pg13.5 screw head (S8) ensures compatibility with many standard measurement systems. With a 120 mm immersion length, the electrode fits into a wide range of common installation situations. Combined with the cartridge reference system, this results in a well-designed solution for processes requiring robust redox measurement and reliable long-term operation. Typical applications industrial wastewater treatment general process monitoring electroplating industry paper industry beverage industry oily wastewater, suspensions, paints, and media with solid particles fluoride-containing media up to 1000 mg/l HF

High-quality industrial electrodesProcess/industrial applicationswith gold tipdifferent insertion lengthsspecial types on requestSelected version:Basic type: JUMO tecLine redox combination electrode, PEI plastic with protective cageActive part: Platinum domeDiaphragm: 1x glass fiberElectrical connection to electrode: screw head Pg13.5 (S8)Fitting length: 120mm (standard)Extra codes: Salt reserve, double chamber KCI/KCIOrder code: 201025/72-22-05-22-120/837, 838

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for pool, groundwater and drinking water.Platinum - for standard applications in the pool and environmental sector as well as for normal or high temperature resistanceGold - used in connection with chlorine electrolysis and for normal or high temperature resistance

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants. Platium - ElectrodeGold - Electrode

This electrode is suitable for swimming pools, water treatment, drinking water, boiler feed water and municipal sewage treatment plants. Platium - ElectrodeGold - Electrode

This electrode is for swimming pools and industrial water treatment systems suitable.

This electrode is for swimming pools and industrial water treatment systems suitable.
