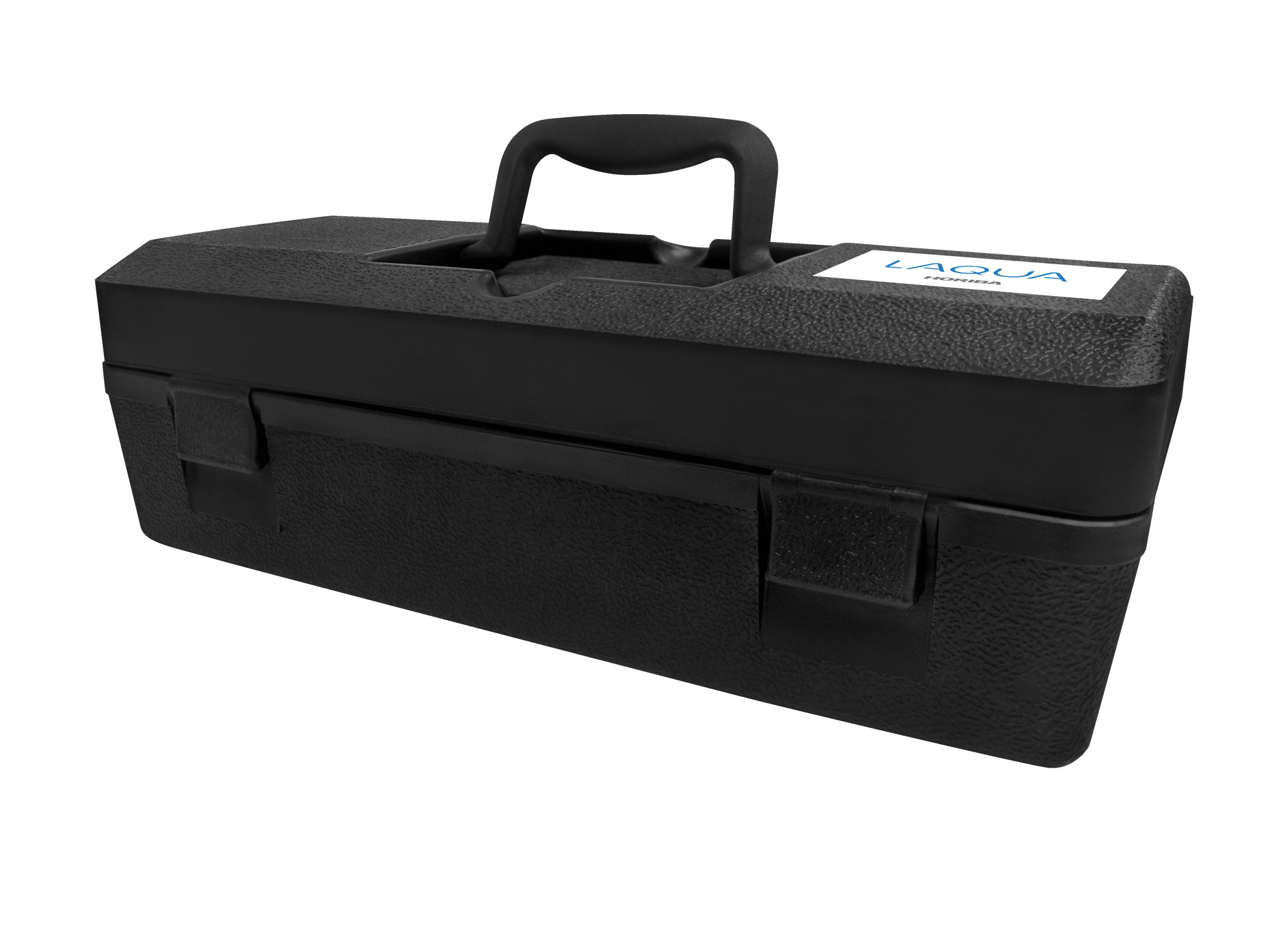

HORIBA TB220 K portable turbidity meter in case

Product number: 895990

Product information "HORIBA TB220 K portable turbidity meter in case"

The HORIBA LAQUA TB220 K in a case is a portable turbidity meter for precise measurement of water turbidity in areas such as environmental monitoring, drinking water treatment, wastewater analysis, aquaculture and industrial processes. It reliably measures up to 2000 NTU and complies with the international standards ISO 7027 and DIN EN 27027.

With IP67 protection, illuminated LCD display, 4-point calibration, data memory for 2000 values and PC interface, the device is ideal for use in the laboratory and in the field.

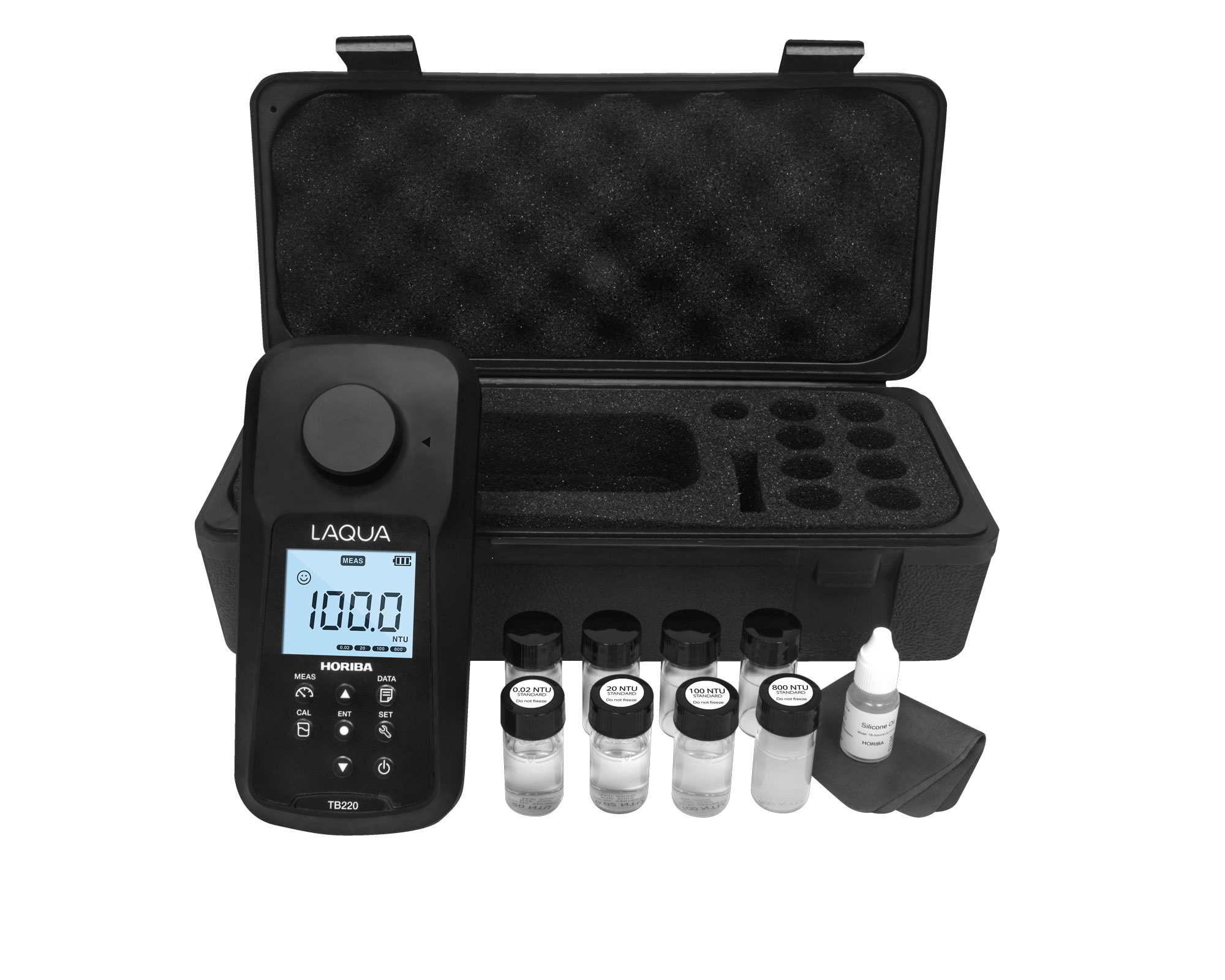

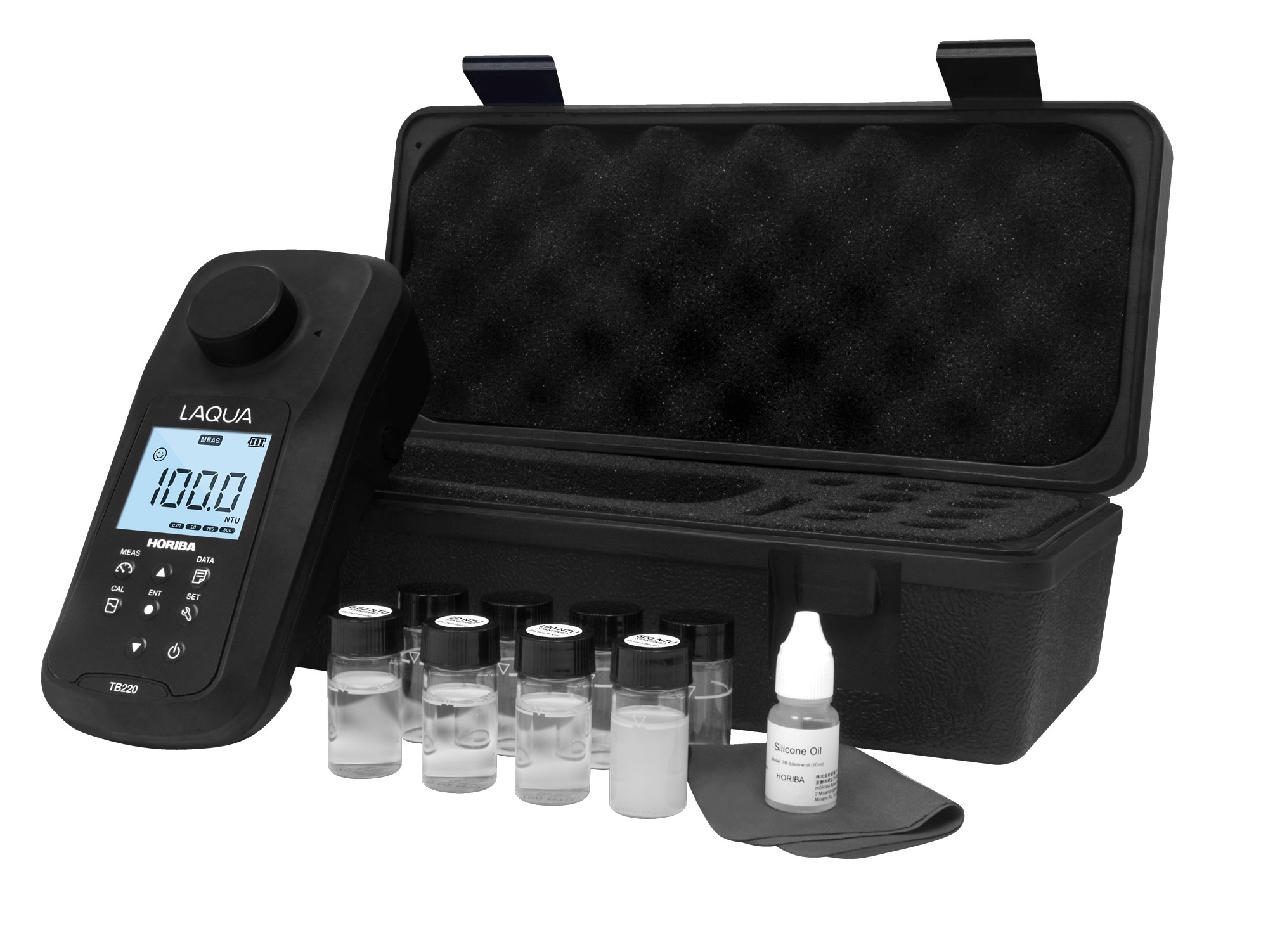

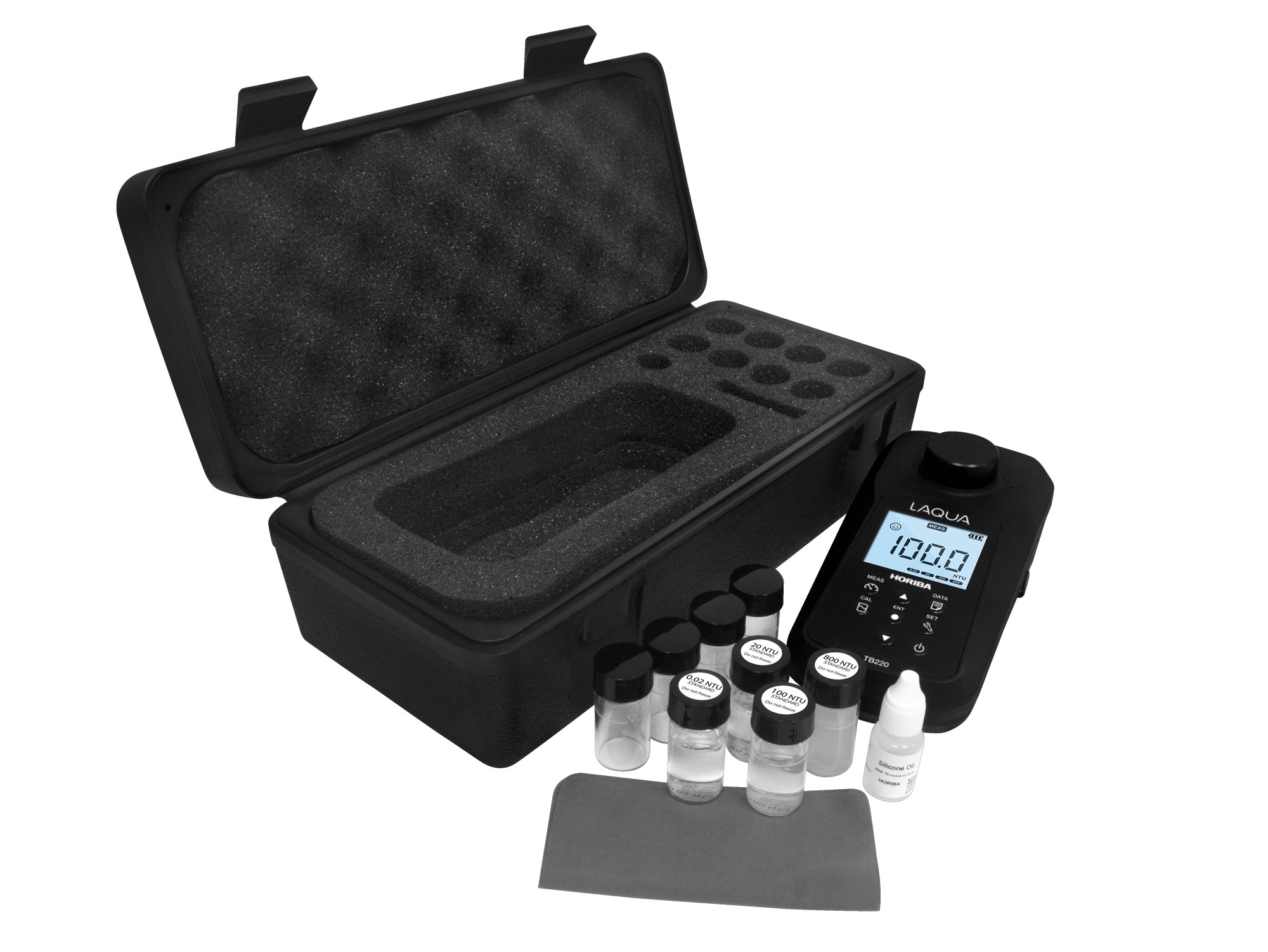

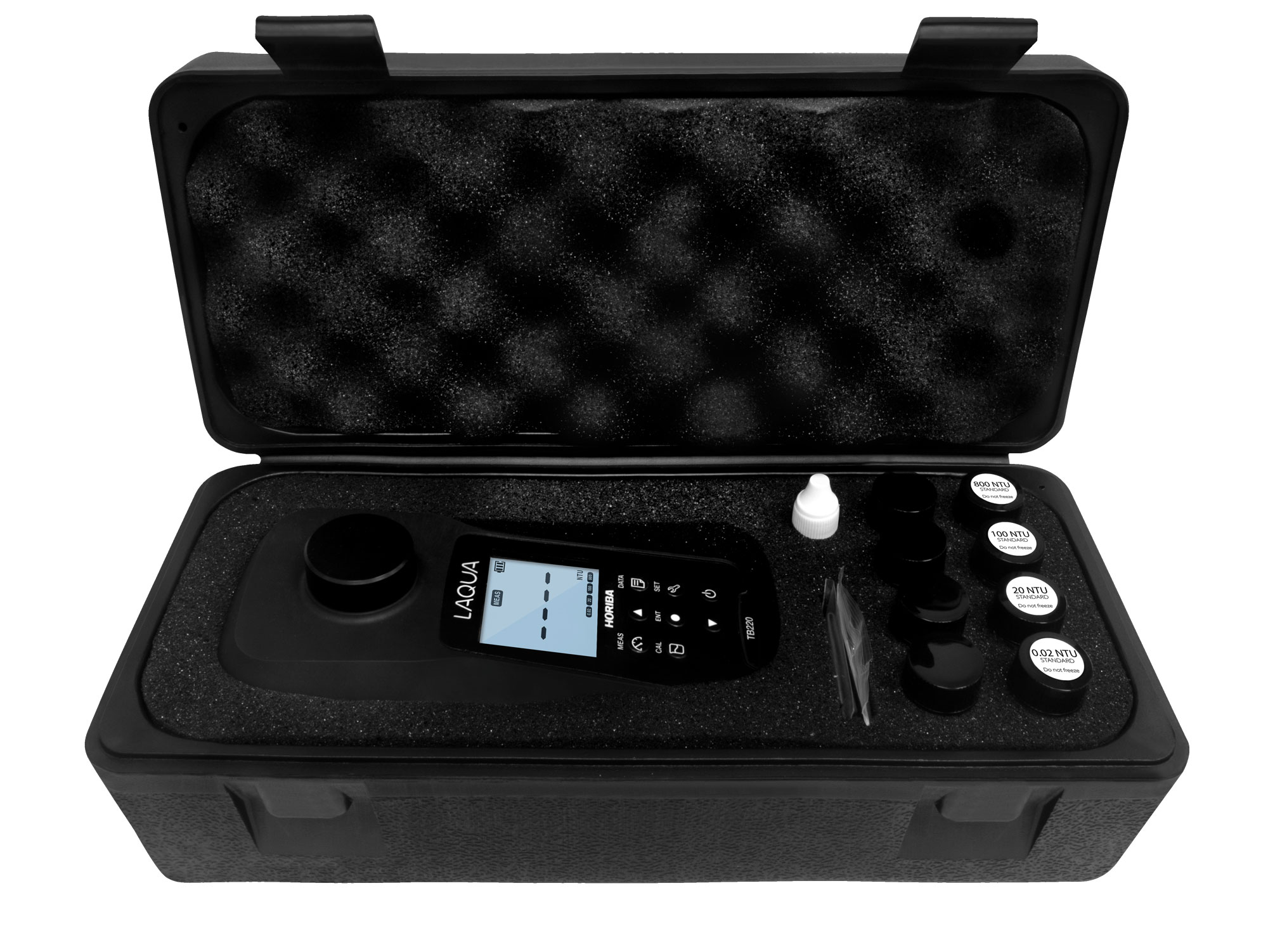

Scope of delivery (case): calibration solutions, test tubes, cleaning solution and cleaning cloth: everything you need for immediate use and easy maintenance.

HORIBA TB220 Portable Turbidity Meter

Features

  • Waterproof and dustproof to IP67 (except for the vial mounting part)
  • Shock-resistant, one-piece moulded housing made of special rubber and polycarbonate
  • Up to 1000 memory points with data and time logging
  • Communication between PC and printer
  • Standard response time of 16 seconds to ensure highly accurate measurement results
  • Uses non-hazardous SDVB standard solutions
  • Stable liquid standards made from polymer bead dispersion
  • Automatic switch-off selectable
  • ISO7027, DIN EN 27027 compliant
  • Stability indicator
  • Simple user interface
  • Large monochrome LCD with backlighting
  • 3-year warranty

Applications:

Environmental monitoring: Monitoring of rivers, lakes, wetlands and natural water bodies

Drinking water treatment: Ensuring water clarity and safety before and after treatment

Wastewater treatment: Measurement of wastewater clarity, process optimisation

Aquaculture/fish farming: Monitoring water quality in ponds/tanks for fish health

Industrial processes: Food, beverages, paper, textiles – clarity of process water

Education/on-site training: Schools, universities, environmental studies

Aquariums & zoos: Maintaining clear water in aquariums and artificial habitats

Shipping/ports: Monitoring ballast water or harbour sediments

Agriculture: Control of runoff and erosion effects from fields

Mining/quarries: Monitoring of wastewater with high sediment loads

Scientific research: Hydrology, sediment transport, water quality in research projects

Manufacturer item number: 3201073569

Dimensions

Height 11 cm
Length 35 cm
Width 16 cm

Weight

Weight 1,35 g

Other attributes

Country of origin SG
Customs tariff number 90275000
Technical data

Range

0.00 NTU to 2,000 NTU

Resolution

Up to four significant digits

Accuracy

< 1000 NTU: ±2% of reading or ±0.02 NTU. >1000 NTU: ±3%

Repeatability

±2% of reading or ±0.02 NTU

Calibration points

Up to four points (0.02, 20, 100, 800 NTU)

Standard solution

Styrene/divinylbenzene (SDVB), Polymer bead dispersion liquid

Sample volume

10 ml

Measurement time

16 seconds

Measurement Method

90° transmission light scattering method

Light source

Near infrared LED 860 nm

Detector

Silicon photodiode

Compliance standards

ISO7027, DIN EN 27027

Ambient operating temperature

0 °C to 50 °C

Ambient humidity

Relative humidity of 0% to 80% (without dew condensation)

Memory

1000

Datalogging

Manual

Real-time Clock

Yes

Date/time Stamp

Yes

Auto-Hold

x

Hold Function

x

Diagnostic Messages

x

Auto Shut-Off

Selectable 1 - 30 mins

Software upgrade

Via PC (USB)

PC communication

Yes, with USB cable / 3201055470

Printer communication

Yes, with Printer cable / 3200779638

Display

Monochrome custom LCD with backlight

Backlit LCD

x

Outputs

USB

Housing IP Rating

IP67 (excluding the vial mounting section)

Power Requirements

4 x AA alkali batteries (Ni-MH rechargeable batteries can be used)

Battery level display

Available (100%, 50%, 20%)

Battery Life

> 500 hours

External dimensions

210 (length) × 110 (width) × 55 (height) mm

Weight

Approx. 410 g (excluding batteries)

Storage environment temperature

-5°C to 50°C (without freezing the standard solution)

Warranty

3 years

Skip product gallery

Spare parts and accessories

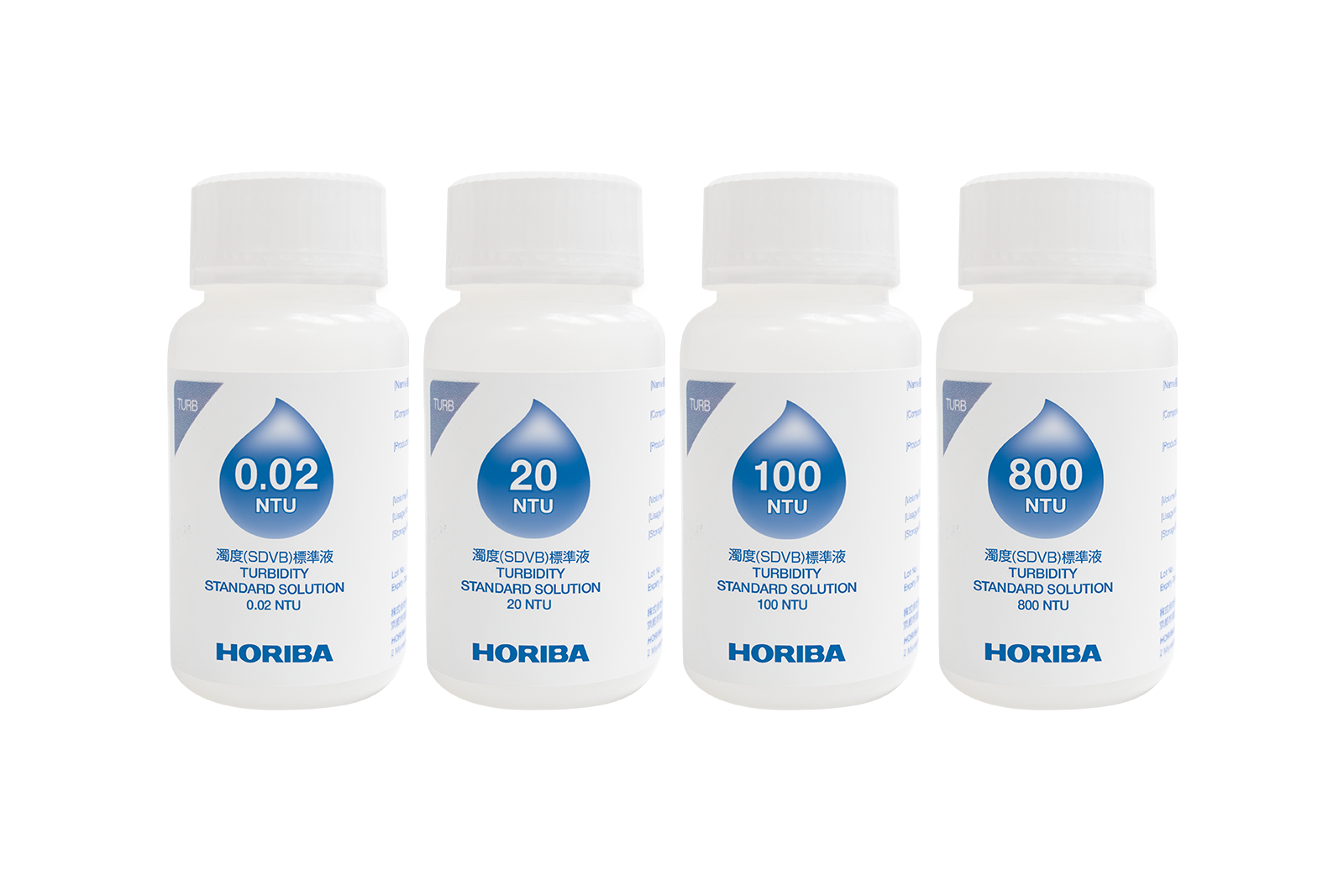

Horiba 550-TBP-4 Turbidity Calibration Solution Set (0.02, 20, 100 and 800 NTU), 50 ml each
Product number: 896081
Calibrate your Horiba TB220 turbidity meter quickly and accurately with this professional calibration solution set made from styrene-divinylbenzene (SDVB) polymer solutions. The set contains four ready-to-use NTU turbidity calibration standards for calibration in the low to high measurement range. Included turbidity calibration standards: 0.02 NTU – zero calibration (ultra-low turbidity) 20 NTU – lower calibration range 100 NTU – medium turbidity range 800 NTU – calibration for high turbidity values Advantages: Compatible with TB220 turbidity meter SDVB-based polymer solution – long-term stable, homogeneous & precise Ready to use immediately Manufacturer item number: 3201063378

€375.00*

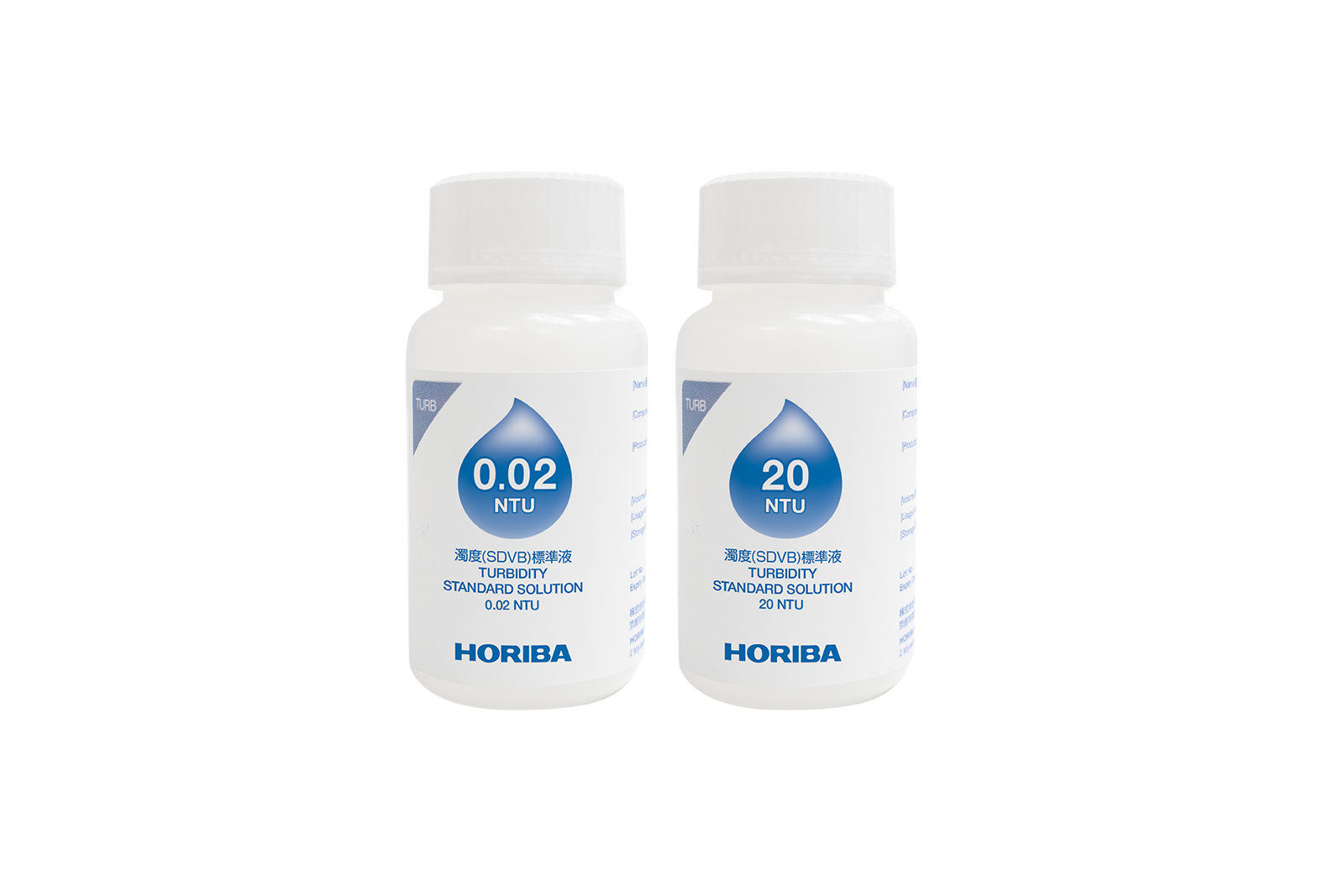

Horiba 550-TBP-2L Turbidity Calibration Solution Set for the Low Range (0.02 and 20 NTU), 50 ml each
Product number: 896082
Optimise the measurement accuracy of your Horiba TB220 turbidity meter with this high-quality calibration solution set based on styrene-divinylbenzene (SDVB). The two turbidity calibration standards included are specially designed for the lower NTU measurement range and are ready for immediate use. Calibration standards included: 0.02 NTU – for precise zero calibration (very low turbidity) 20 NTU – ideal for calibrations in the lower turbidity range Manufacturer item number: 3201063380

€0.00*

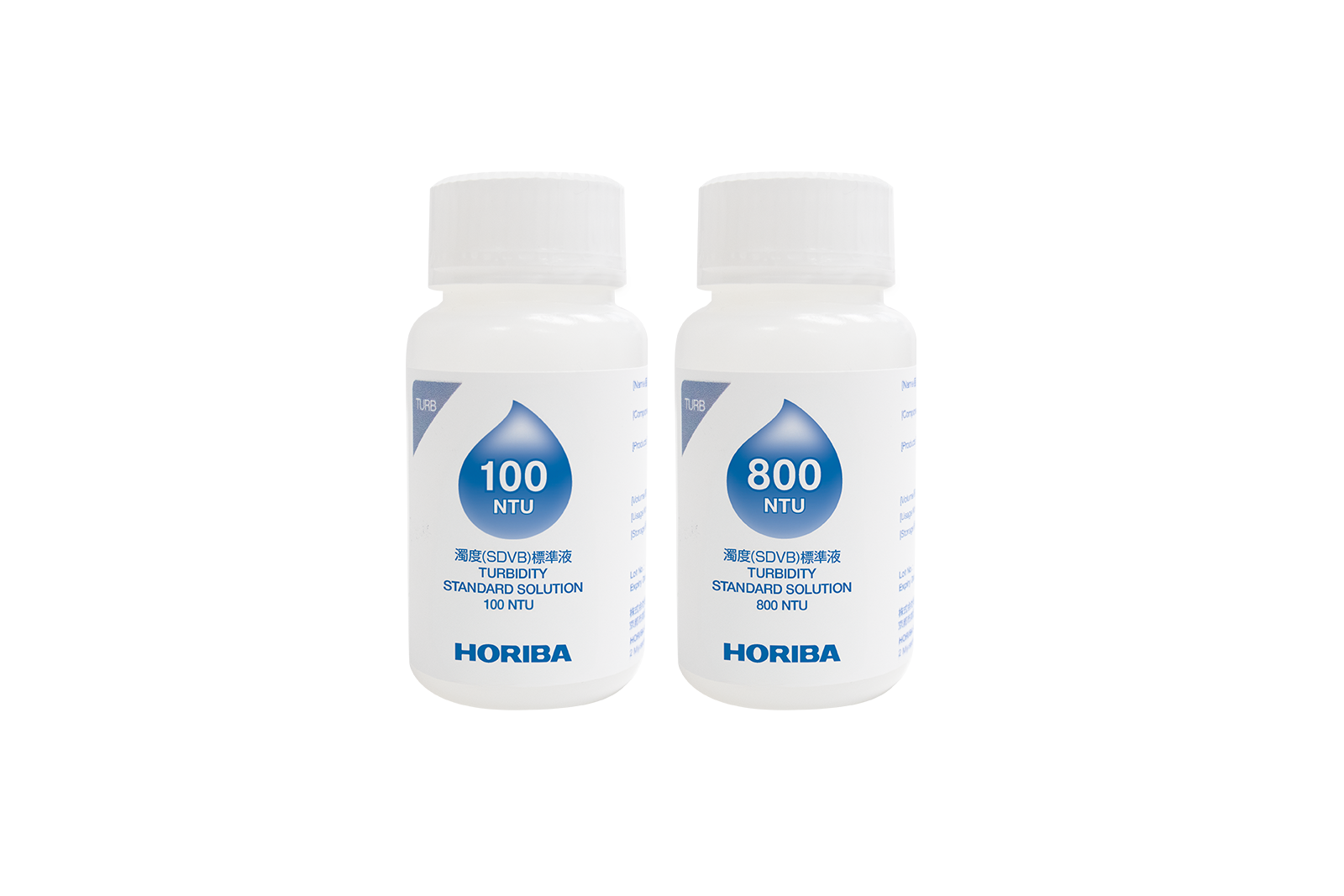

Horiba 550-TBP-2H calibration solution set for the higher range (100 and 800 NTU), 50 ml each
Product number: 896083
Calibrate your Horiba TB220 turbidity meter accurately and reliably with this professional calibration solution set made from styrene-divinylbenzene (SDVB) polymer solutions. Specially developed for calibration in the medium to high NTU measurement range, this set offers two ready-to-use turbidity calibration solutions that are optimally matched to your meter. Included NTU standard solutions: 100 NTU – for calibration in the medium turbidity range 800 NTU – ideal for measurements with high turbidity Manufacturer item number: 3201063381

€220.00*

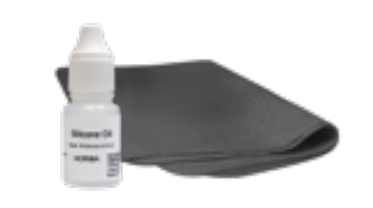

Horiba TB220-OIL-CLOTH silicone oil (1 × 10 ml) and cloth for cleaning the sample vials of the TB220 turbidity meter
Product number: 896084
Ensure accurate and reliable turbidity measurements with the Horiba TB220-OIL-CLOTH Set – consisting of 1 × 10 ml silicone oil and a high-quality cleaning cloth. For the care and preparation of sample vials for the Horiba TB220 turbidity meter. Optimises light transmission and minimises measurement deviations. Reliably removes dust, fingerprints and residues. Extends the service life and accuracy of your TB220 sample vials. Easy to use – ideal for daily laboratory use. Regular cleaning and application of silicone oil ensure consistent measurement results and protect the device's sensitive sensors. Manufacturer item number: 3201067504

€37.00*

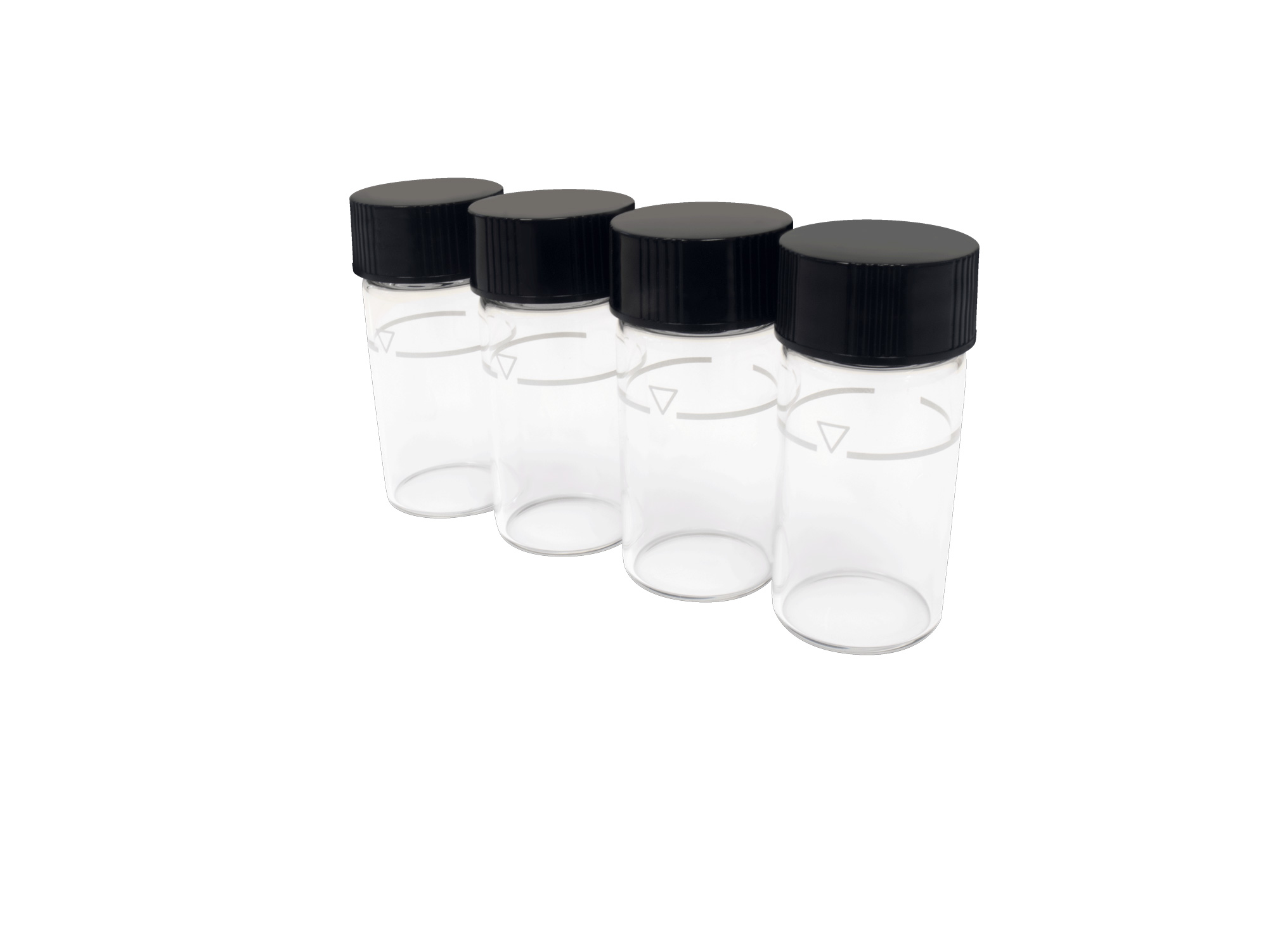

Horiba TB220-VIAL 4SET Sample vial set with 4 empty sample vials for TB-220
Product number: 896085
The Horiba TB220-VIAL 4SET contains four high-quality empty sample vials that have been specially developed for use with the Horiba TB220 turbidity meter. Ideal as a replacement, supplement or for the parallel preparation of multiple samples in everyday laboratory work. Suitable for the Horiba TB220 turbidity meter Original accessory – 100% compatible with the TB220 High-quality, transparent glass for precise and repeatable turbidity measurements Ideal for water analysis, environmental monitoring and laboratory applications Robust construction and reliable seal The use of clean and undamaged sample vials is essential for stable and precise NTU values. This set offers the perfect solution for replacing worn or damaged sample vials. Manufacturer item number: 3201067927

€95.00*

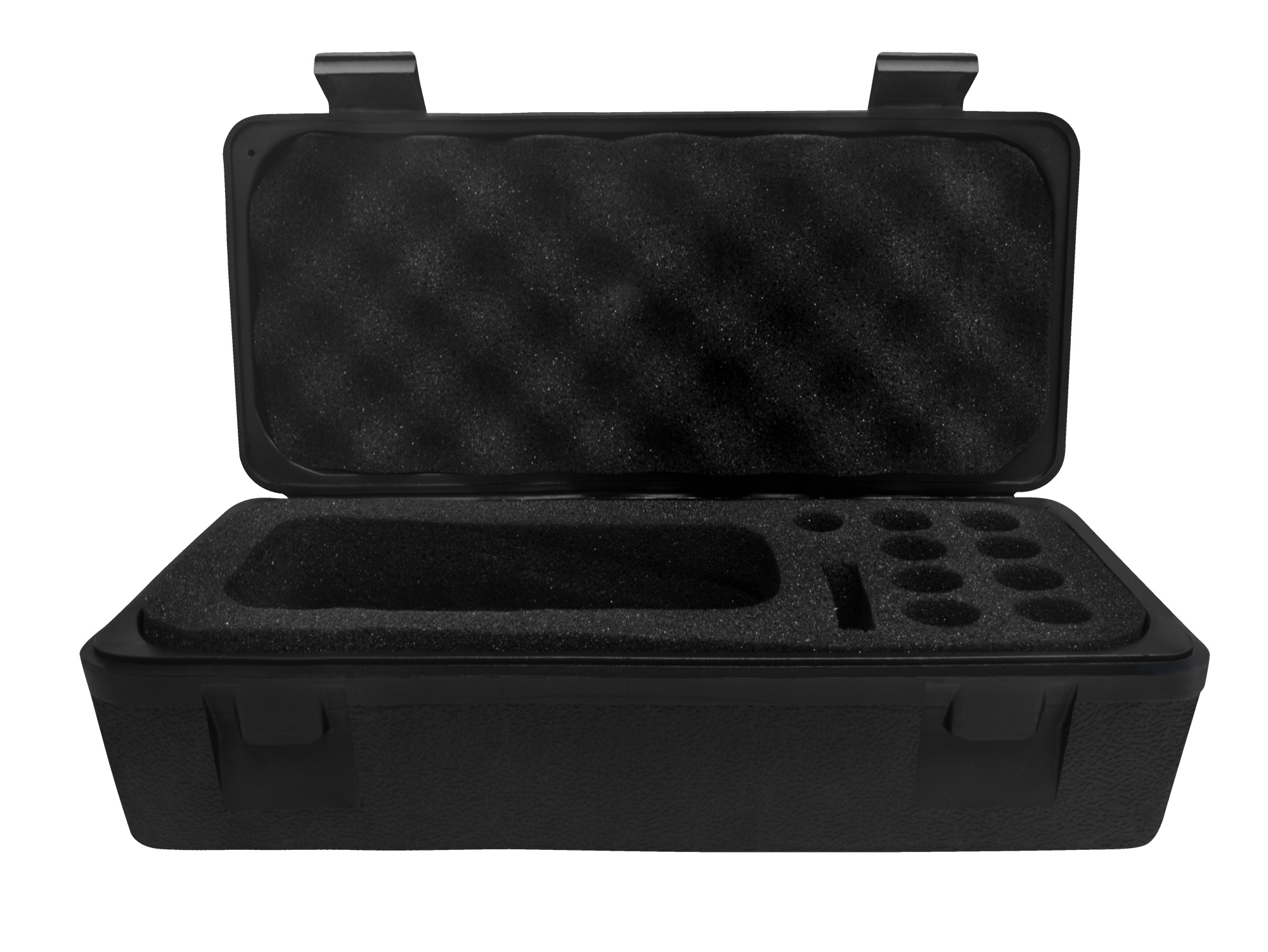

Horiba CC-TB220 case for TB-220 turbidity meter
