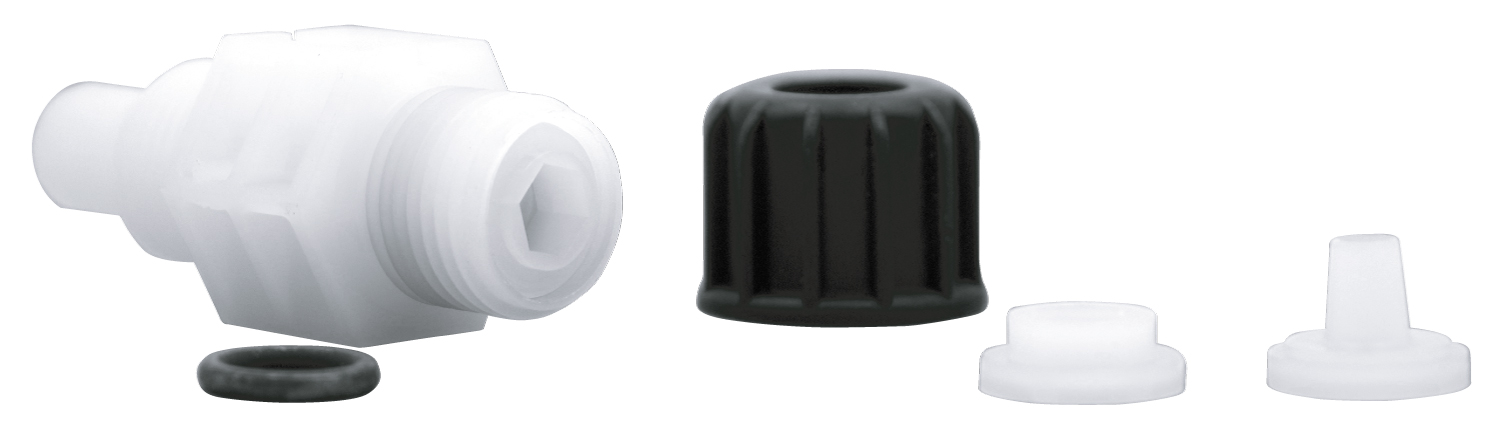

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.emec LOTUS MINI injection valve 1/2" - 6X8 PVDF+FP+CE + extension 10CMTechnical data: Material: PP O-rings: EPDM Ball: Ceramic
This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.LOTUS MINI injection valve 1/2"- 4x6 (PP+EP+CE) Opening pressure: 0.3 barTechnical data: Material: PP O-rings: EPDM Ball: Ceramic

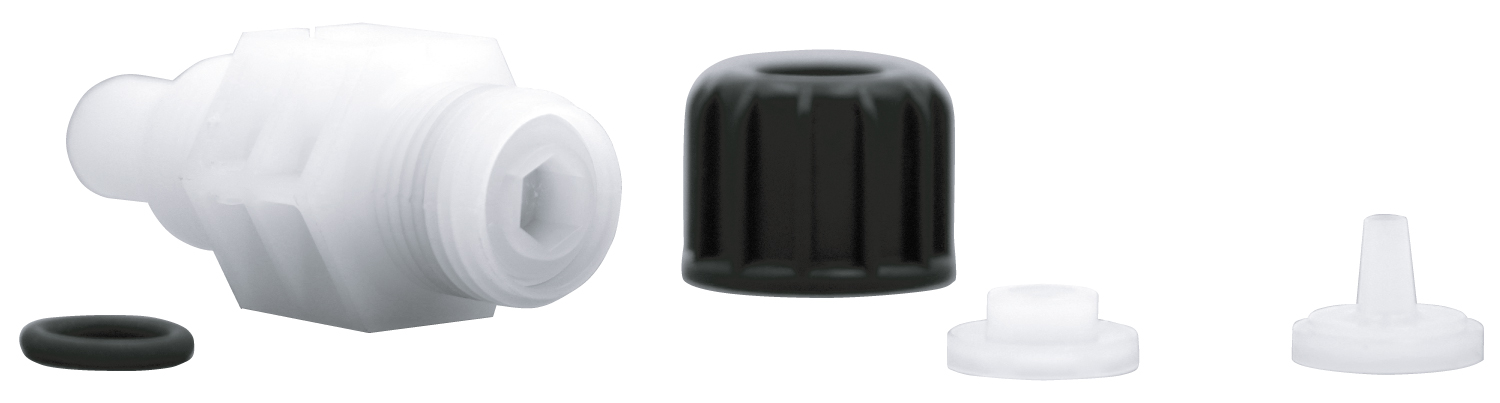

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.LOTUS MINI injection valve 1/2"- 4x6 (PVDF+FP+CE+C276) Opening pressure: 3 barTechnical data: Body: PPO-rings: FPM (Viton) Spring: Hasteloy, opening pressure 3 bar
This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.LOTUS MINI injection valve 1/2" - 6x8 PVDF+FP+CE+C276, 0.3 barTechnical data: Body: PVDF O-rings: FPM (Vitron) Ball: Ceramic Spring: Hastelloy, opening pressure 0.3 bar

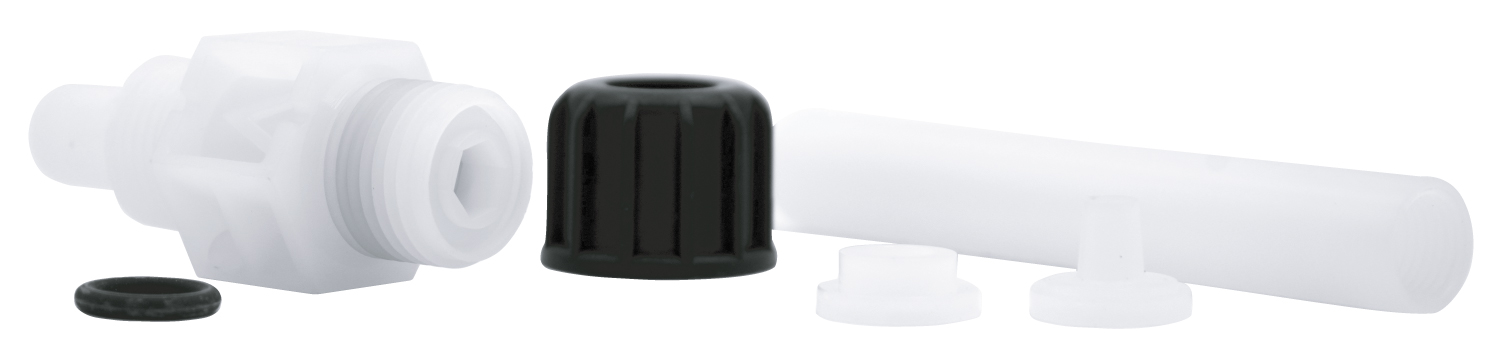

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.emec LOTUS MINI injection valve 1/2" - 6X8 PVDF+FP+CE + extension 10CMTechnical data: Body: PVDF
emec LOTUS MINI LINI-D ½" - 4x6 dosing lance made of PP (polypropylene)
Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve.
Body material: PP (polypropylene) O-rings and lip seal: EPDM (ethylene propylene diene rubber) Max. Flow rate: 10 l/h Immersion depth: 20 - 160 mm variable Operating range: max. 10 bar/25°C (2 bar/70°C) Process connection: ½" Hose connection: 4x6 mm
emec LOTUS MINI LINI-D ½" - 8x6 dosing lance made of PP (polypropylene) Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve.
Body material: PP (polypropylene) O-rings and lip seal: EPDM (ethylene propylene diene rubber) Max. Flow rate: 10 l/h
Immersion depth: 20 - 160 mm variable
Operating range: max: 10 bar/25°C (2 bar/70°C) Process connection: ½" Hose connection: 6x8 mm

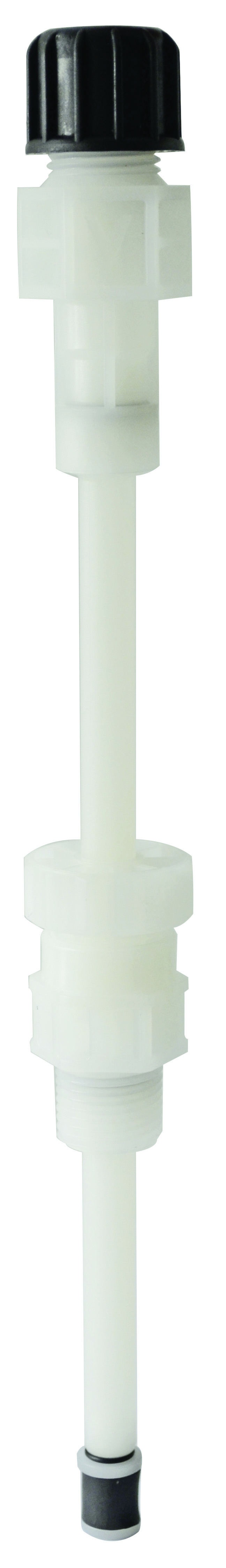

emec LOTUS MINI LINI-V 1/2" PVDF+FP+CE - 6x8 dosing lance made of PVDFPrecise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve.Body and dosing lance: made of PVDF O-rings and lip seal: FKM B (Viton) Max. flow rate: 10 l/h Immersion depth: 20 - 160 mm variable Operating range: max. 10 bar/25 °C (2 bar/90 °C) Process connection: 1/2" Hose connection: 6x8mm
emec LOTUS MINI LINI-V 1/2" PVDF+FP+CE - 9x12 dosing lance made of PVDF Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Body: PVDF O-rings and lip seal: FKM B (Viton) Max. flow rate: 10 l/h Immersion depth: 20 - 160 mm variable Operating range: max. 10 bar/25 °C (2 bar/90 °C) Process connection: 1/2" Hose connection: 4x8mm
emec LOTUS MINI LINI-V 1/2" PVDF+FP - 4x8 dosing lance made of PVDF Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Body: PVDF O-rings and lip seal: FKM B (Viton) Max. flow rate: 10 l/h Immersion depth: 20 - 160 mm variable Operating range: max. 10 bar/25 °C (2 bar/90 °C) Process connection: 1/2" Hose connection: 4x8mm
emec LOTUS MINI LINI-V 1/2"- 4x6 PVDF+FP+CE dosing lance made of PVDF Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality Emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Body: PVDF O-rings and lip seal: FKM B (Viton) Max. flow rate: 10 l/h Immersion depth: 20 - 160 mm variable Operating range: max. 10 bar/25 °C (2 bar/90 °C) Process connection: 1/2" Hose connection: 4x6 mm
Version:
4 x 6 Dosing lance made of PP with PVC ball valve 1/2" IA
emec LOTUS MINI LINIR-D 1/2" PP+EP+CE - 4x6 dosing lance made of PP with PVC ball valve 1/2" IA Precise dosing is essential, especially when the dosing pump has to work below the liquid level. The high-quality emec LINI chemical injection lance offers the ideal solution for industrial requirements. Conventional injection valves can cause problems such as crystallisation and chemical deposits, which are effectively avoided by the injection lance. In addition, the unique design of the injection lance allows easy removal of the injection point, especially in pressurised systems, thanks to the optional non-return valve. Body: PP O-rings and lip seal: EPDM Max. flow rate: 10 l/h Immersion depth: max. 55 mm Operating range: max. 10 bar/25 °C (2 bar/50 °C) Process connection: 1/2" Hose connection: 4x6 mm
Version:
4 x 6 Dosing lance made of PVDF with PVC ball valve 1/2" IA

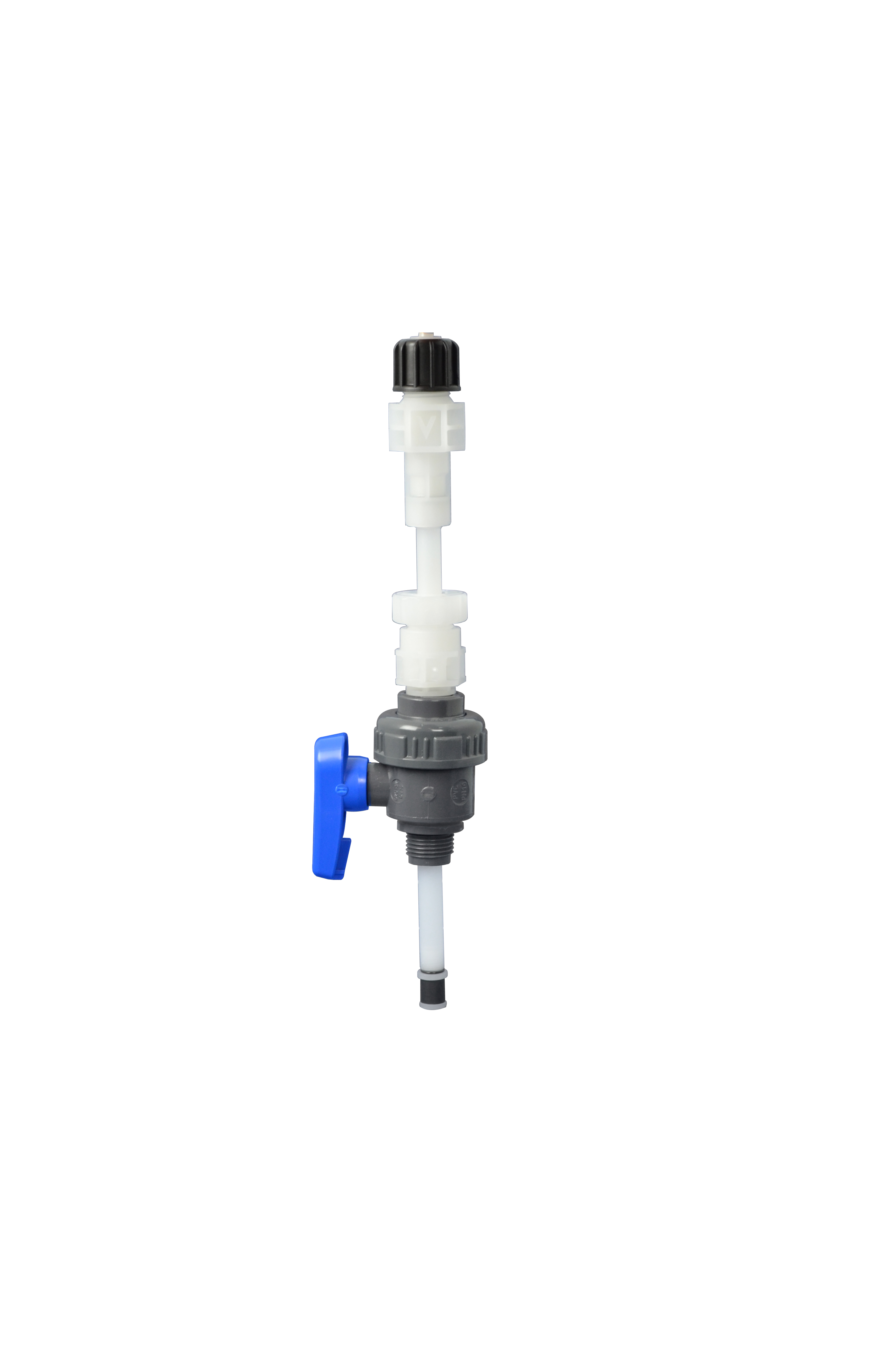

The
½" injection nozzle is specially designed for the precise dosing of sodium
hypochlorite in drinking water. With its automatic cleaning system, it ensures
reliable and efficient performance.LINIR-V 1/2"-4x6 (PVDF+FP+CE) dosing lance made of PVDF
Technical
data:
Body:
PVDF
O-rings
and lip seal: FKM B (Viton)
Max.
flow rate: 10 l/h
Immersion
depth: max. 55 mm
Operating
range: max. 10 bar/25 °C (2 bar/50 °C)
Process
connection: 1/2"
Hose
connection: 4x6 mm
Version:
6 x 8 Dosing lance made of PVDF with PVC ball valve 1/2" IA
The ½" injection
nozzle is specially designed for the precise dosing of sodium hypochlorite in
drinking water. With its automatic cleaning system, it ensures reliable and
efficient performance
LINIR-V 1/2"- 6x8 (PVDF+FP+CE) dosing lance made of PVDF
Technical
data:
Body:
PVDF
O-rings
and lip seal: FKM B (Viton)
Max.
flow rate: 10 l/h
Immersion
depth: max. 55 mm
Operating
range: max. 10 bar/25 °C (2 bar/50 °C)
Process
connection: 1/2"
Hose
connection: 6x8 mm
Version:
8 x 10 Dosing lance made of PVDF with PVC ball valve 1/2" IA
The
½" injection nozzle is specially designed for the precise dosing of sodium
hypochlorite in drinking water. With its automatic cleaning system, it ensures
reliable and efficient performance.LINIR-V 1/2"- 8x10 (PVDF+FP+CE) dosing lance made of PVDF
Technical
data:
Body:
PVDF
O-rings
and lip seal: FKM B (Viton)
Max.
flow rate: 10 l/h
Immersion
depth: max. 55 mm
Operating
range: max. 10 bar/25 °C (2 bar/50 °C)
Process
connection: 1/2"
Hose
connection: 8x10 mm

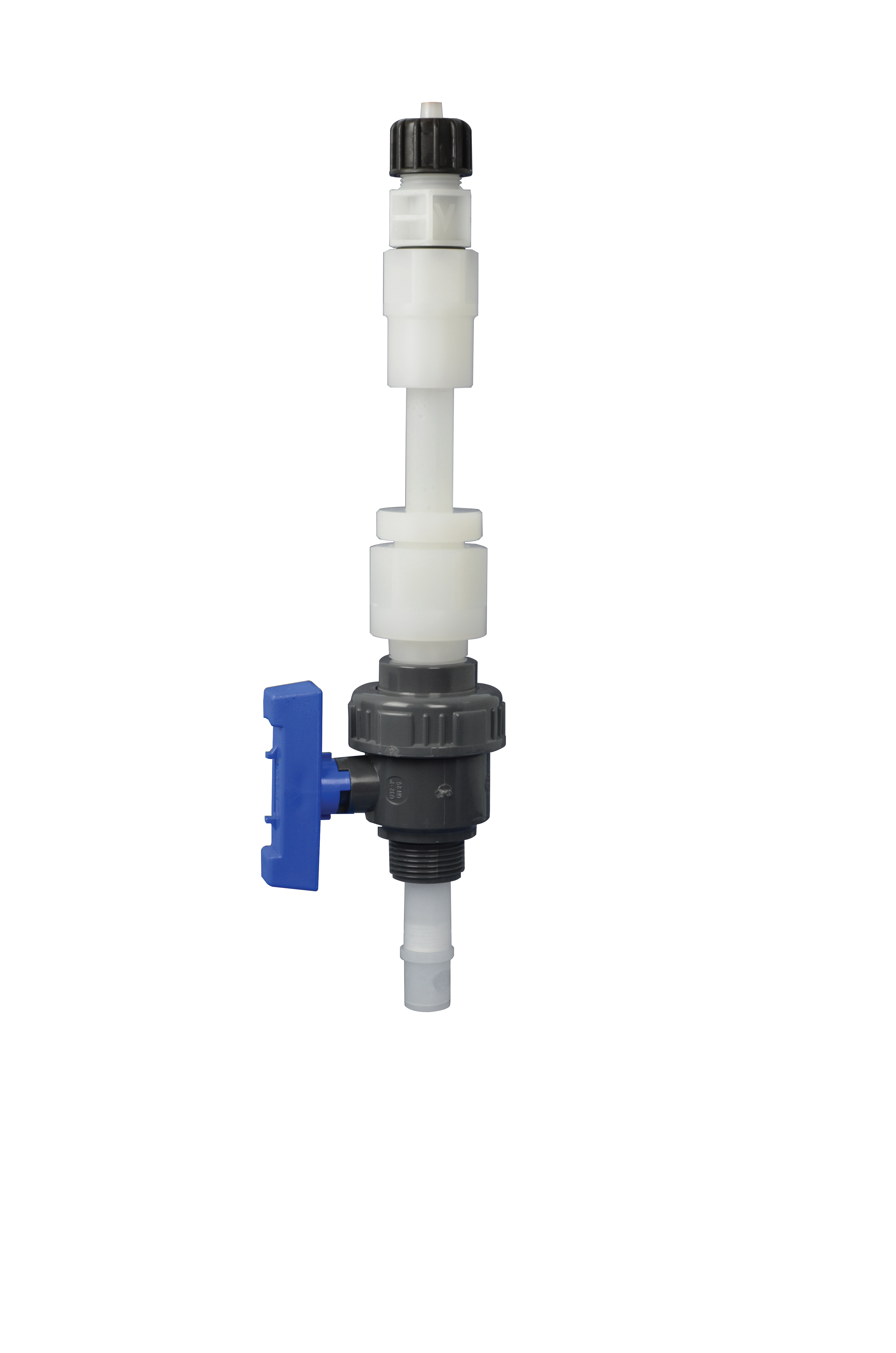

The 3/4" injection
nozzle is specially designed for the precise dosing of sodium hypochlorite in
drinking water. With its automatic cleaning system, it ensures reliable and
efficient performance
LINIR-V 3/4" dosing lance 13X16 PVDF+FP+CE
Technical
data:
Body:
PVDF
O-rings
and lip seal: FKM B (Viton)
Max.
flow rate: 120 l/h
Immersion
depth: max. 55 mm
Operating
range: max. 16 bar/25 °C (3 bar/50 °C)
Process
connection: 3/4"
Hose
connection: 13x16 mm
Version:
8 x 10 Dosing lance made of PVDF with PVC ball valve 3/4" IA
The 3/4" injection nozzle is specially designed for the precise dosing of sodium
hypochlorite in drinking water. With its automatic cleaning system, it ensures
reliable and efficient performance.LINIR-V 3/4" dosing lance 8X10 PVDF+FP+CE
Technical
data:
Body:
PVDF
O-rings
and lip seal: FKM B (Viton)
Max.
flow rate: 120 l/h
Immersion
depth: max. 55 mm
Operating
range: max. 16 bar/25 °C (3 bar/50 °C)
Process
connection: 3/4"
Hose
connection: 8x10 mm
