In this adapter set are all parts included, that you need to install a Testomat® 808.
Connection set consisting of:
plastic hose 6/4 x 1.5 m length
reduction 10 t0 6 mm
shutoff 3/8" to 6 mm
Contains:
2 x Sight glass windows 30x33 x Flat gasket 24x2 EPDM 601 x Bottle insert for screw cap and push-fit suction tube, 100 ml bottle1 x Bottle insert for screw cap and push-fit suction tube, 500 ml bottle1 x brushes set
Contains:
2 x Sight glass windows 30x33 x Flat gasket 24x2 EPDM 601 x Bottle insert for screw cap and push-fit suction tube, 500 ml bottle1 x brushes set

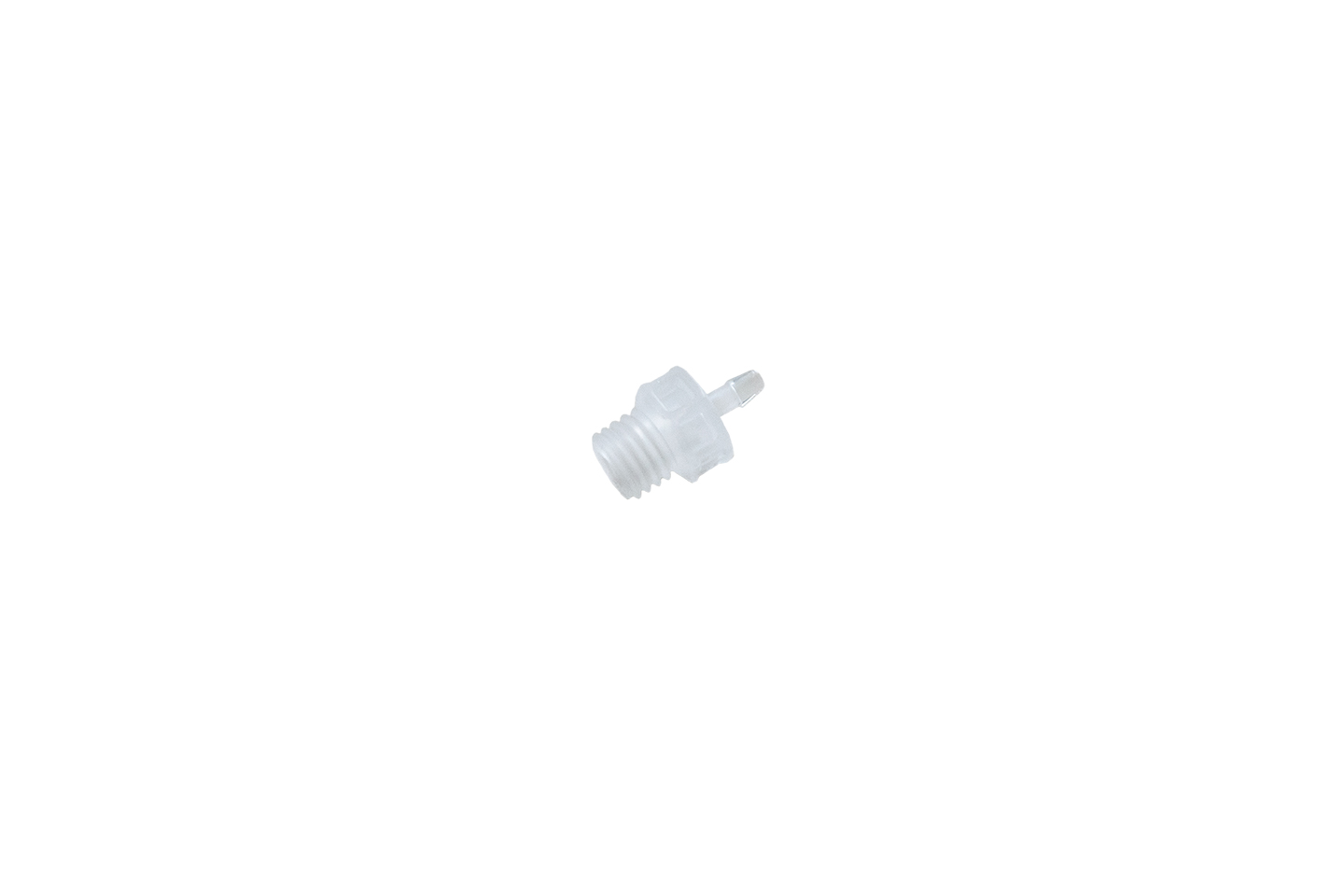

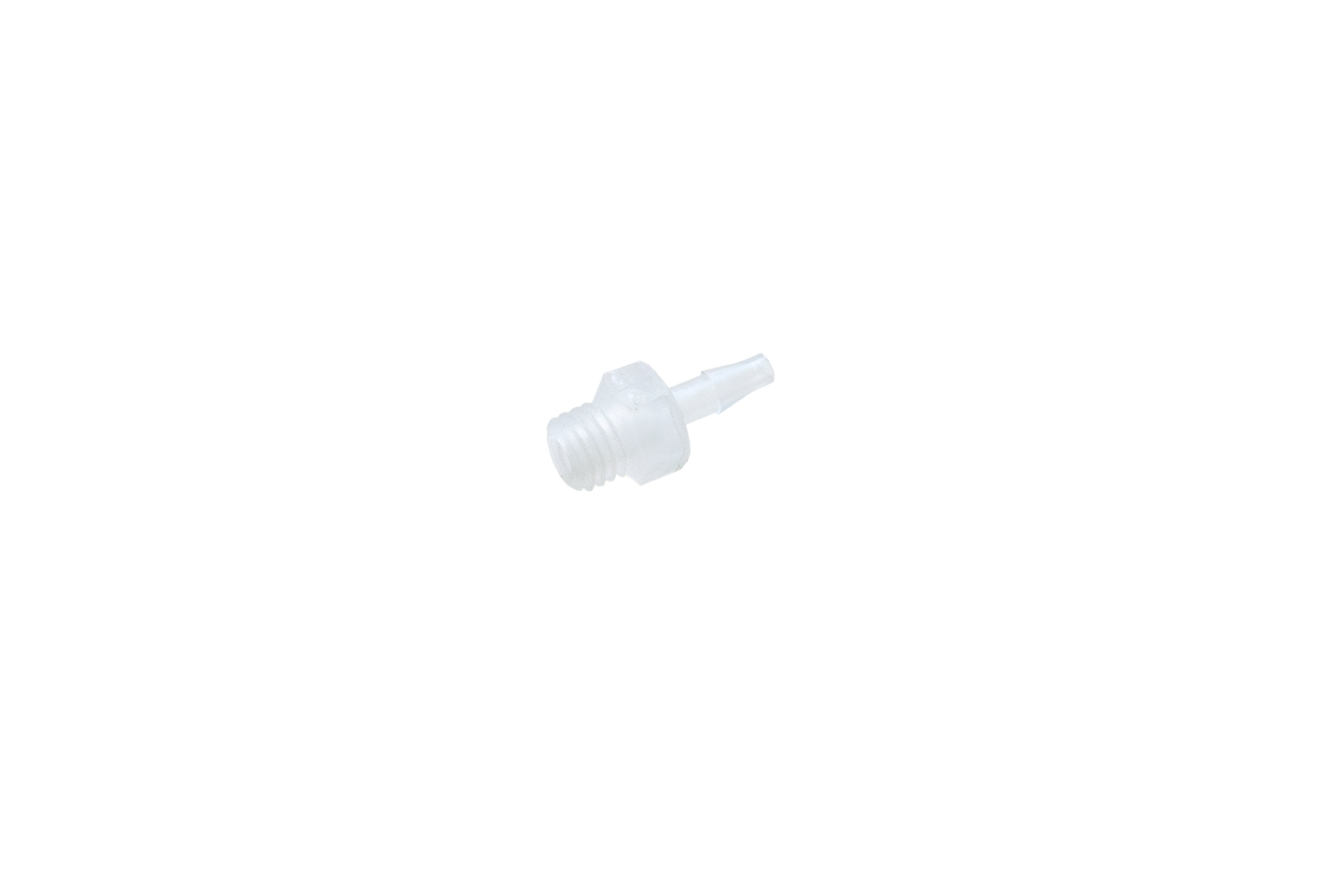

Insert with screw cap and suction tube Tube olive 3.5mm for 500 ml bottle for Testomat® 808 SiO2, Testomat 2000® PO4,Testomat 2000® Polymer as well as Testomat® LAB CL.

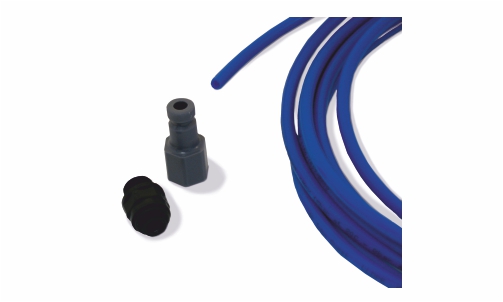

Conversion kit for converting the water connection from Testomat® BOB to Testomat® 808. Consisting of:1x Plug nipple G1/4" DN61x Pipe, PE, D=6 d=4 L=5m1x screw-in connector G1/4"-6
ID=1.6mm complete2x screws M3x40, M3x501x shaft extension1x spacer plate1x double pump head with hoses1x hose extension1x 1.5 mm Allen keyImportant:After replacement, the pump must be recalibrated in Testomat® 808 SiO2.
The adjustment is available from firmware version T808_83-003. Update the firmware of older versions before carrying out the adjustment! (serial numbers lower 253.061)It is important to use water with a silicate content of 0 ppm for this adjustment, otherwise the adjustment of the zero point is faulty and leads to incorrect measurement results. To ensure this, please use the silicate filter cartridge for the T808 SiO2, article 270344, specially developed for this process.(For additional information and notes on the equipment required for the software update, see the operating instructions as well as the "Replacing the pump head in Testomat808 SiO2" document)

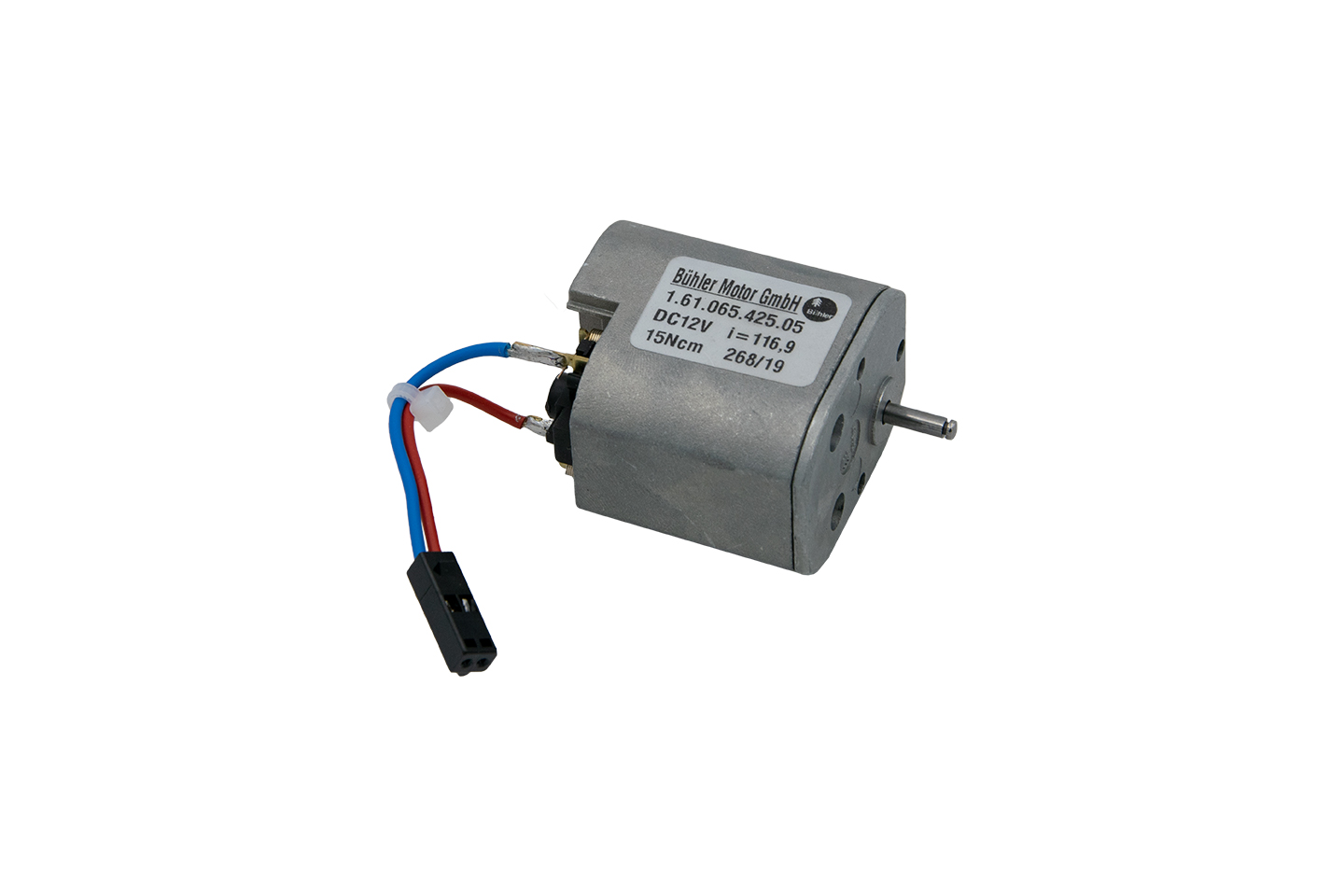

The motor and pump head have to change after 120 operating hours.You reach this at a analysis interval of 30 minutes after aprox. 2 years.It means, the motor have a service life of under one year at a interval of 10 minutes.You can't change the pump head only, as the charcoal pencil is worn.

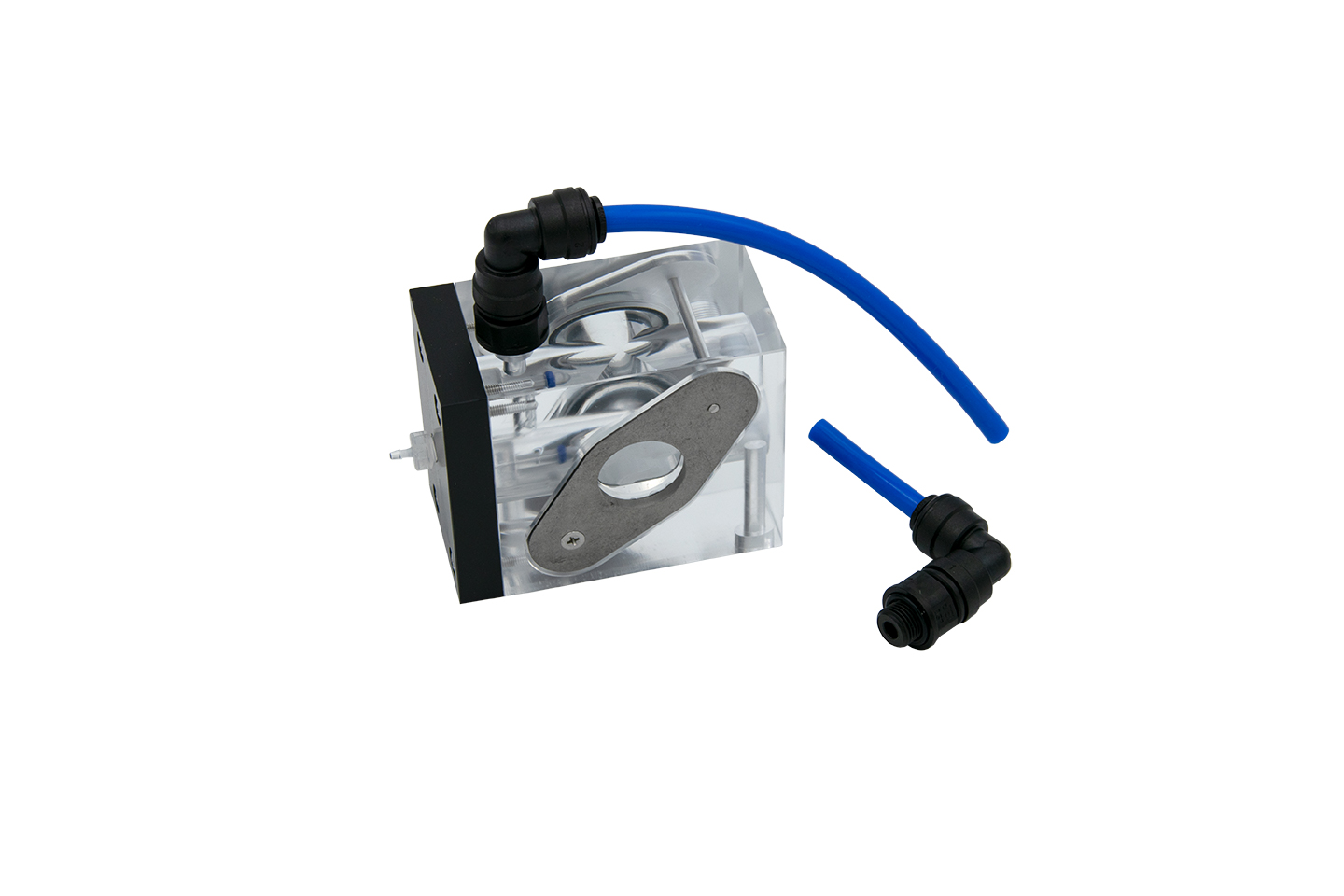

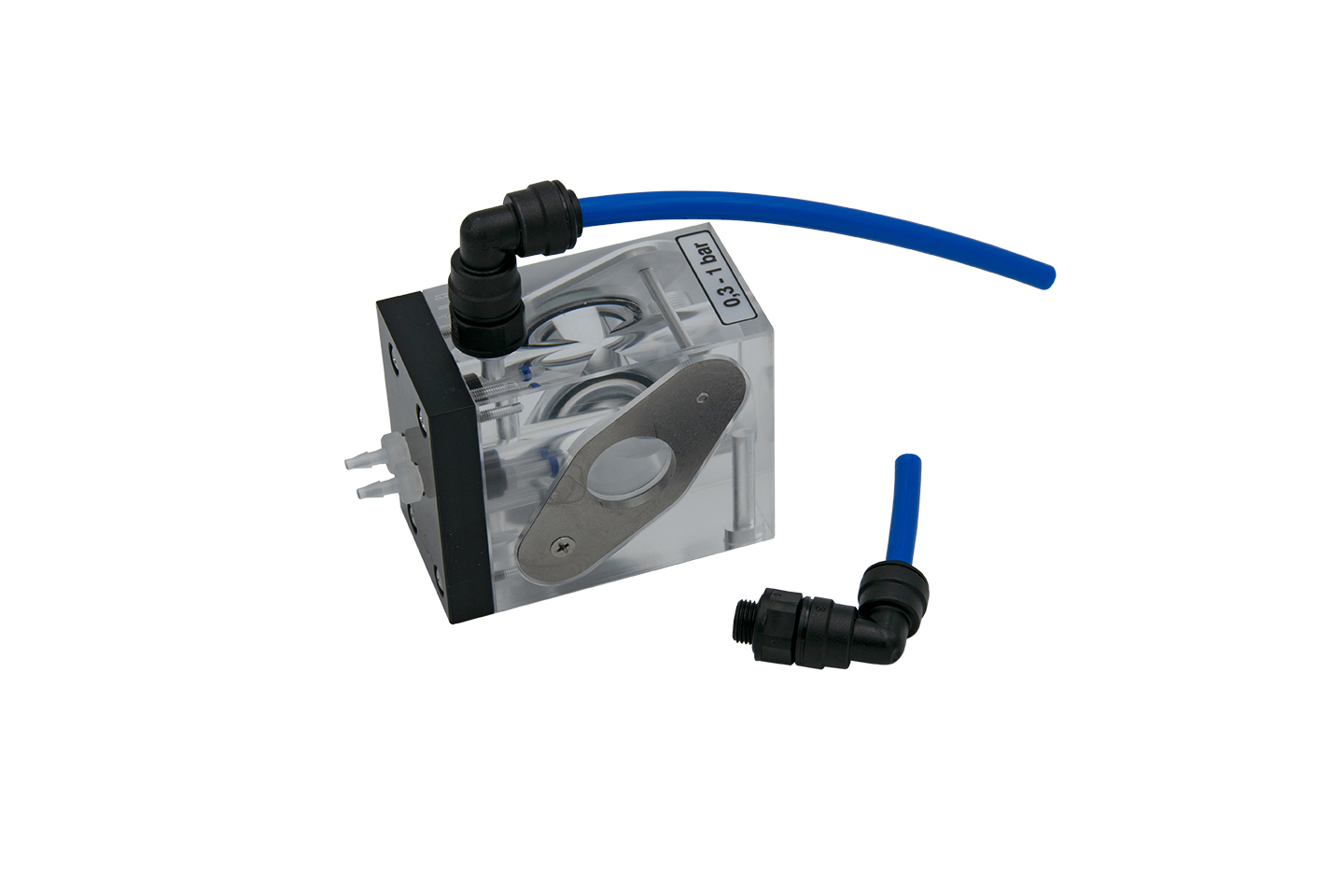

Measuring chamber with double glazing for Testomat® 808 complete (1-4 bar), tested.The measuring chamber with double glazing can be used in the event of strong temperature differences between air and test water. Problems caused by steaming up in a humid environment are thus prevented in many applications.
