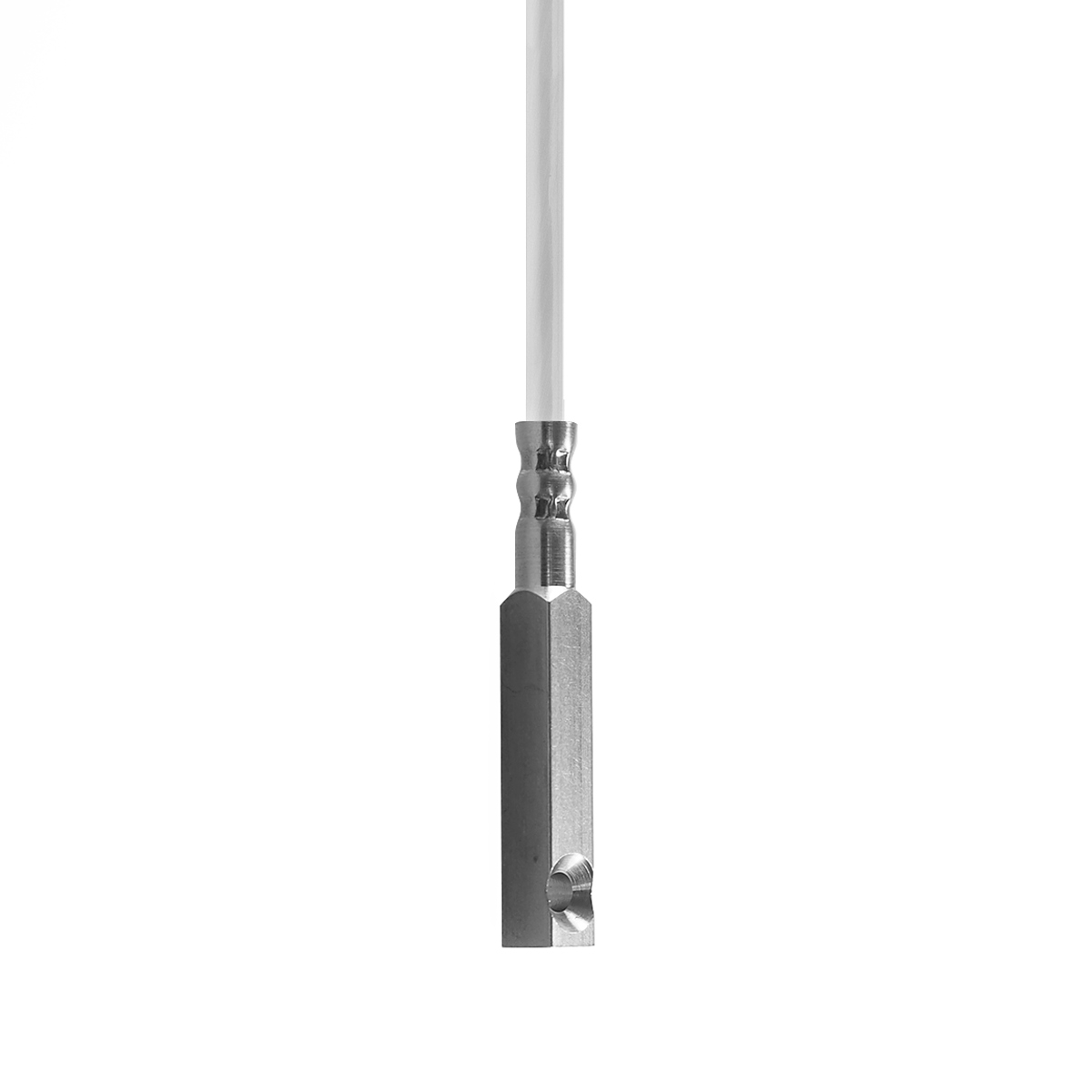

JUMO contact resistance thermometer with connection cable and mounting hole, aluminium protective fitting
€88.60*
Please log in to receive your conditions.
Available, delivery time:
Login for addressed offer The entered number of pieces will be taken into account when creating the offer.
Contact resistance thermometer with mounting hole Protective fitting aluminium
Typ: 902550/10-386-1003-1-11-2500/000
- Temperature range from -50 to +260°C (PTFE)
- 1× Pt100 in two-wire circuit
- Tolerance class according to DIN EN 60751: Class B (standard)
- Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard)
- Connection length in mm: 2500 mm
- Extra code: without
- Suitable for round and flat surfaces
- Quick and uncomplicated installation
- with protective fittings made of various materials
- Low thermal mass
- Optimum heat transfer from the measuring point to the sensor
Contact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with tensioning straps or hose clamps eliminates the need for mechanical processing of the measuring point.
Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is available as an option to optimise heat transfer.
Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here.
A Pt100 temperature sensor in accordance with DIN EN 60751 Class B is installed as standard in a two-wire circuit, but variants with Pt500, Pt1000 are also possible.
Other attributes
| Anschlussleitung | PTFE |
|---|---|
| Customs tariff number | 90251900 |
| Messeinsatz | 1x Pt 100 Zweileiterschaltung |
| Temperaturbereich | -50°C ... +260°C |
|
for basic type 902554/44 optional analog transmitter, 4 to 20 mA or 0 to 10 V |
Cable ends tin-plated, available with ferrules, with receptacles or multi-pin connectors |
|
Flex |
Silicone, ambient temperature -50 to +180 °C PTFE, ambient temperature -190 to +260 °C Kapton, ambient temperature -50 to +260 °C |
|
Connection Housing |
Basic type 902554/41 and 902554/42 Plastic housing PC, colour silver-grey/blue Basic type 902554/44 Plastic housing PC, colour white Connection via screw terminals, basic type 902554/44 optionally available with spring-loaded clamps if selected without transmitter |
|
Protective Tube |
Stainless steel 1.4571, aluminum, plastic |
|
Measuring insert |
Pt100 Temperature Sensor, DIN EN 60751, Class B, Two-Wire Circuit |
|
Transmitter |
for basic type 902554/44 optional analog transmitter, 4 to 20 mA or 0 to 10 V |
EN 61326 Class B, Industrial Requirements
|
|
Exit 4 bis 20 mA |
Exit 0 bis 10 V |
|
Entrance Input Sensor current Sampling Rate |
Output 4 to 20 mA 0,5 mA Continuous measurement, because analog signal |
Output 0 to 10 V 0,5 mA Continuous measurement, as analogue Signal |
|
Input Measurement Input Sensor Current
Measurement Rate Sensor and cable rupture |
Pt100 (DIN EN 60751) 0.5 mA continuous measurement, due to analogue signal path |
Pt100 (DIN EN 60751) 0.5 mA continuous measurement, due to analogue signal path 11 bis < 14 V (typisch 12 V) |
|
Measuring Circuit Monitoring Measuring Range Below Measurement Range Exceeding Measuring Range Exceeding |
|
|
|
Exit |
imprinted direct current 4 bis 20 mA |
DC voltage 0 bis 10 V |
|
Output |
Imprinted direct current 4 to 20 mA |
DC voltage 0 to 10 V |
|
Transmission behavior |
Temperature linear |
Temperature linear |
|
Transmission accuracy |
±0.1% |
±0.2% |
|
Damping of residual ripple |
|
|
|
a 24 V power supply, |
|
|
|
Amplitude 10 V/50 Hz, Load 470 /Load 10 M |
Rb = (Ub - 7,5 V) ÷ 22 mA |
- |
|
Burden (Rb) |
Rb = (Ub - 7.5 V) ÷ 22 mA |
- |
|
Burden influence |
±0.02 %/100 a |
- |
|
Load/Load Influence |
- |
10 k/ ±0.1 % |
|
Setting time in case of temperature change |
10 ms |
10 ms |
|
Matching conditions |
DC 24 V/approx. 22 °Ca,b or ± 0,2 K |
DC 24 V/approx. 22 °Ca,b or ±0,2 K |
|
Matching accuracy |
±0.2 % |
±0.2 % |
|
|
±0.4 K (typical) at 20 °C/24 V |
±0.4 K (typical) at 20 °C/24 V |
|
Power supply Power supply (Ub) Reverse ol.protection Power Supply Influence |
Power supply ja ±0,01 %/V Abweichung von 24 Va |
Power supply ±0,01 %/V Abweichung von 24 Va |
|
Power Supply Power Supply (Ub) Reverse Polarity Protection |
|
|
|
Environmental impact |
-40 bis + 85 °C |
-40 bis + 85 °C |
|
Temperature range |
-40 to + 85 °C |
-40 to + 85 °C |
|
Storage temperature range |
-40 to +100 °Ca |
-40 to +100 °Ca |
|
Temperature similar DIN EN 60654 Klasse C1 |
±0.01 %/K deviation from 22 °C |
±0.01 %/K deviation from 22 °C |
|
Climatic resistance |
relative humidity 95 % annual average without condensation |
relative humidity 95 % annual average without condensation |
a All figures refer to the full scale of 20 mA.
b The greater value is valid.
Type suffix 058
|
EMC Emission / Immunity |
EN 61326 Class B, Industrial Requirements |
EN 61326 Class B, Industrial Requirements |
Test basis |
gilt für |
|
SIL QUALIFIED PL QUALIFIED |
- |
Mark |
Checkpoint |
Certificate/Test Number in conjunction with the manufacturer's declaration |
