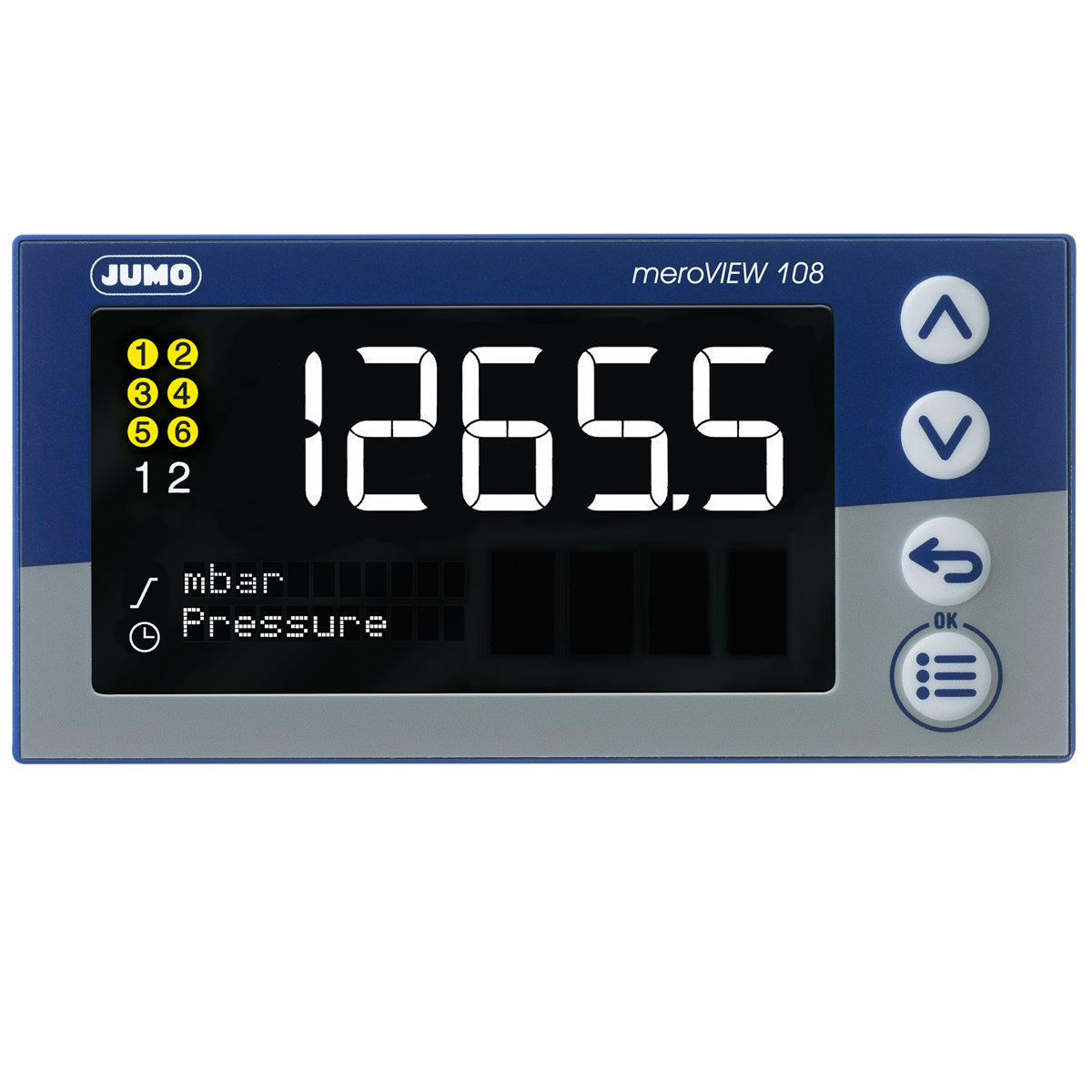

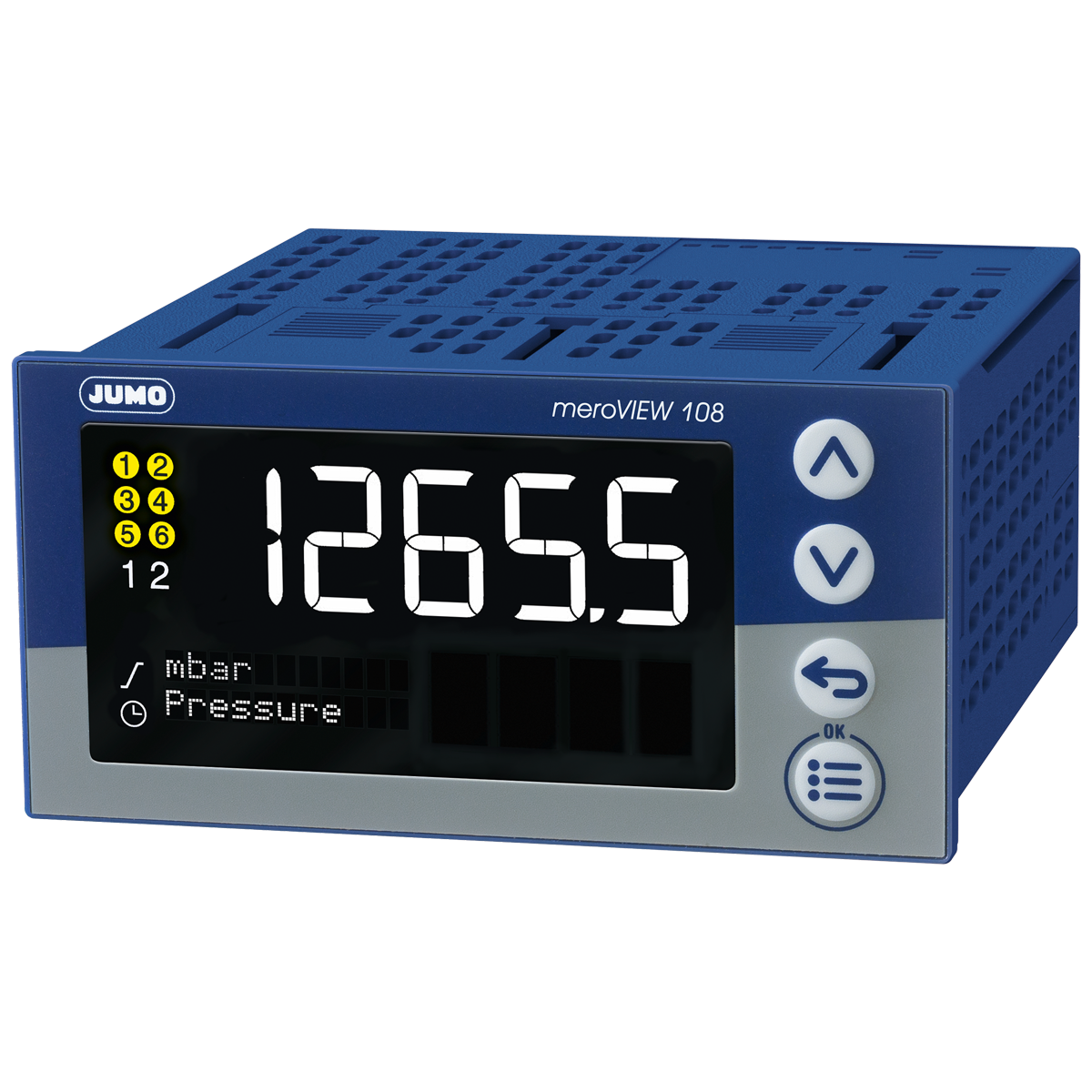

JUMO meroVIEW 108Q (Format 96 x 48 mm) - 1 Analogeingang (universell), 1 Digitaleingang, 1 Digitalein-, ausgang (umschaltbar), 2 Relais (Schließer), inkl. 2 Timer, Min/Max-Wert Anzeige, Hold Funktion, Tarierfunktion

Product number: 802131

€446.70*

Please log in to receive your conditions.

Available, delivery time:

Version

Product number: 802131
GTIN: 4068823016956
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.
Product information "JUMO meroVIEW 108Q (Format 96 x 48 mm) - 1 Analogeingang (universell), 1 Digitaleingang, 1 Digitalein-, ausgang (umschaltbar), 2 Relais (Schließer), inkl. 2 Timer, Min/Max-Wert Anzeige, Hold Funktion, Tarierfunktion "

JUMO meroVIEW - Multifunction digital indicator with PLC function

Typ: 701553/8-00-00-00-00-00-00-42/000

  •  Version: Standard with factory settings
  •  Power supply: AC/DC 24V +10/-15% / 48 bis 63 Hz
  •  Extra code: without
  •  Option1-6: not assigned
  •  1 analogue input
  •  1 digital input
  •  1 digital input/output switchable
  •  1 relay (NO contact)
  •  2 timers
  •  Min/max display
  •  Hold function
  •  Tare function

The display series comprises four universally applicable devices in various DIN formats, which are used to display temperature, pressure and other process variables.
The devices offer user-friendly operation with a clearly structured layout and text support. Process values and parameters are displayed on two 18-segment LCD displays. Types 701552, 701553 and 701554 also have a pixel matrix LCD display for displaying texts. Additional display elements provide information about the switching positions of the outputs and certain functions such as timers. The devices are operated via a membrane keypad with 4 buttons and can also be used in demanding environments thanks to their high IP65 protection rating.
The basic equipment already includes a min/max value display, hold function, temperature function, limit value monitoring, digital control signals, extensive timer functions and a service counter. Optionally, the devices can be extended with a maths and logic function as well as with ST code functionality to realise customer-specific functions. The ST code functionality also allows direct access to the display and operating buttons, which enables customised device operation.

Inputs and outputs
Each device type is equipped with a universal analogue input that is suitable for resistance thermometers, thermocouples, current, voltage, resistance transmitters and resistance/potentiometers. Each device also has a digital input, a switchable digital input/output and two relay outputs (NO contact 3 A). The digital inputs are intended for the connection of a potential-free contact, while the digital output supplies a logic signal of 0/14 V.
The optional digital outputs with 0/14 V (not galvanically isolated) can be used, for example, to control solid-state relays. Alternatively, the optional digital outputs with 0/22 V and galvanic isolation can also be used as a voltage supply for two-wire transmitters.
Please note that certain inputs and outputs cannot be used simultaneously (see notes in the wiring diagram).

Customer-specific linearisation
Individual linearisation according to customer requirements also makes it possible to use sensor signals with special characteristics. Programming is carried out in the setup program either using your value table with up to 40 value pairs or using a formula (4th order polynomial). The device supports 2 customer-specific linearisations.

Counting inputs
The device can optionally be equipped with up to 4 counting inputs, with a maximum counting frequency of 12.5 kHz. Each counting input can be controlled either with a digital signal of 0/24 V or via a potential-free contact. The counters allow the following functions to be configured:

  •  Counting of pulses
  •  Calculation of frequency
  •  speed
  •  Speed (volume per time unit)
  •  Flow rate (volume per time unit)
In addition, individual functions can be implemented via maths functions or ST code, such as the calculation of the total flow rate (volume)

Signal assignment via selectors
The input signals and all internal signals are available in so-called selectors (analogue selector, digital selector) for further use in the device. The control signals for the outputs are also assigned via selectors, which enables flexible assignment of signals and functions.


USB interfaces
The device has a USB device interface (Micro-B socket on the rear), which is intended exclusively for connection to a PC for use with the setup programme. There is also a USB host interface (type A socket), which is located on the rear of the 108 and 104 format devices and on the side of the smaller 116 format device. This interface is intended for connecting a USB memory stick in order to carry out firmware updates, read out data loggers and transfer the device configuration.

RS485 interface
The RS485 interface is available as an option and supports the Modbus RTU protocol. It can be used in both master and slave mode.

Ethernet interface
The Ethernet interface (Modbus TCP) is optional and enables parallel communication with 2x mater or 2x slave. It is used for integration into a company network, the transfer of process values and communication with the setup programme.

PROFINET interface
The device can optionally be equipped with a PROFINET interface in order to be integrated into a PROFINET network as an IO device. A GSD file (GSDML) is available for the programming system of the IO controller, which describes the properties of the device. It should be noted that the standard Ethernet services are not supported via the PROFINET interface. If the device is equipped with the PROFINET interface, neither the Ethernet nor the RS485 interface can be used.

Power supply
The device is available in two power supply variants: AC 110 to 240 V or AC/DC 24 V (see Technical data).

Electrical connection
The electrical connection is time-saving with removable spring-loaded terminals (PushIn technology).

Min-max function
When the min-max function is activated, both the minimum and maximum values of the indicator are saved and continuously updated. These values can be displayed separately or alternating with the current value. In the alternating display (scrolling), the min/max symbol is active while either the minimum or maximum value is displayed. A binary signal can be used to reset the stored values in order to return to the current value.

Hold function
The hold function "freezes" the value of the indicator, which means that this value is displayed as long as the controlling binary signal is active.

Tare function
The tare function makes it possible to set the value of the indicator to zero, controlled by a binary signal (for weighing applications). The currently displayed value is added to the tare value each time. Another binary signal can be used to reset the tare value to zero so that the current value appears on the display again.

Limit value monitoring
The device is equipped with 8 limit value monitors, each of which has 8 configurable alarm functions. Any analogue signal is selected from a selector for monitoring, while the limit value can either be an absolute value or dependent on another analogue signal. It offers special functions such as

  •  On/off delay
  •  Wiper function
  •  Alarm suppression during the switch-on phase or in the event of parameter changes Alarm latching
  •  Latching with acknowledgement
Limit value monitoring enables a variety of alarm and limit value functions.

Digital control signals
This function enables the configuration of up to 8 digital control signals. The control signal is either formed by an AND/OR/XOR combination of up to three selectable binary signals or a single binary signal is used as an input signal and can be output as a pulsed signal, delayed signal, wiper signal or edge-triggered signal. In the latter case, the rising or falling edge of the binary signal is determined and the output signal is activated for the duration of a sampling interval. The output signal can be inverted in all these cases.

Timer
The device is also equipped with 2 timers that can be started via freely selectable digital signals or depending on an integrated tolerance band monitoring function. Lead and lag times as well as a self-hold function with acknowledgement are also available.
This makes it easy to realise a wide range of functions such as time-controlled regulation or setpoint switching.


Service counter
The service counter can either count the number of switching operations of a binary signal or measure its switch-on duration. As soon as the adjustable limit value is reached, a binary signal is activated and must be acknowledged. An operating hours counter is also available, which records the operating time of the device.

Maths and logic function
The optional maths and logic function (extra code) can be used to link analogue or binary values. Up to four freely configurable maths or logic formulas can be created using the setup program. The results are then available for further use in the analogue or digital selector.

Structured text
The "Structured text" option (extra code) allows the user to develop a customised application. This application is created using the ST editor, which is part of the setup programme, and uses the "Structured text" PLC programming language. Once completed, the application is transferred to the device and executed continuously. Online debugger functions are available in the ST editor for troubleshooting and testing.
With the setup programme, the user can also create up to 100 individual texts and have them shown on the device display by a corresponding application. These texts can be entered in four languages so that they are displayed in the respective language after changing the device language.

Data logger
The data logger enables the recording of 4 analogue and 4 binary values. The recording interval is adjustable and ranges from 1 minute to 1 hour. Recording is based on the ring memory principle, which means that older data is overwritten as soon as the memory is full. With a recording interval of 10 minutes, the data can be recorded for around 2 years before the oldest data is overwritten.
A USB memory stick on which the data is stored in CSV format is used to read out the data.

Real-time clock
The real-time clock provides the current date and time (time stamp for data logger and ST code).

Retain memory
Thanks to the integrated retain memory, specific data is retained even in the event of a power failure. This applies to the service data, the counter and timer data as well as the retain data of the ST code.

Individually configurable operating levels
The user has the option of customising the device menu to ensure a high level of operating convenience and optimum integration into the system. Four menu levels with submenus are available for this purpose. The menu items and parameters can be labelled individually in four languages, and it is possible to switch between them. The menu levels can be partially or completely locked to prevent unauthorised operation.

Setup programme
The setup programme is essential for commissioning the device and is available to download free of charge. In addition to the individual set-up of the operating levels, whose parameters can subsequently be edited in the device, the setup programme offers the user a simple and user-friendly method of configuring the device using a PC.
With the setup programme, data records can be created, edited, transferred to the device and read out from there. The data can be saved and printed out. The programme also allows the user to easily create and print out a connection diagram showing the current terminal assignment of the device.
Startup: The startup function enables the recording of process variables during commissioning for a maximum of 24 hours. The recorded diagrams are available on the PC and can be used for system documentation, for example.
Online data: The current process variables of the device are displayed in a separate window.

Firmware update
The device's firmware can be updated in a user-friendly way using a USB memory stick; the file is provided by the manufacturer if required.

Dimensions

Weight

Other attributes

Customs tariff number 90303370
Spannungsversorgung AC/DC 24V +10/-15% / 48 bis 63 Hz
Technical data:

Analog Input

Thermocouples

Designation

Typ

Norm

ITS

Measuring range

Accuracy

Fe-CuNi

„L“

DIN 43710 (1985)

IPTS-68

-200 to +900 C

£ 0,25 %

Fe-CuNi

„J“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-210 to +1200 °C

£ 0,25 % off -100 °C

Cu-CuNi

„U“

DIN 43710 (1985)

IPTS-68

-200 to +600 °C

£ 0,25 % off -100 °C

Cu-CuNi

„T“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-270 to +400 °C

£ 0,25 % off -150 °C

NiCr-Ni

„K“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-270 to +1300 °C

£ 0,25 % off -80 °C

NiCr-CuNi

„E“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-270 to +1000 °C

£ 0,25 % off -80 °C

NiCrSi-NiSi

„N“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-270 to +1300 °C

£ 0,25 % off -80 °C

Pt10Rh-Pt

„S“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-50 to +1768 °C

£ 0,4 % off 20 °C

Pt13Rh-Pt

„R“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-50 to +1768 °C

£ 0,25 % off 50 °C

Pt30Rh-Pt6Rh

„B“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

-50 to +1820 °C

£ 0,25 % off 400 °C

W5Re-W26Re

„C“

DIN EN 60584-1:2014

IEC 60584-1:2013

ITS-90

0 to 2315 °C

£ 0,25 % off 500 °C

W3Re-W25Re

„D“

ASTM E1751M-15

ITS-90

0 to 2315 °C

£ 0,25 % off 500 °C

W5Re-W20Re

„A1“

GOST R 8.585-2001

ITS-90

0 to 2500 °C

£ 0,25 % off 500 °C

Chromel®-Copel

„L“

GOST R 8.585-2001

ITS-90

-200 to +800 °C

£ 0,25 % off -80 °C

Chromel®-Alumel®

„K“

GOST R 8.585-2001

ITS-90

-270 to +1300 °C

£ 0,25 % off -80 °C

a  Accuracy refers to the measurement range.



Ambient temperature influence

£ 100 ppm/K

Comparison agency

internal or external (constant)

Comparison point temperature (ex- tern)

0 to 100 °C (adjustable)

Sampling cycle

150 ms

Eingangsfilter

2nd order digital filter; Filter constant adjustable from 0 to 100.0 s



Resistance thermometer

Designation

Norm

ITS

Connection type

Measuring range

Accuracy

Measuring current

Pt100

DIN EN 60751:2009

IEC 60751:2008

ITS-90

2-Ladder

-200 to +850 °C

£ 0,2 %

500 mA

3- Ladder

-200 to +850 °C

£ 0,1 %

500 mA

Pt1000

DIN EN 60751:2009

IEC 60751:2008

ITS-90

2-/3- Ladder

-200 to +850 °C

£ 0,1 %

50 mA

Pt100

GOST 6651-2009 A.2

ITS-90

2- Ladder

-200 to +850 °C

£ 0,2 %

500 mA

3- Ladder

-200 to +850 °C

£ 0,1 %

500 mA

KTY





2- Ladder

-53 to +153 °C

£ 2,0 %

50 mA

a  Accuracy refers to the measurement range.



Ambient temperature influence

£ 50 ppm/K

Sensor Line Resistance

max. 30 W je Line

Sampling cycle

150 ms

Speeds

2nd order digital filter; Filter constant adjustable from 0 to 100.0 s



Resistance Potentiometer/WFG and Resistance/Potentiometer



Designation

Measuring range

Accuracya

Measuring current

Widerstandspotenziometer/WFG

0 bis 4000 W

£ 0,1 %

50 mA

Widerstand/Poti

0 to 400 W

0 to 4000 W

£ 0,1 %

£ 0,1 %

500 mA

50 mA

a Accuracy refers to the maximum measurement range. At small measuring spans, the linearization accuracy is reduced.



Ambient temperature influence

£ 100 ppm/K

Anschlussart



Resistance Potentiometer/

Three-wire circuit

WFG



Widerstand/Poti

Two-/three-wire circuit

Sensor Line Resistance

max. 30 W per line

Sampling cycle

150 ms

Speeds

2nd order digital filter; Filter constant adjustable from 0 to 100.0 s

Voltage, current (unit signals)



Designation

Measuring range

Accuracy

Input resistance or load voltage

Voltage

0 to 10 V

£ 0,1 %

>  500 kW

2 to 10 V

£ 0,1 %

>  500 kW

Current

4 to 20 mA

£ 0,1 %

< 2,5 V

0 to 20 mA

£ 0,1 %

< 2,5 V

a Accuracy refers to the maximum measurement range. At small measuring spans, the linearization accuracy is reduced.



Ambient temperature influence

£ 100 ppm/K

Measuring range under/exceeding

according to NAMUR recommendation NE 43 (only current input 4 to 20 mA)

Sampling cycle

150 ms

Speeds

2nd order digital filter; Filter constant adjustable from 0 to 100.0 s

Measuring Circuit Monitoring

The behavior of the device in the event of a fault is configurable.



Transmitter

Measuring range below

Exceeding the measuring range

Short circuit (sensor/line)

Bruch (Fühler/Lei- tung)

Reverse polarity

Widerstandsthermo- meter

++

++

++

++

---

Widerstand/Poti

---

++

---

++

---

Widerstandspotenzio- meter/WFG

---

++

(+)a

(+)b

---

Thermoelement

++

++

---

++

(+)c

Strom 0 to 20 mA

---

++

---

---

---

Strom 4 to 20 mA

++

++

++

++

++

Spannung 0 to 10 V

---

++

---

---

++

Spannung 2 to 10 V

++

++

++

++

++

++ = is detected                                                                   --- = is not recognized                                                        (+) = is conditionally recognized

a  is not recognized in all combinations

b  Break in the measurement current path is not detected

c  depending on the set characteristic curve



Digital Inputs



Input for potential-free contact

Function



Sampling cycle



Contact closed: Input is active (RON < 1 kΩ)

Contact open: Receipt is inactive (ROFF > 50 kΩ)

150 ms

Analogoutput



Voltage

Ausgangssignal Lastwiderstand



DC 0(2) to

Output Signal Load Resistance 10 V

> 500

Current

Output Signal Load Resistance



DC 0(4) bis 20 mA

< 450

Accuracy

 0,5 %

Ambient temperature influence

 150 ppm/K

Digital Outputs



Relay (NO contact)

Switching capacity contact life



max. 3 A bei AC 230 V or DC 30 V, ohmsche Last

150.000 Circuits at Rated Load

350.000 Circuits at 1 A

Relays (NO contacts) with longer contact life

Schaltleistung Kontaktlebensdauer





max. 3 A bei AC 230 V, ohmsche Last

300.000 Schaltungen bei Nennlast

1.500.000 Schaltungen bei 1 A

Logic Output

Output

Strom



DC 0/14 V ±15 %

max. 20 mA per output (at nominal voltage 14 V)

PhotoMOS®-Relaisa

Switching capacity



max. 200 mA at AC 30 V or DC 45 V; not short-circuit proof

a PhotoMOS is a registered trademark of Panasonic Corporation.



Interfaces



USB-Device



Plug Type

Micro-B (Buchse)

Standard

Low-Speed, Full-Speed

Max. cable length

5 m

RS485



Baudrate

9600, 19200, 38400, 115200

Data format

8/1n, 8/1e, 8/1o, 8/2n

Protocol

Modbus-RTU as Slave

Ethernet



Plug Type

RJ45 (Buchse)

Übertragungsrate

10 Mbit/s, 100 Mbit/s

Protocol

TCP/IP, DHCP; Modbus-TCP, Modbus-RTU/ASCII über TCP, als Slave



Display



18-segment LCD displays

Digit height

obere Anzeige:

bottom display:

Typ 701510 (Format 132)

7,2 mm

3,8 mm

Typ 701511 (Format 116)

12,3 mm

5,9 mm

Typ 701512 (Format 108H)

11,5 mm

8,5 mm

Typ 701513 (Format 108Q)

16,5 mm

9 mm

Typ 701514 (Format 104)

24,8 mm

12 mm

Color

top display: white; Bottom display: green

Digits incl. decimal places

top display: 4; bottom display: 4 (5 for type 701510, 8 for type 701511)

Decimal places

0, 1, 2, 3 or automatically (configurable)



Pixel matrix LCD display (701512, 701513, and 701514 types only)

Pixel Fields



Typ 701512 (Format 108H)

2 rows of 9 pixel fields each

Typ 701513 (Format 108Q)

2 rows of 8 pixel fields each

Typ 701514 (Format 104)

2 rows of 11 pixel fields each

Pixelanzahl is Feld

8 x 5

Color

weiß

Electric Dating



Spannungsversorgung Variante 1

Variante 2

(see nameplate)

AC 110 to 240 V +10/-15 %, 48 to 63 Hz

AC/DC 20 to 30V, 48 to 63Hz

Electrical safety

according to DIN EN 61010, Part 1; Overvoltage category II up to 300 V mains voltage, contamination grade 2

Class

I with internal separation to SELV

Power consumption

at AC 110 to 240 V:

for AC/DC 20 to 30 V:

Typ 701510 (Format 132)

max. 3,5 W

max. 3,0 W

Typ 701511 (Format 116)

max. 4,1 W

max. 3,7 W

Typen 701512, 701513

(Formate 108H, 108Q)

max. 5,8 W

max. 5,7 W

Typ 701514 (Format 104)

max. 6,6 W

max. 6,7 W

Electrical connection

on the back via spring-loaded clamps (push-in technology)

Conductor cross-section



Wire or stranded wire

min. 0,2 mm2, max. 1,5 mm2

(without ferrule)



Stranded wire with ferrule

without plastic collar: min. 0,2 mm2, max. 1,5 mm2



mit Kunststoffkragen: min. 0,2 mm2, max. 0,75 mm2

Stripping length

8 mm

Umwelteinflüsse



Ambient temperature range

Storage

Operation



-30 to +70 °C

-10 to +55 °C

Installation height

max. 2000 m above NN

Climatic environmental conditions Climate resistance

Storage

according to DIN EN 60721-3 with extended temperature range

£ 90 % relative humidity without condensation after class 1K2

Operation

after class 3K3



Mechanical environmental conditions Storage

Transport

Operation

according to DIN EN 60721-3

according to class 1M2

by class 2M2

according to class 3M3

Electromagnetic compatibility (EMV) Emission

Stability

according to DIN EN 61326-1

Class A - for industrial use only - Industry Requirement

Gehäuse



Housing type

Plastic enclosures for panel installation in accordance with DIN IEC 61554 (use indoors))

Cabinet front

made of plastic with membrane keypad

Panel thickness

1 to 10 mm

Housing Mounting

in the control panel using the supplied mounting frame or the two fastening elements

Usage position

Any a

Protection

according to DIN EN 60529, front IP65, rear IP20

Gewicht



Typ 701510 (Format 132)

max. 85 g

Typ 701511 (Format 116)

max. 120 g

Typ 701512 (Format 108H)

max. 160 g

Typ 701513 (Format 108Q)

max. 160 g

Typ 701514 (Format 104)

max. 220 g

a The maximum permissible ambient temperature only applies to installation with vertical orientation of the display.



Approvals and test marks



Mark

Checkpoint

Certificates/Test Numbers

Test basis

Applies to

c UL us

Underwriters Laboratories

E201387

UL 61010-1 (3. Ed.),

CAN/CSA-22.2 No. 61010-1

(3. Ed.)

all versions

DNV GL

DNV GL

TAA00001B3

Class Guideline DNVGL-CG-0339

Typ 701511 (DC 20 bis 30 V)

and Type 701514 (AC 110 to 240 V), without Ethernet interface, panel mounting

BUREAU VERITAS

Bureau Veritas

53627/A0 BV

Bureau Veritas Rules for the Classification of Steel Ships

The device has approval if the relevant test mark is shown on the device.
