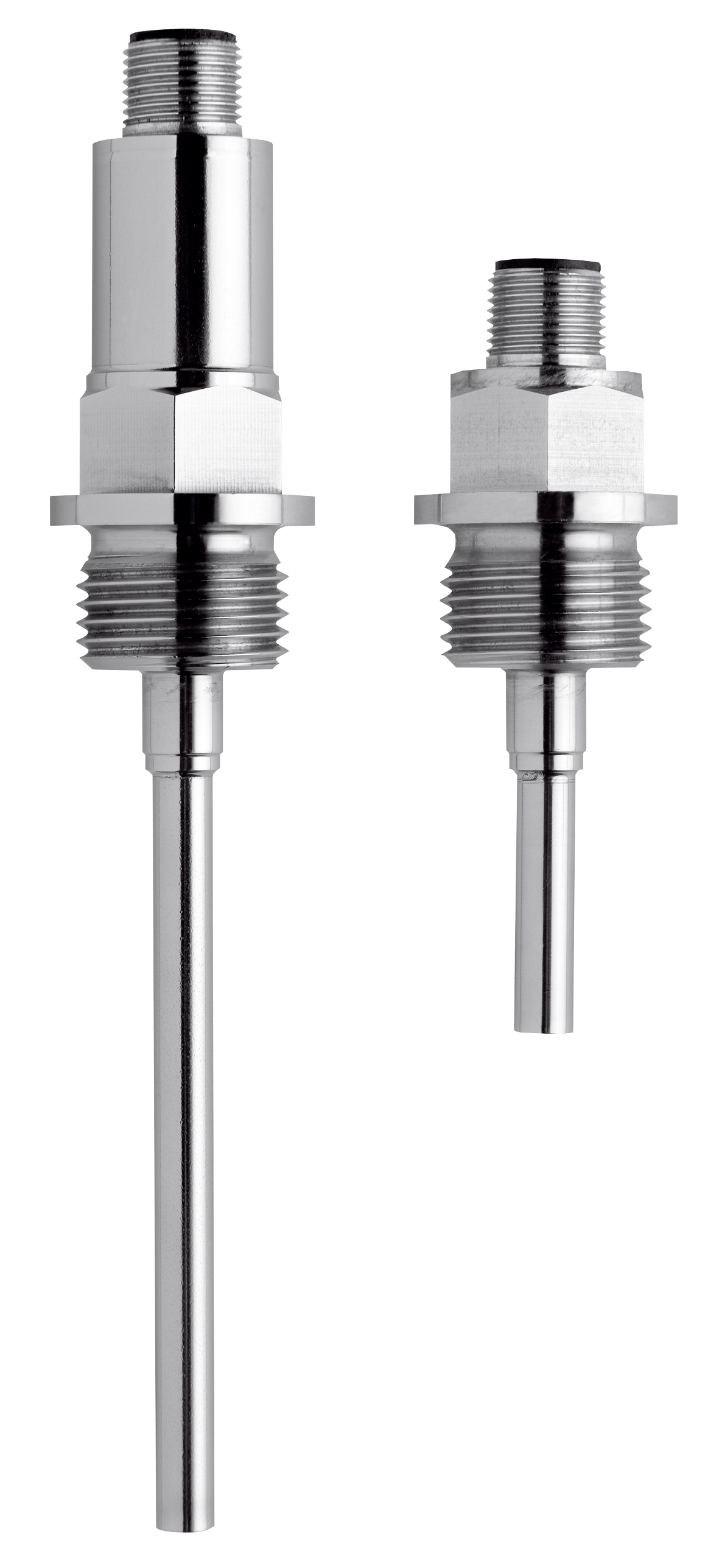

JUMO screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connection

Product number: 802039
Product information "JUMO screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connection"

UMO Dtrans T100 screw-in RTD temperature probe with programmable transmitter, M12 x 1 machine plug connection

Type: 902815/20-370-1013-2-6-150-000-24/000

  • Measuring range from -50 to + 150 °C
  • 1x Pt1000 in four-wire circuit
  • Tolerance class: Class A
  • Thermowell diameter: 6 mm
  • Installation length: 150 mm
  • Process connection: without
  • Thermowell material: Stainless steel 316 L (material no. 1.4404/1.4435)
  • EU and China RoHS compliant
  • Extra code: without
  • M12 x 1 push-on connector; protection class IP67 to DIN EN 60529 with attached machine plug
  • USB interface for configuration with setup programme

The screw-in resistance thermometer in a compact design consists of a thermowell with built-in temperature sensor, a process connection and a housing for the transmitter electronics. The programmable two-wire transmitter offers a robust solution for the precise recording of temperatures in a temperature measuring range of -50 to + 150°C, with a neck tube up to 260°C and is therefore versatile in use. The device has a USB interface that enables simple configuration via a setup programme. With the help of this programme, parameters such as measuring range, fine adjustment and measuring circuit monitoring can be adjusted to meet the requirements of different applications.

The output signal 4 to 20 mA or reversed 20 to 4 mA is available linearised (temperature linear). The device is intended for industrial use and complies with European standards to ensure electromagnetic compatibility (EMC).

Other attributes

Customs tariff number 90251900
Einbaulänge in mm 150 mm
Messeinsatz 1x Pt 1000 Vierleiterschaltung
Prozessanschluss Verschraubung ohne
Temperaturbereich -50°C ... +150°C
Technical data

Electrical connection:

Machine connector M12 × 1, 4-pin according to IEC 60947-5-2

Process connections:

G 3/8" threaded connection

G 1/2" screw connection

G 1/2" screw connection with CIP-compliant sealing cone

G 1/2" screw connection with CIP-compliant PEEK sealing cone Conical connection with union nut (milk pipe screw connection) Clamp DIN 32676

Ball weld-in socket with compression fitting

Weld-in socket with CIP-compliant sealing cone

VARIVENT®a connections*

JUMO PEKA ball welding socket - Hygienic process connection

Thermowells:

Stainless steel 316 L, material no. 1.4404/1.4435 Stainless steel 316 Ti, material no. 1.4571 (on request)

Protection class:

IP67 to DIN EN 60529 with plug-in machine connector

Response times:

Protection tube standard t0.5 = 5 s; t0.9 = 12 s; in water 0.4 m/s Protection tube remote t0.5 = 2 s; t0.9 = 5 s; in water 0.4 m/s Protection tube standard t0.5 = 40 s; t0.9 = 110 s; in air 3.0 m/s Protection tube lowered t0.5 = 21 s; t0.9 = 70 s; in air 3.0 m/s

Flush-mounted sensor PA 387 t0.5 = 140 s; t0.9 = 380 s; in air 3.0 m/s Flush-mounted sensor PA 388 t0.5 = 0.7 s; t0.9 = 6 s; in water 0.4 m/s
