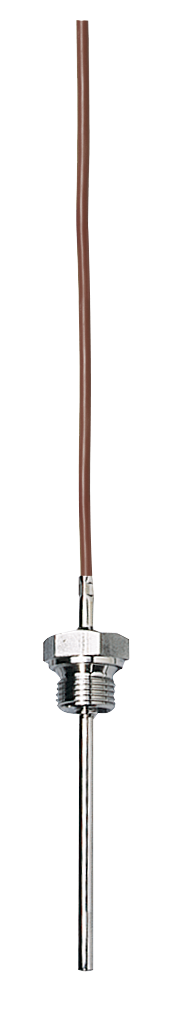

JUMO screw-in resistance thermometer with connection cable and loose screw connection
€135.90*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "JUMO screw-in resistance thermometer with connection cable and loose screw connection"
JUMO Screw-in Resistance Thermometer with Pt100 in Three-wire Circuit, M10x1 Process Connection and Shielded Version for Compact Measuring Points and High Temperatures up to +400 °C.
JUMO Screw-in Resistance Thermometer with Connection Cable and Loose Screw Connection, Type: 902050/20-402-1001-1-6-37-114-11-2500/315,317
This JUMO screw-in resistance thermometer is designed for precise temperature measurement in liquid and gaseous media. In this version, it is equipped with 1x Pt100 in a three-wire circuit, a metal braided connection cable, loose screw connection, 6 mm thermowell diameter, 37 mm installation length and M10x1 process connection. This makes the version particularly suitable for compact measuring points and applications with increased temperature requirements.
Technical data
- Version: Screw-in resistance thermometer with connection cable and loose screw connection
- Measuring insert: 1x Pt100
- Circuit type: Three-wire circuit
- Tolerance class: Class B according to DIN EN 60751
- Connection cable: Metal braid
- Temperature range: -50 to +400 °C
- Thermowell diameter: 6 mm
- Installation length: 37 mm
- Process connection: M10x1
- Connection cable end: Ferrules according to DIN 46228 Part 4
- Connection cable length: 2500 mm
- Type additions: Kink protection spring, shielded connection cable
Typical areas of application
- Air conditioning and refrigeration technology
- Heating engineering, furnace construction and apparatus engineering
- Wherever temperature measurements are required in pipelines, tanks, machines and technical systems
- In compact measuring points in liquid and gaseous media
Special features and advantages of this JUMO screw-in resistance thermometer
An advantage of this version lies in the combination of compact design and high temperature resistance. The metal braided connection cable is designed for temperatures from -50 to +400 °C and is therefore suitable for applications where standard cables are not sufficient. In addition, the shielded connection cable supports interference-free signal transmission, which can be particularly advantageous in technical and industrial environments.
The mechanical design is also tailored for practical use. The loose screw connection allows flexible adjustment during installation, while the M10x1 process connection and the installation length of 37 mm make this version particularly interesting for smaller or confined measuring points. This allows the thermometer to be integrated well into technical systems where temperatures must be monitored permanently.
The additional type addition with kink protection spring relieves strain on the cable transition and makes this version even more robust under mechanical stress. Especially in applications where movement, tension or frequent handling play a role, this is a practical advantage.
Why should you choose this version from JUMO?
This version is a good choice when precise Pt100 temperature measurement with improved compensation of line influences is required. The Pt100 used according to DIN EN 60751, Class B, is one of the proven standards in temperature measurement technology and is suitable for many typical measuring tasks. The three-wire circuit offers advantages when measured values need to be recorded more accurately than with a simple two-wire circuit.
Type: 902050/20-402-1001-1-6-37-114-11-2500/315,317
Dimensions
| Height | 1 cm |
|---|---|
| Length | 20 cm |
| Width | 18 cm |
Weight
| Weight | 92 g |
|---|
Other attributes
| Anschlussleitung | Metallgeflecht |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90251900 |
| Einbaulänge in mm | 37 mm |
| Messeinsatz | 1x Pt 100 Dreileiterschaltung |
| Prozessanschluss Verschraubung | M10x1 |
| Temperaturbereich | -50°C ... +400°C |
| Verschraubung | Lose Verschraubung |
| Feature | Description |
|---|---|
| Connection |
Stripped bare wire ends, with wire end ferrules, available with receptacle connectors or multi-pin connector |
| Connection cable |
PVC, Ambient temperature -5 ... +80 °C (+105 °C) Silicone, ambient temperature -50 ... +180 °C PTFE, Ambient temperature -190 ... +260 °C Metal braid, Ambient temperature -50 ... +350 °C Connection cable optionally available in shielded version. |
| Process connection | Thread, stainless steel 1.4571 |
| Protective tube |
stainless steel 1.4571 (Typ 902050/30 Inconel 2.4816), Ø 5 mm, Ø 5,4 mm, Ø 6 mm und Ø 8 mm |
| Measuring insert | Pt 100 temperature sensor, DIN EN 60751, class B, two-wire configuration |
| Response times | t0,5 ca. 2 s, t0,9 ca. 6 s, in water 0,2 m/s, Ø 6 mm |
| Accessories | Protective sleeve, see data sheet 90.9721 and 90.2440 |
