| Width | 20 cm |
| Height | 5 cm |
| Length | 5 cm |
| Weight | 0,2 kg |
| Country of origin | DE |
| Customs tariff number | 90278930 |

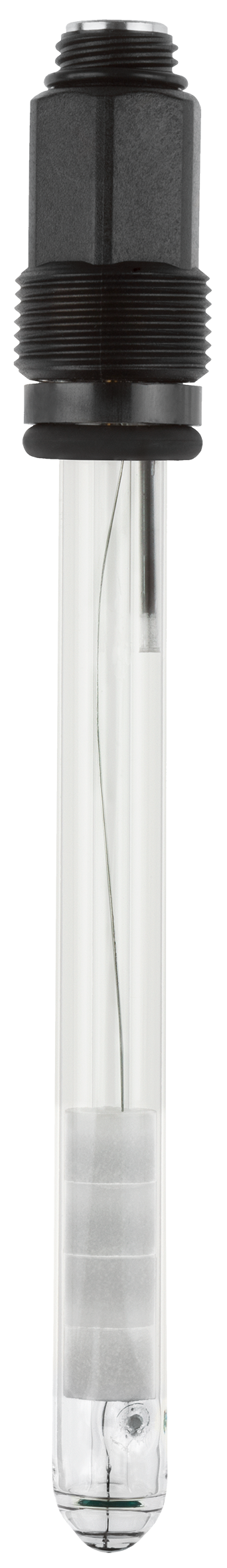

JUMO tecLine redox electrode (glass shaft, gold tip, 1x zirconium dioxide, Pg13.5 screw head, 120mm, salt reserve)
| Quantity | Unit price |
|---|---|
| To 4 |
€315.90
|
| To 9 |
€300.11
|
| To 14 |
€284.31
|
| To 19 |
€268.52
|
| From 20 |
€262.20
|
Payment methods
Request individual offer (from 5 pcs.)
For larger order quantities, we will be happy to prepare an individual offer for you.
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Delivery & Shipping
- Standard shipping: 3–5 business days within Germany
- Express shipping available on request
- International delivery to EU and Switzerland
- No shipment of Heyl products to Spain, France and Portugal
- Dangerous goods shipping according to ADR regulations
- 3% online discount on HEYL, HORIBA, JUMO and MILWAUKEE products
Personal consultation
Our experts will be happy to advise you on water treatment, measurement technology and sterile processing.
Technical consulting for industry, laboratory and building technology — your specialist for water analysis and process water treatment.
Contact formQuick info
| Width | 20 cm |
| Height | 5 cm |
| Length | 5 cm |
| Weight | 0,2 kg |
| Country of origin | DE |
| Customs tariff number | 90278930 |
Product information "JUMO tecLine redox electrode (glass shaft, gold tip, 1x zirconium dioxide, Pg13.5 screw head, 120mm, salt reserve)"
If you are looking for a redox electrode for process and industrial applications and value a gold tip, a zirconium dioxide diaphragm, the Pg13.5 screw head (S8), and a salt reserve, this JUMO tecLine version is an excellent choice.
JUMO tecLine redox electrode with glass shaft, gold tip, 1x zirconium dioxide, Pg13.5 screw head (S8), 120 mm, and salt reserve (Order code: 201025/51-32-07-22-120/837)
This JUMO redox electrode is designed for reliable redox measurements in water and aqueous media. It is particularly suitable for process and industrial applications where a robust and permanently usable electrode is required. Thanks to the combination of glass shaft, gold tip, zirconium dioxide diaphragm, Pg13.5 screw head (S8), 120 mm installation length, and salt reserve, this version is tailored for professional use in industrial environments.
Technical data
- Basic type: Glass shaft
- Active part: Gold tip
- Diaphragm: 1x zirconium dioxide
- Electrical connection to electrode: Pg13.5 screw head (S8)
- Installation length: 120 mm
- Additional features: Salt reserve
Advantages and special features of the JUMO tecLine redox electrode
A key advantage of this version lies in its high-quality design for use in more demanding process environments. The gold tip makes this electrode particularly suitable for applications where appropriate redox measurement technology is required for specific process conditions. Especially in industrial applications, it is important that the electrode not only measures reliably but is also designed for regular use at the measuring point. This version is specifically intended for such requirements.
Why should you choose this JUMO electrode?
This version is particularly useful when a high-quality industrial electrode for process and industrial applications is required. The glass shaft represents a proven design in industrial environments, while the zirconium dioxide diaphragm ensures a robust and process-suitable construction. The additional salt reserve can help extend the service life of the electrode, which can be a practical advantage during continuous operation. This makes the version particularly suitable for users looking for a durable and long-lasting solution for their redox measurements.
The connection side is also designed for professional use. The Pg13.5 screw head (S8) enables a suitable connection to compatible measuring technology. With an installation length of 120 mm, this redox electrode is suitable for many common measuring points. Together with the high-quality design, this results in an electrode intended for reliable operation in typical process and industrial applications.
Typical areas of application
- General process and industrial applications
- Monitoring of redox values in water and aqueous media
- Measuring points where a robust and process-suitable design is required
Order code: 201025/51-32-07-22-120/837
JUMO order code:
A JUMO order code uniquely identifies a specific measuring instrument or component based on its configuration.
You will find the exact JUMO order code for your instrument configuration in the relevant data sheet from page 5 onwards. This can be found under ‘Downloads’ for the product.
| Membrane glass or active element | Designation | pH and redox range | Temperature range | Typical applications |
|---|---|---|---|---|
| UW glass | universal glass | pH 0 ... 12 (briefly pH 14) |
-5 ... +80 °C |
water and wastewater engineering, process instrumentation, low-ion media |
| HA-glass | high-alkali glass | pH 0 ... 14 | -5 ... +80 °C | In strongly alkaline media (above pH 12) |
| HT-glass | high-temperature glass | pH 0 ... 14 | 0 ... +135 °C |
At temperatures above 80 °C or in strongly alkaline media |
| DS-glass | steam-sterilisable glass | pH 0 ... 12 |
-5 ... +80 °C for short periods up to 130 °C (20 min) |
biotechnology, pharmaceutical and food technology, sterilisation processes |
| C-glass | fluoride-resistant glass | pH 0 ... 11 | -5 ... +50 °C |
fluoride-containing (hydrofluoric acid-containing) media c(HF) ≤ 1000 mg/l |
| platinum tip | redox measurement | ±2000 mV | -10 ... +135 °C |
chromate reduction, nitrite oxidation, swimming pool and drinking water disinfection |
| gold tip | redox measurement | ±2000 mV | -10 ... +135 °C |
cyanide oxidation, water disinfection |
| Diaphragm type | Description | Possible electrolytes | Recommended minimum conductivity of the measuring medium | Typical applications / limitations |
|---|---|---|---|---|
| 1× Ceramic diaphragm | High-quality zirconium dioxide diaphragma | Polymerised solid electrolyte |
Without salt reservoir: 100 µS/cm With salt reservoir: 50 µS/cm |
General water and wastewater engineering, industrial processes, etc. |
| liquid KCl (potassium chloride) | 5 µS/cm | |||
| 3× Ceramic diaphragm | As above, with increased KCl outflow due to a higher number of outlets | Polymerised solid electrolyte |
Without salt reservoir: 50 µS/cm With salt reservoir: < 50 µS/cm |
In contaminated or low-ion media; low-temperature applications |
| liquid KCl (potassium chloride) | 0,1 µS/cm | |||
| Glass fibre diaphragm | Glass fibre bundle instead of a ceramic diaphragm for electrodes with a plastic shaft | Polymerised solid electrolyte |
Without salt reservoir: 150 µS/cm With salt reservoir: 100 µS/cm |
General water and wastewater engineering (slightly contaminated media) |
| PTFE ring diaphragm | Large-area ring diaphragm | Polymerised solid electrolyte |
Without salt reservoir: 100 µS/cm With salt reservoir: 50 µS/cm |
Only if it is very dirty or e. g. oily, sticky substances |
| Annular gap or perforated diaphragm | Open interface between the solid electrolyte and the medium, arranged in a ring-shaped or point-shaped design | Polymerised solid electrolyte |
Without salt reservoir: 500 µS/cm With salt reservoir: 500 µS/cm |
Suspensions, paints, media containing solids,
heavily contaminated media; not suitable for very pure drinking water or low-ion media |
a High-quality ceramic material with consistent porosity, resulting in optimal diffusion properties.
