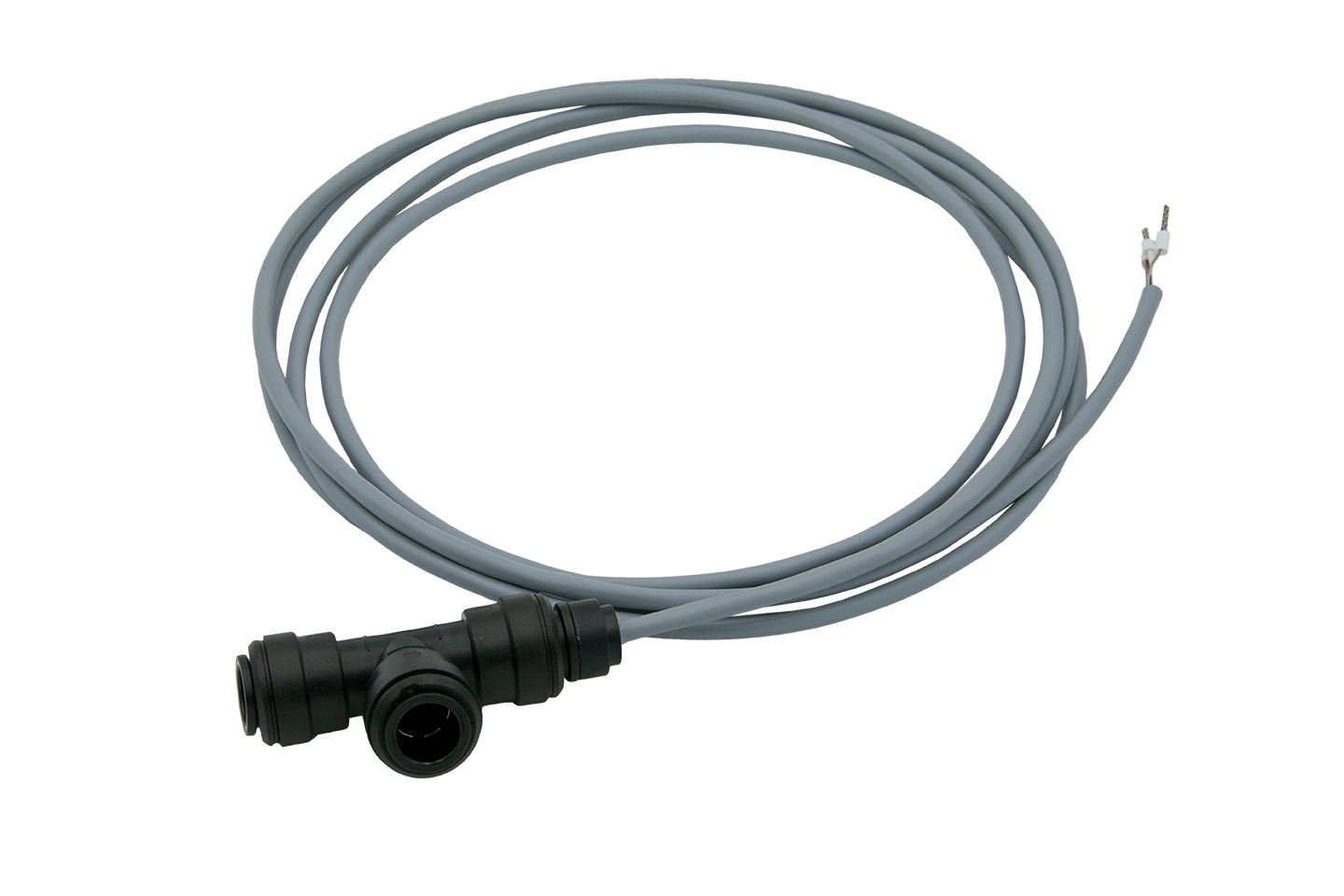

Product information "LF measuring cell, C=0.1 with 12mm connection"
Our Neomeris conductivity cell with 12mm connection is used for the determination of the electrical conductivity in aqueous solutions.
Inside the T-piece is the two-electrode measuring cell without temperature compensation. The installation is easy and fast due to the John Guest connectors.
We recommend the use of the product in the fields of distillate, condensate, ultrapure water as well as fully demineralized water.
Material Housing: POM T-piece John Guest ½"
Material electrodes: V4A 4571
Cell constant: C = 0.1 +-5%
Max. operating pressure: 6 bar
Max. operating temperature: 60°C
- brown electrode, outer sheath
- white Electrode, inside
- blue: shield
Cable length: 2.5 meters
