If you are looking for a conductive 2-electrode conductivity sensor for typical water and industrial applications and value K = 0.1, integrated Pt100, G 3/4" A threaded connection, PVC body, and stainless steel 1.4571, this JUMO ecoLine CR-PVC version is an excellent choice. JUMO ecoLine CR-PVC conductivity sensor with cell constant K = 0.1, Pt100, threaded connection G 3/4" A, PVC body, and stainless steel 1.4571 cell material This CR-PVC conductivity sensor is designed for conductive conductivity measurement in water and process applications. It operates according to the proven 2-electrode principle and is particularly suitable for applications where reliable conductivity measurement in the low measuring range is required. Thanks to the design with cell constant K = 0.1, integrated Pt100, threaded connection G 3/4" A, PVC body, and stainless steel 1.4571 cell material, this version is tailored to typical tasks in water technology and industrial circulation systems. Technical data Measurement principle: Conductive 2-electrode conductivity sensor Cell constant: K = 0.1 Typical measuring range: 0 ... 1.0 mS/cm Temperature compensation: with Pt100 Process connection: Threaded connection G 3/4" A Body material: PVC Cell material: Stainless steel 1.4571 Operating temperature: up to 55 °C Maximum pressure: 6 bar at 25 °C Advantages and special features of the JUMO ecoLine A key advantage of this version lies in its suitability for measuring ranges up to 1.0 mS/cm. This makes it particularly interesting for applications in which lower conductivity values must be measured precisely. In the stainless steel version with K = 0.1, the sensor has three metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor, while the central stainless steel pin serves as the counter electrode. According to your information, this design achieves high measurement precision and low stray fields. This makes the version particularly attractive for users who value clean and stable measurements. Why should you choose this conductivity sensor from JUMO? This version is particularly useful when a proven solution for industrial use is required that can measure not only conductivity but also temperature directly. The integrated Pt100 enables simultaneous measurement of the medium temperature, which is a clear advantage for temperature compensation in downstream measuring amplifiers. This is especially practical in applications where conductivity must be considered temperature-dependent. The PVC body limits use to medium temperatures up to 55 °C but offers a proven design for many typical water and process applications. The mechanical integration is also designed for practical use. The threaded connection G 3/4" A is one of the common connection sizes and is suitable for many standard installation situations. The sensor is designed for a maximum pressure of 6 bar at 25 °C and is therefore suitable for numerous industrial applications. Together with stainless steel 1.4571 as the cell material, this results in a robust and proven design for everyday use. Typical areas of application Areas of application include general water technology, cooling and air-conditioning technology, drinking and bathing water systems, as well as industrial rinsing and process water circuits. Wherever conductivity in the lower measuring range must be monitored reliably, this version is particularly interesting. Thanks to the combination of K = 0.1 and Pt100, the sensor is especially suitable for applications requiring precise conductivity measurement and simultaneous temperature detection.
If you are looking for a conductive 2-electrode conductivity sensor for typical water and industrial applications and value K = 0.1, integrated Pt100, PVC stepped collar Ø32/DN25, PVC body, and stainless steel 1.4571, this JUMO ecoLine CR-PVC version is an excellent choice. JUMO ecoLine CR-PVC conductivity sensor with cell constant K = 0.1, Pt100, PVC stepped collar Ø32/DN25, PVC body, and stainless steel 1.4571 cell material This JUMO ecoLine CR-PVC conductivity sensor is designed for conductive conductivity measurement in water and process applications. It operates according to the proven 2-electrode principle and is particularly suitable for applications where lower conductivity values must be measured reliably and precisely. Thanks to the design with cell constant K = 0.1, integrated Pt100, PVC stepped collar Ø32/DN25, PVC body, and stainless steel 1.4571 cell material, this version is tailored to typical tasks in water technology and industrial circulation systems. Technical data Measurement principle: Conductive 2-electrode conductivity sensor Cell constant: K = 0.1 Typical measuring range: 0 ... 1.0 mS/cm Temperature compensation: with Pt100 Process connection: PVC stepped collar Ø32/DN25 Body material: PVC Cell material: Stainless steel 1.4571 Operating temperature: up to 55 °C Maximum pressure: 6 bar at 25 °C Special features and advantages of the JUMO ecoLine A key advantage of this version lies in its suitability for measuring ranges up to 1.0 mS/cm. This makes it particularly interesting for applications where low conductivity values must be monitored reliably. In the stainless steel version with K = 0.1, the sensor has three metallic pin electrodes. The two outer pins are electrically connected and form one pole of the 2-electrode conductivity sensor, while the central stainless steel pin serves as the counter electrode. This design achieves high measurement precision and low stray fields. This makes the version particularly attractive for users who value stable and clean measurement values. The integration into the measuring point is also designed for practical use. The plug-in version with PVC stepped collar Ø32/DN25 is intended for use with suitable PVC T-pieces and allows quick removal of the sensor for cleaning or maintenance. This is a clear advantage during operation when the sensor needs to be removed without great effort. Together with stainless steel 1.4571 as the cell material, this results in a robust and proven design for everyday use. Why should you choose this conductivity sensor from JUMO? This version is particularly useful when a proven solution for industrial use is required that can measure not only conductivity but also temperature directly. The integrated Pt100 enables simultaneous measurement of the medium temperature, which is a clear advantage for temperature compensation in downstream measuring amplifiers. This is especially practical in applications where conductivity must be evaluated depending on temperature. The PVC body limits use to medium temperatures up to 55 °C and offers a proven design for many typical water and process applications. Typical areas of application Water technology Cooling and air-conditioning technology Drinking and bathing water systems as well as industrial rinsing and process water circuits This sensor is used wherever conductivity in the lower measuring range must be monitored reliably. Thanks to the combination of K = 0.1, Pt100, and the plug-in installation design, the sensor is especially suitable for applications requiring precise conductivity measurement, temperature detection, and easy maintenance.

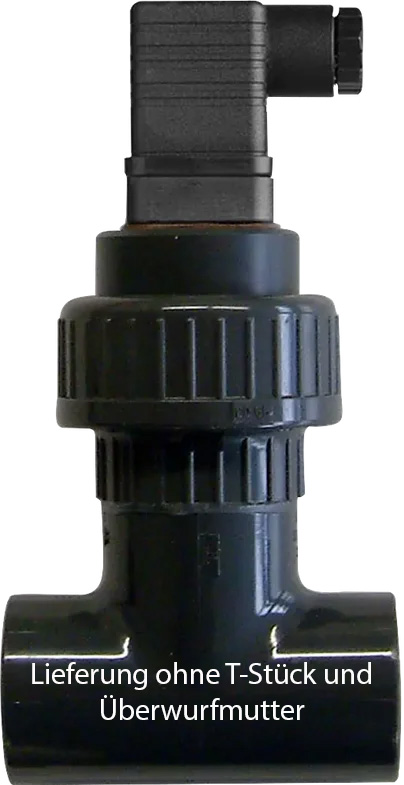

If you are looking for a conductive 2-electrode conductivity sensor for typical water and industrial applications and value K = 1.0, integrated Pt100, PVC stepped collar Ø32/DN25, PVC body, and graphite, this JUMO ecoLine CR-PVC version is an excellent choice. JUMO ecoLine CR-PVC conductivity sensor with cell constant K = 1.0, Pt100, PVC stepped collar Ø32/DN25, PVC body, and graphite cell material This JUMO ecoLine CR-PVC conductivity sensor is designed for conductive conductivity measurement in water and process applications. It operates according to the proven 2-electrode principle and is particularly suitable for applications where conductivity values in an extended measuring range must be measured reliably. Thanks to the design with cell constant K = 1.0, integrated Pt100, PVC stepped collar Ø32/DN25, PVC body, and graphite as the cell material, this version is tailored to typical tasks in water technology and industrial circulation systems. Special features and advantages of the JUMO ecoLine A key advantage of this version lies in its typical measuring range from 0.01 to 15 mS/cm. This makes it particularly interesting for applications where higher conductivity values must be monitored reliably. In this version, graphite is used as the electrode material. The graphite electrodes are fully integrated into the electrode shaft and are especially suitable for the above-mentioned measuring ranges, where this design demonstrates its strengths particularly well. This makes the sensor a suitable solution for users requiring robust and practical conductivity measurement in industrial applications. The integration into the measuring point is also designed for practical use. The plug-in version with PVC stepped collar Ø32/DN25 is intended for use with suitable PVC T-pieces and allows quick removal of the sensor for cleaning or maintenance. This is especially practical during operation when the sensor needs to be removed without great effort. The delivery does not include a union nut. Why should you choose this conductivity sensor from JUMO? This version is particularly useful when, in addition to conductivity, the temperature must also be measured directly. The integrated Pt100 enables simultaneous measurement of the medium temperature and therefore provides the basis for temperature compensation in downstream measuring amplifiers. This is a clear advantage, especially in applications where conductivity changes with temperature. The PVC body limits use to medium temperatures up to 55 °C and offers a proven design for many typical water and process applications. Typical areas of application General water technology Cooling and air-conditioning technology, drinking and bathing water systems Industrial rinsing and process water circuits This sensor can be used wherever conductivity in a range from 0.01 to 15 mS/cm must be monitored reliably. Thanks to the combination of K = 1.0, Pt100, and the plug-in installation design, the sensor is especially suitable for applications requiring conductivity measurement, temperature detection, and easy maintenance. Technical data Measurement principle: Conductive 2-electrode conductivity sensor Cell constant: K = 1.0 Typical measuring range: 0.01 ... 15 mS/cm Temperature compensation: with Pt100 Process connection: PVC stepped collar Ø32/DN25 Note on scope of delivery: Delivered without union nut Body material: PVC Cell material: Graphite Operating temperature: up to 55 °C Maximum pressure: 6 bar at 25 °C Electrical connection: Connector according to DIN EN 175301-803 (Hirschmann connector)
Our Neomeris conductivity cell with 12mm connection is used for the determination of the electrical conductivity in aqueous solutions. Inside the T-piece is the two-electrode measuring cell without temperature compensation. The installation is easy and fast due to the John Guest connectors. We recommend the use of the product in the fields of distillate, condensate, ultrapure water as well as fully demineralized water. Technical data Material Housing: POM T-piece John Guest ½" Material electrodes: V4A 4571 Cell constant: C = 0.1 +-5% Max. operating pressure: 6 bar Max. operating temperature: 60°C Electrical connection: - brown electrode, outer sheath - white Electrode, inside - blue: shieldCable length: 2.5 meters
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 1/2 "Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=0.1 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
Technical data: Screw-in thread: 3/4"Material housing: POM black Material electrodes: V4A 4571 Material O-ring: EPDM Cell constant: C=1.0 +/- 10%. Max. Operating pressure: 6 bar Max. Operating temperature: 60°C Temperature sensor: PT100 Solenoid valve connector: ST2+SL electrodes Colour cable green/yellow St1+St2 PT 100 Colour cable brown/white
The conductivity measuring package consists of a 3 meter connection cable, a Modbus head transmitter, and the conductivity sensor. Due to the design of the sensor assembly, only the sensor needs to be replaced, when it should be worn out . All other components of this system can be used continuously. For an optimal process integration the NeoTec sensor is delivered with a fitting T-piece. Advantages: preconfigured for NeoTecMaster® modular design industry standard resource friendly
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
Our Neomeris Select high temperature conductivity cells are suitable in a wide range of high performance applications with high temperatures and pressures.To meet these demanding technical requirements, our sensors are manufactured from 316 stainless steel with PEEK elements and feature a one-piece cell design suitable for high pressure conditions. The conductivity cells are available with different cell constants (0.1/cm and 1.0/cm) and temperature sensors (PT100 and PT1000) and are designed for a specific pressure-temperature range. Certain model types also allow you to choose between a short and long thread, depending on the installation situation.Our 1/2" inch Select LF stainless steel conductivity cell is a general purpose sensor that can be used in a variety of standard applications such as in cooling towers or water treatment plants, etc. and is easy to install. In contrast, our Select HTLF Ultra high performance conductivity cell is the top of the range model. This conductivity sensor is specially designed for boiler applications where it is permanently integrated in the boiler. Via our selection menu you can easily choose the right conductivity sensor for your application. Please contact us if you have any questions.
