NeoTecMaster® - 7 inch (4 channel multi-parameter controller)

Product number: 850961

Product information "NeoTecMaster® - 7 inch (4 channel multi-parameter controller)"

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals.
For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.



Advantages:
  • Simple operation
  • Integration of the Testomat® device world

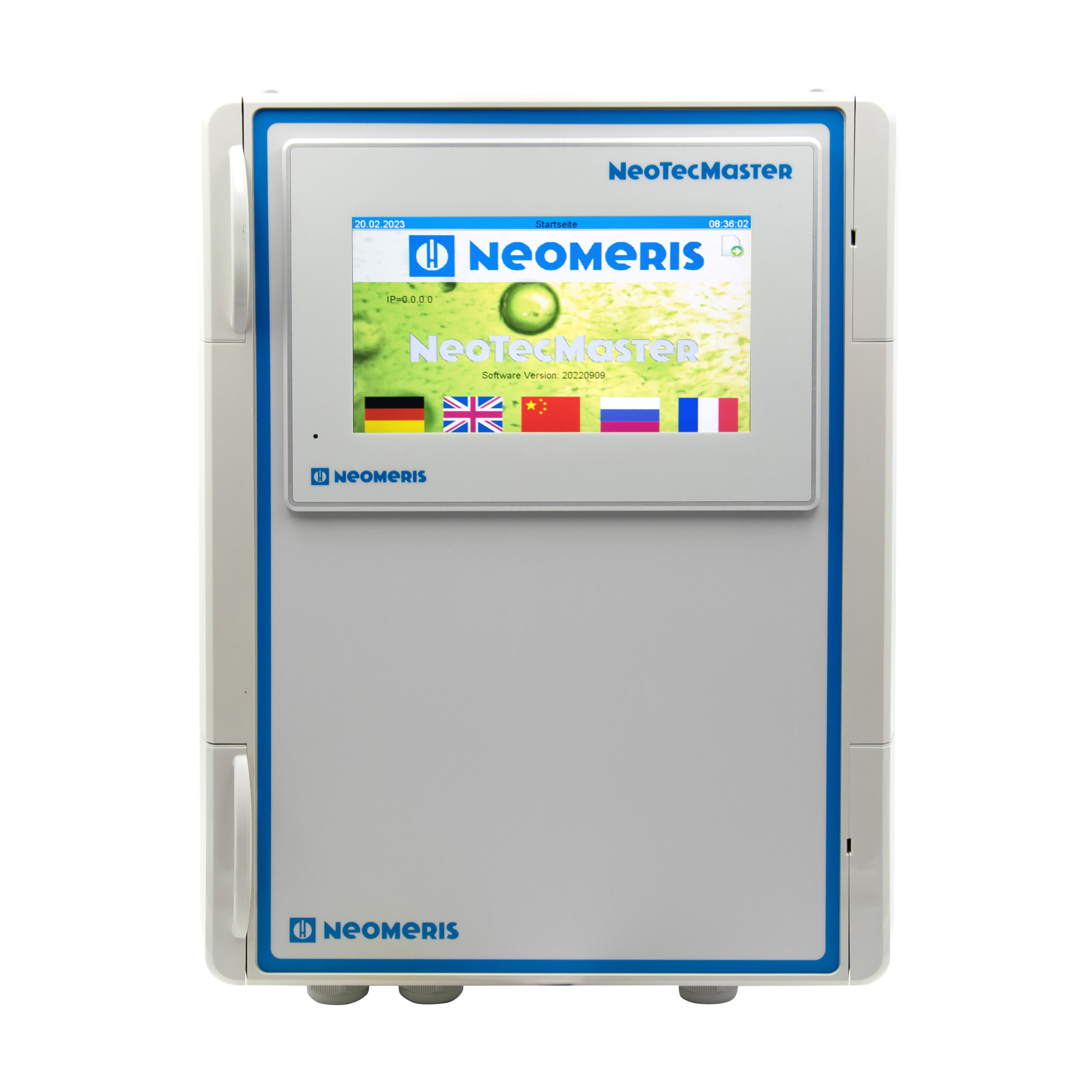

  • Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing
  • Modular function range expandable by NeoTec slave modules (measure, control, control)
  • Available as installation variant or structure variant

Dimensions

Height 4,8 cm
Length 21 cm
Width 15 cm

Weight

Weight 1,035 kg

Other attributes

Country of origin DE
Customs tariff number 85371091
Technical data

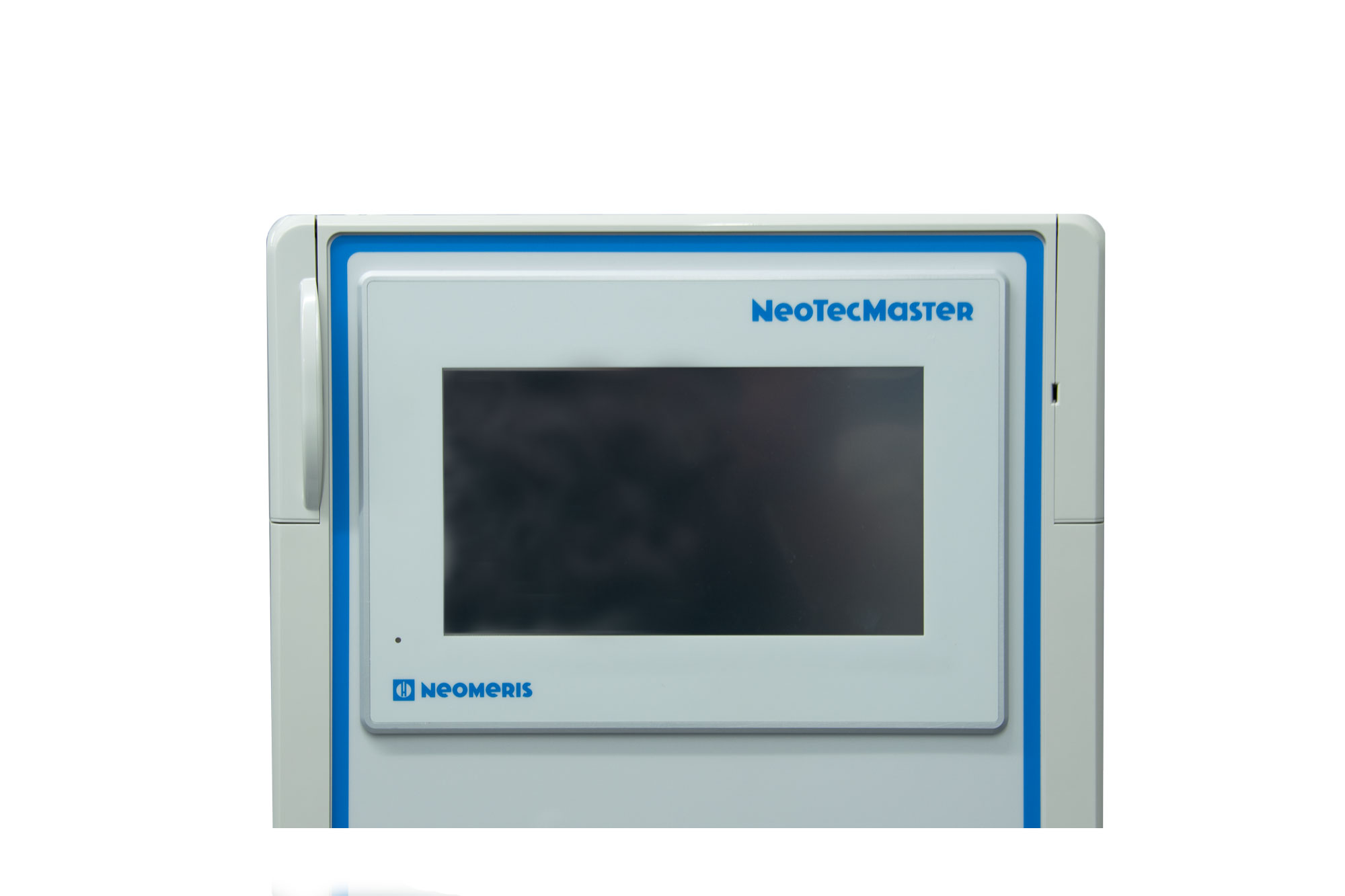

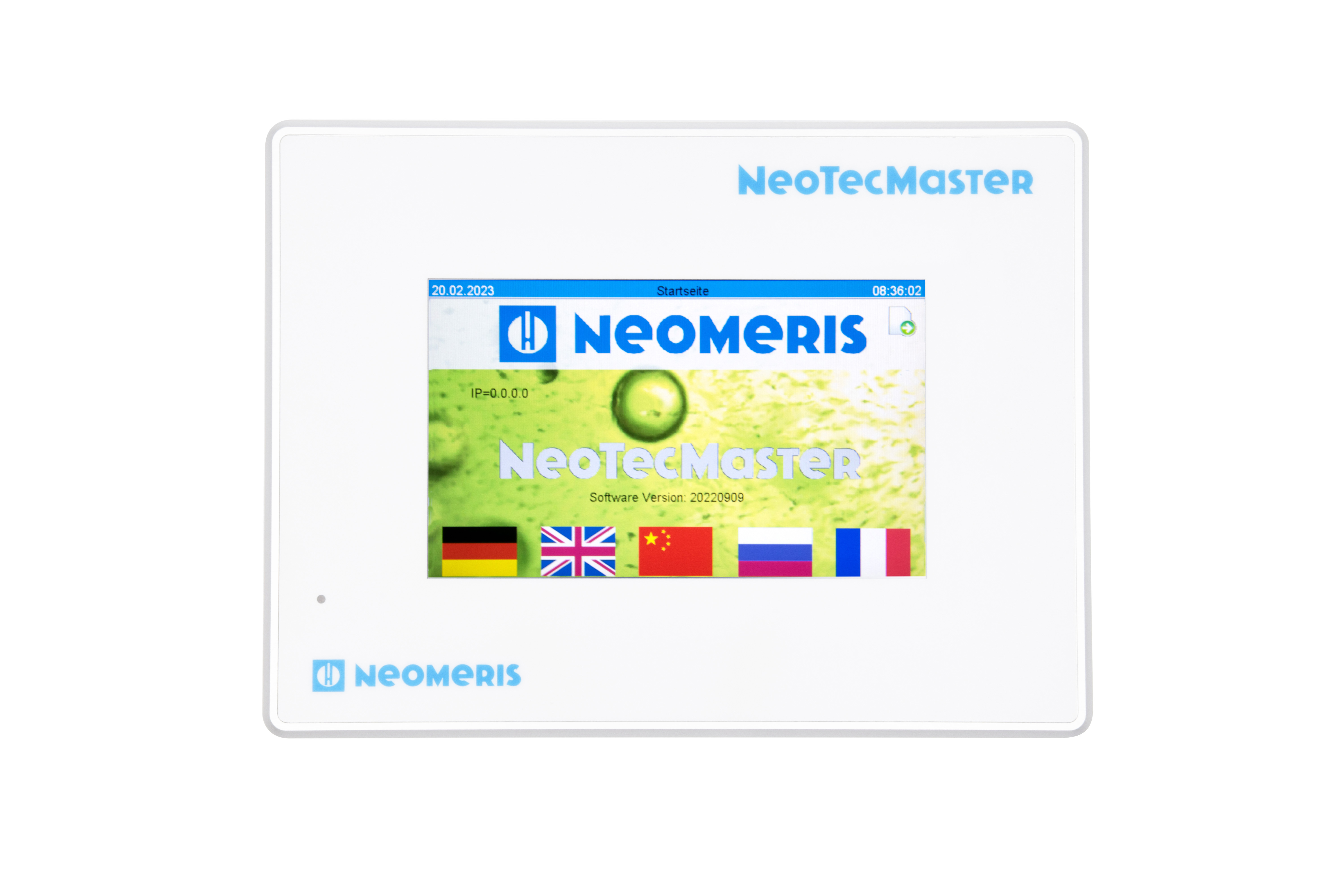

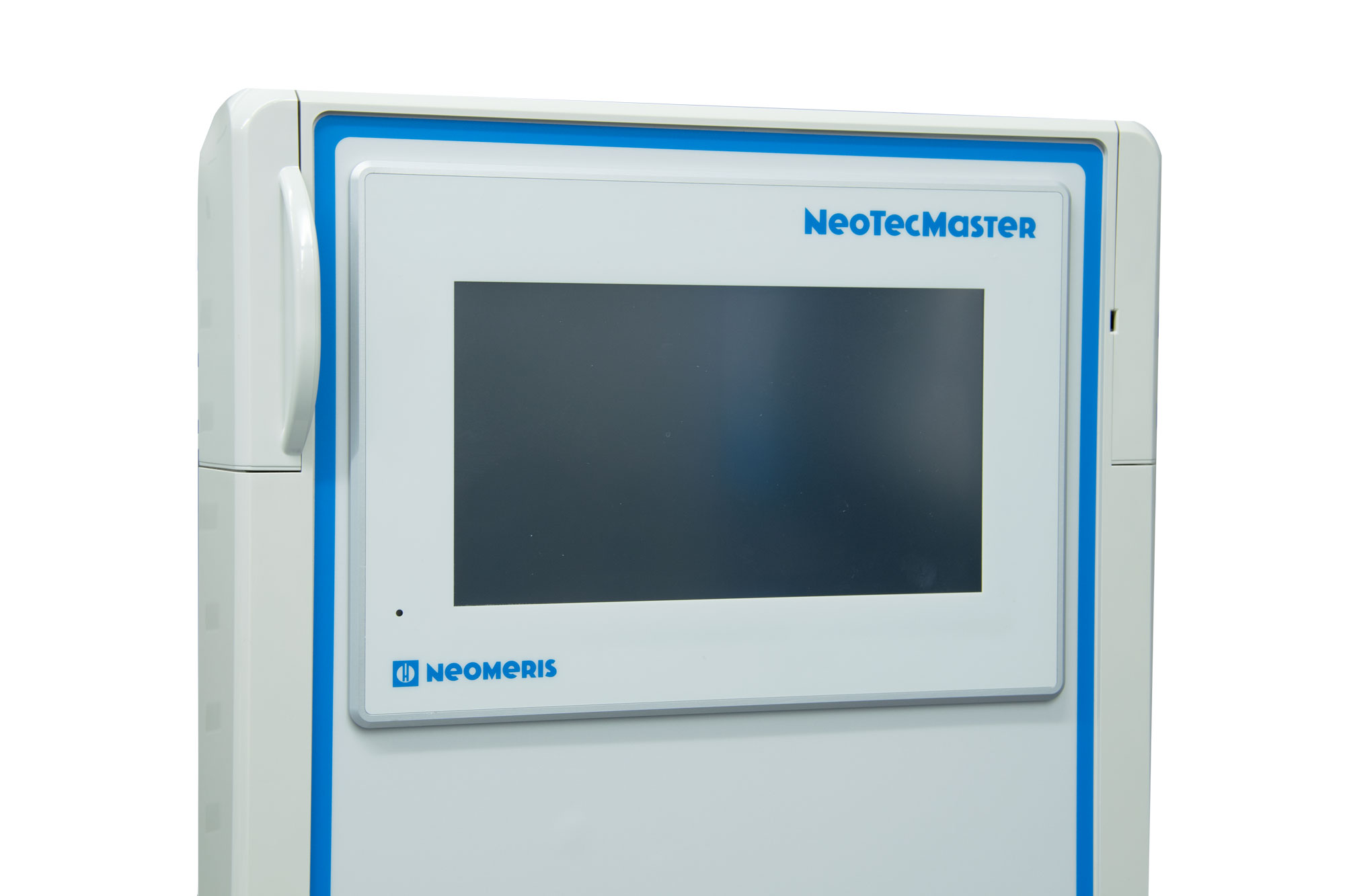

  • 7 inch display with integrated resistive touch screen
  • 24VDC power supply
  • Display of four measured values

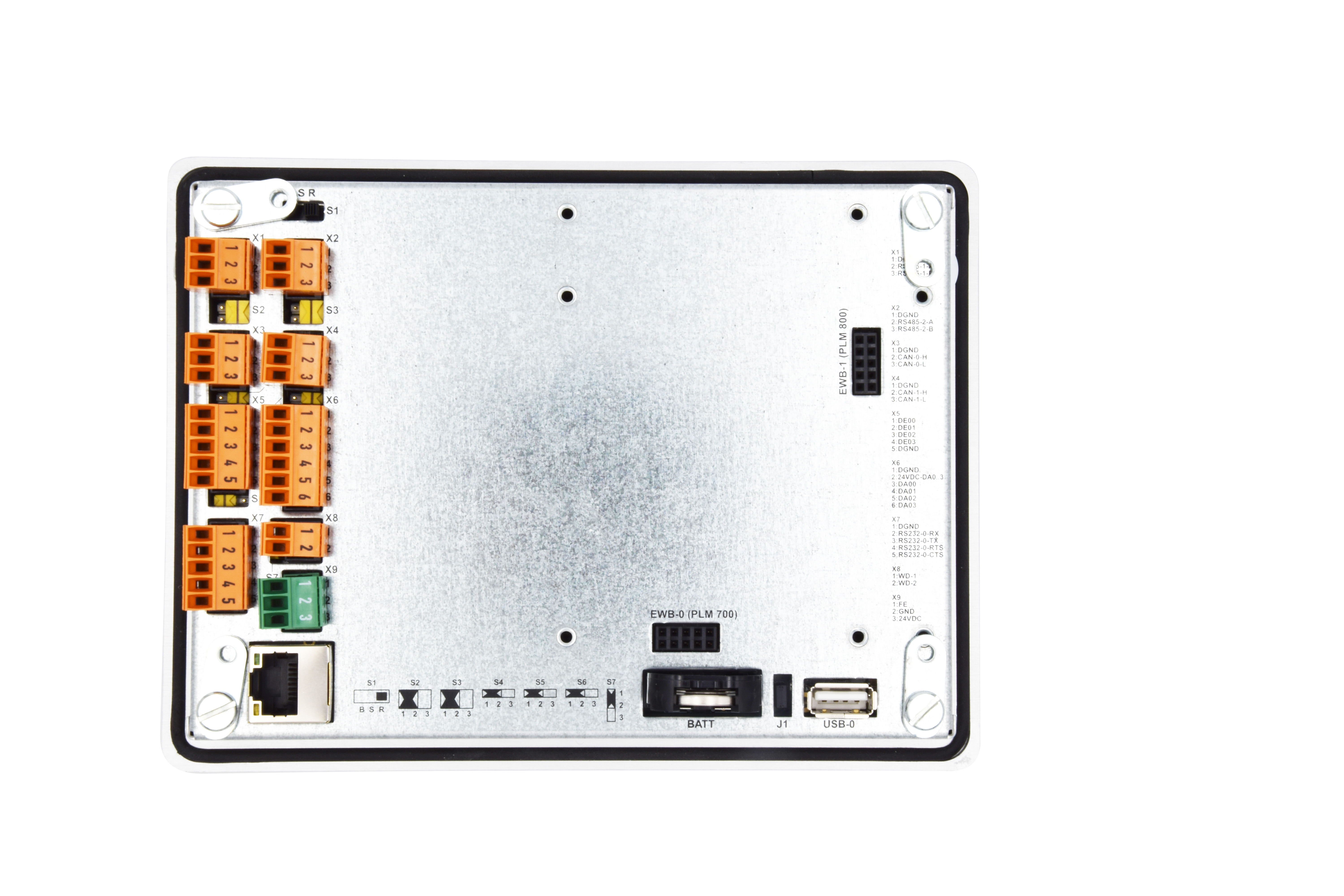

  • 2x RS232 input for connection of a Testomat® LAB and EVO TH
  • 2x RS485 input for connection of Modnus RTU sensors
  • USB input (for data storage)
  • Ethernet interface for visualization of the actual status
  • Dimensions (W x H x D) 210 x 150 x 48 mm

Recommended

NeoTecMaster® enclosure IP66 for 7" screen, light grey
Product number: 850968

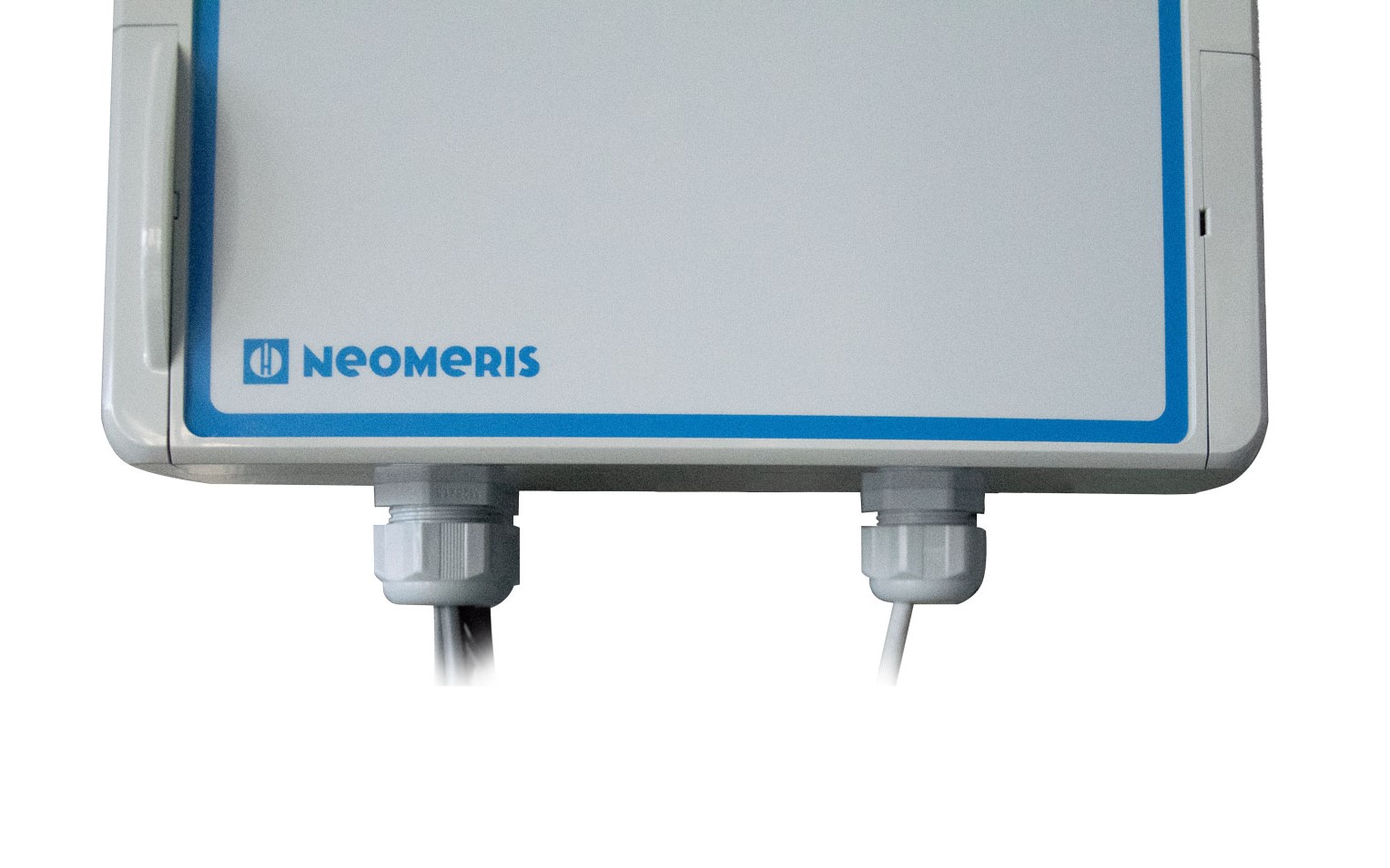

The housing for holding the master or display unit as well as up to 10 function modules incl. optimized cable routing for connecting the individual components & PG glands for connecting external cables (e.g. for Ethernet, sensors and measurement technology). The advantages at a glance: Increase of the protection class to IP 66 and thus protection of the components against damage by environmental conditions. Optimized access for the cabling of the connected components.

€182.25*
