Neomeris blowdown panel for cooling tower - conductivity measurement and 1x 4-20mA output

Product number: 891321


Please log in to receive your conditions.

Available in 56 days, delivery time 1-2 days

Product number: 891321
GTIN: 4260682380210
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.

Leasing Example

44,33 € non-binding
Monthly Rate (60 Rates)
Prices excl. VAT

Further rate options by choosing the payment method Leasing

Product information "Neomeris blowdown panel for cooling tower - conductivity measurement and 1x 4-20mA output"
The Neomeris flush panel was developed for simple conductivity-controlled flushing processes in the cooling tower area.

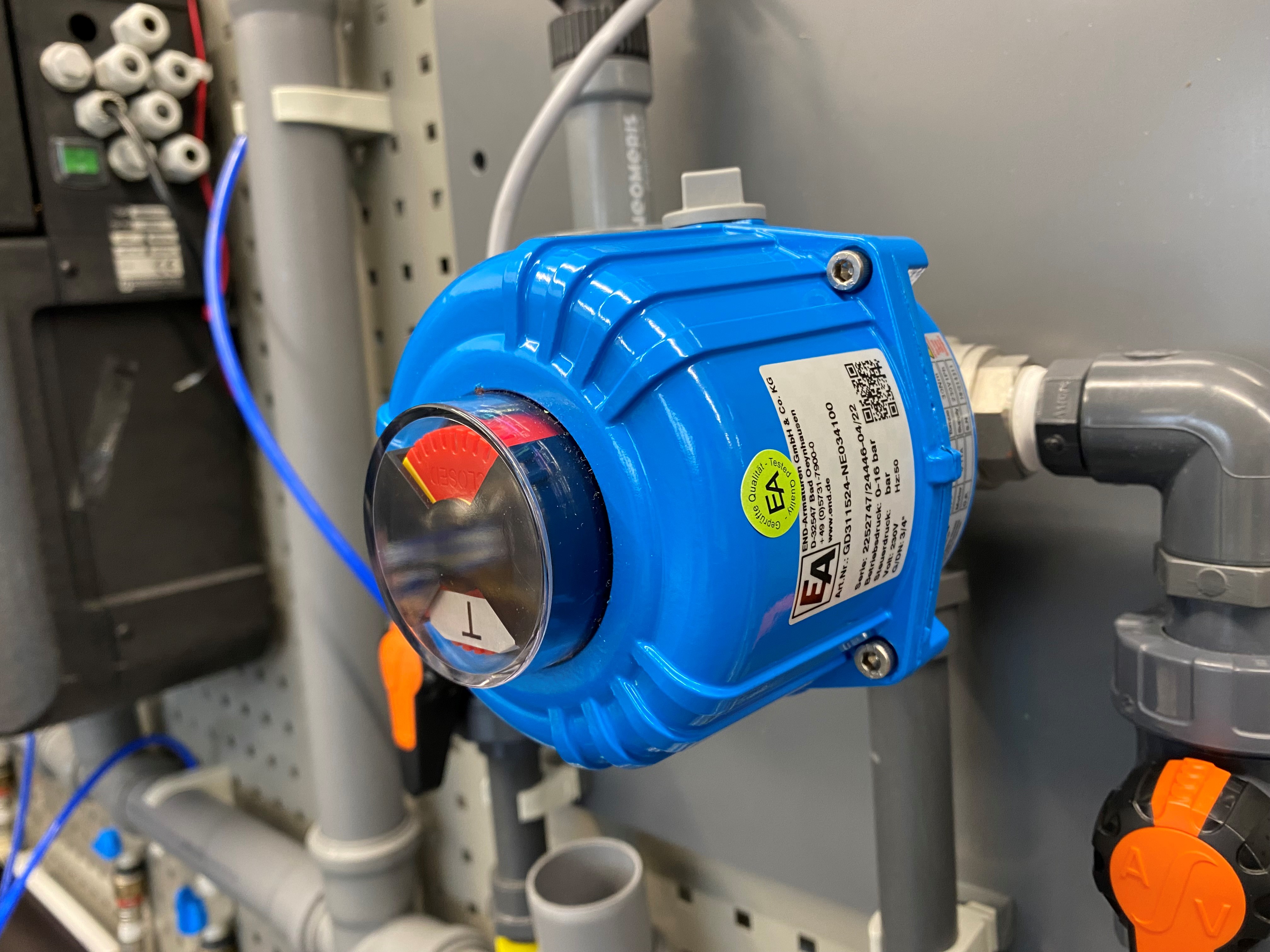

The control of the electric motor valve for the blowdown is carried out using a conductivity measuring cell of the type NeoTec Select. The flush panel is delivered pre-programmed and electrically wired ready for operation. The conductive conductivity measurement is pre-calibrated at the factory. The Neomeris Control DES control system has additional functions that can be used technically in consultation with Heyl Vertriebsgesellschaft if required.



Other attributes

Anwendungen Cooling water
Brand Neomeris
Technical specifications
Power supply: Controller
Graphic display: 128x64 dots, 4 keys
Measuring range conductivity: 0 - 5000 μS/cm
Accuracy conductivity: +/- 2% of measuring range end value
Temperature measurement: 1 x Pt 100
Analogue output: 1 x 4-20 mA Digital outputs: 1 x flush valve (connected), 1 x circulation pump (not part of the product), 1 x dosing pump, 1 x dosing valve, 1 x operating signal
Digital inputs: 1 x dosing tank empty, 1 x time dosing tank empty
Dimensions (L x W x H): 860 mm x 400 x 240 mm
