Neomeris water softener 80
€780.30*
Please log in to receive your conditions.
Available in 28 days, delivery time 1-2 days
(Login for quotation) The entered number of pieces will be taken into account when creating the quotation.
Product information "Neomeris water softener 80"
The Neomeris Water Softener 80 is designed for households with up to 8 people and softens up to 8,000 litres per regeneration cycle with an inlet water quality of 10°dH. The Neomeris Water Softener 80 uses the ion exchange process to partially replace the ‘hardness minerals’ calcium (Ca2+) and magnesium (Mg2+) with sodium ions (Na+). This removes the limescale, resulting in soft water.
Product benefits at a glance:
Structure of the Neomeris water softening system 80

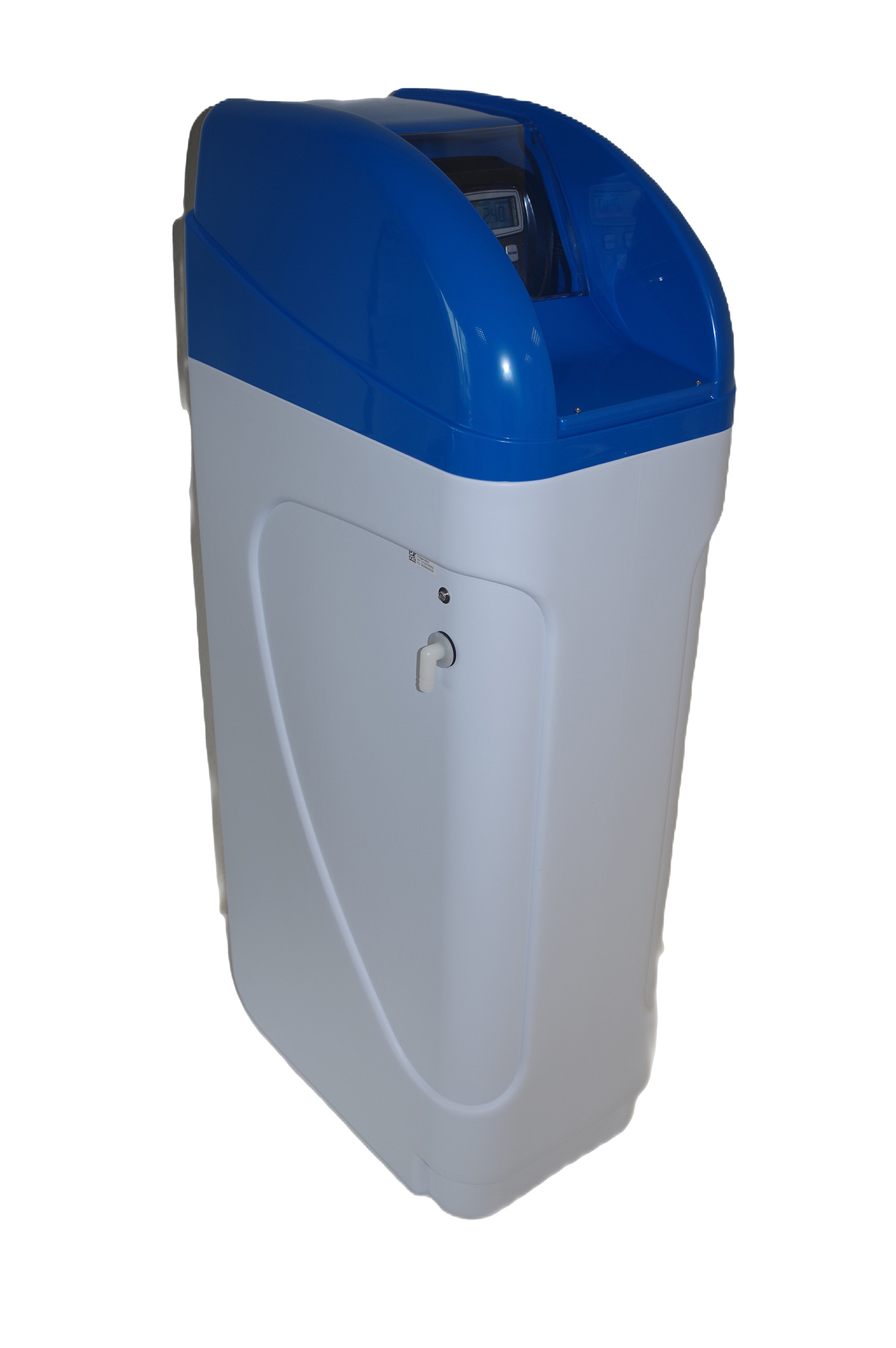

The Neomeris water softener 80 comprises a cabinet housing with a removable lid. The cabinet contains a GRP pressure vessel filled with high-quality ion exchange resin. The cabinet housing also serves as a container for regeneration salt for the production of brine (saline solution) and can hold up to 70 kg of salt. The system is completed by a Clack WS 1 CI water-controlled valve mounted on the GRP pressure bottle. The control valve has an easy-to-use microprocessor-controlled system with five buttons. The multifunction display with status indicator supports both metric and imperial units of measurement. CLACK WS 1 CI is made of sturdy, modular material without screws, reinforced with fibreglass. The front can be easily removed thanks to a click system, which makes maintenance simple.
The CLACK WS 1 CI control valve is factory-set to ‘delayed volume-controlled regeneration’ (volume control).
Controlling the quantity with the Clack WS 1 CI valve
With a built-in water meter, the Clack WS 1 CI electronic water-volume-controlled valve determines the consumption of soft water. If the soft water flow reaches the preset volume, the regeneration phase does not begin immediately, but only at night. To ensure that lime-free water continues to be available after the preset water capacity has been reached, a reserve capacity is set in advance as a safety factor.
Ion exchange resin ensures soft water
The central element of every water softening system is the ion exchange resin. This resin contains sodium ions (Na+). When hard water (e.g. tap water) is passed through the resin, the calcium and magnesium ions (Ca2+ / Mg2+) contained in the water are exchanged with the sodium ions (Na+) adhering to the resin. The result is soft water. The resin has a service life of more than 20 years.
Regeneration of the Neomeris water softening system 80
When the exchange resin has exhausted its capacity and is completely saturated with calcium and magnesium ions (Ca2+ / Mg2+), the system regenerates itself using the salt tablets (saline solution) that have been added. This regeneration takes place as follows: The calcium and magnesium ions (Ca2+ / Mg2+) must be completely removed from the ion exchange resin. To achieve this, the water softener automatically feeds a highly concentrated sodium chloride solution through the ion exchange resin.
During this process, the resin is recharged with sodium ions (Na+). The calcium and magnesium ions (Ca2+ / Mg2+) are discharged into the waste water together with the excess salt solution via a separate drain. The resin can now be used again to soften tap water. During regeneration, the Neomeris water softening system provides 80 litres of untreated tap water via an integrated bypass, ensuring a continuous water supply.
Forced regeneration in the absence
The system's forced regeneration starts automatically on the 10th day of inactivity. This prevents germ formation in the resin bed. This forced regeneration is a safety regeneration that only takes place if no regeneration has occurred due to quantity control, such as during holidays.
Reliably measure salt filling
Depending on water hardness and consumption, one salt filling lasts for around 3 to 4 months. After this, new salt must be added. An integrated safety float valve with buoy protects the cabinet housing from overflowing water.
Option: Connection kit for cabinet-type water softener
You can optionally order the matching connection kit for the cabinet-type water softener. This consists of:
- Double nipple (item no.: 882103)
- Connection fitting (item no.: 882068)
- 2 × 100 cm flexible hose, 1”, female thread on both ends for water softener inlet (item no.: 882069)
- Waste water hose (item no.: 882070)
- Hose clamp (item no.: 882071)
- ITP Multitri = free outlet (item no.: 882072)
- Duroval A (item no.: 400010)
Frequently Asked Questions
Suitable for households of up to around 8 people.
It replaces hardness-causing minerals such as calcium and magnesium with sodium.
Yes, it significantly reduces limescale and protects appliances such as washing machines and kettles from deposits.
Many users report softer skin and hair that feels more pleasant thanks to the soft water.
You only need to top up the salt occasionally; the rest runs automatically in the background.
Yes, you save energy, protect your appliances and reduce the amount of cleaning required throughout the home.
With a bit of DIY skill, this is possible; alternatively, a specialist company or our service partners can help you with this.
Dimensions
| Height | 112 cm |
|---|---|
| Length | 50 cm |
| Width | 35 cm |
Other attributes
| Country of origin | DE |
|---|---|
| Customs tariff number | 84212100 |
| Parameter | Value |
|---|---|
| Application Area | Drinking water |
| Purpose | Reduction of water hardness |
| System capacity at 200 g salting | 80 m³ based on 1°dH |
| Salt consumption per 1°dH and 1 m³ | Factor 0.05 |
| System capacity at 120 g salting | 64 m³ based on 1°dH |
| Salt consumption per 1°dH and 1 m³ | Factor 0.0375 |
| Water consumption per regeneration | 6 bed volumes |
| System connection | 24V / 50 Hz / 10VA |
| Ambient temperature | +5 / +40°C |
| Water temperature | +5 / +30°C |
| Operating pressure min. / max. | 2 bar / 8 bar |
| Humidity | <60% |
| Operating material (salt) | DIN EN 973 (food grade) |
| Splash-proof | No |
| Interfering ions | Iron, manganese, chlorine |
| Component | Specification |
|---|---|
| Control Valve | Clack WS1.00CK ECO KTW (KTW-BWGL compliant) |
| Regeneration Type | Volume- or time-controlled, fully automatic |
| Salt Consumption per Regeneration |
Full brining: 1.6 / 2.5 / 4 kg Economy brining: 0.96 / 1.5 / 2.4 kg |
| Flow Rate | Up to 3.5 m³/h (at 1 bar pressure loss) |
| Capacity at 10°dH* | 3,200 / 5,000 / 8,000 liters |
| Regeneration | Demand-based, optimized for low salt and water consumption |
| Regeneration Duration | Approx. 60–90 minutes (depending on system configuration) |
| Resin Volume (optional) | e.g. 8 / 12.5 / 20 liters (model dependent) |
| Salt Tank | Integrated, cabinet design |
| Salt Capacity | Approx. 25–50 kg (depending on model size) |
| Operating Pressure | 2 – 6 bar |
| Operating Temperature | 5 – 30 °C |
| Max. Water Hardness | Up to approx. 40 °dH |
| Water Connection | 1" female thread |
| Drain Connection | DN 40 hose connection |
| Power Supply | 230 V / 50 Hz (control unit with power adapter) |
| Certification | KTW-BWGL compliant according to UBA (as of 2025) |
| Application Area | Single-family homes, offices, small commercial use |
| Dimensions (W×H×D) | e.g. 320 × 1100 × 500 mm (model dependent) |
| Weight (operational) | Approx. 40–60 kg (depending on configuration) |
Die örtlich bei Ihnen anliegende Wasserhärte können sie z.B. auf der Internetseite ihres Wasserversorgers einsehen. Wenn sie auf Nummer sicher gehen wollen, liefern wir Ihnen gerne auch das passende Wasserhärte-Testbesteck, damit sie ganz genau die Wasserhärte vor Ort bei Ihnen bestimmen können. Sie finden dieses bei uns im Shop unter Art.Nr. 400007 DUROVAL® 1 drop = 0.1 °dH Drop Count Titration Test. This test kit is already included in the complete set with item no. 400005 Water Hardness DUO Test Kit. Below you will find some sample calculations, for your reference, of the achievable volume of softened water for water hardness levels ranging from 3 °dH to 40 °dH.
Water softeners can be regenerated using either economy salting or full salting. With full salting, approximately 200 grams of salt are used per litre of softening resin for regeneration. With partial brining, however, only 120 grams are used. Regeneration using full brining fully restores the capacity. With partial brining, 80% of the softened water capacity is restored through regeneration, despite the significantly lower salt requirement. Based on your requirements, you can therefore determine the most suitable system for your needs.
| Water hardness (°dH) | Cabinet-type water softener 32 | Cabinet-type water softener 60 | Cabinet-type water softener 80 | |||
|---|---|---|---|---|---|---|
| 8 L Resin Full salting (L) | 8 L Resin Reduced-salt (L) | 12,5 L Resin Full salting (L) | 12,5 L Resin Reduced-salt (L) | 20 L Resin Full salting (L) | 20 L Resin Reduced-salt (L) | |
| 3 | 10.666 | 8.533 | 16.666 | 13.333 | 26.666 | 21.333 |
| 4 | 8.000 | 6.400 | 12.500 | 10.000 | 20.000 | 16.000 |
| 5 | 6.400 | 5.120 | 10.000 | 8.000 | 16.000 | 12.800 |
| 6 | 5.333 | 4.266 | 8.333 | 6.666 | 13.333 | 10.666 |
| 7 | 4.571 | 3.657 | 7.142 | 5.714 | 11.428 | 9.142 |
| 8 | 4.000 | 3.200 | 6.250 | 5.000 | 10.000 | 8.000 |
| 9 | 3.555 | 2.844 | 5.555 | 4.444 | 8.888 | 7.111 |
| 10 | 3.200 | 2.560 | 5.000 | 4.000 | 8.000 | 6.400 |
| 12 | 2.666 | 2.133 | 4.166 | 3.333 | 6.666 | 5.333 |
| 14 | 2.285 | 1.828 | 3.571 | 2.857 | 5.714 | 4.571 |
| 16 | 2.000 | 1.600 | 3.125 | 2.500 | 5.000 | 4.000 |
| 18 | 1.777 | 1.422 | 2.777 | 2.222 | 4.444 | 3.555 |
| 20 | 1.600 | 1.280 | 2.500 | 2.000 | 4.000 | 3.200 |
| 22 | 1.454 | 1.163 | 2.272 | 1.818 | 3.636 | 2.909 |
| 24 | 1.333 | 1.066 | 2.083 | 1.666 | 3.333 | 2.666 |
| 26 | 1.230 | 0.984 | 1.923 | 1.538 | 3.076 | 2.461 |
| 28 | 1.142 | 0.913 | 1.785 | 1.428 | 2.857 | 2.285 |
| 30 | 1.066 | 0.853 | 1.666 | 1.333 | 2.666 | 2.133 |
| 32 | 1.000 | 0.800 | 1.562 | 1.250 | 2.500 | 2.000 |
| 34 | 0.941 | 0.753 | 1.470 | 1.176 | 2.352 | 1.882 |
| 36 | 0.888 | 0.711 | 1.388 | 1.110 | 2.222 | 1.778 |
| 38 | 0.842 | 0.674 | 1.315 | 1.052 | 2.105 | 1.684 |
| 40 | 0.800 | 0.640 | 1.250 | 1.000 | 2.000 | 1.600 |
Note: To ensure the water softener operates in a hygienically sound manner, the ion-exchange resin must be regenerated regularly – even if little or no water has been used.
In accordance with DIN EN 806-5 and the requirements of DVGW Worksheet W 510:
The water softener must carry out a regeneration cycle at least every 72 hours (3 days), regardless of water consumption.
This so-called forced regeneration serves to prevent microbial contamination of the ion exchange resin and ensures the long-term hygienic safety of the system.
