Testomat 2000® CLT

Product number: 100132
Product information "Testomat 2000® CLT"

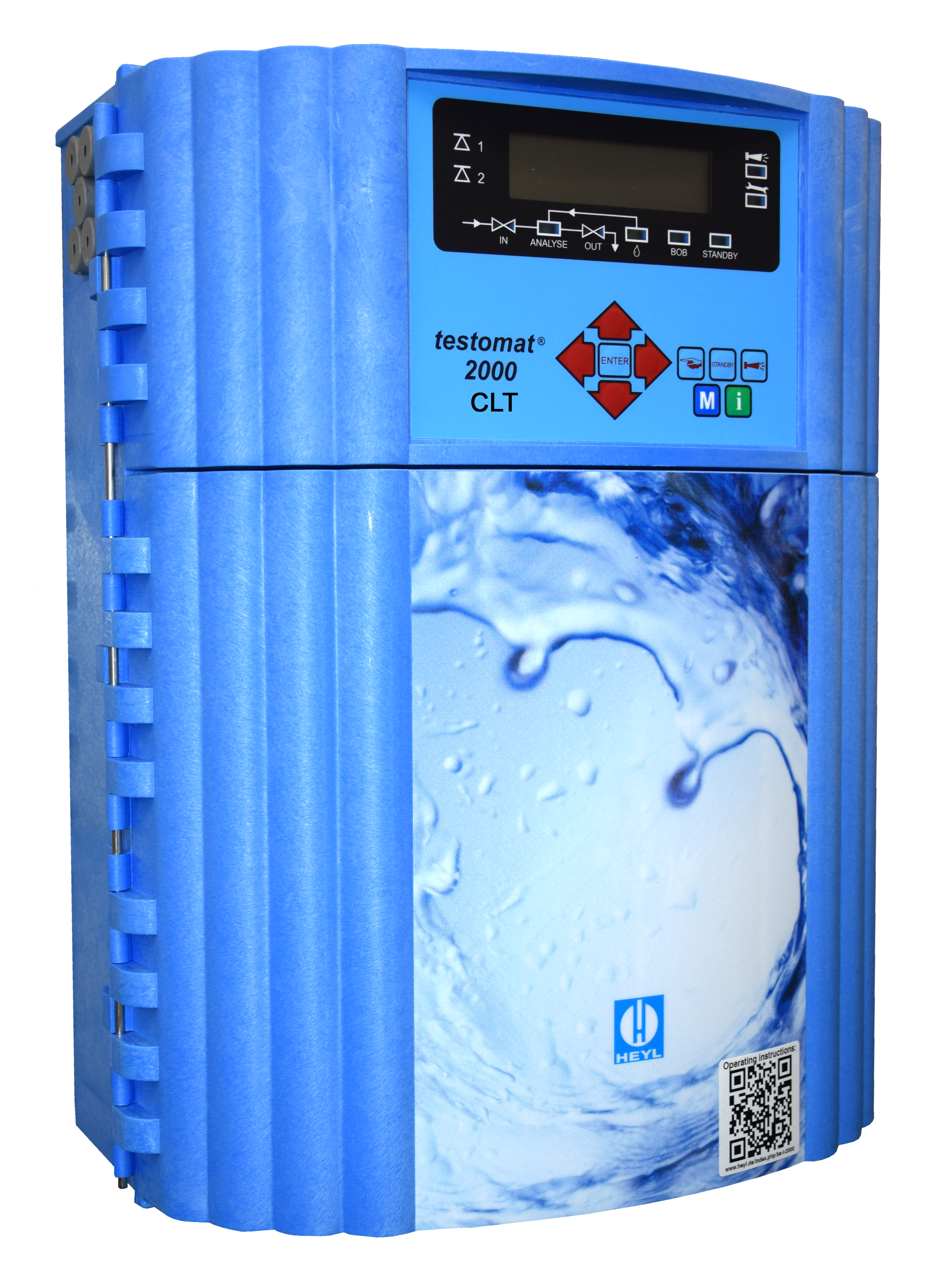

The Testomat 2000® CLT process photometer is an online analyzer for monitoring the content of total chlorine (CLT) in the range of 0-2.5 mg / L (ppm); switchable to free chlorine in the same range.

Performance profile:
  • Analysis via automatic dosing of three reagents
  • The analysis result is displayed after a reaction time of approx. 1 min. (Measuring time without rinsing time)
  • 2 independently programmable limit contacts for monitoring and control tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation
    • (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request

Weight

Weight 10 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 9,5 kg
Menu Language: German, English, French
Measuring range: Total chlorine: (Resolution) 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1) | Free chlorine: (Resolution): 0.00 – 0.99 mg/l (0.01) 1 – 2.5 mg/l (0.1)

We recommend the following reagents and accessories

Testomat 2000® chlorine reagent set T (total chlorine) 2 x 500 ml B & 1 x 200 ml C
Product number: 156235
The bottles of original Testomat 2000® Chlorine Reagent Set T can be used immediately in the Testomat 2000®® CLT, Testomat 2000® CLT Self Clean or Testomat 2000 THCL® without cumbersome filling and refilling. Content: 2 x 500 ml A, 1 x 400 ml B, 1 x 200 ml C Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€345.20*
Testomat 2000® Chlorine Reagent Set T 50 % (total chlorine) 1 x 500 ml A, 1 x 200 ml B, 1 x 100 ml C
Product number: 156237
The bottles of Testomat 2000® Chlorine Reagent Set T 50 % can be used immediately in the Testomat 2000®® CLT, Testomat 2000® CLT Self Clean or Testomat 2000 THCL® without cumbersome filling and refilling. Content:  1 x 500 ml CL2250A 1 x 200 ml CL2250B 1 x 100 ml CL2250C Measuring ranges: Total chlorine: 0.00 - 0.99 mg/l (Resolution: 0.01 mg/l) 1 - 2.5 mg/l (Resolution: 0.1 mg/l) Free chlorine: 0.00 - 0.99 mg/l (Resolution: 0.01 mg/l) 1 - 2.5 mg/l (Resolution: 0.1 mg/l)

€272.80*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€134.60*
Testomat 2000® Reagent CL2250A 500 ml
Product number: 156230
500 ml-bottles of original Testomat 2000® reagent CL 2250 A can be used immediately in the Testomat 2000®® CLF or CLT.

€104.00*
Testomat 2000® Reagenz CL 2250 B 500 ml
Product number: 156231
500 ml-bottles of original Testomat 2000® reagent CL 2250 B can be used immediately in the Testomat 2000® CLF or CLT.

€202.40*
Testomat 2000® Reagent CL 2250 C 500 ml
Product number: 156232
The 500 ml-bottles of original Testomat 2000® Reagenz CL 2250 C can be used immediately in the instrument without cumbersome filling and refilling. Measuring ranges: Total chlorine: 0,00-0,99 mg/l (Resolution: 0,01 mg/l) 1,0-0-2,5 mg/l (Resolution: 0,1 mg/l)

€295.10*
outlet hopper cpl. T2000/ECO
Product number: 40315

€92.60*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€257.10*
Service Set Testomat 2000®, Testomat ECO®, Titromat®, Testomat® EVO TH
Product number: 270360
This service kit contains all the spare parts for the regular maintenance of Testomat 2000®, Testomat ECO®, Titromat® or Testomat® EVO TH instruments.   Content: 1 T2000 gasket kit 2 30x3 sight glass 1 flow regulator cores 3 stoppers for measuring chamber 1 valve kit for injection pump 1 filter screen for intake 19.5 d x 25 3 different pipes 1 cleaning brush set

€170.80*
Service Set Testomat 2000®/Testoma®t ECO/Titromat®/Testomat® EVO TH
Product number: 270352
Service Set Testomat® Testomat® EVO TH / Testomat ECO®/Titromat®   Content: 1 x gasket kit T2000 2 x sight glass windows 30x3 1 x flow regulator core, complete 3 x cylindrical protection plug with shoulder 5.3dx5 PE 1 x set of valves for the injection pump 1 x filter screen for feed 19.5dx25 3 x different pipes 3 x cleaning brush

€235.00*
Repair and maintenance case T2000/EVO TH/ECO
Product number: 270337
Repair and maintenance case T2000/EVO TH/ECO for professionals Content: 15 x plugs for measuring chamber5 x filter screens for feed 19.5dx252 x springs for feed5 x flow regulator cores, complete10 x O-rings 10.82x1.7810 x O-rings 20x25 x O-rings 4.47x1.785 x O-rings 18x2 EPDM20 x flat gaskets 24x2 EPDM 606 x fuses, G-, 5x20 mm, M4A6 x (solderable) fuses TR5, T 0.2A6 x (solderable) fuses TR5, T 0.315A6 x (solderable) fuses TR5, T 1.0A6 x (solderable) fuses TR5, T 0.1A6 x (solderable) fuses TR5, T 0.08A6 x (solderable) fuses TR5, T0.16 A1 x set of brushes15 x cylindrical protection plugs with shoulders 5.3dx5 natural PE5 x O-rings 4,47x1,785 x O-rings 18x2 EPDM20 x flat seals 24 x 21 x Assortment box Testomat® />10 x inspection glasses, 30x31 x suction hose complete1x pressure hose, complete2 x magnetic stirring cores3 x screw caps with insert1 x table of contents2 x PE D=6, d=4x105 pipes2 x PE D=6, d=4x115 pipes2 x PE D=10, d=8x98 pipes2 x p

€831.00*
maintenance case "professional" for Testomat 2000®/ Testomat ECO®
Product number: 270338
 content:6x #011210 Protection plug to measuring chamber T2000 / ECO4x #011216 O-Ring 20x2, for inlet connection2x #011217 filter strainer for inlet 19,5dx252x #011218 spring for inlet2x #011225 Flow regulator valve complete4x #011249 O-Ring 10,82 x 1,782x #031582 fuse GS-M 5X20 E 4A2x #031584 fuse T 0.2 A, TR 5  RM  5,082x #031585 fuse T 0.315 A, TR 5  RM  5,082x #031592 fuse T 1.0 A, TR 5  RM  5,082x #031595 fuse T 0.1 A, TR 5  RM  5,082x #031596 fuse T 0.08 A, TR 5  RM  5,082x #031622 fuse T 0.16 A, TR 5  RM  5,081x #032287 cleaning brush set2x #033253 screw M3x40, A2, DIN 9652x #033775 O-Ring 4,47 x 1,782x #033776 O-Ring 18x2 EPDM4x #033777 flat gasket 24x2 EPDM 602x #040011 suction hose, cpl.2x #040016 pressure hose, cpl.2x #040040 valve set for jet pump2x #040050 magnetic stirring core1x #040121 inlet connector2x #040131 screw cap with insert T20002x #040141 tube,PE,D=6 d=4x1052x #040142 tube, PE, D=6 d=4x1151x #040153 screw connector G1/4"-62x #040154 plug connector 6-61x #040157 Angled plug-in connector G1/8“-64x #040170 sight glass 30x32x #04022x #040240 pipe, PE, D=10 d=8x98

€802.80*
Service-Kit controller/filter receiver
Product number: 891307
Content: 1 x 40121 inlet connector1 x 40122 outlet connector,PVC1 x 11225 Flow regulator core (1-8 bar)2 x 11216 O-Ring 20x2 (NBR) 1 x 11217 filter strainer for feed 19,5dx251 x 33777 flat gasket 24x2 EPDM 601 x 40153 screw connector G1/4"-61 x 40129 controller plug T2000,cpl.

€177.30*
Service-kit DosiClip
Product number: 891305
Content: 1 x #40011 suction hose, cpl.1 x #40016 pressure hose, cpl.1 x #40040 valve set for jet pump

€239.90*
Service kit for measuring chamber holder + measuring chamber
Product number: 891304
Content: 2 x 40170 sight glass 30x33 x 33777 flat gasket 24x2 EPDM 602 x 33776 O-Ring 18x2 EPDM3 x 11210 Protection plug to measuring chamber T2000 / ECO / EVO TH / EVO TH CAL1 x 40050 Magnetic stirring core

€102.20*
