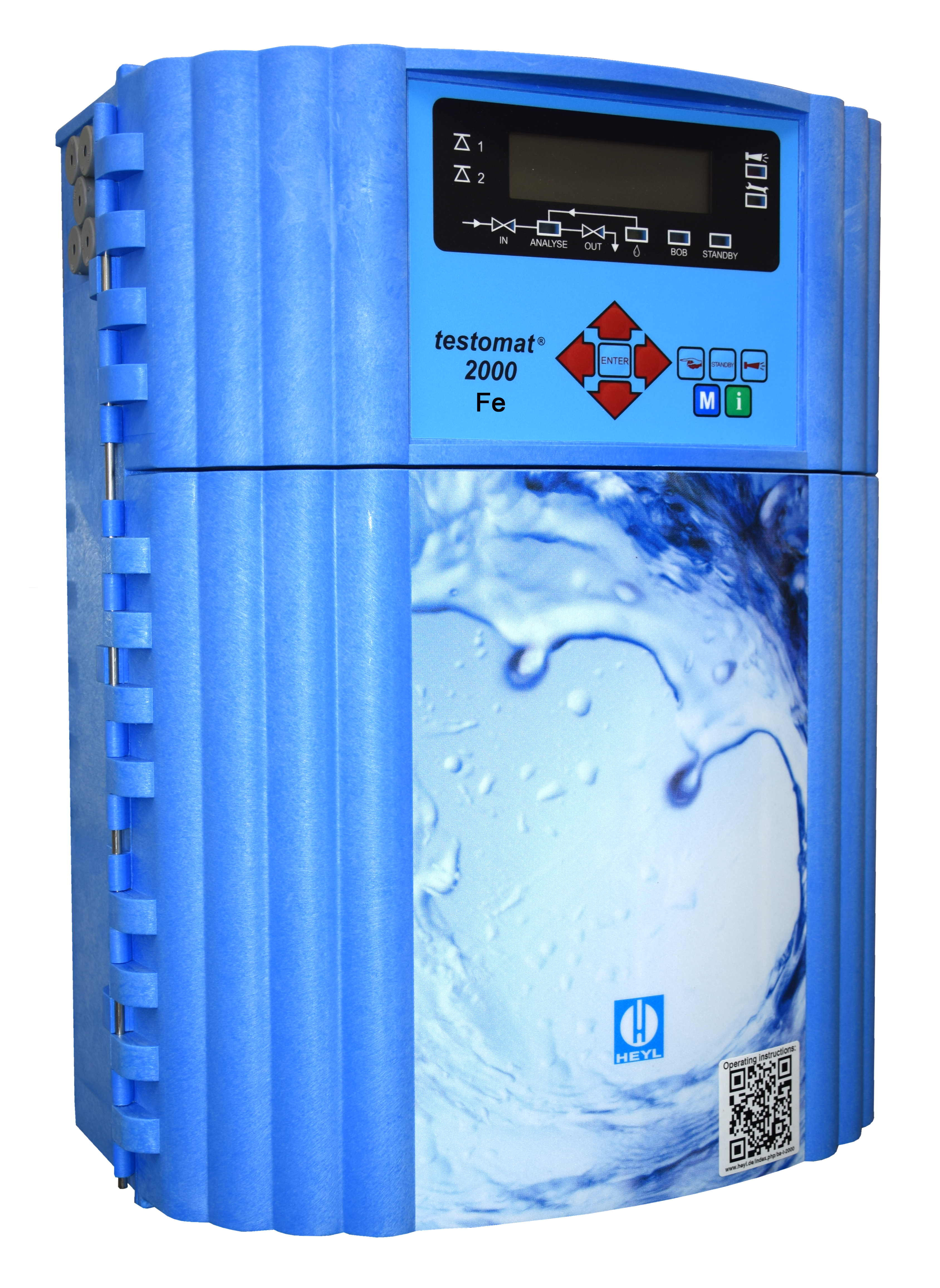

Testomat 2000® Fe

Product number: 100154

€8,498.98*

Please log in to receive your conditions.

Available in 140 days, delivery time 1-2 days

Language in the display
Performance/execution

Product number: 100154
GTIN: 4068823009583
Measurement parameters: Iron-II and Iron III
Measuring range: 0.00-0.65 mg/l and 0.7-1.0 mg/l
Application: Deironing plants
Menu navigation: German, English, French, Italian, Polish, Dutch
Would you like to register the warranty for this product?
Register warranty here
A warranty extension is possible after taking out an indicator subscription.
Offer as PDF
Login for addressed offer
The entered number of pieces will be taken into account when creating the offer.

Leasing Example

149,20 € non-binding
Monthly Rate (60 Rates)
Prices excl. VAT

Further rate options by choosing the payment method Leasing

Product information "Testomat 2000® Fe"
The Testomat 2000® Fe process photometer is an online analyzer for monitoring the dissolved iron (II) + (III) content in the range of 0 to 1.0 mg / l (ppm) using the photometric analysis principle.

Performance profile:
  • Analysis via automatic dosing of two reagents
  • The analysis result is displayed after a reaction time of approx. 7 min. (Measuring time without rinsing time)
  • 2 independently programmable limit contacts for monitoring and control tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation
    • (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • Programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request

Dimensions

Weight

Weight 9,5 kg

Other attributes

Country of origin DE
Customs tariff number 90278990
Technical specifications
/tr>
Power consumption: max. 30 VA
Protection class: I
Protection: IP 65
Ambient temperature: 10–45 °C
Water temperature: 10–40 °C
Dimensions (W x H x D):     380 x 480 x 280 mm
Operating pressure: 0,3–8 bar
Weight: approx. 10,5 kg
Menu Language: German, English, French, Italian, Polish, Dutch
Measuring range: Iron Fe (II), Fe (III): 0,00 – 1,00 mg/l (Resolution): 0,00 – 0,65 mg/l (0,01) | 0,7 – 1,00 mg/l (0,1)

We recommend our reagents, as well as the following accessories

Testomat 2000® Reagent Fe 2005 A 500 ml
Product number: 156250
Testomat 2000® reagent FE 2005 A in 500 ml bottleMeasuring range: 0 - 1.0 [mg/l]Test substance: dissolved iron (II) and (III)   For the analyser T2000® Fe, whose measuring ranges are as follows:Range I: 0 - 0.65 mg/l, resolution: 0.01 mg/l Range II: 0.7 - 1.0 mg/l, resolution 0.1 mg/l The 500 ml bottles of the original Testomat® reagent can be inserted directly into the instrument without any cumbersome decanting.

Content: 0.5 Liter (€702.34* / 1 Liter)

€351.17*
Testomat 2000® Reagent Fe 2005 B 500 ml
Product number: 156251
Testomat 2000® reagent FE 2005 B in 500 ml bottleMeasuring range: 0 - 1.0 [mg/l]Test substance: dissolved iron (II) and (III)   For the analyser T2000® Fe, whose measuring ranges are as follows: Range I: 0 - 0.65 mg/l, resolution: 0.01 mg/l  Range II: 0.7 - 1.0 mg/l, resolution 0.1 mg/l The 500 ml bottles of the original Testomat® reagent can be inserted directly into the instrument without any cumbersome decanting.

Content: 0.5 Liter (€759.46* / 1 Liter)

€379.73*
Connection Set for Testomat 2000® / ECO / EVO / LAB
Product number: 40187
In diesem Anschluss-Set ist alles enthalten, was Sie für den schnellen Anschluss des Testomat 2000®- oder Titromat®-Gerätes benötigen.   Inhalt: 5 m Kunststoffrohr PE 6/4x1,blau 2 m Ablaufschlauch di = 12 mm 1 Kugelhahn, PPSV 011223W 1 Reduzier-Verbinder 10 auf 6 mm 1 Reduziernippel 3/8"-1/2"

€160.17*
outlet hopper cpl. T2000/ECO
Product number: 40315

€110.19*
Current Interface SK 910
Product number: 270305
Plug-in card for a current interface, suitable for Testomat 2000® and Titromat® instruments.   Technical Data output current: 0-20mA or 4-20mA maximum load: 500 Ohm galvanic isolation   Usable in following devices: Testomat 2000®, Testomat 2000® CAL, Testomat 2000® CLF, Testomat 2000® CLT, Testomat 2000® CrVI, Testomat 2000® DUO, Testomat 2000® Fe, Testomat 2000® SO3,  Testomat 2000® Self clean, Testomat 2000 THCL®, Testomat 2000® CLO2, Testomat 2000® Br2

€305.95*
